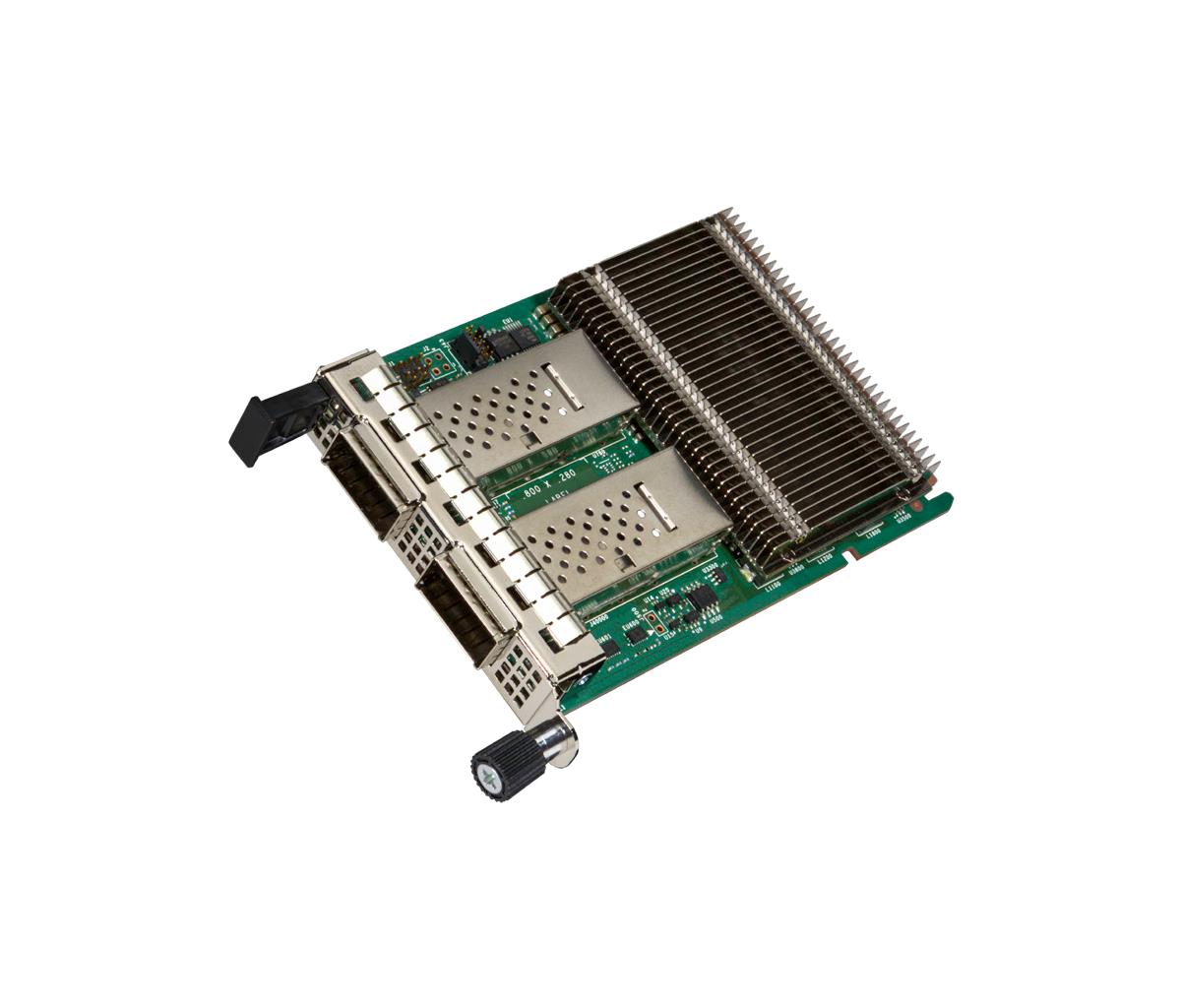

Ethernet Network Adapter E830-cqda2 - Pci-e Bulk
ITCurry #: 2730E144 | Article #: E830CQDA2OC3M-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Intel® Trusted Execution Technology
Intel® Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel® processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.
iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Hostinterface | PCI Express |
| Interface | Fiber |
| Fibre channel-poorten | 2 |
| Vezel-optische connector | SFP28 |
| PCI versie | 5.0 |
| Netwerk | |
| Maximale overdrachtssnelheid van gegevens | 200000 Mbit/s |
| Netwerkstandaard | IEEE 1588, IEEE 1588v2 |
| Ethernet LAN | Ja |
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit Ethernet, 200 Gigabit Ethernet |
| Ethernet LAN, data-overdrachtsnelheden | 10000,25000,50000,100000,200000 Mbit/s |
| Design | |
| Component voor | Server |
| Kleur van het product | Groen, Zilver |
| Intern | Ja |
| Minimale systeemeisen | |
| Andere ondersteundende systemen | Linux |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 65 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Technische details | |
| Certificaten van naleving | BSMI, CE, Federal Communications Commission (FCC), ICES, KCC, RCM, RoHS, UKCA, VCCI |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 8517620090 |
| Overige specificaties | |
| Marktsegment | Server |
| Intel© Trusted Execution Technology | Nee |
| Ingebouwde opties beschikbaar | Nee |
| Intel© Virtual Machine Device Queues (VMDq) | Ja |
| PCI-SIG* SR-IOV Capable | Ja |
| On-chip QoS and Traffic Management | Ja |
| Intel© Flexible Port Partitioning | Ja |
| Intelligent Offloads | Ja |
| iWARP/RDMA | Nee |
| Intel© Data Direct I/O Technology | Ja |
| Intel© Virtualization Technology for Connectivity (VT-c) | Ja |
| Opslag via ethernet | iSCSI, NF |
| Lanceringsdatum | Q2'25 |
| Kaartkabeldrager netwerkinterface | Copper, Fiber |
| Status | Launched |
| Export Control Classification Number (ECCN) | 5A992.C |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Bekabelingstype | QSFP28 ports - DAC, Optics, and AOC's |
| Brackethoogte | OCP 3.0 |
| Warranty | |
| Base Warranty | Non Non |
