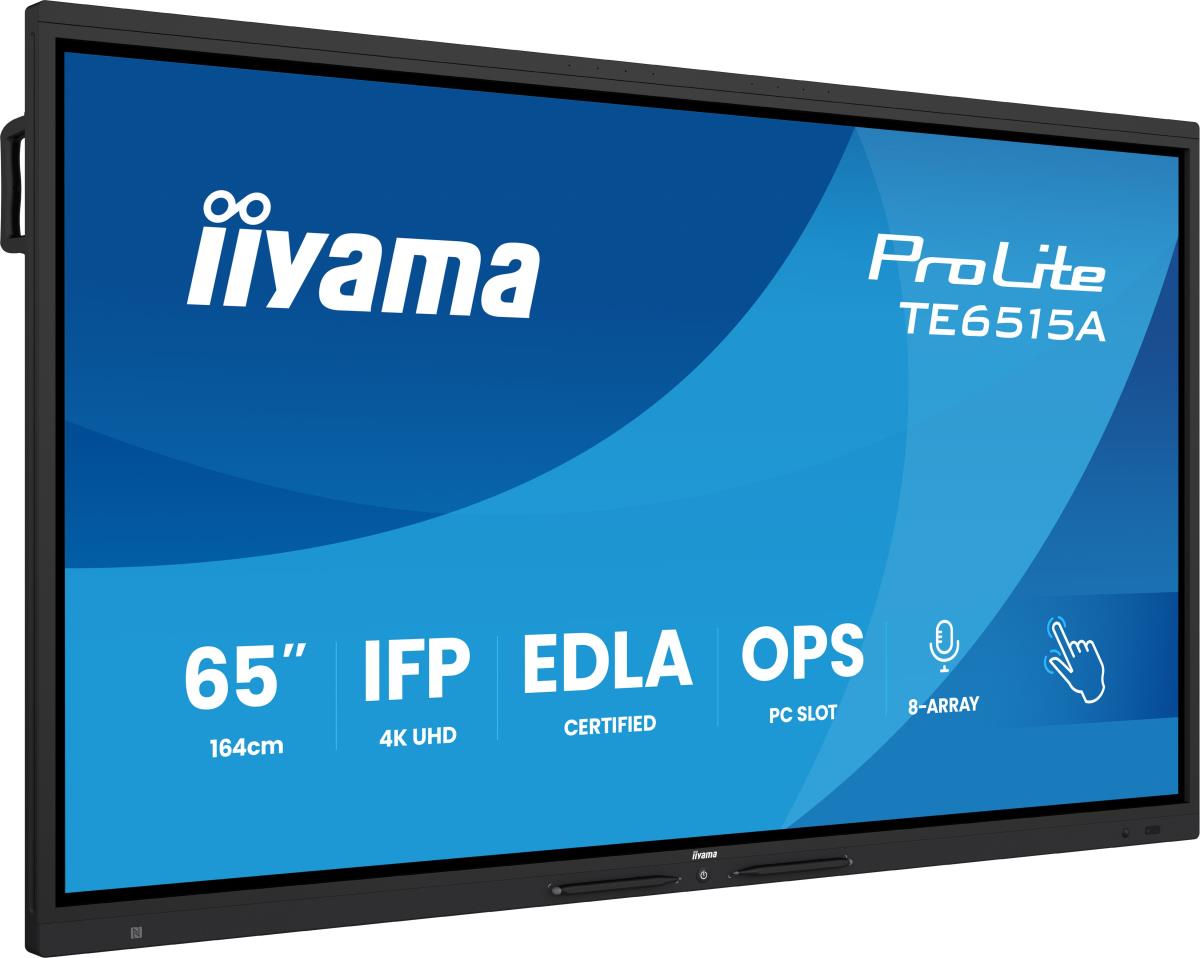

Large Format Display - ProLite TE6515A-B1AG - 65in Touch - 3840x2160 (UHD) - Black
ITCurry #: 89303493 | Article #: TE6515A-B1AG-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Elegance and functionality come together in the ProLite TE6515A-B1AG. This 65” 4K UHD panel not only delivers precision and performance, but also brings a premium look to modern classrooms and collaborative business environments. With its button-free front panel (only a discreet power button), integrated pen holders, and a stylish fabric-covered bottom bezel that subtly houses high-quality front-facing speakers, the TE6515A elevates the visual experience of any room. It’s more than a tool—it’s part of your space. Coupled with DeepContrast-IR+ technology and Palm Rejection, it offers fluid and natural writing on the Optical Bonding LCD, eliminating parallax for an intuitive feel. Powered by iiWare 21E with Android 14 (EDLA Certified), the display integrates effortlessly into Google environments. Features like WiFi6, Bluetooth 5.0 and PIR motion sensor add a layer of connectivity, energy efficiency, and access control. With iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), the TE6515A promotes seamless teamwork—whether you're presenting, teaching, or brainstorming. The TE6515A-B1AG isn’t just an interactive display—it’s a centerpiece for connection, creativity, and collaboration, all wrapped in a refined, modern design.
| Beeldscherm | |
| Soort paneel | IPS |
| Beeldschermdiagonaal | 163,8 cm (64.5") |
| Resolutie | 3840 x 2160 Pixels |
| Helderheid | 550 cd/mý |
| HD type | 4K Ultra HD |
| Touchscreen | Ja |
| Touchscreen technologie | Infrarood |
| Hoeveelheid simultane aanraakpunten | 40 |
| Multi-touch | Ja |
| Aantal gelijktijdige aanraakpunten (Android) | 32 |
| Oorspronkelijke beeldverhouding | 16:9 |
| Responstijd | 8 ms |
| Typische contrastverhouding | 1200:1 |
| Kijkhoek, horizontaal | 178ø |
| Kijkhoek, verticaal | 178ø |
| Beeldscherm, aantal kleuren | 1,07 miljard kleuren |
| Pixel pitch | 0,372 x 0,372 mm |
| Actief weergavegebied (b x h) | 1428,5 x 803,5 mm |
| Schermdiameter in centimeters | 163,9 cm |
| Systeemeigen vernieuwingsfrequentie | 60 Hz |
| Hardheid oppervlak | 7H |
| Glas dikheid | 3,2 mm |
| Poorten & interfaces | |
| Aantal HDMI-poorten | 3 |
| HDMI versie | 2.0 |
| Aantal HDMI-invoerpoorten | 1 |
| Aantal HDMI-uitvoerpoorten | 1 |
| DVI-poort | Nee |
| Aantal DisplayPorts | 1 |
| DisplayPorts in | 1 |
| DisplayPort versie | 1.2 |
| USB-poort | Ja |
| Aantal USB-aansluitingen | 4 |
| USB-connectortype | USB Type-A, USB Type-C |
| USB Power Delivery (USB PD) | Ja |
| USB Power Delivery tot max. | 100 W |
| USB Type-C DisplayPort alternatieve modus | Ja |
| Aantal Ethernet LAN (RJ-45)-poorten | 2 |
| RS-232C | Ja |
| Ge‹ntegreerde geheugenkaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash) |
| OPS-modulesleuf | Ja |
| Audio Return Channel (ARC) | Ja |
| Audio | |
| Ingebouwde luidsprekers | Ja |
| Aantal ingebouwde luidsprekers | 2 |
| Gemiddeld vermogen | 60 W |
| Design | |
| Productontwerp | Interactief flatscreen |
| Ondersteuning voor plaatsing | Binnen |
| Model | Horizontaal |
| Kleur van het product | Zwart |
| Beeldscherm vorm | Flat |
| VESA-montage | Ja |
| Paneelmontage-interface | 600 x 400 mm |
| Randkleur | Black |
| Antireflectiescherm | Ja |
| Prestatie | |
| Bedoeld voor | Universeel |
| Picture-in-Picture | Ja |
| On Screen Display (OSD) | Ja |
| Aantal On Screen Display-talen | 14 |
| On Screen Display (OSD)-talen | CAT, Tsjechisch, Deens, Duits, Engels, Spaans, Fins, Frans, Italiaans, Noors, Nederlands, Pools, Russisch, Zweeds |
| HDCP | Ja |
| HDCP versie | 2.2 |
| Mean time between failures (MTBF) | 50000 uur |
| Energie | |
| Stroomverbruik (typisch) | 195 W |
| Stroomverbruik (in standby) | 0,4 W |
| Stroomverbruik (indien uit) | 0,3 W |
| Energie-effici‰ntieklasse (SDR) | G |
| Energie-effici‰ntieklasse (HDR) | Niet beschikbaar |
| Energieverbruik (SDR) per 1000 uur | 195 kWu |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Energie-effici‰ntieschaal | A tot G |
| Computersysteem | |
| Type processor | Ja |
| Processorfabrikant | ARM |
| Processor architectuur | ARM Cortex-A53+Cortex-A72 |
| Aantal processorkernen | 7 |
| Intern geheugen | 16 GB |
| On-board graphics adapter model | ARM Mali-G52 |
| Interne opslagcapaciteit | 128 GB |
| Inclusief besturingssysteem | Android |
| Operating systeem versie | 14 |
| Gewicht en omvang | |
| Schermbreedte | 1489,1 mm |
| Display diepte | 87,1 mm |
| Display hoogte | 911,8 mm |
| Display gewicht | 43,5 kg |
| Breedte | 1489,1 mm |
| Diepte | 87,1 mm |
| Hoogte | 911,8 mm |
| Gewicht | 43,5 kg |
| Verpakking | |
| Breedte verpakking | 1640 mm |
| Diepte verpakking | 185 mm |
| Hoogte verpakking | 1010 mm |
| Gewicht verpakking | 47,4 kg |
| Inhoud van de verpakking | |
| Afstandsbediening inbegrepen | Ja |
| Batterijen inbegrepen | Ja |
| Styluspen | Ja |
| Aantal styluspennen | 4 |
| Meegeleverde kabels | AC, USB, HDMI |
| Montage gereedschap | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Relatieve vochtigheid in bedrijf (V-V) | -20 - 60 procent |
| Certificaten | |
| Certificering | CB, CE, TšV-Bauart, EAC, RoHS support, ErP, WEEE, EPEAT, REACH (RoHS), EPEAT |
| Sensoren | |
| Omgevingslichtsensor | Ja |
| Bewegingssensor | Ja |
| Netwerk | |
| Ethernet LAN | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 1000 Mbit/s |
| Wifi | Ja |
| Wi-Fi-standaarden | Wi-Fi 6 (802.11ax) |
| Technische details | |
| Audio in (mini-jack) | Ja |
| OPS-slot | 1 |
| Media afspelen | Y |
| Gebruikersknoppen | personalization (theme, wallpaper, auto loop, screensaver), display (backlight, image mode, brightness, contrast, saturation, Hue, sharpness, colour temp., eye protection mode, energy saving, HDMI range), sound (volume direct, max volume, equalizer, balance, sound mode, bass, treble), general (radial menu, side menu bar, gesture interaction, screen recorder, free annotation), device (microphone, camera (external), speaker, NFC, CEC, ambient light sensor, stylus pen pickup sensor, PIR motion sensor), input settings (source lost detection, auto source switch, auto wakeup, OPS boot with system, power on source, rename input setting), system (power status, build version), admin (menu lock, system security, meeting mode, screen share, HDMI Mode, wake On Lan), applications (network & internet, connected devices, apps, notifications, storage, sound & vibration, display, wallpaper, accessibility, security & privacy, location, safety & emergency, passwords & accounts, digital wellbeing & parental controls, Google, system, about device) |
| Duurzaamheidscertificaten | EPEAT, ErP, EPEAT Bronze |
| Garantieperiode | 5 jaar |
| Certificaten van naleving | CB, CE, EAC, REACH, RoHS, TšV mark, WEEE |
| Overige specificaties | |
| Snelstartgids | Ja |
| Audio-ingangen | Mini jack |
| Audio-uitgang | Mini jack |
| Bluetooth | Ja |
| Bluetooth-versie | 5.0 |
| Ingebouwde microfoon | Ja |
| Compatibele besturingssystemen | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Soort voeding | Intern |
