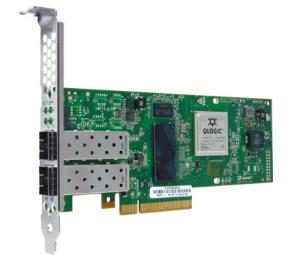

Qlogic 10GB Virtual Fabric Adv Cna (00y5618)
ITCurry #: 2550M855 | Article #: 00Y5618
slide 1 of 1
Prijs:
736,55
Excl. btw
Levering in Benelux:
GRATIS Levering.
Nu niet op voorraad. Bel ons!
Verwante producten
slide 7 to 11 of 14
Product Informatie
The QLogic 10Gb Virtual Fabric Adapter and Virtual Fabric CNA for IBM® BladeCenter® are based on the third-generation QLogic Converged Network Adapter 8200 ASIC, which supports simultaneous LAN (TCP/IP) and SAN (Fibre Channel over Ethernet (FCoE), iSCSI) traffic at line-rate, 10 Gbps Ethernet speed. This convergence of networking traffic can lower data center costs by eliminating the need for separate LAN and SAN infrastructure. Data centers now need fewer adapters, cables, and switches, which also means reduced management, power, and cooling costs.
| Netwerk | |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Full duplex | Ja |
| Datastroombeheer | Ja |
| Netwerkstandaard | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ae |
| Jumbo Frames ondersteuning | Ja |
| Ondersteunde protocollen | SoL cKVM PXE LRO RSS SCSI-3 FCoE FIP iSCSI |
| Data-uitwisseling | |
| Overdrachtssnelheid | 10 Gbit/s |
| Prestatie | |
| Compatibiliteit | IBM BladeCenter / Flex System HS23, HX5 |
| Beheerfuncties | |
| Quality of Service (QoS) | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 55 øC |
| Temperatuur bij opslag | -20 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Warranty | |
| Base Warranty | Non Non |
| Certificaten | |
| Certificering | EMI EMC EN55022 EN55024 EN60950 / CE EN 61000-3-2 EN 61000-3-3 IEC 950 CB FCC 15 A UL 1950 CSA C22.2 950-95 VCCI NZ AS3548 / C-tick RRL MIC (KCC) BSMI UL 94-/V |
| Gewicht en omvang | |
| Afmetingen (B x D x H) | 69 x 17 x 167 mm |
| Gewicht | 95 g |
| Overige specificaties | |
| Code geharmoniseerd systeem (HS) | 85176990 |
Qlogic 10GB Virtual Fabric Adv Cna (00y5618)
736.55
