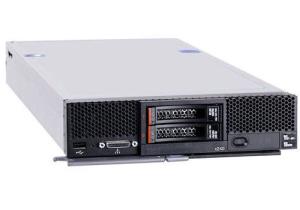

Flex System X240 Compute Node Xeon E5-2650v2 / 8GB O/bay 2.5in SAS
ITCurry #: 2550N219 | Article #: 873742G-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
- Optimized for virtualization, performance and highly scalable networking.
- Embedded IBM Virtual Fabric allows breakthrough I/O flexibility.
- Designed for simplified deployment and management.
To meet today’s complex and ever-changing business demands, the IBM® Flex System™ x240 compute node, an element of the IBM PureFlex™ System, is optimized for virtualization, performance and highly scalable I/O designed to run a wide variety of workloads. The Flex System x240 is available on either your PureFlex System or IBM Flex System solution.
Get the most out of your compute environment
The Flex System x240 compute node delivers maximum performance—up to 50 percent performance boost over previous generation servers. This enables businesses to get more out of their compute environment for a broad set of workloads. Features such as automated power management with onboard sensors give you more control over power and thermal levels across the system. These capabilities, combined with memory capacity up to 768 GB, help you get the most out of your compute environment.
- Optimized for virtualization, performance and highly scalable I/O.
- Designed for simplified deployment and management.
- Management of all resources from a single interface with IBM Flex System Manager™.
- Virtual networking with integrated virtual fabric and up to 32 virtual networking ports.
- Memory capacity up to 768 GB.
- Intel Xeon processor E5-2600 v2 product family.
- Automated power management with onboard sensors.
- Two 2.5-inch hot-swap disk slots.
- Integrated system management.
- Integrated RAID-0, -1 or optional ServeRAID M5115 (RAID-0, -1, -5, -6, -10, -50).
- Optional hypervisor.
| Processor | |
| Processorfabrikant | Intel |
| Processorfamilie | Intel© Xeon© E5 v2 familie |
| Processormodel | E5-2650V2 |
| Frequentie van processor | 2,6 GHz |
| Maximale turbofrequentie van processor | 3,4 GHz |
| Aantal processorkernen | 8 |
| Processor cache | 20 MB |
| Chipset moederbord | Intel C600 |
| Geheugenkanalen ondersteund door processor | Quad |
| Aantal ge‹nstalleerde processoren | 1 |
| Thermal Design Power (TDP) | 95 W |
| Processor cache type | Smart Cache |
| Systeembus | 8 GT/s |
| Max. aantal SMP-processoren | 2 |
| Processor socket | LGA 2011 (Socket R) |
| Processor lithografie | 22 nm |
| Processor aantal threads | 16 |
| Processor operating modes | 64-bit |
| FSB Parity | Nee |
| Bus type | QPI |
| aantal QPI links | 2 |
| Codenaam processor | Ivy Bridge EP |
| Tcase | 75 øC |
| Maximaal intern geheugen ondersteund door processor | 768 GB |
| Geheugentypen ondersteund door processor | DDR3-SDRAM |
| Klokgeheugen-snelheden ondersteund door processor | 800,1066,1333,1600,1866 MHz |
| Geheugenbandbreedte ondersteund door de processor ( max) | 59,7 GB/s |
| ECC ondersteund door processor | Ja |
| Execute Disable Bit | Ja |
| Idle States | Ja |
| Thermal Monitoring Technologies | Ja |
| Maximaal aantal PCI Express-lijnen | 40 |
| PCI Express configuraties | x4, x8, x16 |
| Verpakkingsgrootte processor | 52.5 x 51 mm |
| Ondersteunde instructie sets | AVX |
| Schaalbaarheid | 2S |
| Physical Address Extension (PAE) | 46 Bit |
| Ingebouwde opties beschikbaar | Nee |
| Processorserie | Intel Xeon E5-2600 v2 |
| Conflictvrije processor | Nee |
| Geheugen | |
| Intern geheugen | 8 GB |
| Intern geheugentype | DDR3-SDRAM |
| Geheugenslots | 24x DIMM |
| ECC | Ja |
| Kloksnelheid geheugen | 1600 MHz |
| Geheugenlayout | 1 x 8 GB |
| Maximum intern geheugen | 768 GB |
| Opslagmedia | |
| Maximale opslagcapaciteit | 2 TB |
| Maximum aantal HDD's per behuizing | 2 |
| Ondersteunde HDD-groottes | 2.5" |
| RAID support | Ja |
| Soorten RAID | 0, 1 |
| Soort optische drive | Nee |
| Ondersteunde opslagstationinterfaces | SAS |
| Netwerk | |
| Ethernet LAN | Nee |
| Poorten & interfaces | |
| Aantal USB 2.0-poorten | 1 |
| Uitbreidingsmodules | |
| PCI Express slots versie | 3.0 |
| Software | |
| Compatibele besturingssystemen | Microsoft Windows Server, SUSE, RedHat Enterprise Linux, VMware |
| Processor speciale functies | |
| CPU configuratie (max) | 2 |
| Intel© Rapid Storage Technology | Nee |
| Enhanced Intel SpeedStep Technology | Ja |
| Intel© Identity Protection Technology (Intel© IPT) | Nee |
| Intel© Wireless Display (Intel© WiDi) | Nee |
| Intel© Virtualization Technology for Directed I/O (VT-d) | Ja |
| Intel© Anti-Theft Technology (Intel© AT) | Nee |
| Intel© Hyper Threading Technology (Intel© HT Technology) | Ja |
| Intel© My WiFi Technology (Intel© MWT) | Nee |
| Intel© Turbo Boost Technology | 2.0 |
| Intel© Quick Sync Video Technology | Nee |
| Intel© InTruT 3D Technology | Nee |
| Intel© Clear Video HD Technology (Intel© CVT HD) | Nee |
| Intel© InsiderT | Nee |
| Intel© Flex Memory Access | Nee |
| Intel© AES New Instructions (Intel© AES-NI) | Ja |
| Intel© Trusted Execution Technology | Ja |
| Intel© Enhanced Halt State | Ja |
| Intel© VT-x with Extended Page Tables (EPT) | Ja |
| Intel© Demand Based Switching | Ja |
| Intel© Secure Key | Ja |
| Intel© TSX-NI | Nee |
| Intel© OS Guard | Ja |
| Intel© Clear Video-technologie | Nee |
| Intel© Clear Video Technology for Mobile Internet Devices (Intel© CVT for MID) | Nee |
| Intel© 64 | Ja |
| Versie Intel© Identity Protection Technology | 0,00 |
| Versie Intel© Secure Key Technology | 1,00 |
| Intel© Virtualization Technology (VT-x) | Ja |
| Versie Intel© TSX-NI | 0,00 |
| Intel© Dual Display Capable Technology | Nee |
| Intel© FDI Technology | Nee |
| Intel© Fast Memory Access | Nee |
| ARK ID processor | 75269 |
| Warranty | |
| Base Warranty | Non Non |
| Gewicht en omvang | |
| Breedte | 215 mm |
| Diepte | 493 mm |
| Hoogte | 51 mm |
