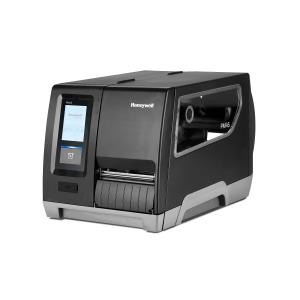

Label Printer Pm45a - Full Touch Display - Ethernet - Fixed Hanger - Thermal Transfer - 406dpi - Rewinder + Label Taken Sense ( Pcord Not Included)

ITCurry #: M8816069 | Article #: PM45A10000030400
Prijs:
1682,29 Excl. btw
Levering in Benelux:
GRATIS Levering.
Nu niet op voorraad. Bel ons!

Verwante producten

slide 7 to 11 of 14

Product Informatie

The Honeywell PM45 is built for smart label solutions that help enterprises enhance automation and intelligence in manufacturing and supply chain management for high operating efficiency.

Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The Honeywell PM45 industrial printer is designed to give businesses the flexibility and precision for high-volume printing. The PM45 printer’s track-and-trace functionality is aimed at improving print efficiency and supply chain transparency within a variety of industries, including food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.

Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high-quality prints for barcodes, texts, and images, even on small electronic components and medical device labels.

As a highly connected industrial printer, the PM45 is packed with enhanced WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer’s versatility allows the user to incorporate RFID, parallel, industrial, and applicator interfaces to address unpredictable future business needs. To help your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system, whether it is cloud-based or on a local server.

Embedded with Honeywell’s Smart Parse software, the PM45 allows for quick position changes, sizing of objects and barcodes, or font type on labels, without the need for backend system changes or programming skills. With Honeywell’s Operational Intelligence software, users can remotely manage and monitor the PM45 printer’s diagnostics and output performance. The PM45 supports a wide range of media – including ink-in and ink-out ribbons with a 1-inch core size – enhancing the time between media resupplies.

The PM45 printer is an ideal replacement for existing Honeywell or mixed printers, especially with Honeywell’s firmware platform supporting multiple print languages. A rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement helps minimize downtime and maintenance needs.

Printsnelheid
Printtechnologie Thermo transfer
Kleur Nee
Maximale resolutie 406 x 406 DPI
Aantal afdrukbare punten 16 dot
Printsnelheid (metrisch) 250 mm/sec
Printkleuren Zwart
Maximale print breedte 10,4 cm
Margediepte-instellingen Vast
Maximale printlengte 1,2 m
Papier
Maximale label breedte 11,4 cm
Maximum roll diameter 21,3 cm
Core diameter 7,62 cm
Poorten & interfaces
Connectiviteitstechnologie Bedraad en draadloos
Ethernet LAN Ja
USB-poort Ja
Aantal USB 2.0-poorten 2
RS-232 port 1
Prestatie
Paginabeschrijving talen DP, DPL, IPL, XML, ZPL II
Intern geheugen 256 MB
Flash memory 512 MB
Ingebouwde streepjescodes 1D, 2D
Ondersteund beeldformaat BMP, GIF, PCX, PNG
Design
Kleur van het product Zwart
Ingebouwd display Ja
Beeldscherm LCD
Soort bediening Touch
Energie
Stroomverbruik (in standby) 9,6 W
AC-ingangsspanning 100 - 240 V
AC-ingangsfrequentie 50 - 60 Hz
Minimale systeemeisen
Ondersteunt Windows Ja
Ondersteunde mobiele besturingssystemen Android, iOS
Ondersteunt Linux Ja
Eisen aan de omgeving
Relatieve vochtigheid in bedrijf (V-V) 20 - 85 procent
Luchtvochtigheid bij opslag 5 - 90 procent
Bedrijfstemperatuur (T-T) 5 - 40 øC
Temperatuur bij opslag -20 - 70 øC
Gewicht en omvang
Breedte 284 mm
Diepte 483 mm
Hoogte 295 mm
Logistieke gegevens
Code geharmoniseerd systeem (HS) 84433210
Technische details
Duurzaamheidscertificaten ENERGY STAR
Certificaten van naleving CE, RoHS
Overige specificaties
Ondersteunde netwerkprotocollen TCP/IP suite (TCP, UDP, ICMP, IGMP), LPR/ LPD, Telnet/SSH, FTP/SFTP, BOOTP, DHCP, HTTP/HTTPS, SNMPv1/2c/3, SNMP-MIBII supported - over UDP/IP (private enterprise MIB included), SMTP Supports IPv4 and IPv6
Ondersteunde talen Vereenvoudigd Chinees, Traditioneel Chinees, Duits, Engels, Spaans, Frans, Italiaans, Japans, Koreaans, Portugees, Russisch, Thais
Warranty
Base Warranty Non Non
