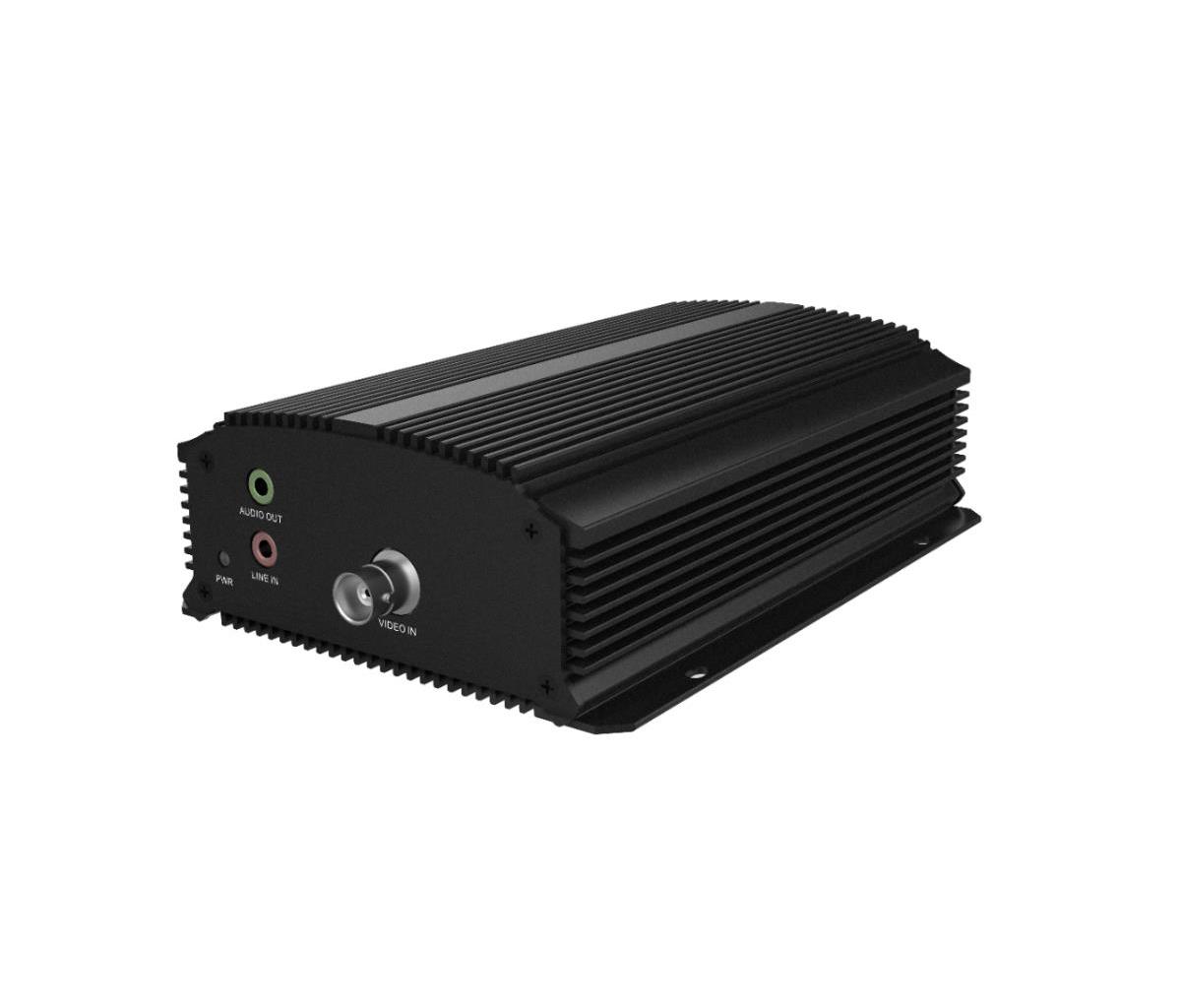

5mpix Encoder 1 Turbo Hd
ITCurry #: T4496055 | Article #: 300302083-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Video Input and Transmission
- Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
- Up to 5 MP HDTVI video input and live view
- Long distance transmission over UTP and coaxial cable
Compression and Recording
- H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264/MJPEG for the sub-stream of analog cameras
- Full channel recording at up to 5 MP resolution
Storage and Playback
- 1 Micro SD card slot (8G up to 128 GB capacity)
- Searching and playing back record files by camera number, recording type, start time, end time, etc.
Smart Function
- Supports line crossing detection, intrusion detection, sudden scene change detection, and audio exception detection
Network & Ethernet Access
- DDNS (Dynamic Domain Name System) for easy network management
- 1 RJ45 10M/100M self-adaptive Ethernet interface
| Video | |
| Maximale videoresolutie | 1920 x 1080 Pixels |
| Maximale beeldsnelheid | 30 fps |
| Videocompressieformaten | H.264, H.264+, H.265, H.265+, M-JPEG |
| Aantal kanalen | 1 kanalen |
| Prestatie | |
| Ge‹ntegreerde geheugenkaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash) |
| Netwerk | |
| Netwerkbandbreedte | 100 Mbit/s |
| Ondersteunde netwerkprotocollen | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP, HTTPS, ONVIF profile S |
| Poorten & interfaces | |
| Audio-ingang (L, R) | 1 |
| BNC input ports | 1 |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| RS-485 ports | 1 |
| RS-232 port | 1 |
| Alarm ingang/uitgang | Ja |
| Energie | |
| Stroomverbruik (typisch) | 15 W |
| Gewicht en omvang | |
| Breedte | 162,5 mm |
| Diepte | 114 mm |
| Hoogte | 47,5 mm |
| Gewicht | 1,5 kg |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -10 - 55 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Warranty | |
| Base Warranty | Non Non |
