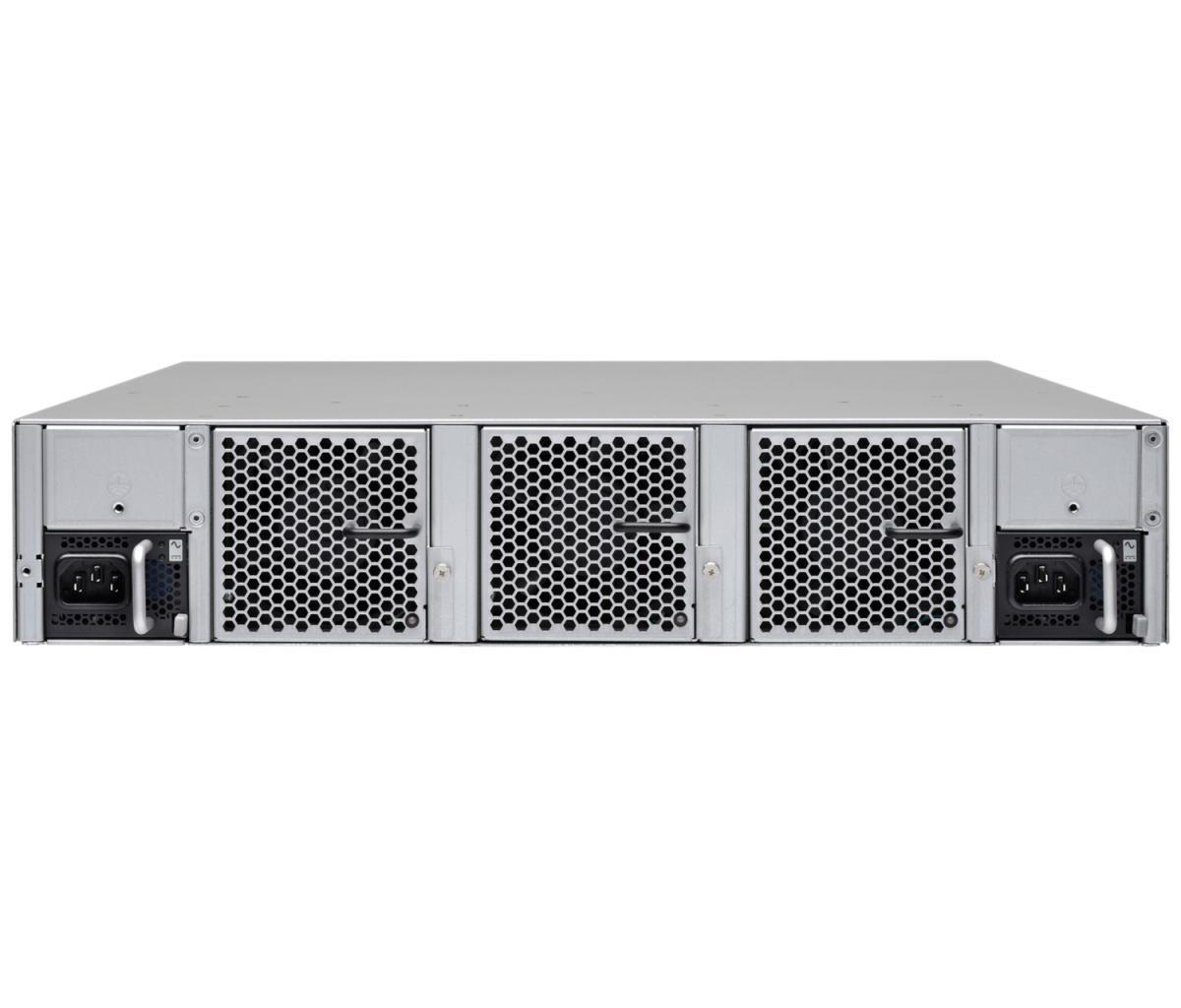

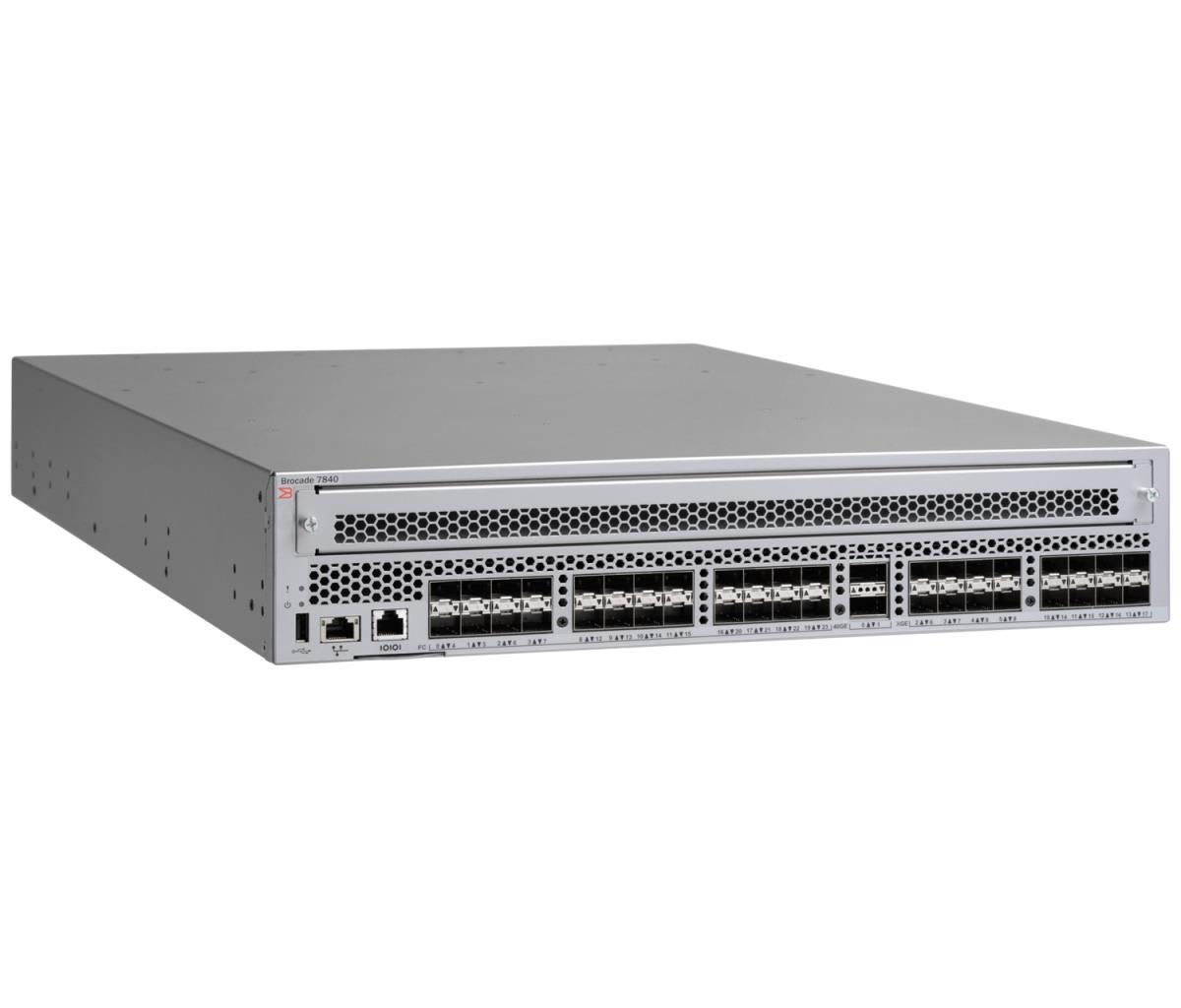

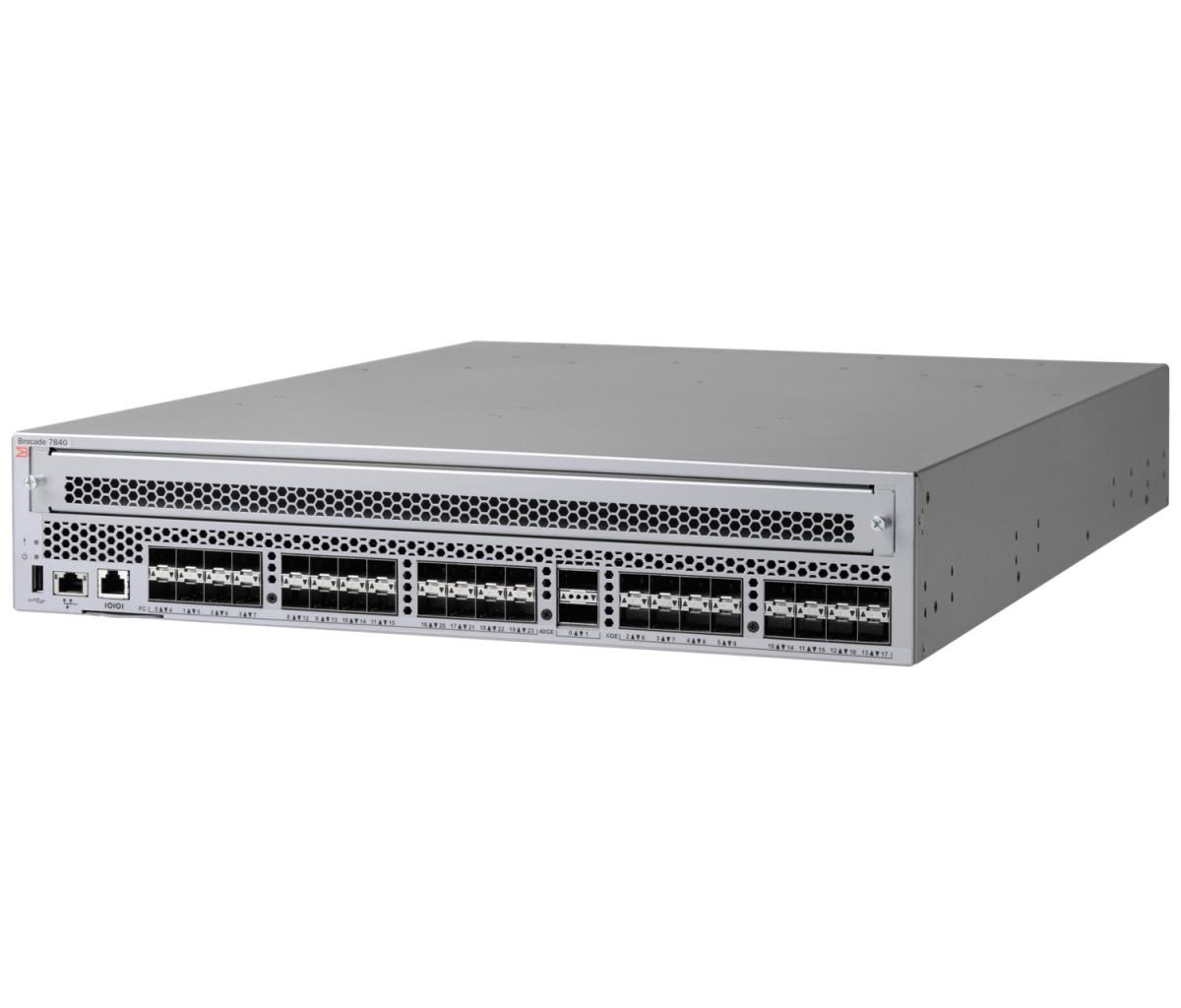

HPE SN4000B Power Pack+ SAN Extension Switch
ITCurry #: 1171AKM2 | Article #: E7Y73C-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Today’s IT organizations are under pressure to keep pace with the growing avalanche of data traffic between data centers and the changes driven by virtualized application workloads. Faced with this challenge, coupled with rising Service Level Agreement (SLA) requirements and recovery expectations, enterprise data centers need their disaster recovery plans to enable fast, continuous, and easy access to mission-critical data from anywhere in the world.
The HPE B-series SN4000B SAN Extension Switch with Brocade Fabric Vision technology delivers unprecedented performance, continuous availability, and simplified management to handle the unrelenting growth of data traffic between data centers.
The HPE SN4000B is a purpose-built data center extension solution that maximizes performance and scalability for large, complex environments, allowing IT organizations to future-proof their storage extension infrastructure by adding more throughput capacity as their needs grow.
Features
High Performance
- The HPE B-series SN4000B moves more data faster and further with 16 Gb Fibre Channel and 40GbE ports, available with the HPE SN4000B WAN Rate Upgrade license.
- The HPE B-series HPE SN4000B advanced performance and network optimization enable replication and backup applications to send more data over metro and WAN links in less time and to optimize available WAN bandwidth.
- The HPE B-series SN4000B offers Twenty-four 16Gbps Fibre Channel ports, sixteen 1/10 Gigabit Ethernet (GbE) ports, and two 40GbE ports provide the bandwidth, port density, and throughput required for maximum application performance over WAN links.
Scalable and Flexible SAN Extension
- The HPE B-series SN4000B leverages cost effective IP WAN transport to extend open systems and mainframe disk and tape storage applications over distances that would typically be impractical.
- The HPE B-series SN4000B provides flexibility and investment protection to add advanced extension, FICON, and SAN fabric services for evolving virtual server requirements.
Simplified Disaster Recovery and Data Protection
- The HPE B-series SN4000B supports simple point-to-point or comprehensive multisite SAN extension for a variety of strategic IT initiatives.
- The HPE B-series SN4000B centralizes backup to consolidate infrastructure and administrative resources.
- The HPE B-series SN4000B includes Built-in tools to validate conditions of the WAN links, network paths, and proper setup of FCIP configurations prior to deployment.
Integrated Architecture and Management
- The HPE B-series SN4000B Utilizes the same Fabric OS (FOS) that supports the entire B-Series product family to ensure interoperability.
- The HPE B-series SN4000B Leverages existing and familiar B-Series management tools, including SAN Network Advisor, Web Tools, and the command line interface to simplify deployment and administration.
| Warranty | |
| Base Warranty | Non Non |
| Beheerfuncties | |
| Switch type | Managed |
| Web-gebaseerd management | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 16 |
| Type basis-switching RJ-45 Ethernet-poorten | 10G Ethernet (100/1000/10000) |
| Aantal GSFP+-moduleslots | 2 |
| Fibre channel-poorten | 24 |
| Vezel-optische connector | SFP+ |
| Netwerk | |
| 10G support | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 1000,10000,40000 Mbit/s |
| Auto-sensing | Ja |
| Data-uitwisseling | |
| Switchingcapaciteit | 768 Gbit/s |
| Jumbo Frames ondersteuning | Ja |
| Beveiliging | |
| Ondersteunde beveiligingsalgoritmen | IPSec |
| Authenticatie type | RADIUS |
| Protocollen | |
| Beheerprotocollen | SNMP 1, SNMP 3, HTTP, HTTPS, SSH 2, Telnet, CLI |
| Design | |
| Rack-montage | Ja |
| Vormfactor | 2U |
| Kleur van het product | Metallic |
| Luchtstroomrichting | Luchtstroom achter-naar-voor |
| Energie | |
| Vermogenstoevoer inclusief | Ja |
| Redundante voeding | Ja |
| Aantal voedingen | 2 |
| AC-ingangsspanning | 85 - 264 V |
| AC-ingangsfrequentie | 47/63 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -25 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 85 procent |
| Luchtvochtigheid bij opslag | 10 - 90 procent |
| Hoogte, in bedrijf | 0 - 3000 m |
| Gewicht en omvang | |
| Breedte | 440 mm |
| Diepte | 609 mm |
| Hoogte | 86 mm |
| Gewicht | 19 kg |
