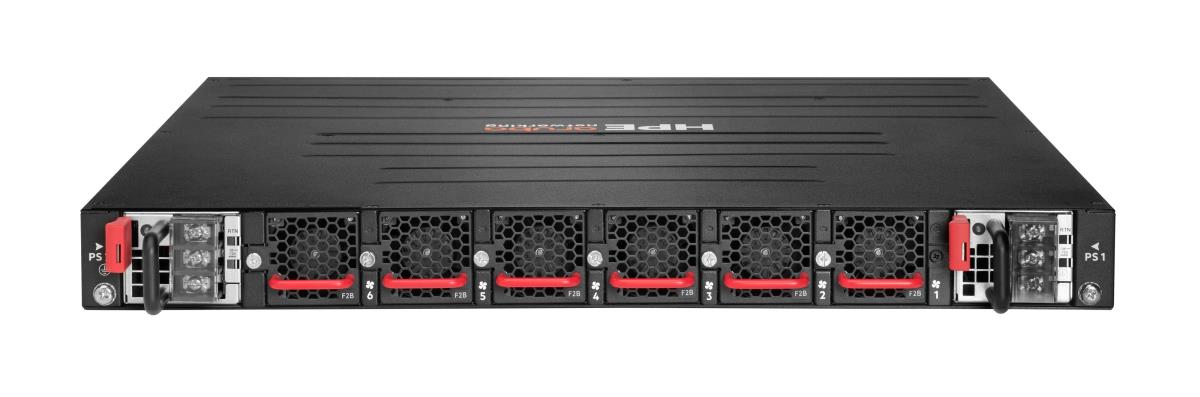

Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xAC PSU Bundle
ITCurry #: 1171AVU7 | Article #: S4A51A-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The HPE Networking CX8325 Switch Series serves as both a campus (core and aggregation) and data center (ToR and EoR) switch. This game-changing solution offers a flexible, innovative approach to meet demands in the mobile, cloud, and IoT era. The CX8325 series is based on OS-CX, with its microservices style modular architecture, REST APIs, Python scripting capabilities and NAE is a modern software system that automates and simplifies critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned control-plane events. CX8325 series provides line rate 1/10/25/40GbE in a compact 1U form factor. The CX8325P models, deliver key solutions for providers in their 5G (Radio access network) and edge computing deployments. CX8325H models are high-performance 1/10/25/40/100GbE half-width switches ideal for smaller, edge or colocation data centers, and wide variety of compute and storage networking use cases.
What is new supporting point:
High-performance with 2000 Mpps. HPE Networking designed the data center for core/aggregation in the campus or top-of-rack (ToR) or end of row (EoR)
The OS-CX delivers automation and programmability using built-in REST APIs and Python scripts. High-availability with industry-leading VSX redundancy, and redundant power supplies and fans
Intelligent monitoring, visibility, and remediation with Network Analytics Engine and dynamic VXLAN for deep segmentation in data center and campus networks with BGP-EVPN
Compact 1U switches with 1 GbE, 10 GbE, 25 GbE, 40 GbE, and 100 GbE connectivity. Advanced layer 2/3 feature set includes BGP, OSPF, VRF, VXLAN, EVPN, IGMP and IPv6.
CX8325P-32C switch supports PTP (1588v2), Class C (G.8275.1/G.8275.2), Synchronous Ethernet (SyncE, G.8262.1), Global Navigation Satellite System (GNSS) to support Telco Boundary Clock
CX8325H has two variations: 2.16 Tbps half-width fixed switch that supports 18 ports of 1/10/25GbE and 4 ports of 40/100GbE 4 Tbps half-width fixed switch that supports 16 ports of 40/100GbE
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L3 |
| Quality of Service (QoS) | Ja |
| Poorten & interfaces | |
| Type basis-switching RJ-45 Ethernet-poorten | Nee |
| Aantal QSFP28-poorten | 32 |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Ja |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Spanning tree protocol | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 40000,100000 Mbit/s |
| VLAN=ondersteuning | Ja |
| Aantal VLANs | 4040 |
| Data-uitwisseling | |
| Switchingcapaciteit | 6400 Gbit/s |
| Throughput | 2000 Mpps |
| Jumbo Frames ondersteuning | Ja |
| Packet buffergeheugen | 32 MB |
| Beveiliging | |
| DHCP-functies | DHCP relay, DHCP server |
| Access Control List (ACL) | Ja |
| SSH/SSL support | Ja |
| Authenticatie type | RADIUS, TACACS+ |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Protocollen | |
| Beheerprotocollen | SNMP v2c, SNMP v3, RMON |
| Routing protocols | BGP, BGP4, OSPF, OSPFv2, OSPFv3 |
| Design | |
| Rack-montage | Ja |
| Stapelbaar | Ja |
| Vormfactor | 1U |
| Luchtstroomrichting | Luchtstroom van voren naar achteren |
| Aantal ventilatoren | 6 ventilator(en) |
| Prestatie | |
| Type processor | Ja |
| Frequentie van processor | 2200 MHz |
| Type geheugen | RAM / Flash |
| Intern geheugen | 16000 MB |
| Flash memory | 8000 MB |
| Energie | |
| Stroombron | AC |
| Vermogenstoevoer inclusief | Ja |
| Redundante voeding | Ja |
| Aantal voedingen | 2 |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Vermogensverbruik (max) | 618 W |
| Energieverbruik opmerking | Maximum: 618W, 2110 BTU/hr Idle: 143W, 489 BTU/hr |
| Netvoeding voetnoot | Includes 2 front-to-back power supplies (S0G27A) with no additional open PSU slots |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Overige specificaties | |
| Geheugen en processor | CPU: 2.2 GHz Memory: Drive and Flash 16 GB RAM, 64 GB SSD, 8 GB Flash Packet Buffer: 32 MB |
| Aansluitingen | (32) 100G QSFP28 ports |
| Prestatiebeheer | Core OS: HPE Networking CX Switch Operating System (OS-CX) Automation: 100% programmable REST APIs and Python scripting Monitoring: Built-in Network Analytics Engine (NAE) for real-time telemetry Orchestration: Seamless HPE Networking Fabric Composer integration Performance Management: Industry-standard CLI with hierarchical structure Network Protocols: SNMP v2c and v3 Traffic Sampling: sFlow (RFC 3176) Remote Monitoring: Remote monitoring (RMON) Integration Interface: REST APIs Physical Management Ports: RJ-45 serial console Out-of-Band Management: RJ-45 Ethernet port Alternative Console Access: Micro-USB console Specialized SyncE and PTP (IEEE 1588v2) timing configuration dashboards Precision Synchronization: Precision Time Protocol (PTP) Class C (G.8275.1 and G.8275.2) Integrated Global Navigation Satellite System (GNSS) boundary clock management Remote carrier-grade clock synchronization status monitoring Mobile backhaul SLA validation tools |
| Fan | Field-replaceable, hot-swappable, and up to 6 fans |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Warmtedissipatie | 2110 BTU/h |
| Gewicht en omvang | |
| Breedte | 442 mm |
| Diepte | 438,4 mm |
| Hoogte | 43 mm |
| Warranty | |
| Base Warranty | Non Non |
