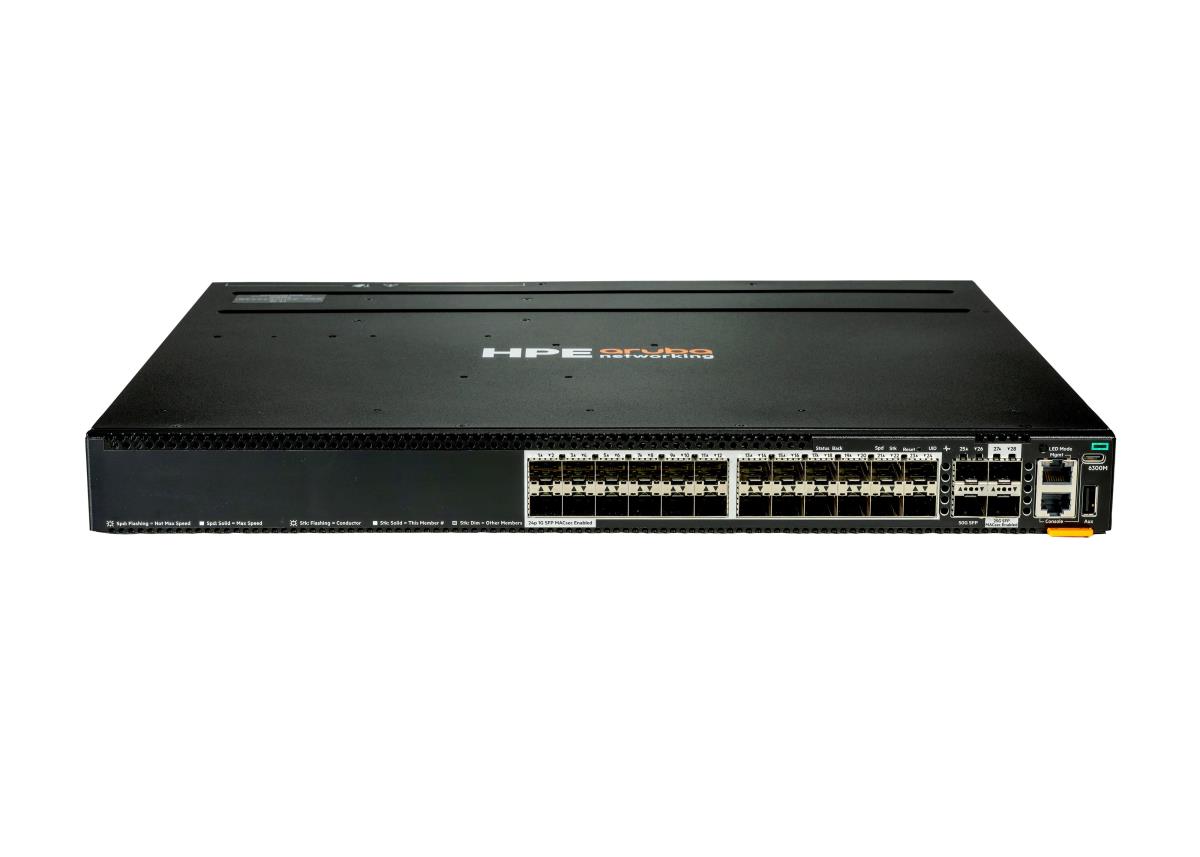

Aruba Networking CX 6300M 24p SFP 1G 2p SFP56 50G 2p SFP28 25G MACsec Switch
ITCurry #: 1171AVU8 | Article #: S4P44A-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The HPE Networking CX6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). It features a cloud-native design and fully programmable operating system (OS). The CX6300 delivers advanced monitoring and troubleshooting with capabilities such as a real-time Network Analytics Engine, HPE Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations. A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. The new CX6300M switches deliver 90W Class 8 PoE (up to 4320W of PoE budget), enhanced uplink capabilities up to 50G, MACsec/PTP/AVB support, and improved support for high-power enterprise and Wi-Fi 7 deployment.
What is new supporting point:
HPE Networking CX6300 Series delivers stackable Layer 3 switching with BGP, EVPN, VXLAN, VRF, OSPF routing, robust QoS, MACsec 256, PTP, AVB and LRM; these features are not supported on CX6300L
Management, insights, and actions via HPE Aruba Networking Central or HPE Mist. Dynamic segmentation enables enhanced security and simple access for users and IoT
Three stackable Layer 2-only CX6300L switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for high-performance access deployments
High-availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
24 to 48 HPE Smart Rate multi-gigabit ports (1/2.5/5/10GbE) and 1 GbE fiber, supporting up to 90W 802.3bt PoE. New 24/48 port CX6300M models provide 90W power simultaneously for up to 48 ports.
Powerful 7th Gen ASIC architecture provides the CX6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L3 |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 48 |
| Type basis-switching RJ-45 Ethernet-poorten | 10G Ethernet (100/1000/10000) |
| Aantal moduleslots SPF | 4 |
| Console port | USB |
| Netwerk | |
| Netwerkstandaard | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| 10G support | Ja |
| Data-uitwisseling | |
| Switchingcapaciteit | 880 Gbit/s |
| Throughput | 654 Mpps |
| Latentie (1 Gbps) | 4,24 æs |
| Latentie (10 Gbps) | 1,5 æs |
| Design | |
| Rack-montage | Ja |
| Stapelbaar | Ja |
| Vormfactor | 1U |
| Kleur van het product | Zwart |
| Aantal ventilatoren | 2 ventilator(en) |
| Prestatie | |
| Physical stacking (units) | 10 |
| Type processor | Ja |
| Processorfabrikant | ARM |
| Processormodel | ARM Cortex-A9 |
| Frequentie van processor | 1800 MHz |
| Type geheugen | DDR4-SDRAM |
| Intern geheugen | 8000 MB |
| Flash memory | 32000 MB |
| Energie | |
| Stroombron | AC/PoE |
| Vermogenstoevoer inclusief | Nee |
| Energieverbruik opmerking | Depending on installed PSU Idle: 56W - 113W 100% Traffic: 75W - 179W |
| Netvoeding voetnoot | 2 field-replaceable, hot-swappable power supply slots 1 minimum power supply required (ordered separately). Supported PSUs JL085A and JL757A. |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Totaal Power over Ethernet (PoE)-budget | 2880 W |
| Overige specificaties | |
| Latentie | 1 Gbps: 4.24 æs 10 Gbps: 1.50 æs 25 Gbps: 2.91 æs 50 Gbps: 3.49 æs |
| Geheugen en processor | CPU: Quad-core Arm Cortex-A72 @ 1.8 GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration |
| Aansluitingen | 48x HPE Smart Rate 100M [5]/1G/2.5G/5G BaseT Class 6 PoE ports supporting up to 60W per port 4x 1G/10G/25G/50G [4] SFP ports Supports PoE standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W) 1x USB-C console port 1x USB Type-A host port 1x OOBM port [5] 100M use on HPE Smart Rate ports is limited to full-duplex only. For 100M half-duplex support, use 1G ports on other models. [4] 450G capability is for use with 50G DACs for both interconnect and VSF stacking. 50G transceivers and DACs are not supported on S0E91A and S0X44A switch models, which require QSFP to SFP56 DAC cable for VSF stacking with other CX6300F and CX6300M switch models only. VSF stacking not supported on 1G ports. |
| Prestatiebeheer | Management, insights, and actions via HPE Aruba Networking Central or HPE Mist (Requires OS-CX10.18.1002) |
| Gewicht (imperiaal) | 6,02 kg (13.3 lbs) |
| Fan | Switch has two fan tray slots and comes with two fan trays installed. Minimum two fan trays required. Fan trays are field replaceable and hot-swappable. Each fan tray contains two fans. |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 45 øC |
| Gewicht en omvang | |
| Breedte | 44 mm |
| Diepte | 442 mm |
| Gewicht | 6,02 kg |
| Warranty | |
| Base Warranty | Non Non |
