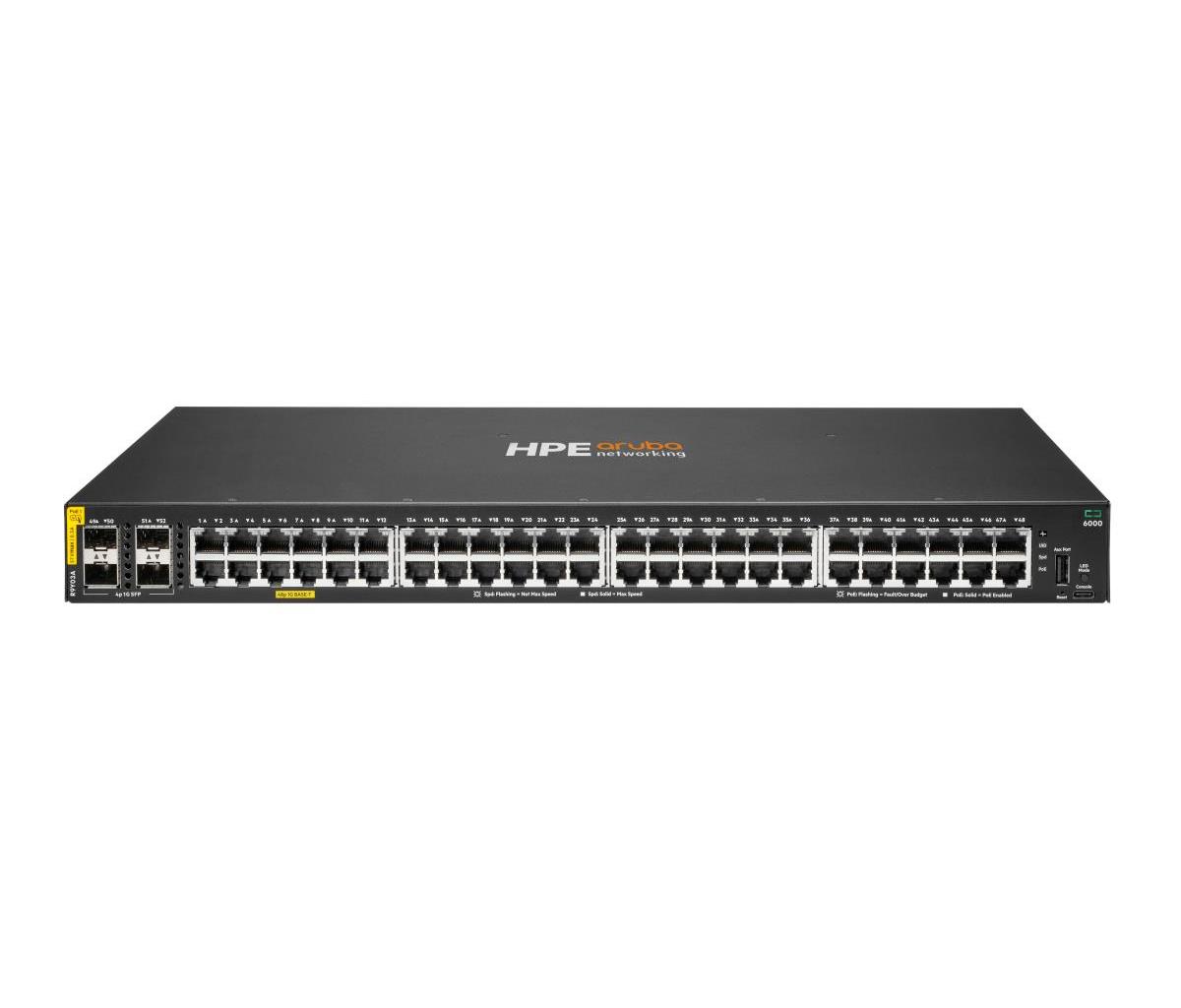

Aruba Networking CX 6000 48G Class4 PoE 4SFP 740W Switch
ITCurry #: 1171AKV0 | Article #: R9Y03A-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The HPE Aruba Networking CX 6000 Switch Series is a modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and secure access, this switch family provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications. Prepare your network for tomorrow’s unpredictable demands with a powerful ASIC and the programmable HPE Aruba Networking CX Switch Operating System (AOS-CX) to deliver a more consistent, more efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 740W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces. The CX 6000 Series is easy to deploy and use with flexible management choices, allowing the best fit for your business and network environment.
What is new supporting point:
Compact and fanless 12-port PoE model for space-constrained deployments.
Flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI.
Ready for software defined networking with REST APIs.
Convenient built-in 1 GbE uplinks and up to 740W of Class 4 PoE for support of access points, client, and IoT devices.
Simplify IT operations with modern Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity.
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L3 |
| Quality of Service (QoS) | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 48 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal moduleslots SPF | 4 |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| 10G support | Ja |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Spanning tree protocol | Ja |
| VLAN=ondersteuning | Ja |
| Data-uitwisseling | |
| Switchingcapaciteit | 176 Gbit/s |
| Throughput | 98,6 Mpps |
| MAC-adrestabel | 8192 entries |
| Latentie (1 Gbps) | 1,9 æs |
| Latentie (10 Gbps) | 1,8 æs |
| Statische route | Ja |
| Packet buffergeheugen | 1 MB |
| Beveiliging | |
| DHCP-functies | DHCP relay |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| SSH/SSL support | Ja |
| Authenticatie | MAC-gebaseerde authenticatie, Webgebaseerde authenticatie |
| Authenticatie type | RADIUS, TACACS+ |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Design | |
| Rack-montage | Ja |
| Stapelbaar | Nee |
| Vormfactor | 1U |
| Prestatie | |
| Type processor | Ja |
| Processormodel | ARM Cortex-A9 |
| Frequentie van processor | 1016 MHz |
| Type geheugen | DDR3-SDRAM |
| Intern geheugen | 8000 MB |
| Energie | |
| Stroombron | AC |
| Vermogenstoevoer inclusief | Ja |
| AC-ingangsspanning | 200 - 240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Totaal Power over Ethernet (PoE)-budget | 740 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 45 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Luchtvochtigheid bij opslag | 5 - 90 procent |
| Hoogte, in bedrijf | 0 - 3000 m |
| Gewicht en omvang | |
| Breedte | 442,5 mm |
| Diepte | 324,2 mm |
| Hoogte | 43,9 mm |
| Gewicht | 4,7 kg |
| Warranty | |
| Base Warranty | Non Non |
