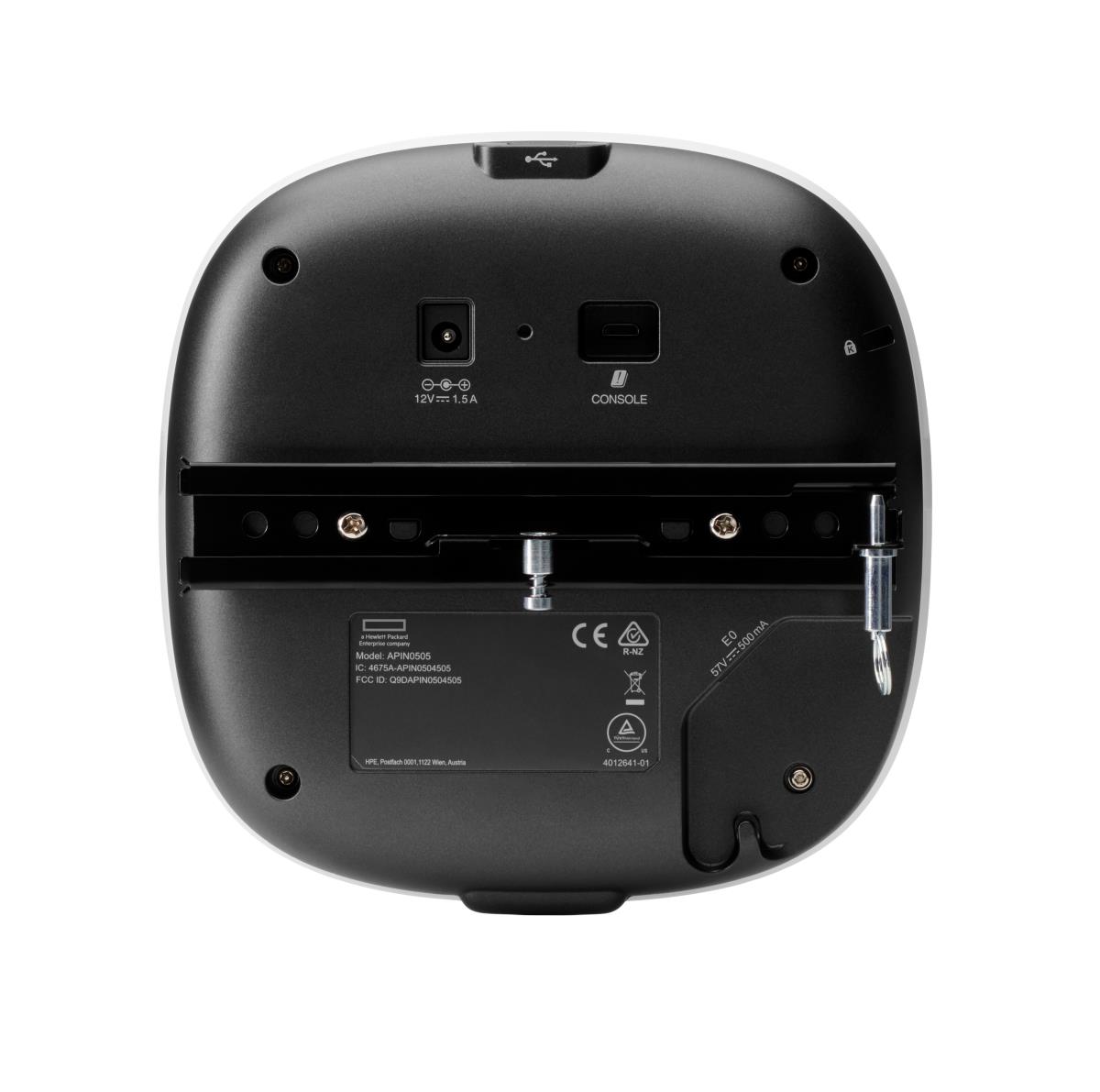

Aruba AP-505 (US) dual radio 2x2:2 802.11ax internal antennas unified campus AP
ITCurry #: 1171ZV05 | Article #: R2H29A-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
HPE Aruba Networking 500 Series Campus Access Points deliver cost-effective Wi-Fi 6 coverage for indoor environments such as mid-sized offices, schools, and retail spaces where fewer people are on the network at the same time. With 1.49 Gbps maximum combined data rate, the 500 Series delivers reliable Wi-Fi for medium density environments and is supported by HPE Aruba Networking Central, AI-powered management that simplifies and improves IT operations across branch, remote office, campus, data center, and IoT networks with a single point of visibility and control. The 500 Series is Wi-Fi CERTIFIED™ and supports Wi-Fi 6 (802.11ax) features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 500 Series includes a limited lifetime warranty.
What is new supporting point:
Entry level Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate.
Support for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security.
IoT-ready with built-in [1] Bluetooth 5 and Zigbee support.
Dynamic Segmentation and policy enforcement firewalls automatically enforce consistent policies across wired and wireless networks, enhancing user and device security.
Built-in technology that resolves sticky client issues and improves performance of mobile Wi-Fi clients.
Available in optional eco-friendly 10-packs.
| Kenmerken | |
| 2,4 GHz | Ja |
| 5 GHz | Ja |
| Maximale overdrachtssnelheid van gegevens | 1774 Mbit/s |
| Maximale overdrachtssnelheid van gegevens (2.4 GHz) | 574 Mbit/s |
| Maximale overdrachtssnelheid van gegevens (5 GHz) | 1200 Mbit/s |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Netwerkstandaard | IEEE 802.11ax |
| Auto MDI/MDI-X | Ja |
| MIMO | Ja |
| MIMO-type | Multi User MIMO |
| Spread spectrum methode | DSSS, OFDM, OFDMA |
| Modulatie | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Beveiliging | |
| Ondersteunde beveiligingsalgoritmen | WPA, WPA2, WPA3 |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Aantal USB 2.0-poorten | 1 |
| USB-connectortype | USB Type-A |
| Energie | |
| Power over Ethernet (PoE) | Ja |
| Vermogensverbruik (max) | 16,5 W |
| Design | |
| Plaatsing | Plafond, Muur |
| Kleur van het product | Wit |
| Bevestigingsmogelijkheid voor kabelslot | Ja |
| Kabelslot sleuf type | Kensington |
| Antenne | |
| Soort antenne | Intern |
| Type antennerichting | Omni-directioneel |
| Antennefuncties | Ingebouwde antenne |
| Antennas quantity | 2 |
| Certificaten | |
| Certificaten van naleving | Laagspanningsrichtlijn (LVD) |
| Certificering | None |
| Gewicht en omvang | |
| Breedte | 160 mm |
| Diepte | 161 mm |
| Hoogte | 37 mm |
| Gewicht | 500 g |
| Verpakking | |
| Breedte verpakking | 193 mm |
| Diepte verpakking | 183 mm |
| Hoogte verpakking | 63 mm |
| Gewicht verpakking | 645 g |
| Eisen aan de omgeving | |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 93 procent |
| Bedrijfstemperatuur (T-T) | 0 - 50 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Luchtvochtigheid bij opslag | 5 - 93 procent |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
