Aruba 9012 RW Gateway
ITCurry #: 1171AAX9 | Article #: R1B32A-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

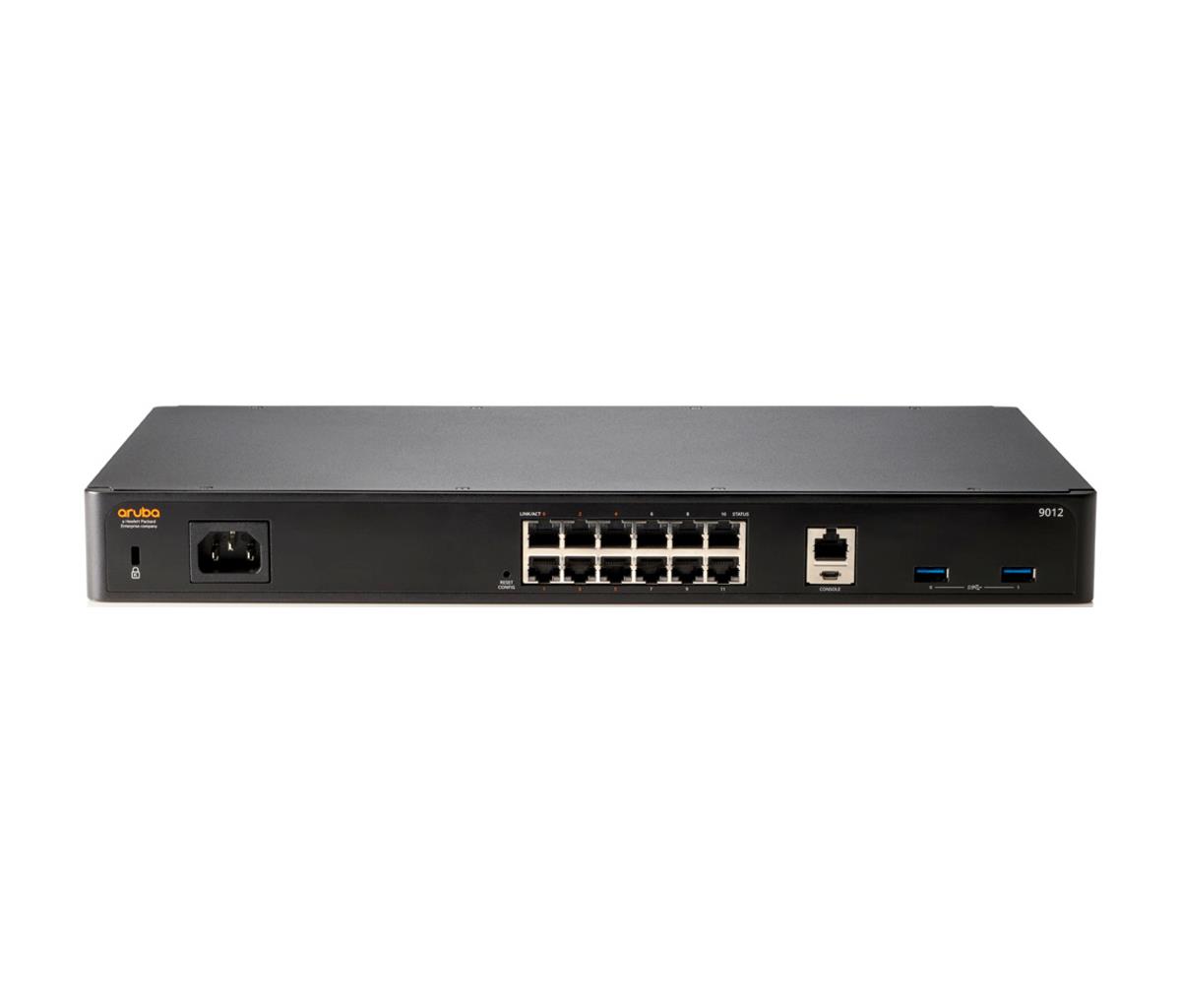

HPE Aruba Networking 9000 Series Branch Gateways provide high-performance networking, SD-WAN and security functionality in compact and cost-effective form factors. Ideally suited for branch and small campus networks, the 9000 series can be used as a wireless gateway for enhanced Wi-Fi scalability and security or for SD-WAN capabilities in the branch. Deploying this series as part of the HPE Aruba Networking SD-Branch solution is an affordable way to support multiple WAN connections, including the internet, MPLS, cellular, role-based policy enforcement, and path optimization. Designed with enterprise-grade capabilities and compact form factors, including an integrated LTE option, the 9000 Gateway can be easily configured and managed using HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of all network infrastructure.
What is new supporting point:
The gateway provides connectivity for up to 2,048 users or client devices with up to 6 Gbps of firewall throughput.
Layer 4-7 stateful firewall delivers a consistent user, device, and application awareness across WLAN, LAN, and WAN.
Dynamic Segmentation for automated role-based policy enforcement across users, devices, and IoT.
The 9004-LTE model provides integrated LTE connectivity for use as a dedicated or redundant WLAN uplink.
Versatile cloud-managed edge appliance can be deployed as an SD-Branch gateway or as a wireless gateway for greater scalability.
| Design | |
| Kleur van het product | Zwart |
| Montagewijze | Rekmontage |
| LED-indicatoren | LAN, Status, WAN |
| Prestatie | |
| Besturings -en afbeeldingseenheid | Nee |
| Netwerk | |
| Ethernet LAN, data-overdrachtsnelheden | 100,1000 Mbit/s |
| Beveiliging | |
| Ondersteunde beveiligingsalgoritmen | IPSec, SSL/TLS |
| Firewall | Ja |
| VLAN=ondersteuning | Ja |
| Poorten & interfaces | |
| Console port | micro USB, RJ-45 |
| Aantal Ethernet LAN (RJ-45)-poorten | 12 |
| Energie | |
| Ingangsspanning | 90 - 264 V |
| Frequentie | 47 - 63 Hz |
| Stroom | 3 A |
| Power over Ethernet (PoE) | Ja |
| Gewicht en omvang | |
| Breedte | 395 mm |
| Diepte | 260 mm |
| Hoogte | 43,7 mm |
| Gewicht | 3,42 kg |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Luchtvochtigheid bij opslag | 10 - 95 procent |
| Hoogte, in bedrijf | 0 - 3048 m |
| Certificaten | |
| Veiligheid | UL 60950-1,ÿCAN/CSA-C22.2 No. 60950-1,ÿEN 60950-1,ÿEN 60950:2005,ÿIEC 60950-1,ÿEN/IEC 62368-1 |
| Certificering | FCC Part 15 A CISPR32 A EN55032 A ICES-003 A VCCI A EN61000-3-2 EN61000-3-3 EN55024, EN301 489-1/-17 KN32 A, KN35, KN301 489-1/-17 CNS13438 A |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
