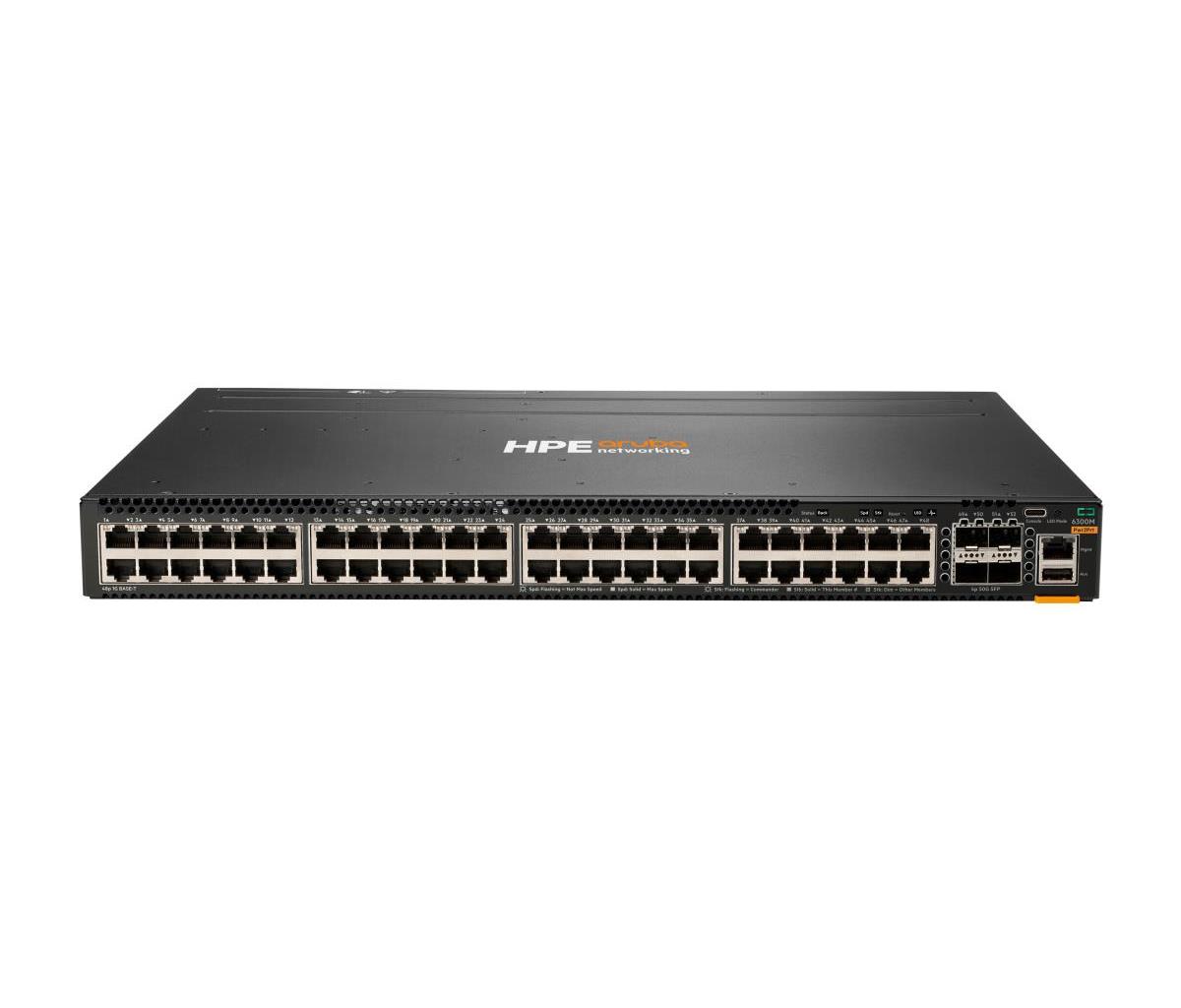

Aruba 6300M 48-port 1GbE and 4-port SFP56 Power-to-Port 2 Fan Trays 1 PSU Bundle
ITCurry #: 1171ZQ89 | Article #: JL762A#AC3-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). Featuring a cloud-native design and fully programmable operating system (OS). The CX 6300 delivers advanced monitoring and troubleshooting with capabilities like a real-time network analytics engine, HPE Aruba Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations. A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high-speed uplinks and supports high-density IEEE 802.3bt high-power PoE with HPE Smart Rate multi-gigabit Ethernet.
What is new supporting point:
Three stackable Layer 2-only CX 6300L switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for high performance access deployments
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48-port of HPE Smart Rate multi-gigabit (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.11bt PoE, all with telemetry and automation via the CX Network Analytics Engine
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth
Manage through single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT
The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM [1]
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L3 |
| Quality of Service (QoS) | Ja |
| Locatie-instellingen (CLI) configureren | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 48 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Fibre channel-poorten | 4 |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
| 10G support | Ja |
| Verbindingsaggregatie | Ja |
| Auto MDI/MDI-X | Ja |
| Spanning tree protocol | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000,25000,50000 Mbit/s |
| VLAN=ondersteuning | Ja |
| Data-uitwisseling | |
| Switchingcapaciteit | 496 Gbit/s |
| Throughput | 369 Mpps |
| MAC-adrestabel | 32768 entries |
| Latentie (1 Gbps) | 2,28 æs |
| Latentie (10 Gbps) | 1,4 æs |
| Packet buffergeheugen | 8 MB |
| Beveiliging | |
| DHCP-functies | DHCP client, DHCP server |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| Authenticatie | MAC-gebaseerde authenticatie |
| Authenticatie type | RADIUS |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Protocollen | |
| Beheerprotocollen | CLI, RMON, SFTP, SNMP, SNMP 2c, SNMP 3, SSH, Telnet, TFTP |
| Design | |
| Rack-montage | Ja |
| Stapelbaar | Ja |
| Vormfactor | 1U |
| Kleur van het product | Zwart |
| Ventilatiesysteem | Luchtstroom achter-naar-voor |
| Aantal ventilatoren | 2 ventilator(en) |
| Prestatie | |
| Physical stacking (units) | 10 |
| Type processor | Ja |
| Processormodel | ARM Cortex-A72 |
| Frequentie van processor | 1800 MHz |
| Type geheugen | DDR4-SDRAM |
| Intern geheugen | 8000 MB |
| Flash memory | 32000 MB |
| Energie | |
| Stroombron | AC |
| Vermogenstoevoer inclusief | Ja |
| Redundante voeding | Ja |
| Aantal voedingen | 1 |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Vermogensverbruik (max) | 75 W |
| Energieverbruik opmerking | Idle: 56W 100% Traffic Rate: 75W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Overige specificaties | |
| Latentie | 1 Gbps: 2.28 æs 10 Gbps: 1.46 æs 25 Gbps: 1.90 æs 50 Gbps: 3.49 æs |
| Geheugen en processor | CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration |
| Aansluitingen | 48 x 10/100/1000 BaseT ports 4 x 1G/10G/25G/50G [4] SFP ports 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port |
| Prestatiebeheer | Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software |
| Afmetingen (B x D x H) (Brits) | 43,9 x 442 x 386,1 mm (1.73 x 17.4 x 15.2") |
| Fan | Switch has two fan tray slots and comes with two fan trays installed. Minimum 2 fan trays required. Fan trays are field replaceable and hot-swappable. Each fan tray contains two fans. Supports JL761A power-to-port fan tray only. |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 45 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 15 - 95 procent |
| Luchtvochtigheid bij opslag | 15 - 90 procent |
| Gewicht en omvang | |
| Breedte | 44 mm |
| Diepte | 442 mm |
| Hoogte | 385 mm |
| Gewicht | 5,7 kg |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
