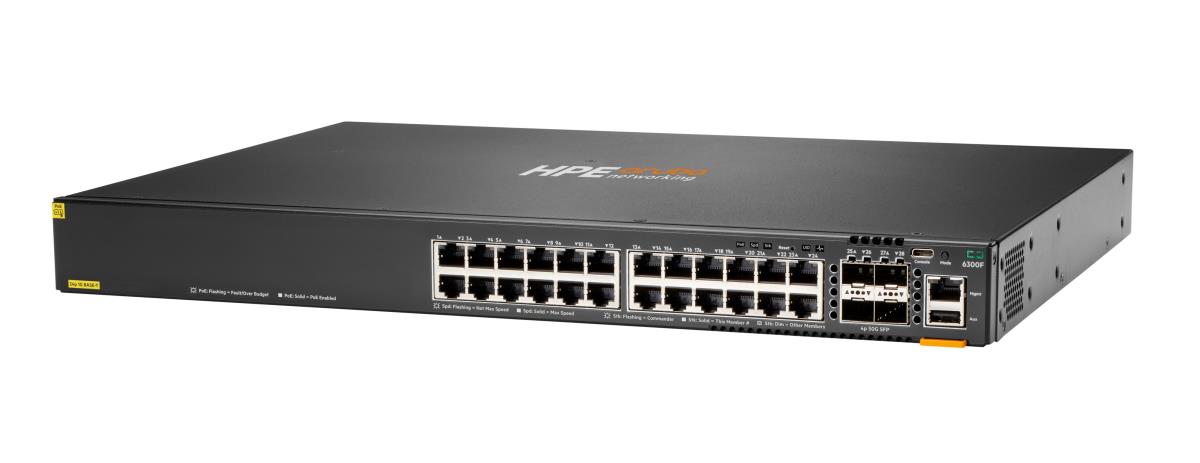

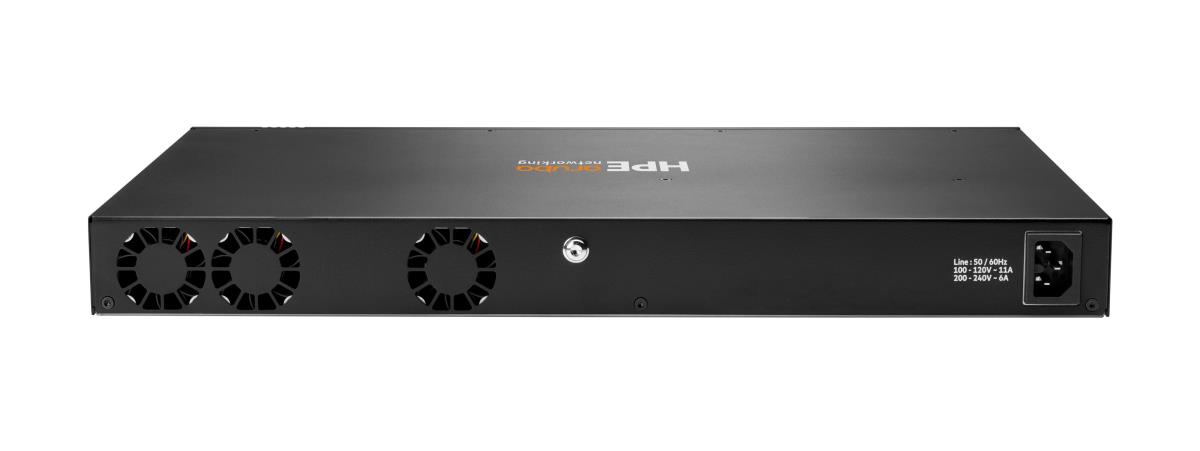

Aruba 6300F 24-port 1GbE Class 4 PoE and 4-port SFP56 Switch
ITCurry #: 1171XS10 | Article #: JL666A#ABB-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The HPE Networking CX6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). It features a cloud-native design and fully programmable operating system (OS). The CX6300 delivers advanced monitoring and troubleshooting with capabilities such as a real-time Network Analytics Engine, HPE Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations. A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. The new CX6300M switches deliver 90W Class 8 PoE (up to 4320W of PoE budget), enhanced uplink capabilities up to 50G, MACsec/PTP/AVB support, and improved support for high-power enterprise and Wi-Fi 7 deployment.
What is new supporting point:
High-availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
24 to 48 HPE Smart Rate multi-gigabit ports (1/2.5/5/10GbE) and 1 GbE fiber, supporting up to 90W 802.3bt PoE. New 24/48 port CX6300M models provide 90W power simultaneously for up to 48 ports.
Management, insights, and actions via HPE Aruba Networking Central or HPE Mist. Dynamic segmentation enables enhanced security and simple access for users and IoT
HPE Networking CX6300 Series delivers stackable Layer 3 switching with BGP, EVPN, VXLAN, VRF, OSPF routing, robust QoS, MACsec 256, PTP, AVB and LRM; these features are not supported on CX6300L
Three stackable Layer 2-only CX6300L switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for high-performance access deployments
Powerful 7th Gen ASIC architecture provides the CX6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L3 |
| Quality of Service (QoS) | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 24 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Fibre channel-poorten | 4 |
| Vezel-optische connector | SFP, SFP+, SFP28, SFP56 |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1v, IEEE 802.1x |
| 10G support | Ja |
| Port mirroring | Ja |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Rate limiting | Ja |
| Auto MDI/MDI-X | Ja |
| Spanning tree protocol | Ja |
| VLAN=ondersteuning | Ja |
| Data-uitwisseling | |
| Switchingcapaciteit | 448 Gbit/s |
| Throughput | 334 Mpps |
| MAC-adrestabel | 29490 entries |
| Latentie (1 Gbps) | 2,28 æs |
| Latentie (10 Gbps) | 1,46 æs |
| Jumbo Frames ondersteuning | Ja |
| Beveiliging | |
| DHCP-functies | DHCP server |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| SSH/SSL support | Ja |
| Authenticatie type | RADIUS |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Protocollen | |
| Routing protocols | BGP, IP |
| Design | |
| Rack-montage | Ja |
| Stapelbaar | Ja |
| Vormfactor | 1U |
| Kleur van het product | Grijs |
| Prestatie | |
| Physical stacking (units) | 10 |
| Type processor | Ja |
| Frequentie van processor | 1800 MHz |
| Type geheugen | DDR4-SDRAM |
| Intern geheugen | 8000 MB |
| Flash memory | 32000 MB |
| Energie | |
| Stroombron | AC |
| Vermogenstoevoer inclusief | Ja |
| AC-ingangsspanning | 200 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Vermogensverbruik (max) | 67 W |
| Energieverbruik opmerking | Idle: 58W 100% Traffic: 95W |
| Netvoeding voetnoot | Internal (fixed) power supply (950W) |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Totaal Power over Ethernet (PoE)-budget | 370 W |
| Overige specificaties | |
| Latentie | 1 Gbps: 2.28 æs 10 Gbps: 1.46 æs 25 Gbps: 1.90 æs 50 Gbps: 3.49 æs |
| Geheugen en processor | CPU: Quad-core Arm Cortex-A72 @ 1.8 GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration |
| Aansluitingen | 24x 10/100/1000 BaseT ports supporting up to 30W per port 4x 1G/10G/25G/50G [4] SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1x USB-C console port 1x USB Type-A host port 1x OOBM port |
| Prestatiebeheer | Management, insights, and actions via HPE Aruba Networking Central or HPE Mist (Requires OS-CX10.18.1002) |
| Gewicht (imperiaal) | 4,95 kg (10.9 lbs) |
| Afmetingen (B x D x H) (Brits) | 43,9 x 442 x 327,7 mm (1.73 x 17.4 x 12.9") |
| Fan | Fixed fans |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 45 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 15 - 95 procent |
| Luchtvochtigheid bij opslag | 15 - 95 procent |
| Gewicht en omvang | |
| Breedte | 44 mm |
| Diepte | 442 mm |
| Hoogte | 327 mm |
| Gewicht | 4,95 kg |
| Warranty | |
| Base Warranty | Non Non |
