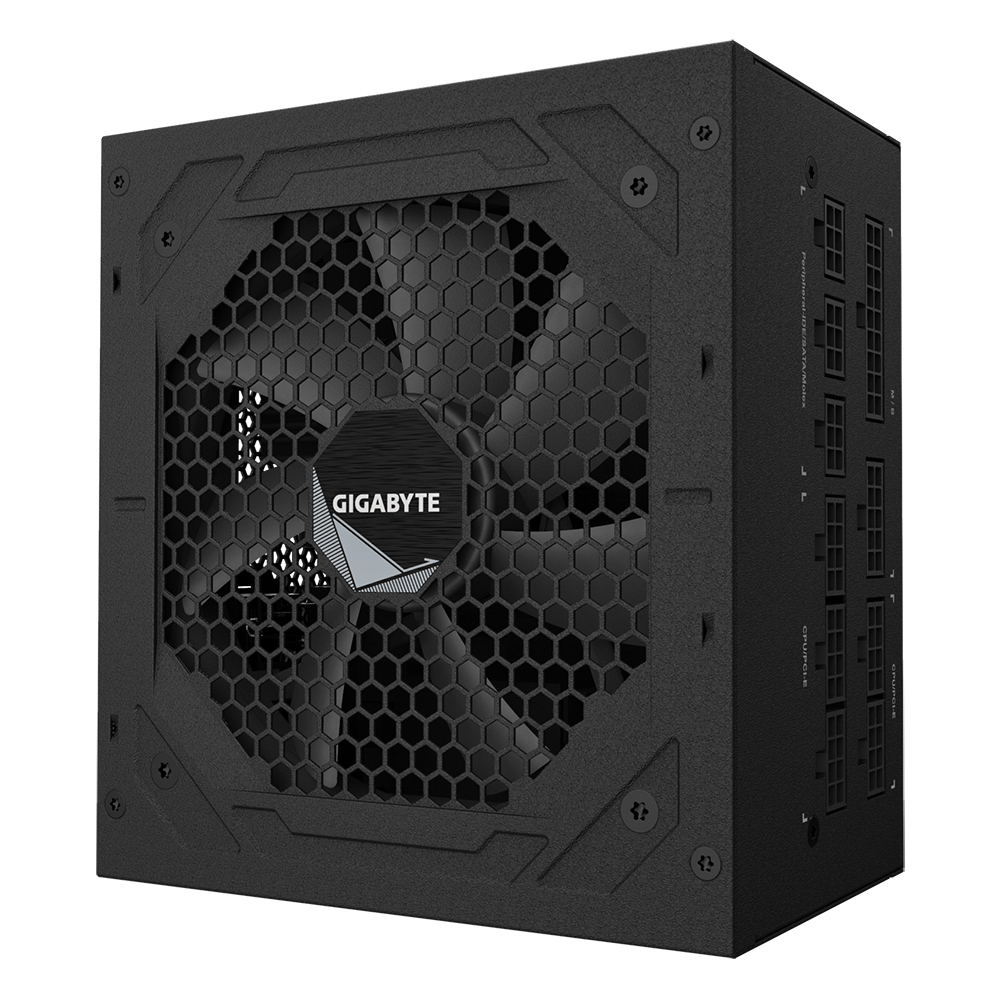

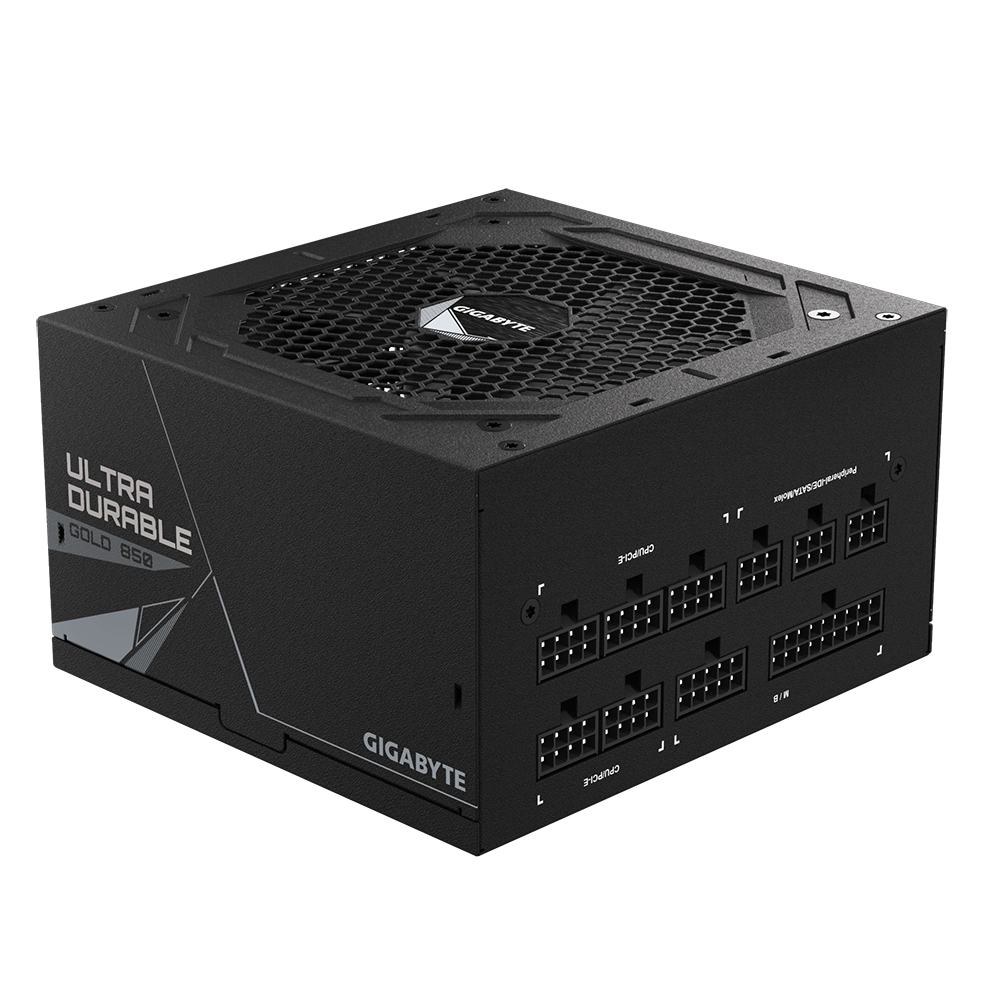

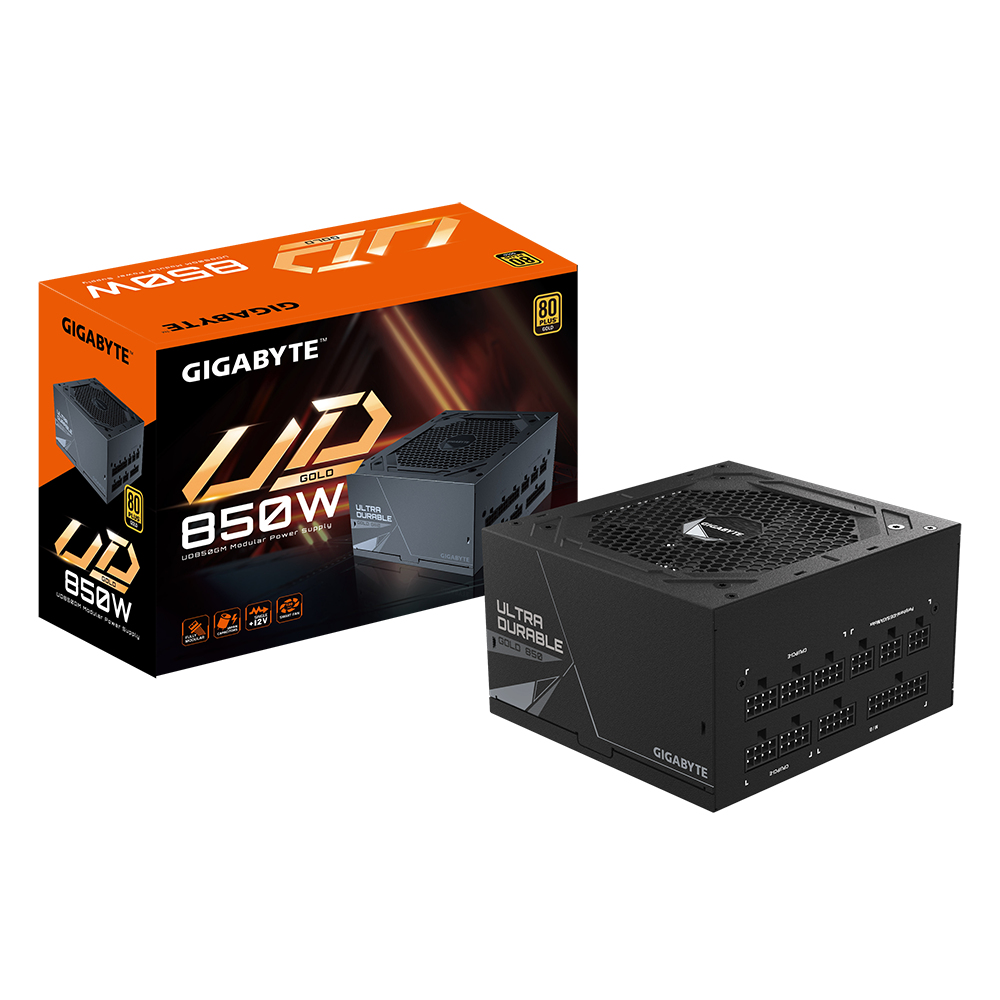

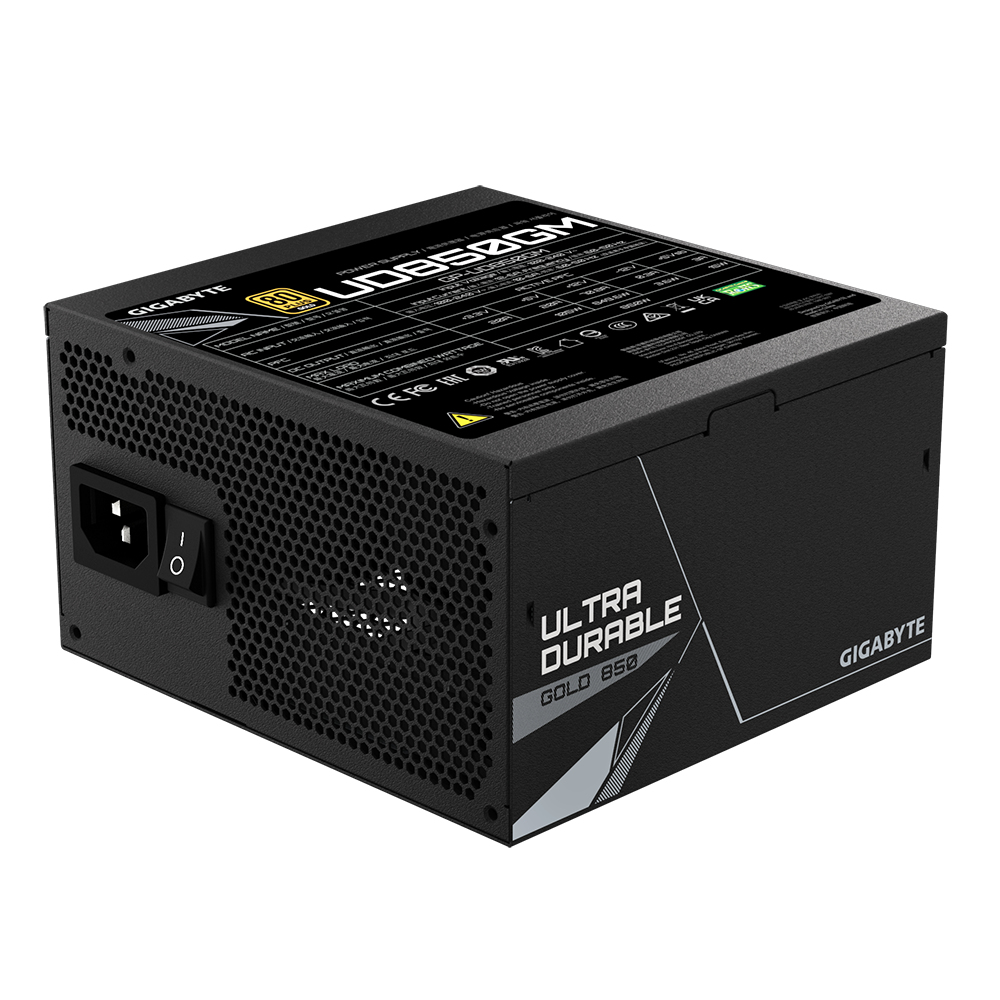

Power Supply Gold Ultra Durable Modular 850w - Gp-ud850gm
ITCurry #: 85365984 | Article #: GP-UD850GM-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.
HIGH QUALITY JAPANESE CAPACITORS
The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.
ENHANCED THERMAL SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

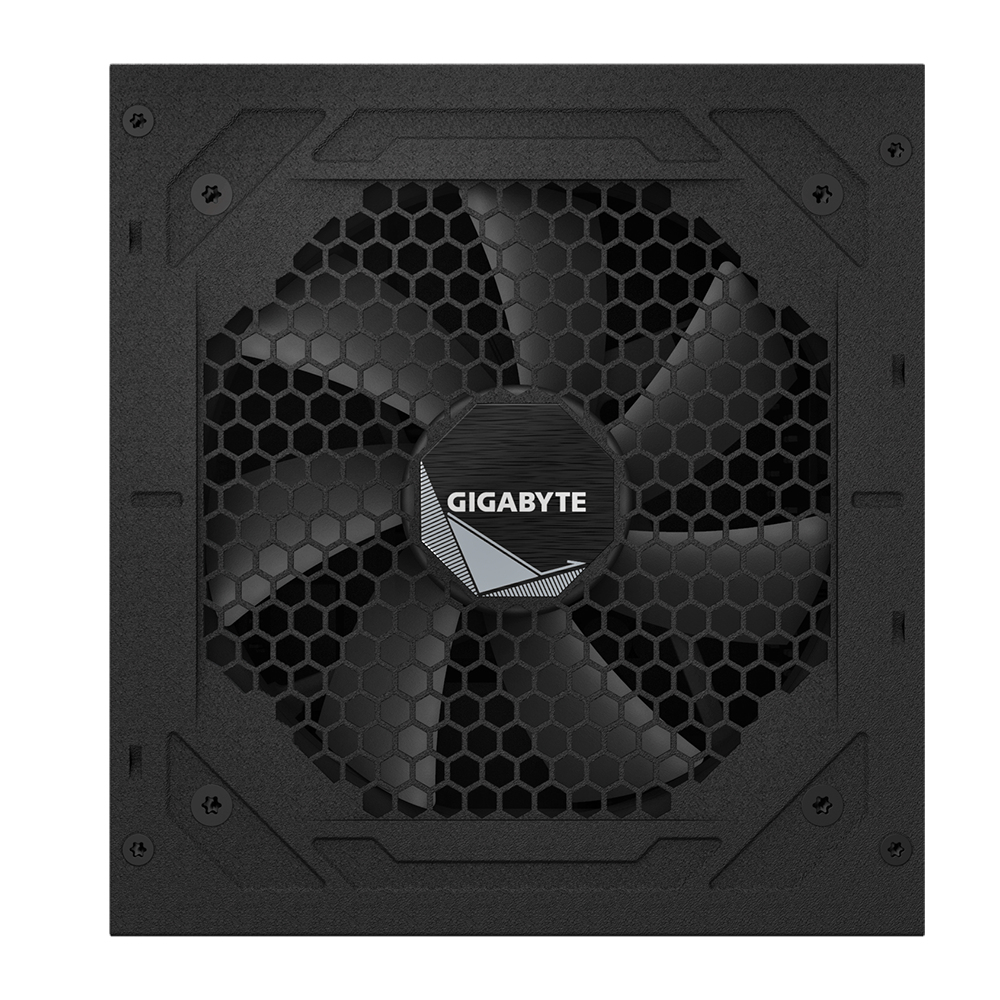

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

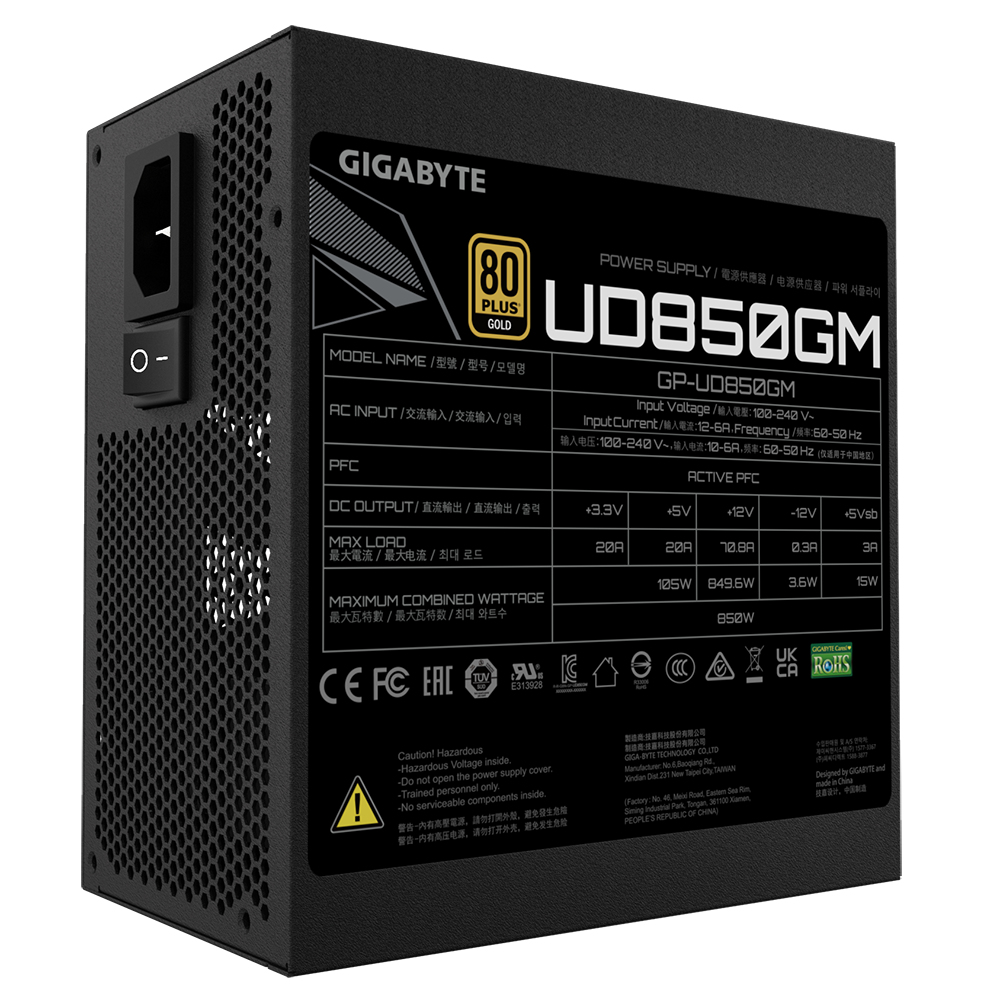

| Energie | |
| Totaal vermogen | 850 W |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Maximale ingangsstroom (@110V) | 12 A |
| Maximale ingangsstroom (@220V) | 6 A |
| Power factor | 0,9 |
| Power Factor Correctie (PFC) type | Actief |
| Gecombineerd vermogen (+3.3V) | 105 W |
| Gecombineerd vermogen (+12V) | 849,6 W |
| Gecombineerd vermogen (+5V) | 120 W |
| Gecombineerd vermogen (-12V) | 3,6 W |
| Gecombineerd vermogen(+5Vsb) | 15 W |
| Max huidige output (+3.3V) | 20 A |
| Max huidige output(+12V) | 70,8 A |
| Max huidige output (+5V) | 20 A |
| Max huidige output (-12V) | 0,3 A |
| Max huidige output (+5Vsb) | 3 A |
| Houd-tijd | 16 ms |
| Efficientie | 90 procent |
| Stroomspanning bescherming | Overstroom, Te hoog vermogen, Overspanning, Oververhitting, Kortsluiting, Onder spanning |
| Poorten & interfaces | |

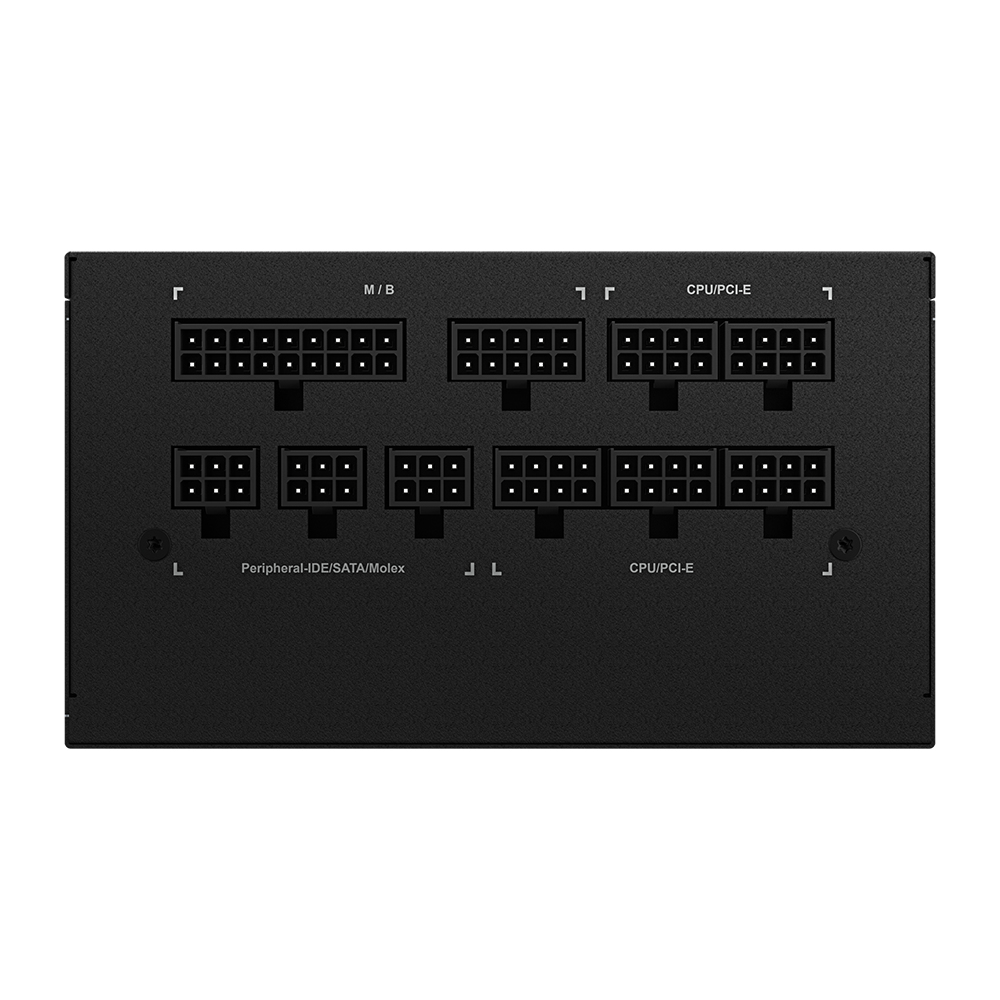

| Motherboard power connector | 20+4 pin ATX |
| Lengte stroomkabel moederbord | 61 cm |
| Aantal SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Ja |
| Lengte CPU-stroomkabel | 60 cm |
| ATX power connector (20+4 pin) | Ja |
| Floppy drive power connector | 2 |
| Aansluiting voor diskettestation | Ja |
| Bekabelingstype | Fully-Modular |
| Prestatie | |
| 80 PLUS certificatie | 80 PLUS Gold |
| Bedoeld voor | PC |
| Vormfactor van de voeding (PSU) | ATX |
| ATX version | 2.31 |
| Mean time between failures (MTBF) | 100000 uur |
| Design | |
| Kleur van het product | Zwart |
| Type koeling | Actief |
| Ventilator diameter | 12 cm |
| Aantal ventilatoren | 1 ventilator(en) |
| Ventilator locatie | Boven |
| Aan/uitschakelaar | Ja |
| Gewicht en omvang | |
| Breedte | 150 mm |
| Diepte | 140 mm |
| Hoogte | 86 mm |
| Verpakking | |
| Type verpakking | Doos |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 84733020 |
| Warranty | |
| Base Warranty | Non Non |
