Primergy Tx1310 M5 - Intel Xeon E-2356g - 16GB Ram - U 3200 1r/DVD-rw/ - 2xhd SATA 2tb/kit - Tpm 2.0 Module
ITCurry #: 1855AC28 | Article #: VFY:T1315SC120IN-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
RIGHT-SIZED PERFORMANCE
A genuine prize, affordable yet substantial compute and memory tailored to match most essential SME server tasks, such as file, print, web, office applications or even industry-specific applications.
VALUE-ORIENTED EXPANDABILITY
Upgrade from a PC to a server design which has 4x 3.5-inch, large capacity drives, plus professional data backup, and seamless, cost-effective dual-Gigabit networking. 4x PCIe (1xGen4) slots enable upgrades such as a NVIDIA card for enhanced graphics capabilities.
AFFORDABLE SERVER CLASS RELIABILITY
Server class design features offer robust investment protection. ECC memory offers safety for your valuable enterprise data even as the data is being processed, while Cool-safe® allows for relatively silent and expanded range of operation.
ENHANCED EASE OF USE

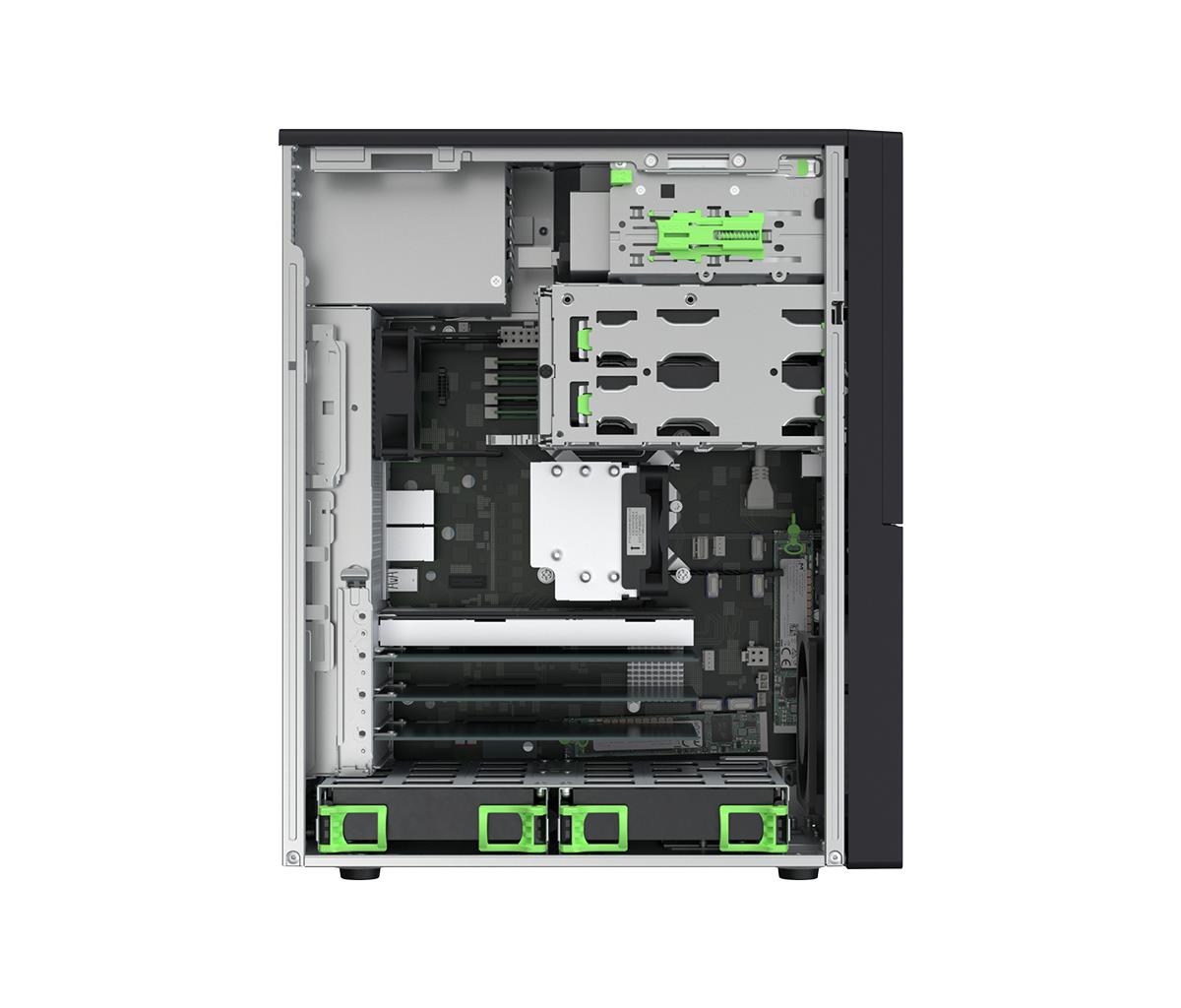

The server design features a screw-less chassis with easy, fast and comfortable access to the interior of the server, PCIe slots and cold-plug drive designs with cable less access to the hard disks.
| Processor | |
| Processorfabrikant | Intel |
| Processorfamilie | Intel Xeon E |
| Processormodel | E-2356G |
| Frequentie van processor | 3,2 GHz |
| Maximale turbofrequentie van processor | 5 GHz |
| Aantal processorkernen | 6 |
| Processor cache | 12 MB |
| Chipset moederbord | Intel C256 |
| Aantal ge‹nstalleerde processoren | 1 |
| Geheugen | |
| Intern geheugen | 16 GB |
| Intern geheugentype | DDR4-SDRAM |
| Geheugenslots | 4x DIMM |
| ECC | Ja |
| Kloksnelheid geheugen | 3200 MHz |
| Geheugenlayout | 1 x 16 GB |
| Maximum intern geheugen | 128 GB |
| Opslagmedia | |
| Totale opslagcapaciteit | 4 TB |
| Het aantal ge‹nstalleerde HDD's | 2 |
| HDD capaciteit | 2 TB |
| RAID support | Ja |
| Soorten RAID | 0, 1, 10 |
| Soort optische drive | DVD-RW |
| Grafisch | |
| Ingebouwde grafische adapter | Ja |
| Familie ingebouwde grafische adapter | Intel© UHD Graphics |
| On-board graphics adapter model | Intel UHD Graphics P750 |
| Netwerk | |
| LAN controller | Intel I210 |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 2 |
| Aantal USB 2.0-poorten | 4 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 2 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 1 |
| Aantal DisplayPorts | 1 |
| Totaal aantal SATA-connectoren | 7 |
| Uitbreidingsmodules | |
| PCI Express x4 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) sleuven | 1 |
| Design | |
| Type behuizing | Tower |
| Kleur van het product | Zwart |
| Prestatie | |
| Trusted Platform Module (TPM) | Ja |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Inclusief besturingssysteem | Nee |
| Compatibele besturingssystemen | Windows Server 2022 Datacenter Windows Server 2022 Standard Windows Server 2022 Essentials Windows Server 2019 Datacenter Windows Server 2019 Standard Windows Server 2019 Essentials SUSE© Linux Enterprise Server 15 Red Hat© Enterprise Linux 8 |
| Energie | |
| Redundante voeding | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 5 - 45 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 85 procent |
| Gewicht en omvang | |
| Breedte | 180 mm |
| Diepte | 313 mm |
| Hoogte | 379 mm |
| Warranty | |
| Base Warranty | Non Non |
