Touchpro Display Modules 16in
ITCurry #: M0134503 | Article #: E270963-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Elo's Touchscreen Display Modules combine industry-leading touch screens with liquid crystal displays (LCDs) - all in one embedded solution to help streamline your supply chain and simplify assembly.
The robust chemically strengthened cover glass with anti-glare treatment makes them well suited for deployment in a wide variety of commercial and industrial environments - from factory automation and medical displays to commercial kitchen equipment.
Available in standard sizes ranging from 7 to 15.6-inches and custom options up to 32-inches, Elo’s touchscreen display modules offer superior touch performance in harsh environments, excellent optical clarity, and robust EMI performance.
How it Works

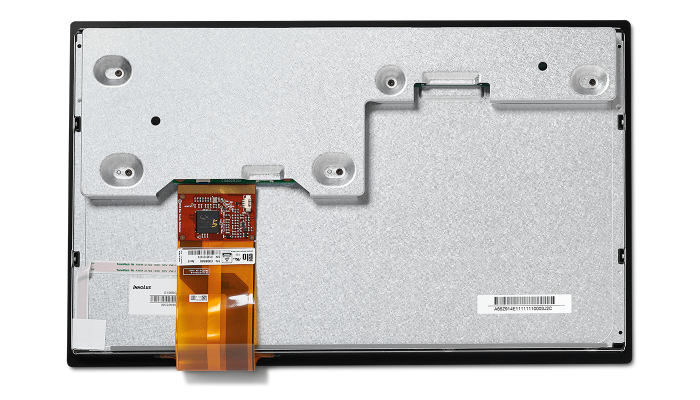

With a TouchPro Pro-F PCAP touch screen and chip-on-flex (COF) touch controller bonded to a commercial grade LCD, Elo’s Touchscreen Display Modules deliver reliability that is ready for integration.
Customize Your LCM
From design and engineering to prototyping and production, partner with Elo to create your touchscreen display module. By leveraging our premium PCAP touch screens, display expertise and LCD buying power, Elo can help you develop the perfect touch enabled display for your application.
| Beeldscherm | |
| Beeldschermdiagonaal | 39,6 cm (15.6") |
| Resolutie | 1366 x 768 Pixels |
| HD type | HD |
| Display technologie | LCD |
| Touchscreen | Ja |
| Touch screen type | Multi-gebruiker |
| Touchscreen technologie | Projected capacitive-systeem |
| Touch technologie | Multi-touch |
| Hoeveelheid simultane aanraakpunten | 10 |
| Beeldscherm vorm | Flat |
| Kijkhoek, horizontaal | 160ø |
| Kijkhoek, verticaal | 160ø |
| Grootte beeld (horizontaal) | 34,6 cm |
| Grootte beeld (verticaal) | 19,5 cm |
| Helderheid | 300 cd/mý |
| Prestatie | |
| NVIDIA G-SYNC | Nee |
| AMD FreeSync | Nee |
| Multimedia | |
| Ingebouwde camera | Nee |
| Ingebouwde microfoon | Nee |
| Design | |
| Kleur van het product | Zwart |
| Glas dikheid | 1,8 mm |
| Poorten & interfaces | |
| USB Touch port | Ja |
| Warranty | |
| Base Warranty | Non Non |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -20 - 70 øC |
| Gewicht en omvang | |
| Breedte ( zonder voet ) | 37,4 cm |
| Hoogte (zonder voet ) | 23,3 cm |
| Overige specificaties | |
| Mean time between failures (MTBF) | 50000 uur |
