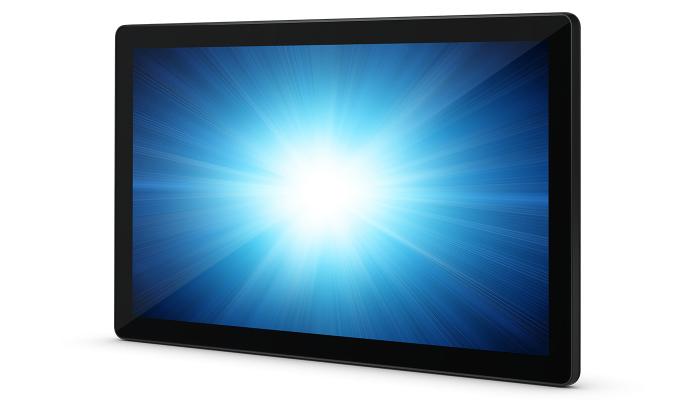

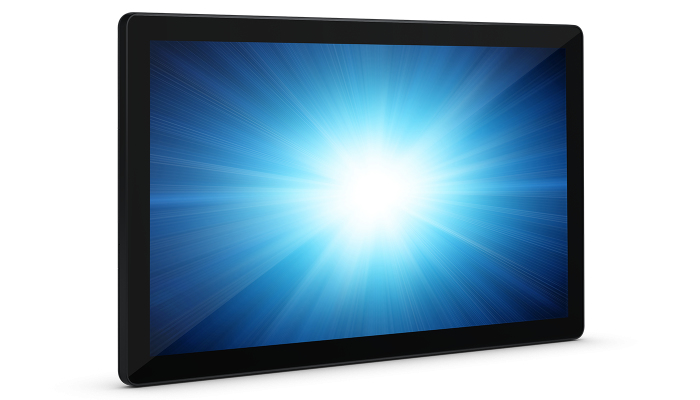

Touch Computer I-series - 21.5in - i5 8500t - 8GB Ram - 128GB SSD - Touchpro Pcap - Win 10
ITCurry #: M0134400 | Article #: E693022-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
I-Series for Windows
Elo's I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform—all in a sleek, yet durable fixed tablet form factor.
Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.
Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.
Configure with Elo Edge Connect
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.
Stands & Mounts

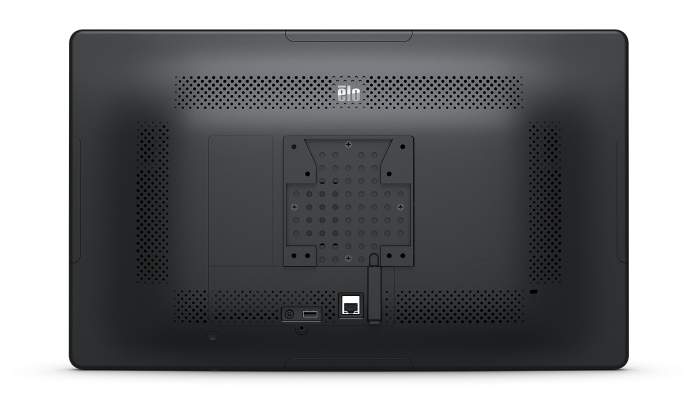

With a standard VESA mount, we give you the flexibility to mount our products however you want.
Windows or Linux. You Choose.
Elo's I-Series utilizes the reliability-tested performance and security of Intel's 8th-generation processors and vPro™ platform. Available with Windows 10 or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.
Get Peace of Mind With EloCare
EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.
| Beeldscherm | |
| Beeldschermdiagonaal | 54,6 cm (21.5") |
| Resolutie | 1920 x 1080 Pixels |
| Touchscreen | Ja |
| HD type | Full HD |
| LED backlight | Ja |
| Touch technologie | Multi-touch |
| Oorspronkelijke beeldverhouding | 16:9 |
| Helderheid | 225 cd/mý |
| Responstijd | 14 ms |
| Beeldscherm vorm | Flat |
| Beeldscherm, aantal kleuren | 16.78 miljoen kleuren |
| Processor | |
| Processorfabrikant | Intel |
| Processorfamilie | Intel© CoreT i5 |
| Processorgeneratie | Intel© 8de generatie CoreT i5 |
| Processormodel | i5-8500T |
| Frequentie van processor | 2,1 GHz |
| Maximale turbofrequentie van processor | 3,5 GHz |
| Aantal processorkernen | 6 |
| Processor aantal threads | 6 |
| Processor cache | 9 MB |
| Processor cache type | Smart Cache |
| Systeembus | 8 GT/s |
| 64-bit computing | Ja |
| Thermal Design Power (TDP) | 35 W |
| Configureerbare TDP-downfrequentie | 1,6 GHz |
| Configureerbare TDP-down | 25 W |
| PCI Express slots versie | 3.0 |
| Processor socket | LGA 1151 (Socket H4) |
| Processor lithografie | 14 nm |
| Processor operating modes | 64-bit |
| Stepping | U0 |
| Bus type | DMI3 |
| Codenaam processor | Coffee Lake |
| Maximaal aantal PCI Express-lijnen | 16 |
| PCI Express configuraties | 1x16, 1x8+2x4, 2x8 |
| Processorcode | SR3XD |
| Tjunction | 100 øC |
| Maximaal intern geheugen ondersteund door processor | 64 GB |
| Conflictvrije processor | Ja |
| Geheugentypen ondersteund door processor | DDR4-SDRAM |
| Klokgeheugen-snelheden ondersteund door processor | 2666 MHz |
| Geheugenbandbreedte ondersteund door de processor ( max) | 41,6 GB/s |
| Geheugenkanalen ondersteund door processor | Dual |
| ECC ondersteund door processor | Nee |
| Geheugen | |
| Intern geheugen | 8 GB |
| Intern geheugentype | DDR4-SDRAM |
| Maximum intern geheugen | 32 GB |
| Geheugenslots | 2 |
| Geheugen slots type | SO-DIMM |
| Kloksnelheid geheugen | 2666 MHz |
| Geheugenlayout | 1 x 8 GB |
| Opslagmedia | |
| Totale opslagcapaciteit | 128 GB |
| Opslagmedia | SSD |
| Aantal ge‹nstalleerde SSD's | 1 |
| SSD capaciteit | 128 GB |
| SSD-vormfactor | M.2 |
| Soort optische drive | Nee |
| Ge‹ntegreerde geheugenkaartlezer | Nee |
| Compatibele geheugenkaarten | Niet ondersteund |
| Grafisch | |
| Aparte grafische adapter | Nee |
| Discreet grafische adapter model | Niet beschikbaar |
| Ingebouwde grafische adapter | Ja |
| Familie ingebouwde grafische adapter | Intel© UHD Graphics |
| On-board graphics adapter model | Intel© UHD Graphics 630 |
| Basisfrequentie ingebouwde grafische adapter | 350 MHz |
| Graphics on-board -adapter dynamische frequentie (max) | 1100 MHz |
| Maximaal geheugen ingebouwde grafische adapter | 64 GB |
| Aantal displays ondersteund (door on-board grafische adapter) | 3 |
| On-board grafische adapter DirectX-versie | 12.0 |
| On-board grafische adapter OpenGL versie | 4.5 |
| On-board grafische adapter ID | 0x3E92 |
| 4K-ondersteuning | Ja |
| Audio | |
| Ingebouwde luidsprekers | Ja |
| Aantal luidsprekers | 2 |
| Gemiddeld vermogen | 2 W |
| Camera | |
| Ingebouwde camera | Nee |
| Netwerk | |
| Wifi | Ja |
| Wifi-standaard | Wi-Fi 5 (802.11ac) |
| Wi-Fi-standaarden | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Bluetooth | Ja |
| Bluetooth-versie | 5.0 |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Aantal USB 2.0-poorten | 4 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 1 |
| Hoofdtelefoonuitgangen | 1 |
| Design | |
| Kleur van het product | Zwart |
| VESA-montage | Ja |
| Paneelmontage-interface | 75 x 75,100 x 100 mm |
| Prestatie | |
| Type product | All-in-One tablet PC |
| Chipset moederbord | Intel Q370 |
| Trusted Platform Module (TPM) | Ja |
| Software | |
| Inclusief besturingssysteem | Windows 10 |
| Processor speciale functies | |
| Intel© Turbo Boost Technology | 2.0 |
| Intel© Hyper Threading Technology (Intel© HT Technology) | Nee |
| Intel© Identity Protection Technology (Intel© IPT) | Ja |
| Enhanced Intel SpeedStep Technology | Ja |
| Intel© Quick Sync Video Technology | Ja |
| Intel© Clear Video HD Technology (Intel© CVT HD) | Ja |
| Intel© Clear Video-technologie | Ja |
| Intel© InTruT 3D Technology | Ja |
| Intel© AES New Instructions (Intel© AES-NI) | Ja |
| Intel© Trusted Execution Technology | Ja |
| Intel© Enhanced Halt State | Ja |
| Intel© VT-x with Extended Page Tables (EPT) | Ja |
| Intel© Secure Key | Ja |
| Intel© TSX-NI | Ja |
| Intel© Stable Image Platform Program (SIPP) | Ja |
| Intel© OS Guard | Ja |
| Intel© Software Guard Extensions (Intel© SGX) | Ja |
| Intel© Clear Video Technology for Mobile Internet Devices (Intel© CVT for MID) | Ja |
| Intel© 64 | Ja |
| Execute Disable Bit | Ja |
| Idle States | Ja |
| Thermal Monitoring Technologies | Ja |
| Verpakkingsgrootte processor | 37.5 x 37.5 mm |
| Ondersteunde instructie sets | AVX 2.0, SSE4.1, SSE4.2 |
| Schaalbaarheid | 1S |
| CPU configuratie (max) | 1 |
| Ingebouwde opties beschikbaar | Ja |
| Thermal solution specificatie | PCG 2015A |
| Intel© Virtualization Technology for Directed I/O (VT-d) | Ja |
| Versie Intel© Identity Protection Technology | 1,00 |
| Versie Intel© Stable Image Platform Program (SIPP) | 1,00 |
| Versie Intel© Secure Key Technology | 1,00 |
| Intel© Virtualization Technology (VT-x) | Ja |
| Versie Intel© TSX-NI | 1,00 |
| ARK ID processor | 129941 |
| Energie | |
| AC-adapter, vermogen | 100 W |
| AC-adapterfrequentie | 50-60 Hz |
| AC-adapter ingangsspanning | 100 - 240 V |
| Pen | |
| Inclusief pen | Nee |
| Gewicht en omvang | |
| Breedte apparaat (met standaard) | 525,9 mm |
| Diepte apparaat (met standaard) | 52,6 mm |
| Hoogte apparaat (met standaard) | 319,2 mm |
| Gewicht (met standaard) | 5,2 kg |
| Breedte verpakking | 625 mm |
| Diepte verpakking | 196 mm |
| Hoogte verpakking | 437 mm |
| Gewicht verpakking | 7 kg |
| Warranty | |
| Base Warranty | Non Non |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 35 øC |
| Temperatuur bij opslag | -20 - 60 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 20 - 80 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Inhoud van de verpakking | |
| Inclusief AC-adapter | Ja |
| Snelstartgids | Ja |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 84713000 |
| Overige specificaties | |
| 3D | Nee |
| Afneembaar scherm | Nee |
