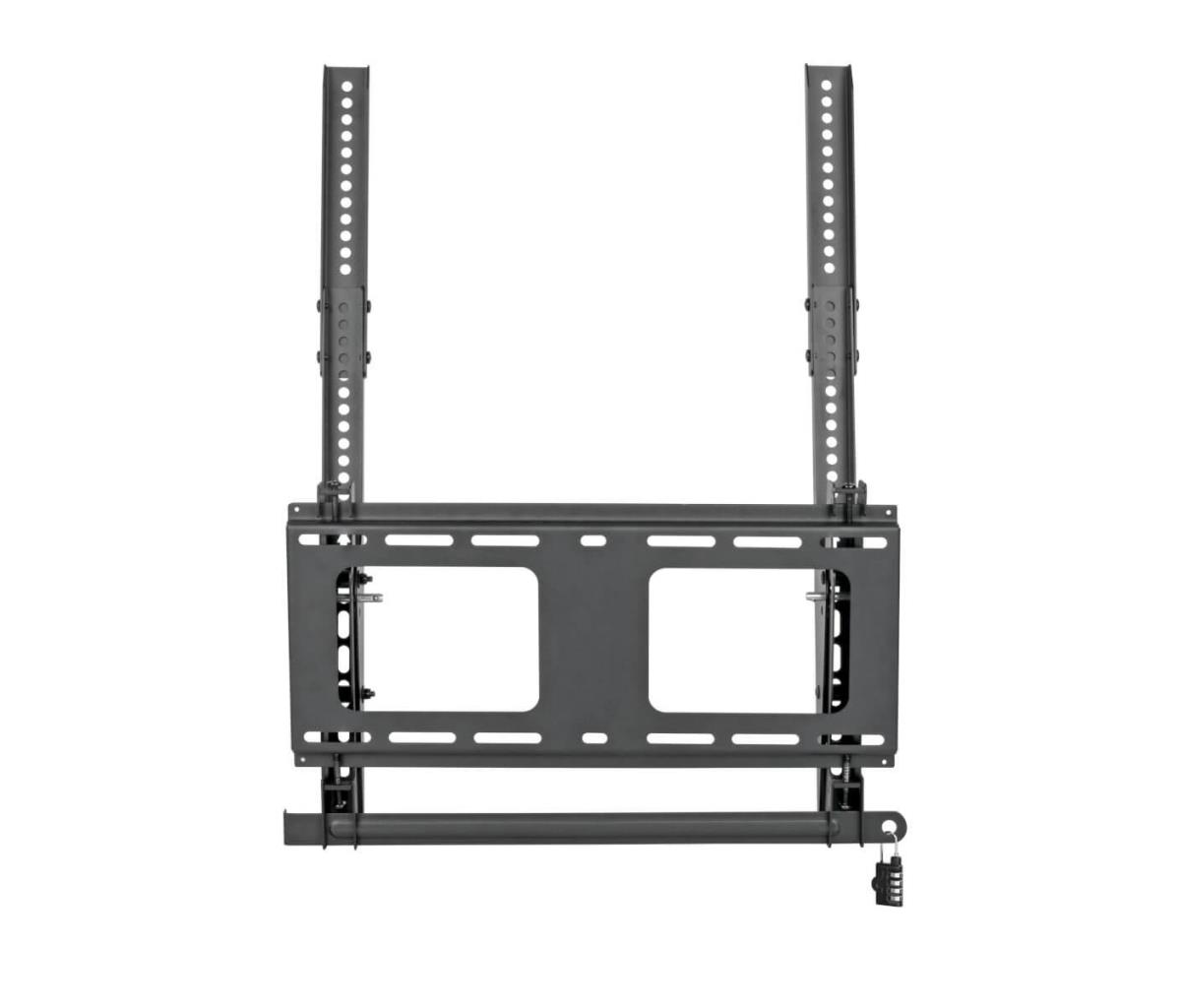

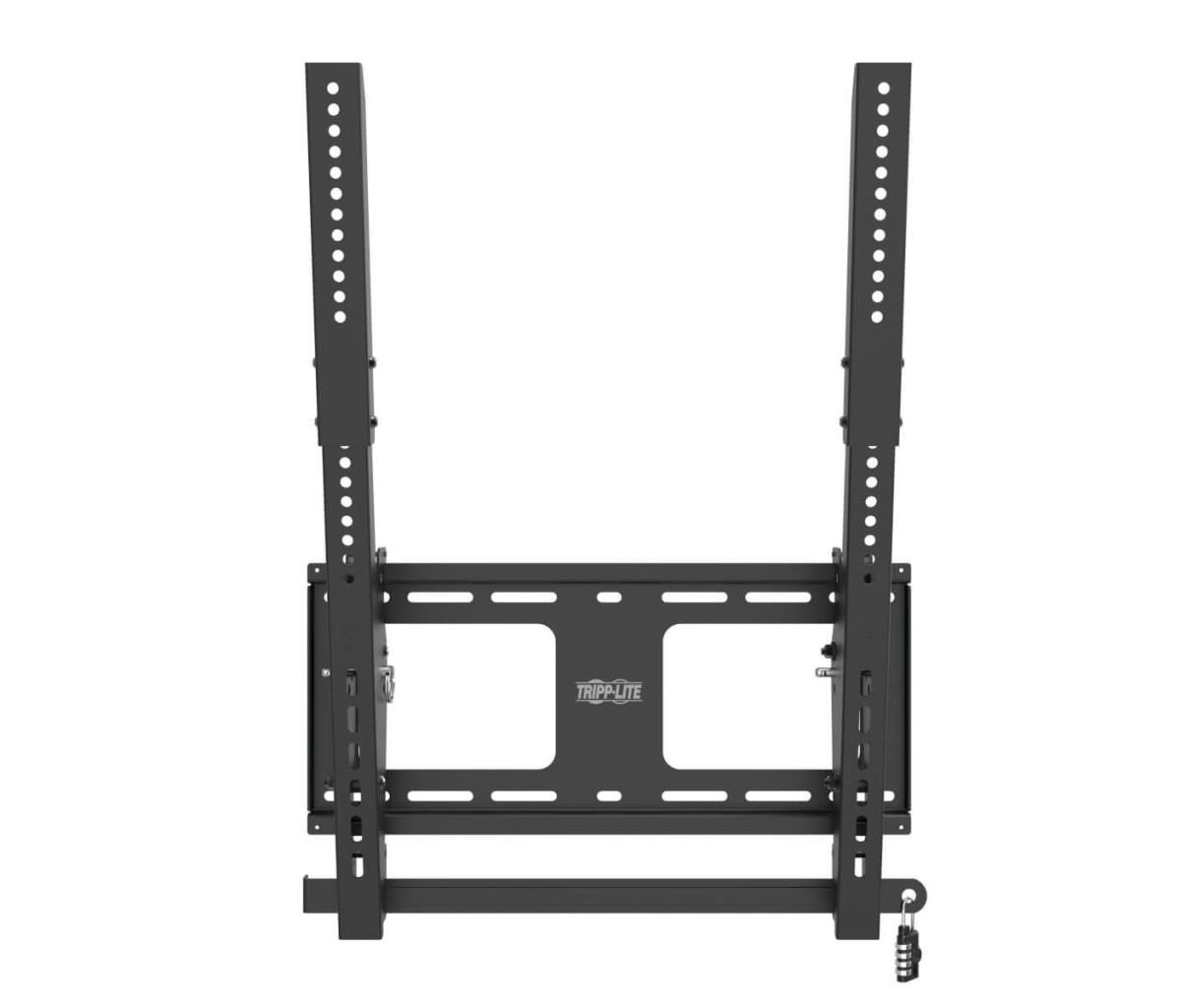

Portrait Wall Mount Hangs Your Flat-Panel TV or Monitor on the Wall
Recommended for classrooms, conference rooms, hotels, bars, restaurants or anywhere else you may want to show off a television or monitor in portrait mode, this heavy-duty anti-theft TV wall mount is hidden out of sight behind the display for a sleek, professional appearance. It fits most flat-panel displays from 45 to 55 inches and up to 110 lbs (49.9 kgs). Mounting hardware is included.
Durable All-Metal Construction Provides Convenient Cable Access

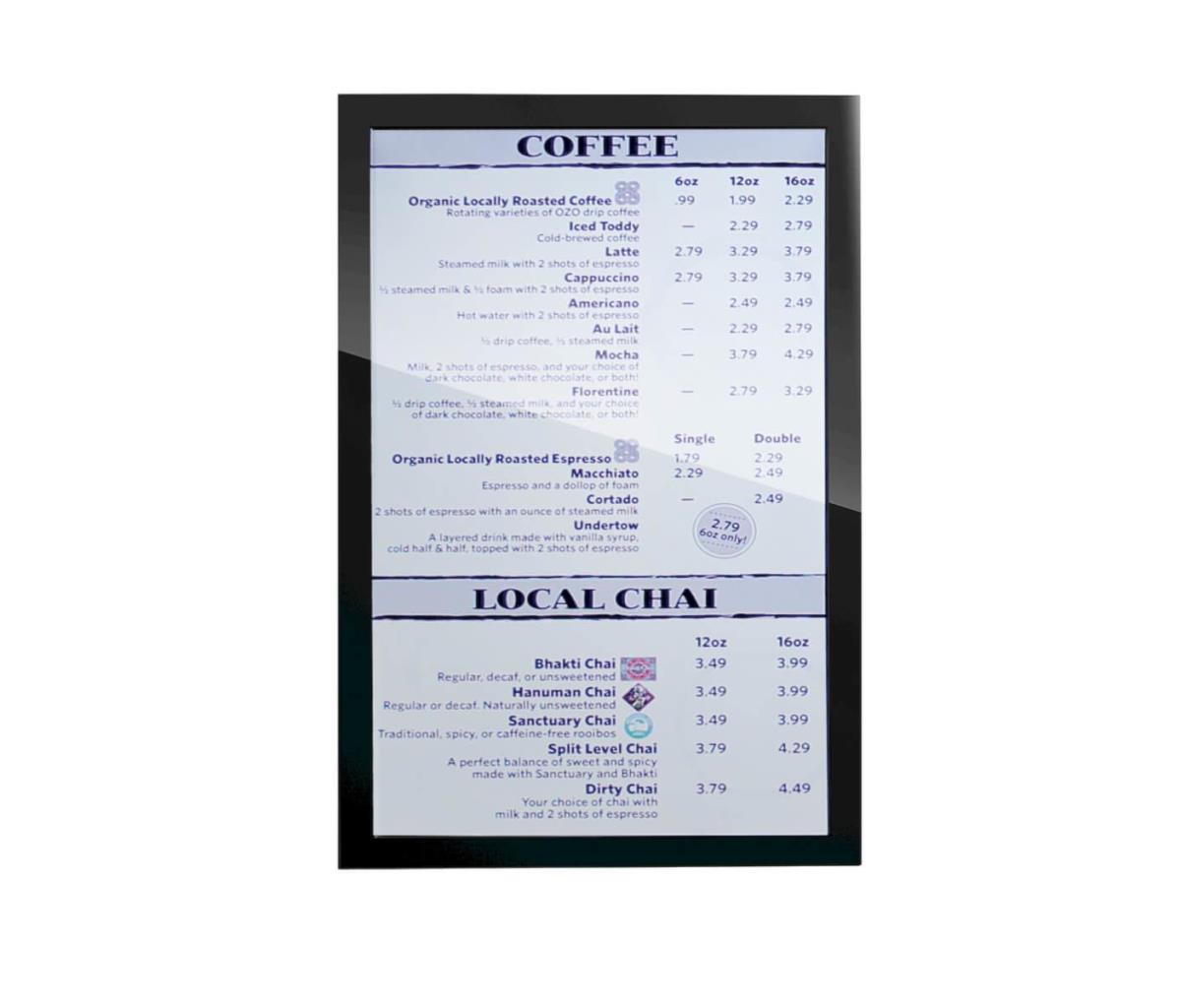

The tilt TV wall mount is constructed from heavy-duty steel with a powder-coated black finish that resists scratches. Rear openings with smooth edges enable easy access to cables. A built-in bubble level helps ensure your display is evenly mounted. The DWTPSC4555M is designed for portrait viewing, making it ideal for menus, schedules and announcements.
Designed to Keep Your Display Safe and Secure
This security wall mount was conceived with your television or monitor's safety in mind, especially if the display is located in a public area with unguarded traffic, such as a library, classroom or hotel lobby. It comes with a solid steel security bar that slides through the mounting brackets and is secured into place with an included four-position combination lock.

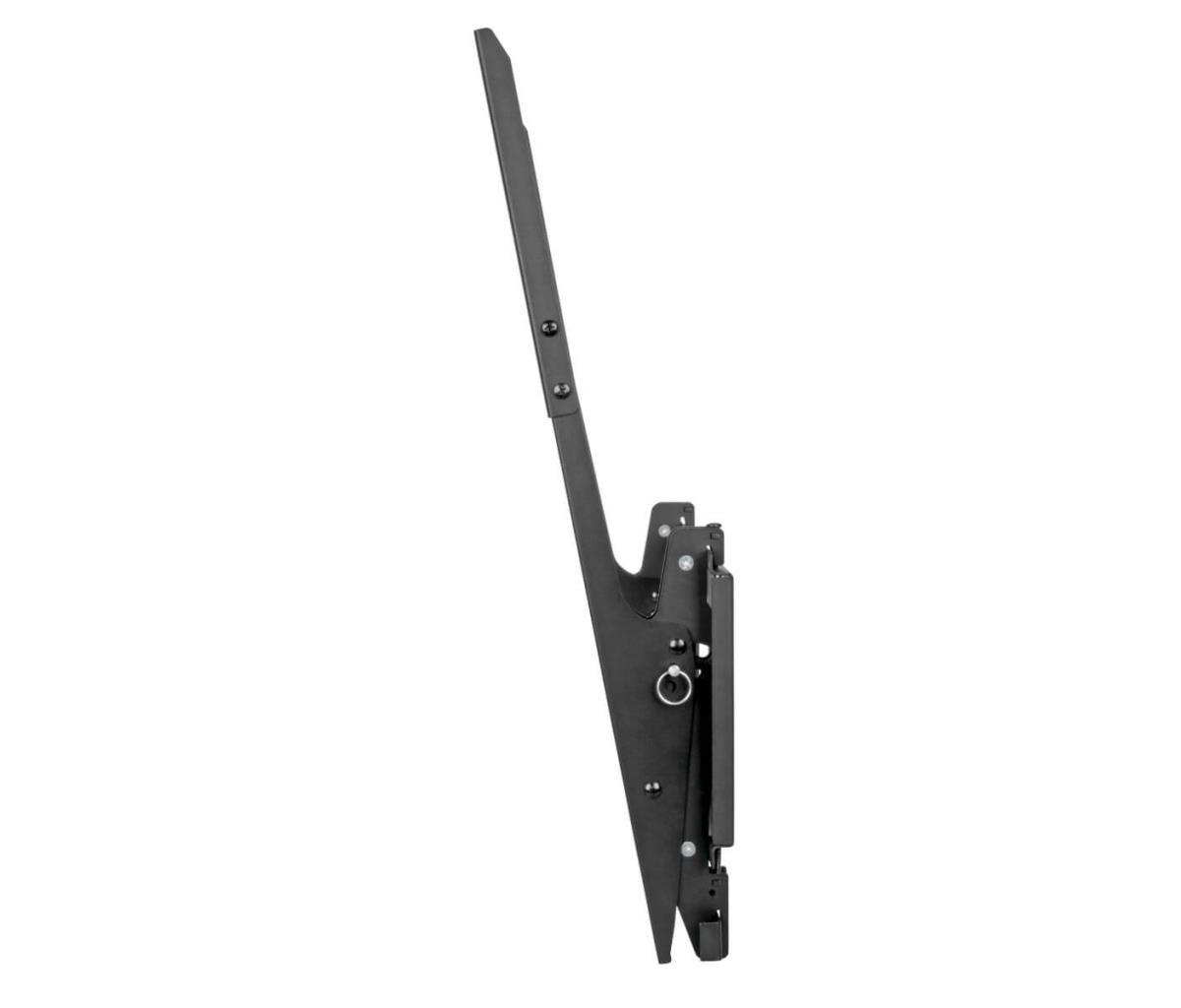

Tilt Feature Lets You Adjust the Viewing Angle to Your Specifications
You can adjust the horizontal angle of your display up to 10°. This will minimize glare on the screen and allow you to customize the angle for comfortable viewing.
Complies with VESA Standards
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing industry-wide standards for products like flat-panel TVs and monitors. To comply with these standards, most manufacturers use a series of universal mounting hole patterns, measured in millimeters, on the backs of the products. Measure the vertical and horizontal distances between the holes on the back of your display or refer to your display's owner's manual to find its VESA pattern. This monitor wall mount conforms to VESA-compliant displays with any of the following standard mounting hole patterns: 200 x 100, 200 x 200, 200 x 300, 200 x 400, 200 x 500, 300 x 200, 300 x 300, 300 x 400, 300 x 500, 300 x 600, 400 x 200, 400 x 300, 400 x 400, 400 x 500 and 400 x 600.
| Montage | |
| Minimale schermgrootte | 114,3 cm (45") |
| Maximale gewichtscapaciteit | 50 kg |
| Maximale schermgrootte | 139,7 cm (55") |
| Geschikt voor computerscherm | Ja |
| Montage interface compatibiliteit (min) | 200 x 200 mm |
| Montage interface compatibiliteit (max) | 400 x 600 mm |
| Paneelmontage-interface | 200 x 200,200 x 300,200 x 400,300 x 400,300 x 300,400 x 400,400 x 600 |
| Aantal displays ondersteund | 1 |
| Montagewijze | Muur |
| Ergonomie | |
| Afstand tot de muur (max.) | 7,9 cm |
| Design | |
| Kleur van het product | Zwart |
| Materiaal behuizing | Staal |
| Geschikt voor hangslot | Ja |
| Technische details | |
| Land van herkomst | China |
| Duurzaamheidscertificaten | RoHS |
| Compliance certificates | RoHS |
| Inhoud van de verpakking | |
| Gebruikershandleiding | Ja |
| Montage gereedschap | Ja |
| Gewicht en omvang | |
| Breedte | 680 mm |
| Diepte | 78,7 mm |
| Hoogte | 500,4 mm |
| Gewicht | 4,49 kg |
| Verpakking | |
| Breedte verpakking | 241,3 mm |
| Diepte verpakking | 551,2 mm |
| Hoogte verpakking | 78,7 mm |
| Gewicht verpakking | 5,58 kg |
| Logistieke gegevens | |
| (Buitenste) hoofdverpakking breedte | 261,6 mm |
| (Buitenste) hoofdverpakking lengte | 563,9 mm |
| (Buitenste) hoofdverpakking hoogte | 269,2 mm |
| (Buitenste) hoofdverpakking brutogewicht | 17,1 kg |
| Hoeveelheid per (buitenste) hoofdverpakking | 3 stuk(s) |
| GTIN (EAN/UPC)-nummer (buitenste) hoofdverpakking | 10037332238549 |
| Code geharmoniseerd systeem (HS) | 85299097 |
| Warranty | |
| Base Warranty | Non Non |
