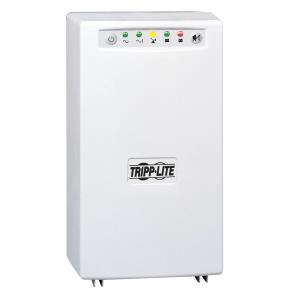

TRIPP LITE Smartpro Medical Grade 1kva 230v Line Interactive Tower UPS Extended-run Full Isolation
ITCurry #: 57903642 | Article #: SMX1200XLHG-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The SMX1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient care vicinities. The 1kVA/750W capacity provides up to 27.5 minutes of runtime for a half load or 11 minutes for a full load, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout.
Built-in line-interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V to normal 230V nominal output, without drawing battery power. The SMX1200XLHG’s built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Cumulative leakage current of all connected equipment is less than 100 microamps.
This UPS system features six IEC320 C13 hospital-grade outlets and has a hospital-grade IEC320 C14 plug on a 15-centimeter (six-inch) dongle. All six outlets provide both backup protection and surge protection, rated to 340 joules.
The SMX1200XLHG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with included PowerAlert® software for safe, unattended system shutdown in the event of a prolonged power failure.
This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMX1200XLHG in this type of application will void the battery warranty.
| Kenmerken | |
| Output power capacity | 1 kVA |
| Uitgangsvermogen | 750 W |
| Ingang operation voltage (min) | 230 V |
| Ingang operation voltage (max) | 230 V |
| Frequentie | 50/60 Hz |
| Uitgang operation voltage (min) | 230 V |
| Uitgang operation voltage (max) | 230 V |
| Stroom (max.) | 10 A |
| Surge energy rating | 340 J |
| EMI/RFI geluidsfiltering | Ja |
| Spanningsbeveiliging | Ja |
| Stroomspanning bescherming | Overspanning, Onder spanning |
| Geluidsalarm(en) | Ja |
| Land van herkomst | China |
| Poorten & interfaces | |
| Stopcontacttypes | C13 stekker |
| Stekker | C14 stekker |
| Aantal AC uitgangen | 6 AC-uitgang(en) |
| Accu/Batterij | |
| Typische backup tijd op volledige lading | 11 min |
| Typische backup tijd op halve lading | 27,5 min |
| Accu/Batterij oplaadtijd | 4,5 uur |
| Hot-swap batterij | Ja |
| Koude start | Ja |
| Design | |
| Vormfactor | Tower |
| Kleur van het product | Wit |
| LED-indicatoren | Ja |
| Certificering | CE, IEC 60601-1 |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -15 - 50 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Gewicht en omvang | |
| Breedte | 190,5 mm |
| Diepte | 231 mm |
| Hoogte | 323 mm |
| Gewicht | 20,6 kg |
| Breedte verpakking | 309,9 mm |
| Diepte verpakking | 339,9 mm |
| Hoogte verpakking | 469,9 mm |
| Gewicht verpakking | 22,1 kg |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85078000 |
| (Buitenste) hoofdverpakking breedte | 309,9 mm |
| (Buitenste) hoofdverpakking lengte | 339,9 mm |
| (Buitenste) hoofdverpakking hoogte | 469,9 mm |
| (Buitenste) hoofdverpakking brutogewicht | 22,1 kg |
| Hoeveelheid per (buitenste) hoofdverpakking | 1 stuk(s) |
| Overige specificaties | |
| Interface | USB; DB9 |
| Warranty | |
| Base Warranty | Non Non |
