TRIPP LITE PDU TAA-Compliant 7.4kW Single-Phase ATS/Switched 230V Blue Cords 2U Rack-Mount (PDUMH32HVATNET)
ITCurry #: 57905046 | Article #: PDUMH32HVATNET-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

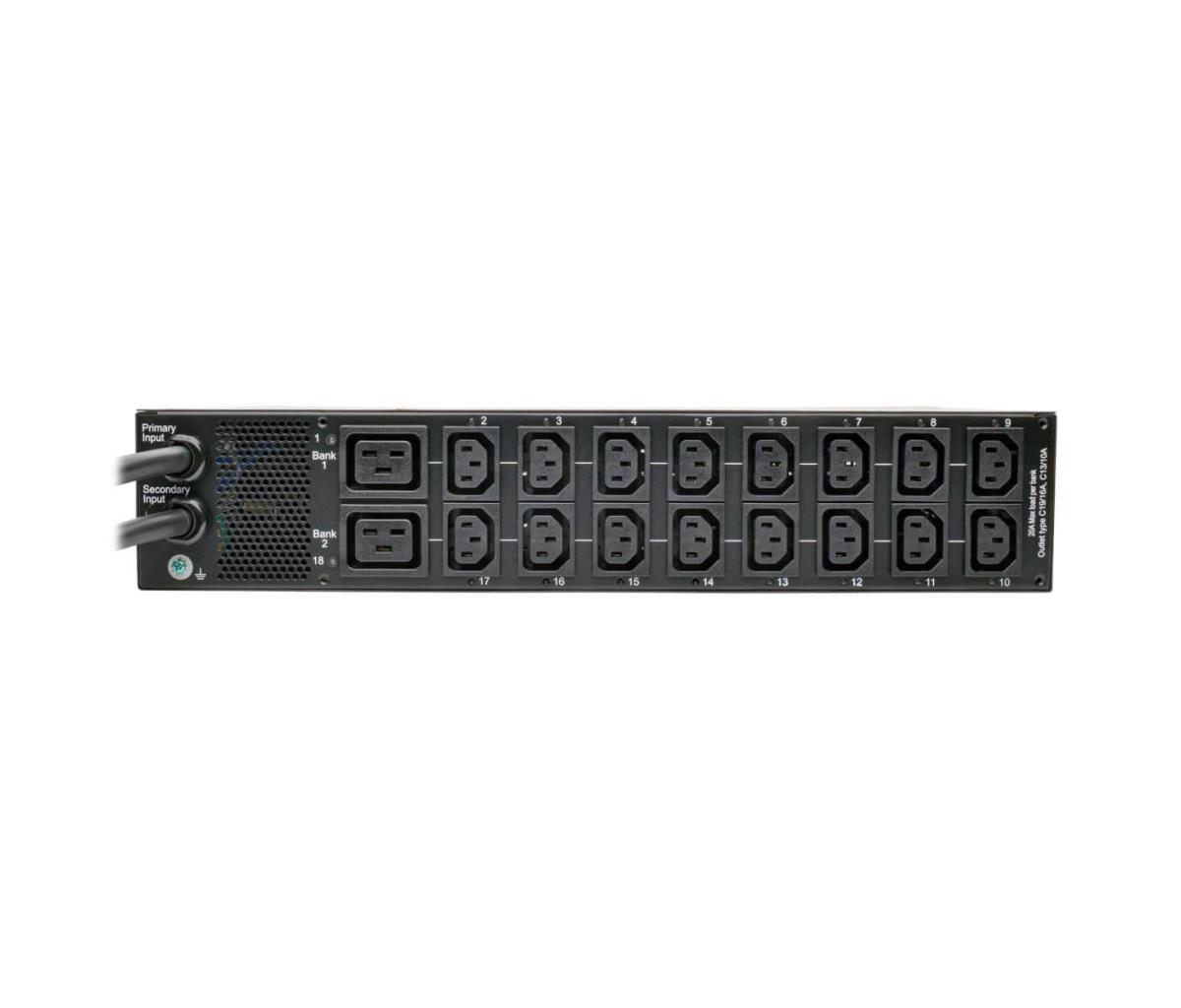

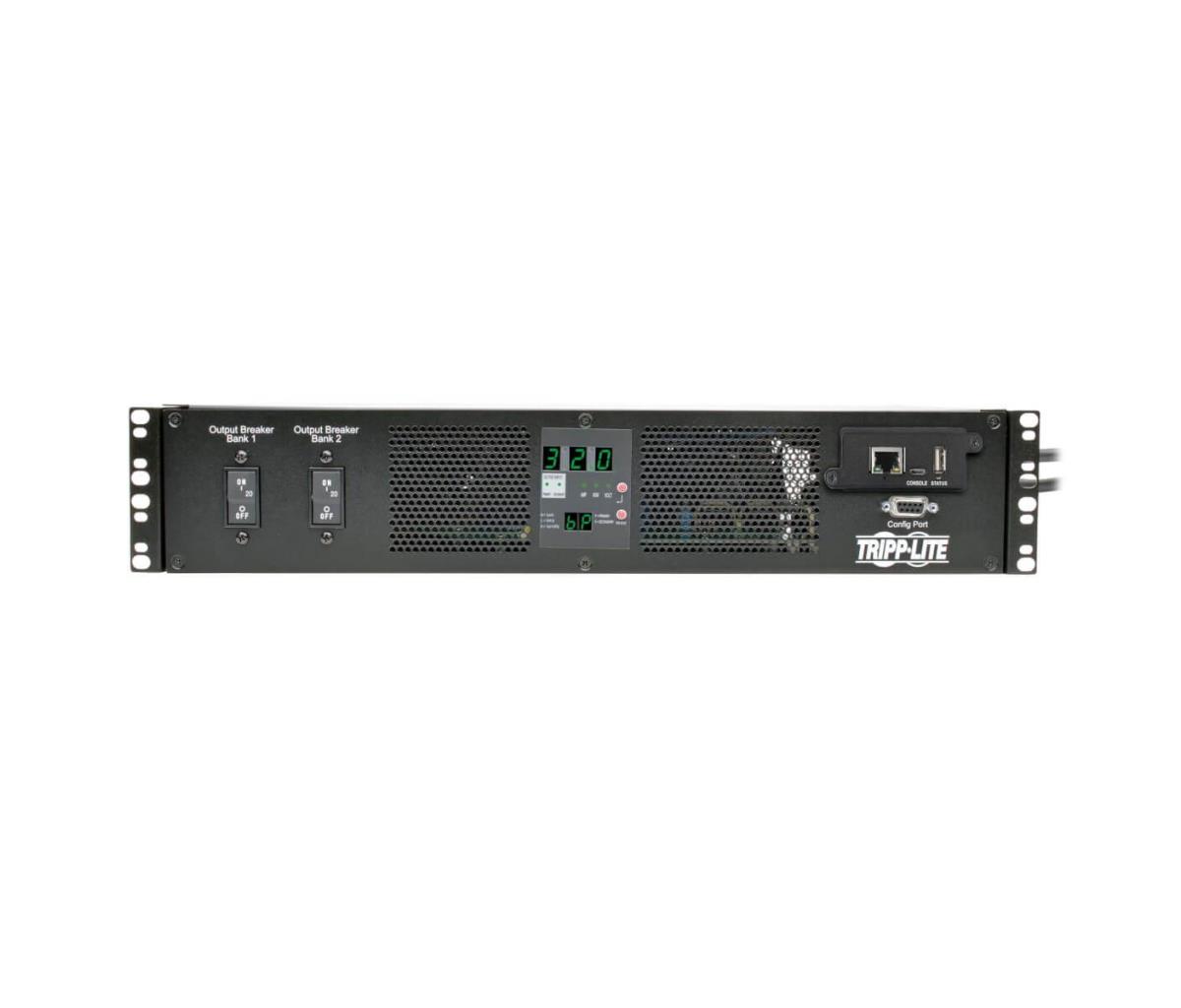

The PDUMH32HVATNET 7.7kW Single-Phase 200-240V Switched Automatic Transfer Switch / ATS PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 2U of space in EIA-standard racks and features 18 switched outlets (16 C13 and two C19) in two load banks, each bank protected by a 20A circuit breaker.

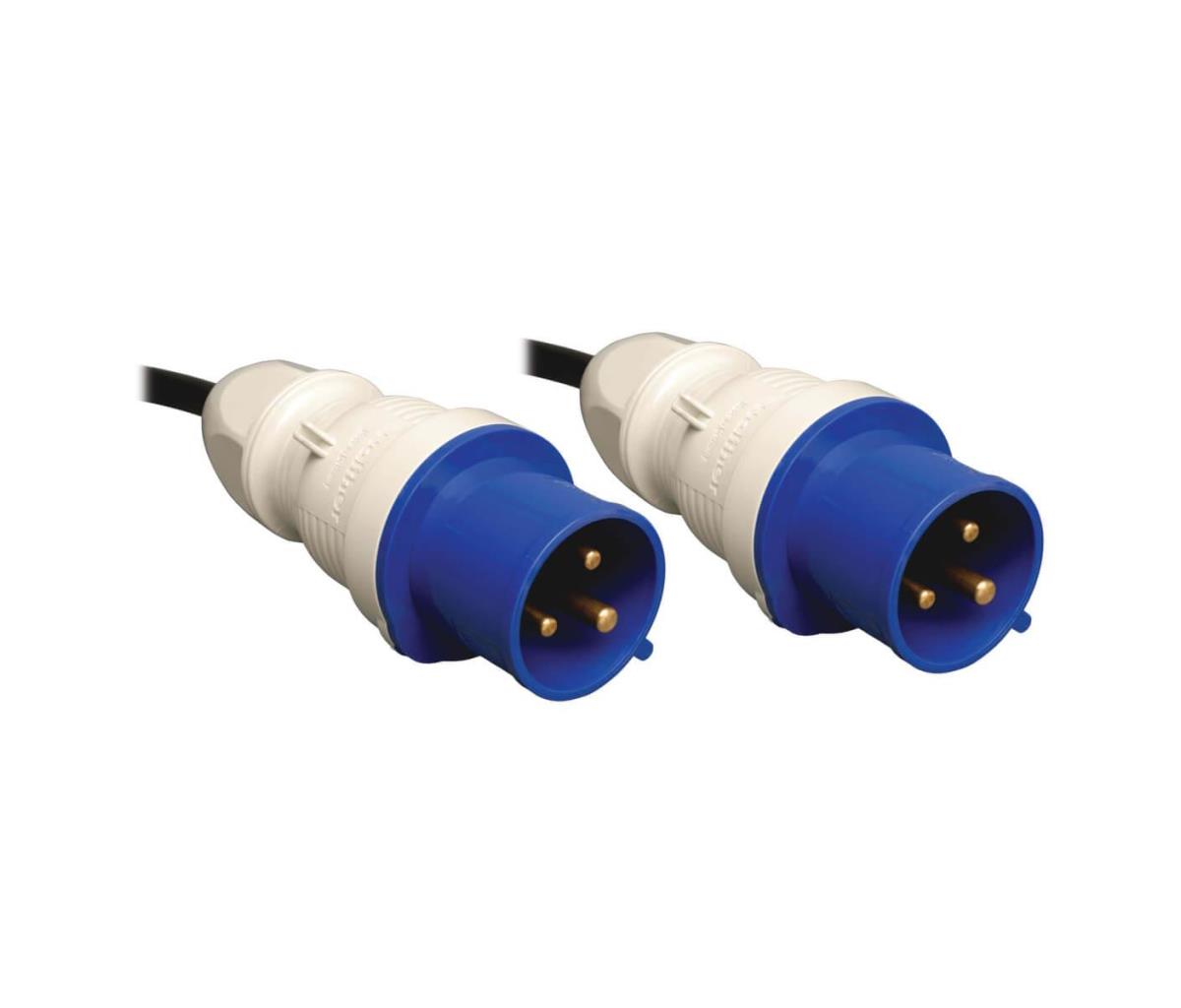

Dual 3-meter input cords with IEC309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1–5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in LX Platform network management interface. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separate) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
| Design | |
| PDU types | Geschakeld |
| Soort | Eenfasig |
| Rackcapaciteit | 2U |
| Montage | Horizontaal |
| Materiaal behuizing | Metaal |
| Kleur van het product | Zwart |

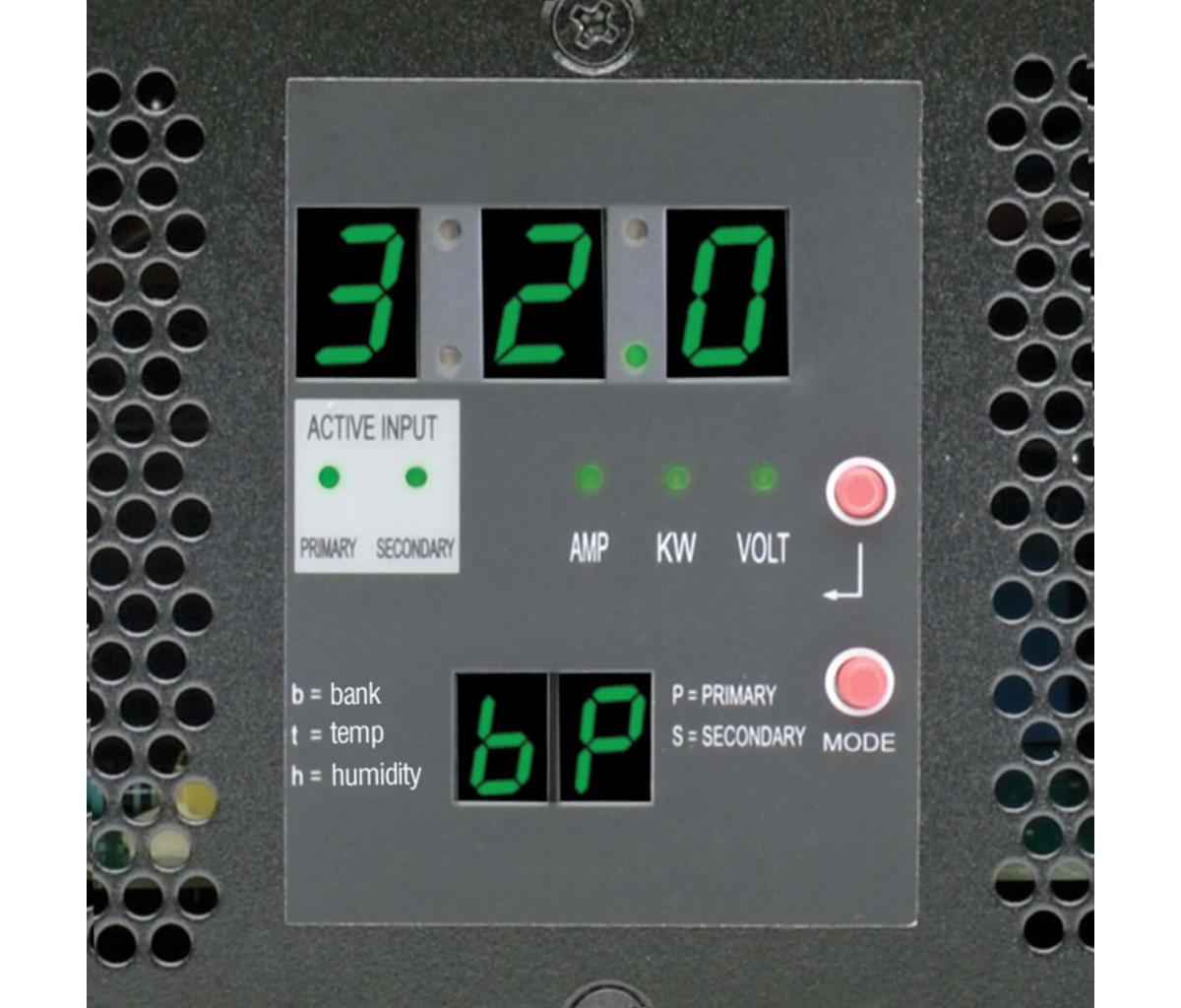

| Beeldscherm | LCD |
| Poorten & interfaces | |
| Aantal AC uitgangen | 18 AC-uitgang(en) |
| Stekker | IEC309 |
| Stopcontacttypes | C13 stekker, C19 stekker |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Kenmerken | |
| LED-indicatoren | Ja |
| Snoerlengte | 3 m |
| Beheerfuncties | |
| Ondersteunde netwerkprotocollen | HTTP, HTTPS, PowerAlert©, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP |
| Energie | |
| Nominale input voltage | 200-240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Stroom (max.) | 32 A |
| Netspanning, in bedrijf | 200-240 V |
| Maximaal vermogen | 7700 W |
| Gewicht en omvang | |
| Breedte | 444,5 mm |
| Diepte | 317,5 mm |
| Afmetingen (B x D x H) | 444 x 317 x 88 mm |
| Hoogte | 88,9 mm |
| Gewicht | 6,21 kg |
| Verpakking | |
| Afmetingen verpakking (BxDxH) | 424 x 505 x 198 mm |
| Gewicht verpakking | 9,12 kg |
| Breedte verpakking | 457,2 mm |
| Diepte verpakking | 497,8 mm |
| Hoogte verpakking | 198,1 mm |
| Inhoud van de verpakking | |
| Gebruikershandleiding | Ja |
| Eisen aan de omgeving | |
| Temperatuur bij opslag | -15 - 50 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Technische details | |
| Duurzaamheidscertificaten | RoHS |
| Compliance certificates | RoHS |
| Logistieke gegevens | |
| Land van herkomst | Taiwan |
| Hoeveelheid per (buitenste) hoofdverpakking | 1 stuk(s) |
| Warranty | |
| Base Warranty | Non Non |
