TRIPP LITE KVM Switch Netcommander 19in Vga Console Cat5 8 Port
ITCurry #: 57903579 | Article #: B070-008-19-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

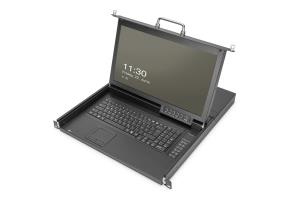

The B070-008-19 KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to eight computers/servers.
The B070-008-19 uses inexpensive, user-supplied Cat5e/6/6a and a Server Interface Unit so you can control computers/servers located up to 100 feet away from the switch. You can switch easily between the ports using an on-screen display (OSD) or keyboard hot key commands. Multi-level password protection prohibits unauthorized users from accessing the connected computers. The built-in 19-inch LCD screen supports video resolutions up to 1366 x 768.
The B070-008-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Note: B051-000 remote access IP unit is not compatible with the B070-008-19 or B070-016-19 NetCommander® Cat5 1U Rack-Mount Console KVM Switch Series.
| Warranty | |
| Base Warranty | Non Non |
| Beeldscherm | |
| Beeldschermdiagonaal | 48,3 cm (19") |
| Resolutie | 1280 x 1024 Pixels |
| Beeldscherm | LCD |
| On Screen Display (OSD) | Ja |
| Technische details | |
| Hoogte (in Rack Units) | 1 |
| Gewicht (imperiaal) | 16,3 kg (36 lbs) |
| Kleur van het product | Zwart |
| Ingebouwde KVM schakelaar | Ja |
| Aantal KVM schakelaar ports | 8 |
| Bedrijfstemperatuur, bereik | -40 - 158 øF |
| Relatieve luchtvochtigheid | 0 - 80 procent |
| Certificaten van naleving | RoHS |
| Land van herkomst | Taiwan |
| Poorten & interfaces | |
| Interface | VGA, USB, PS/2 |
| Certificaten | |
| Certificering | UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1 |
| Energie | |
| AC-adapter ingangsspanning | 100 - 240 V |
| AC-adapterfrequentie | 50/60 Hz |
| Gewicht en omvang | |
| Breedte | 449,3 mm |
| Hoogte | 43,4 mm |
| Diepte | 722,4 mm |
| Gewicht | 14 kg |
| Verpakking | |
| Gewicht verpakking | 18,4 kg |
| Breedte verpakking | 595,1 mm |
| Diepte verpakking | 833,9 mm |
| Hoogte verpakking | 160 mm |
| Logistieke gegevens | |
| (Buitenste) hoofdverpakking breedte | 595,1 mm |
| (Buitenste) hoofdverpakking lengte | 833,9 mm |
| (Buitenste) hoofdverpakking hoogte | 160 mm |
| (Buitenste) hoofdverpakking brutogewicht | 18,4 kg |
| Hoeveelheid per (buitenste) hoofdverpakking | 1 stuk(s) |
