TRIPP LITE Copper Bus Grounding Bar for 24U and 25U Racks
ITCurry #: 57906940 | Article #: SRGROUND25-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Provides Convenient Ground Contact for Your Rack-Mounted Equipment

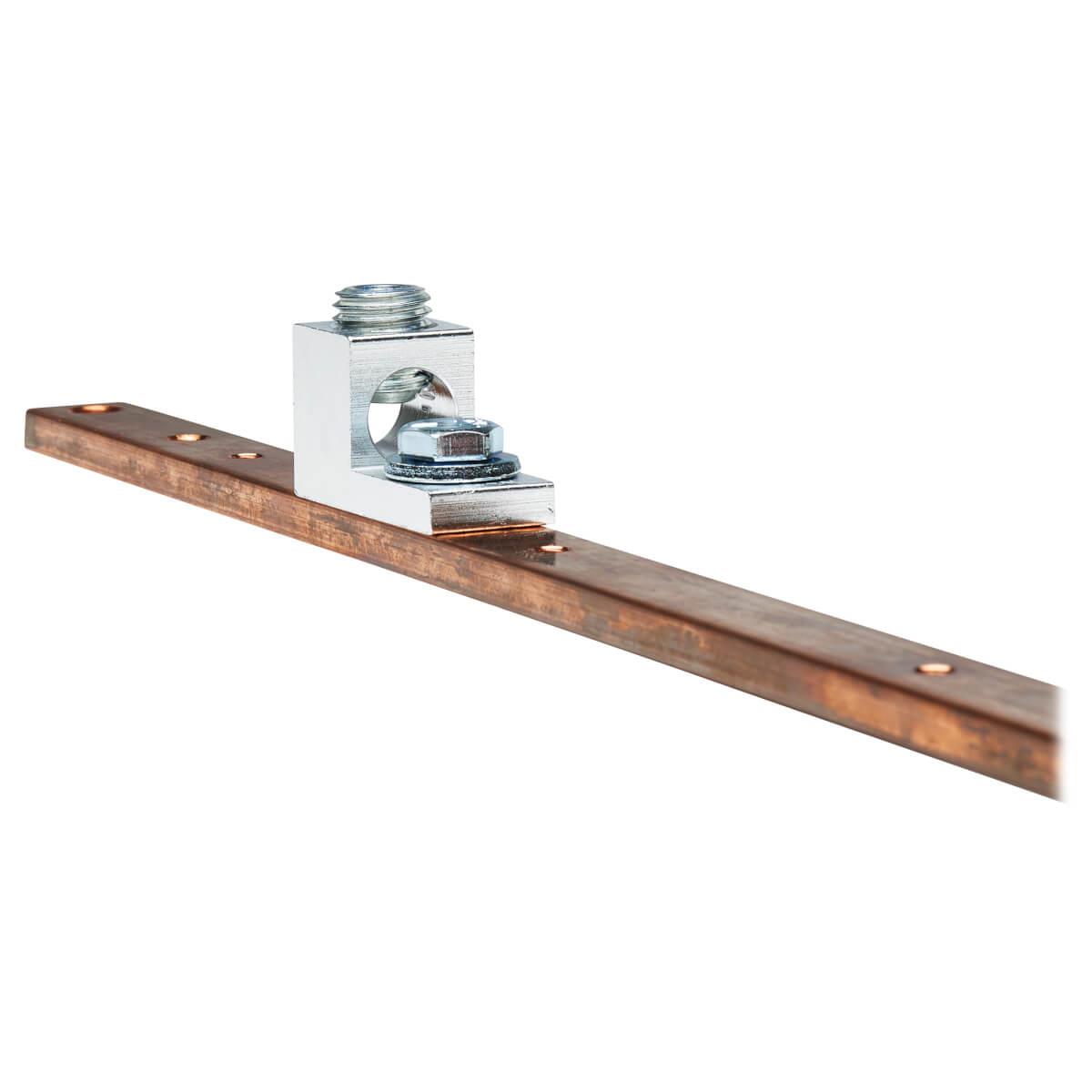

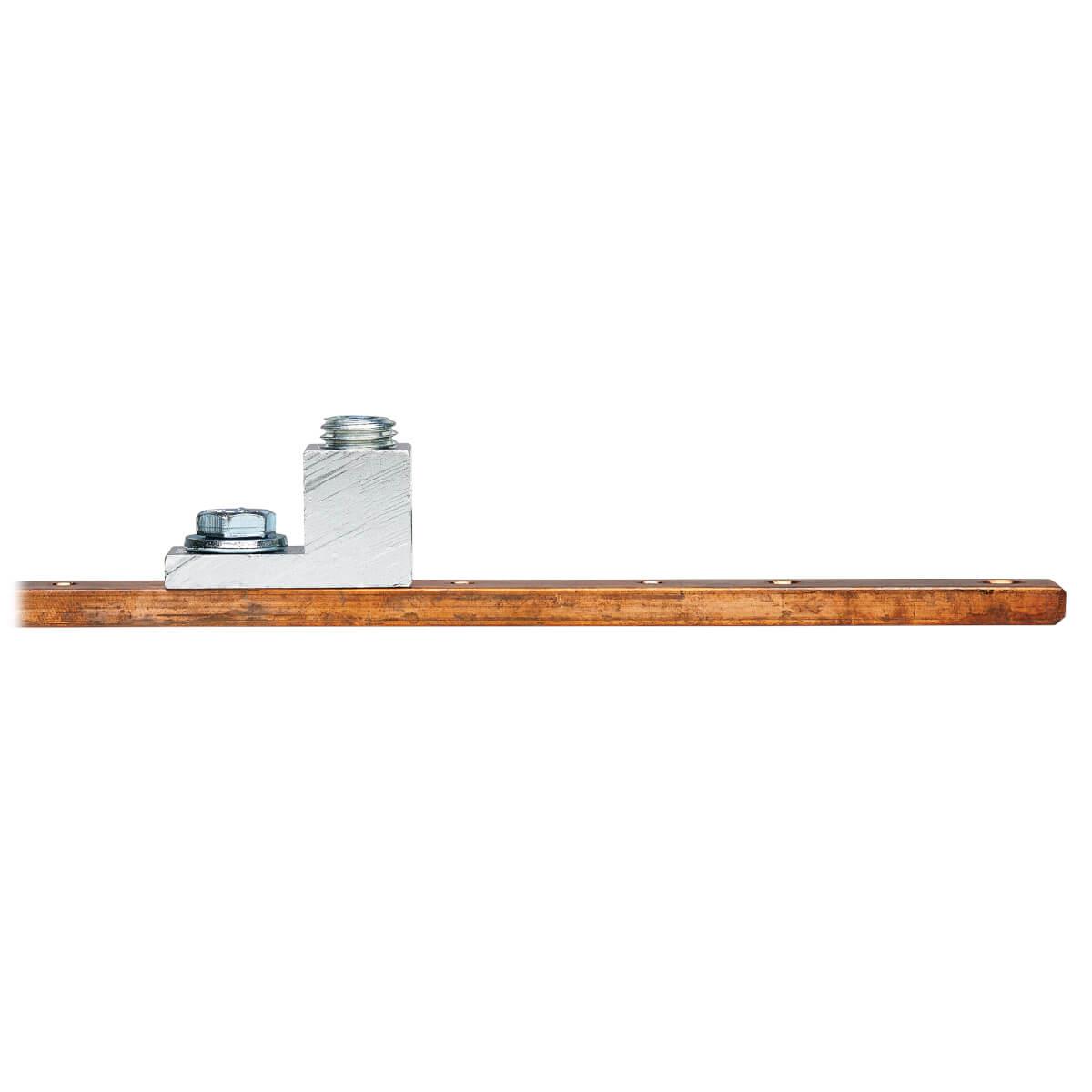

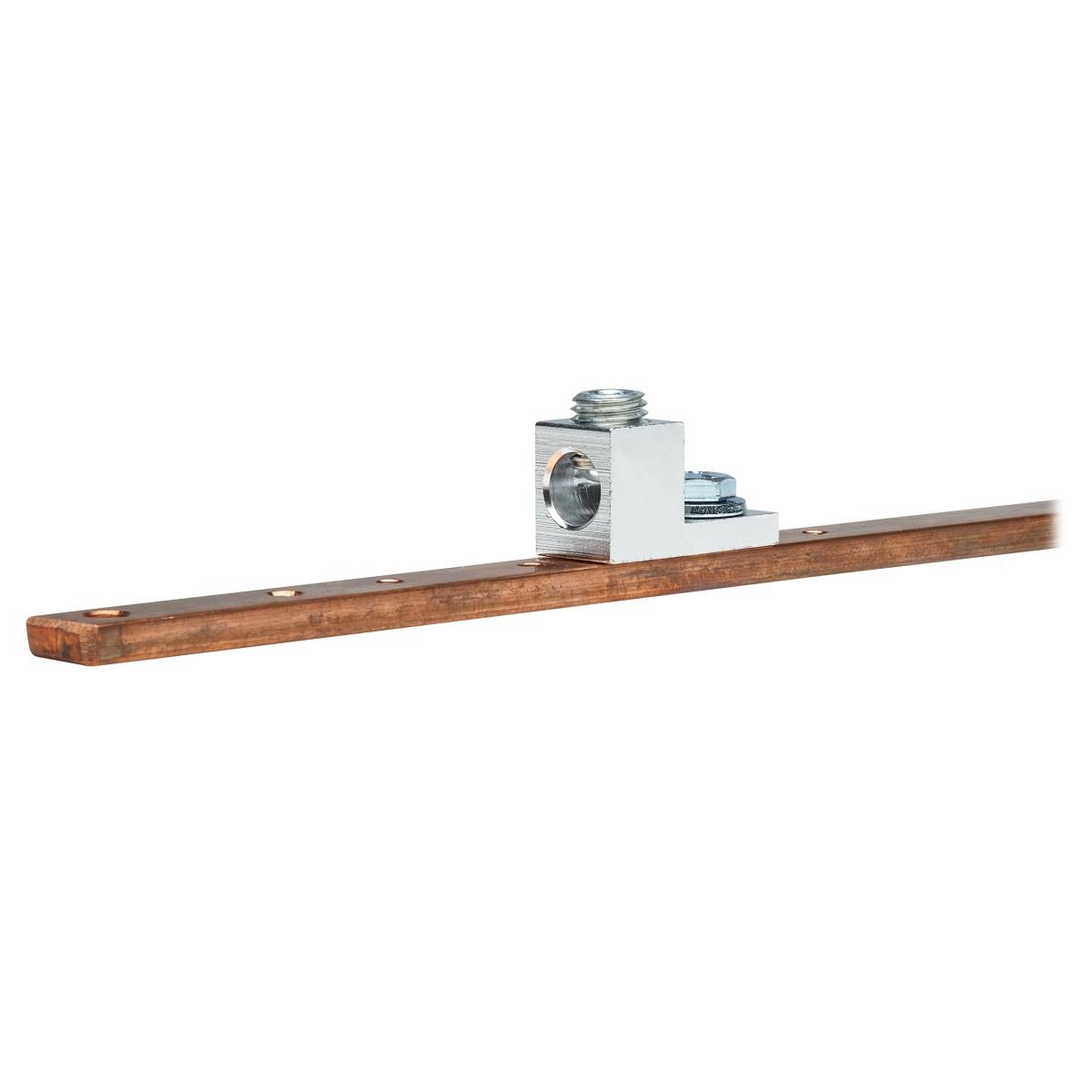

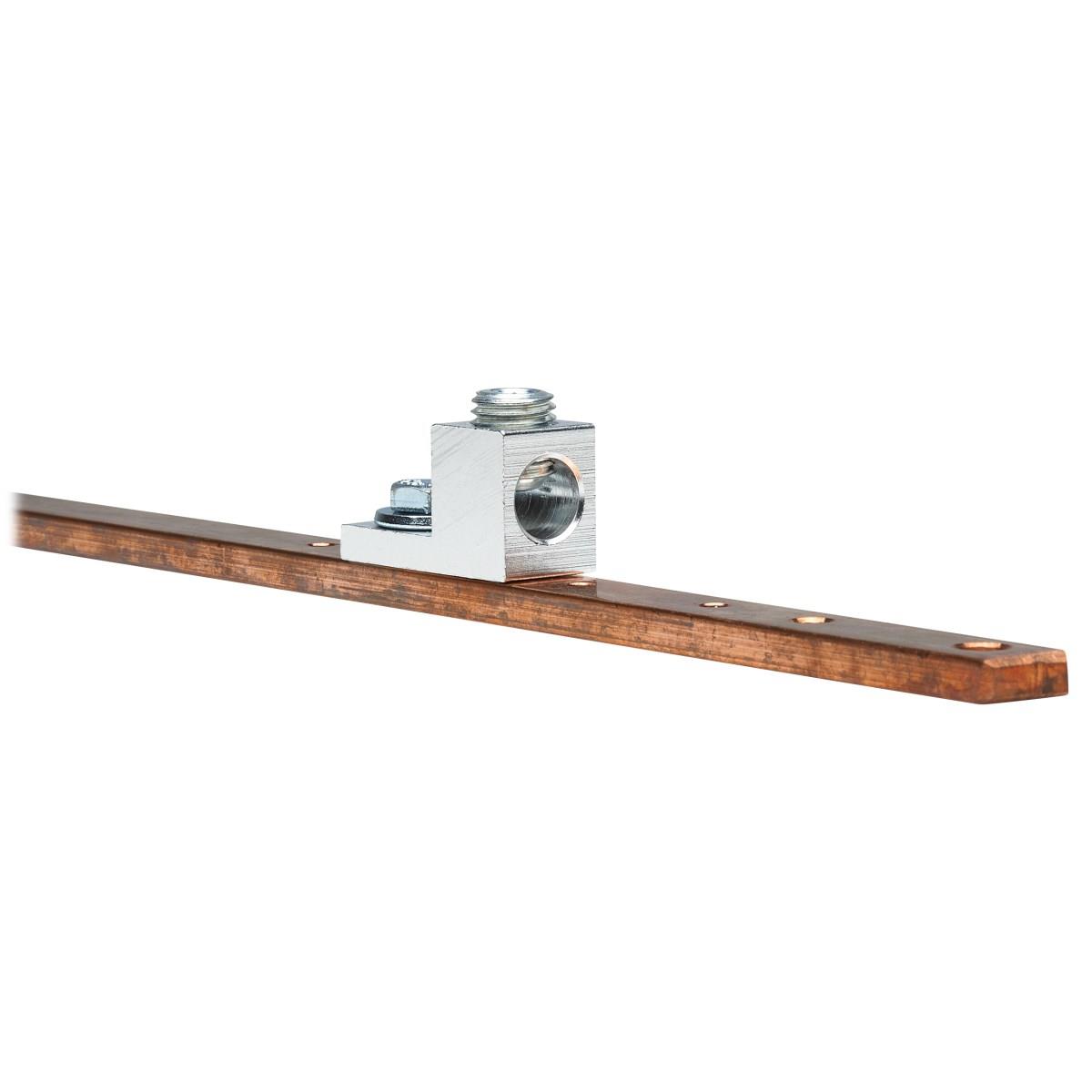

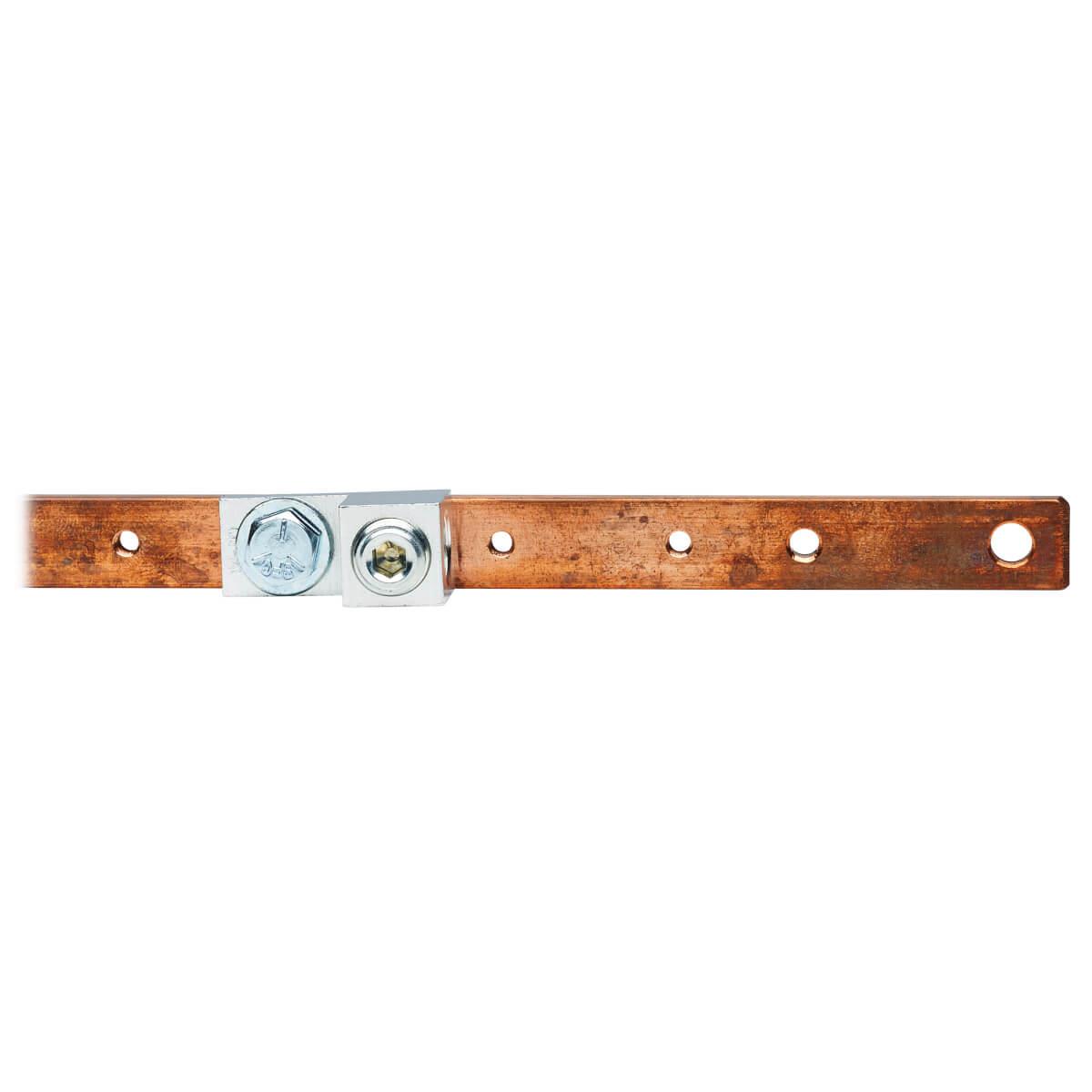

This SmartRack® grounding bar is a thin strip of heavy-gauge solid copper that attaches to any EIA-standard 24U or 25U rack enclosure or open frame rack. Every other U space has a drilled and tapped hole to allow a ground wire jumper to be installed, providing convenient ground contact for standard rack equipment. The jumper then bridges to individual rack components, with grounding straps, allowing a direct path to ground, rather than going through surrounding equipment.
Easy to Install with All Hardware Included

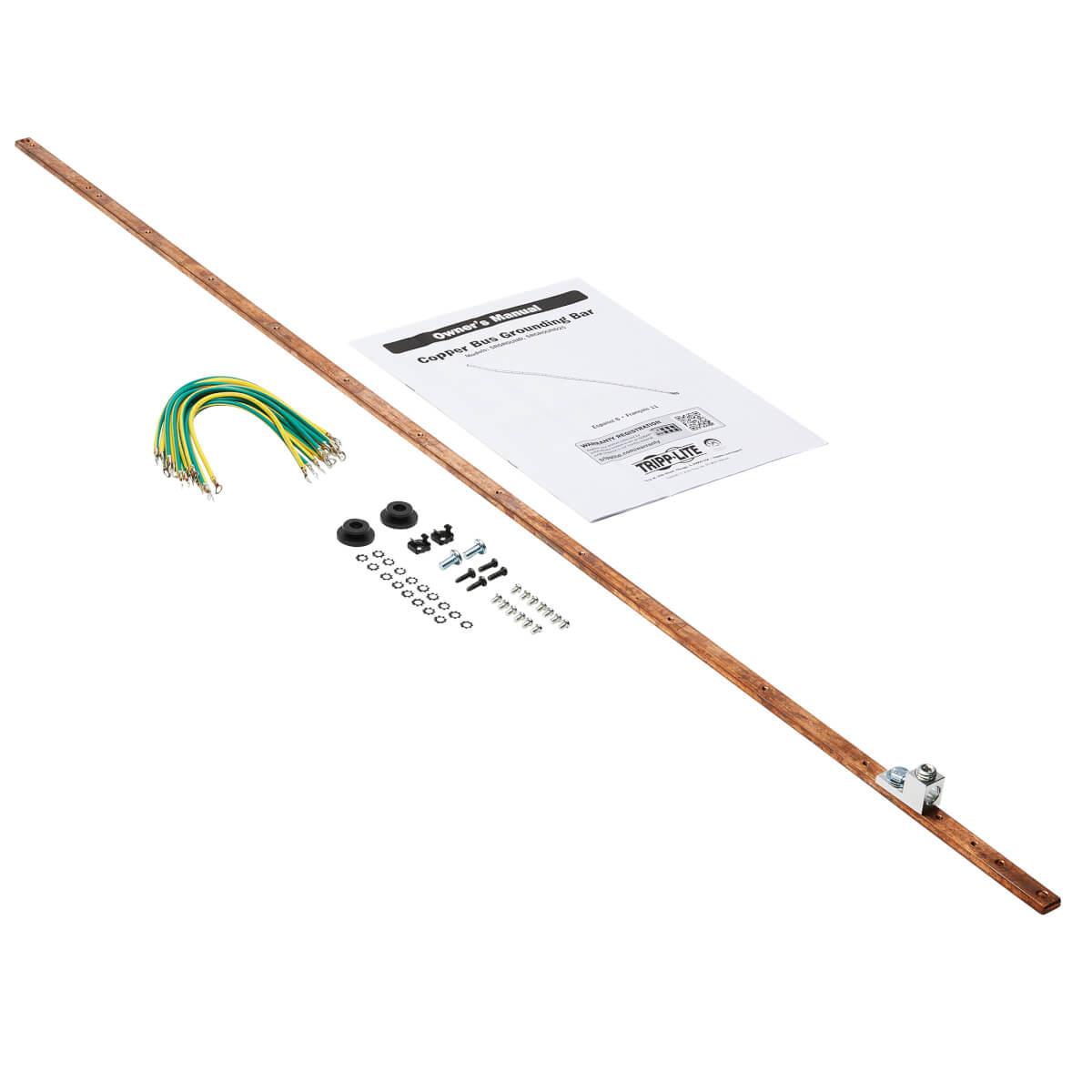

You can mount the SRGROUND25 in any EIA-standard 24U or 25U rack enclosure or open frame rack. Either screw it into a rack enclosure using the included mounting hardware, or install it in an open frame rack with the included toolless mounting buttons. This copper grounding bar is ideal for large data centers that contain ground-sensitive equipment.
| Kenmerken | |
| Soort | Aardingsrail |
| Kleur van het product | Koper |
| Materiaal behuizing | Koper |
| Rackcapaciteit | 25U |
| Land van herkomst | China |
| Gewicht en omvang | |
| Breedte | 15,9 mm |
| Diepte | 6,4 mm |
| Hoogte | 1148,1 mm |
| Gewicht | 1,36 kg |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Breedte verpakking | 85,1 mm |
| Diepte verpakking | 59,9 mm |
| Hoogte verpakking | 1240 mm |
| Gewicht verpakking | 1,36 kg |
| Inhoud van de verpakking | |
| Montage gereedschap | Ja |
| Technische details | |
| GTIN (EAN/UPC)-nummer (buitenste) hoofdverpakking | 10037332241471 |
| Logistieke gegevens | |
| (Buitenste) hoofdverpakking breedte | 460 mm |
| (Buitenste) hoofdverpakking lengte | 1260,1 mm |
| (Buitenste) hoofdverpakking hoogte | 140 mm |
| (Buitenste) hoofdverpakking brutogewicht | 15,9 kg |
| Hoeveelheid per (buitenste) hoofdverpakking | 10 stuk(s) |
| Code geharmoniseerd systeem (HS) | 7409,19,1000 |
| Warranty | |
| Base Warranty | Non Non |
