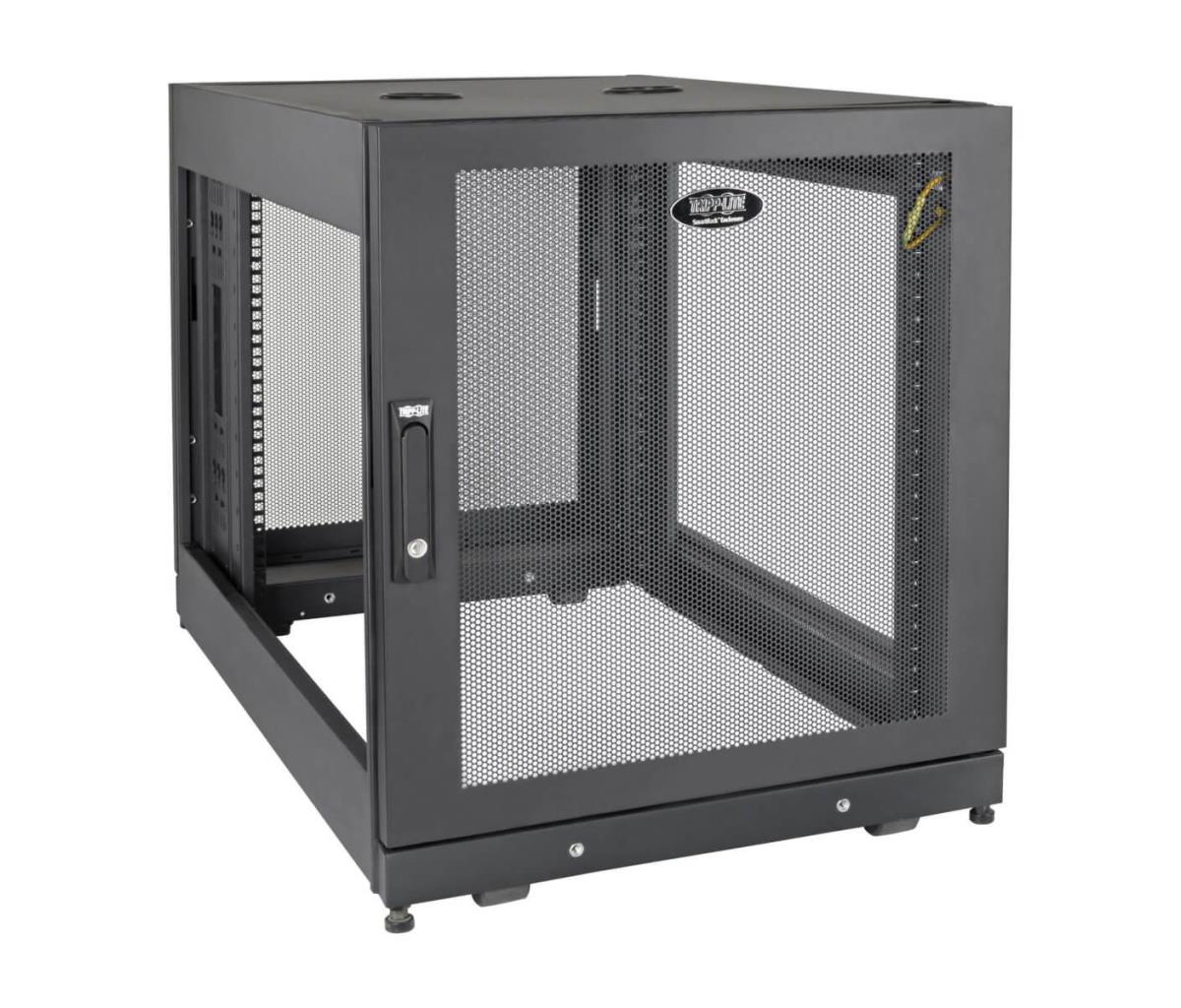

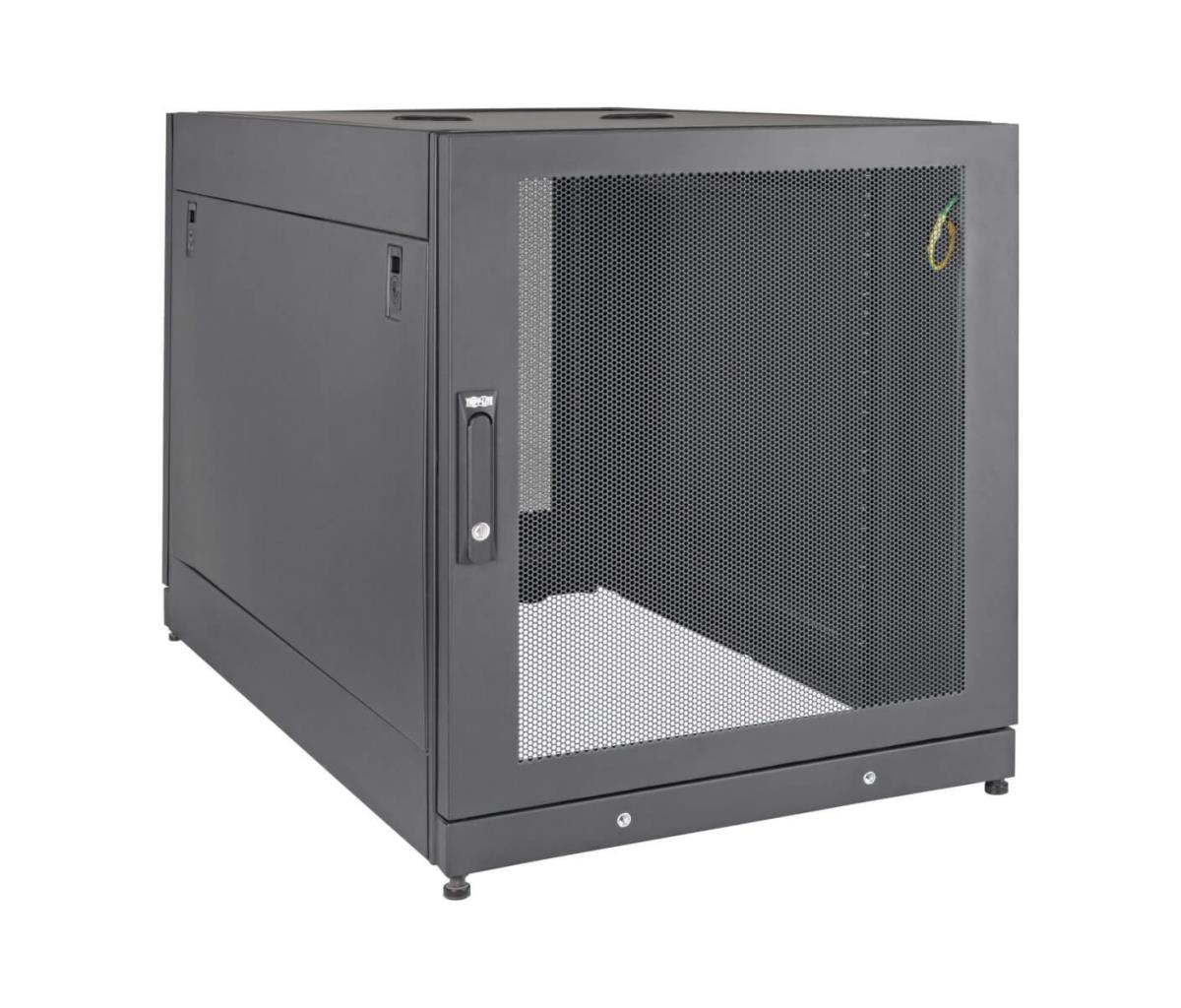

Deep Server Cabinet Accommodates 14U of Standard Rack Equipment

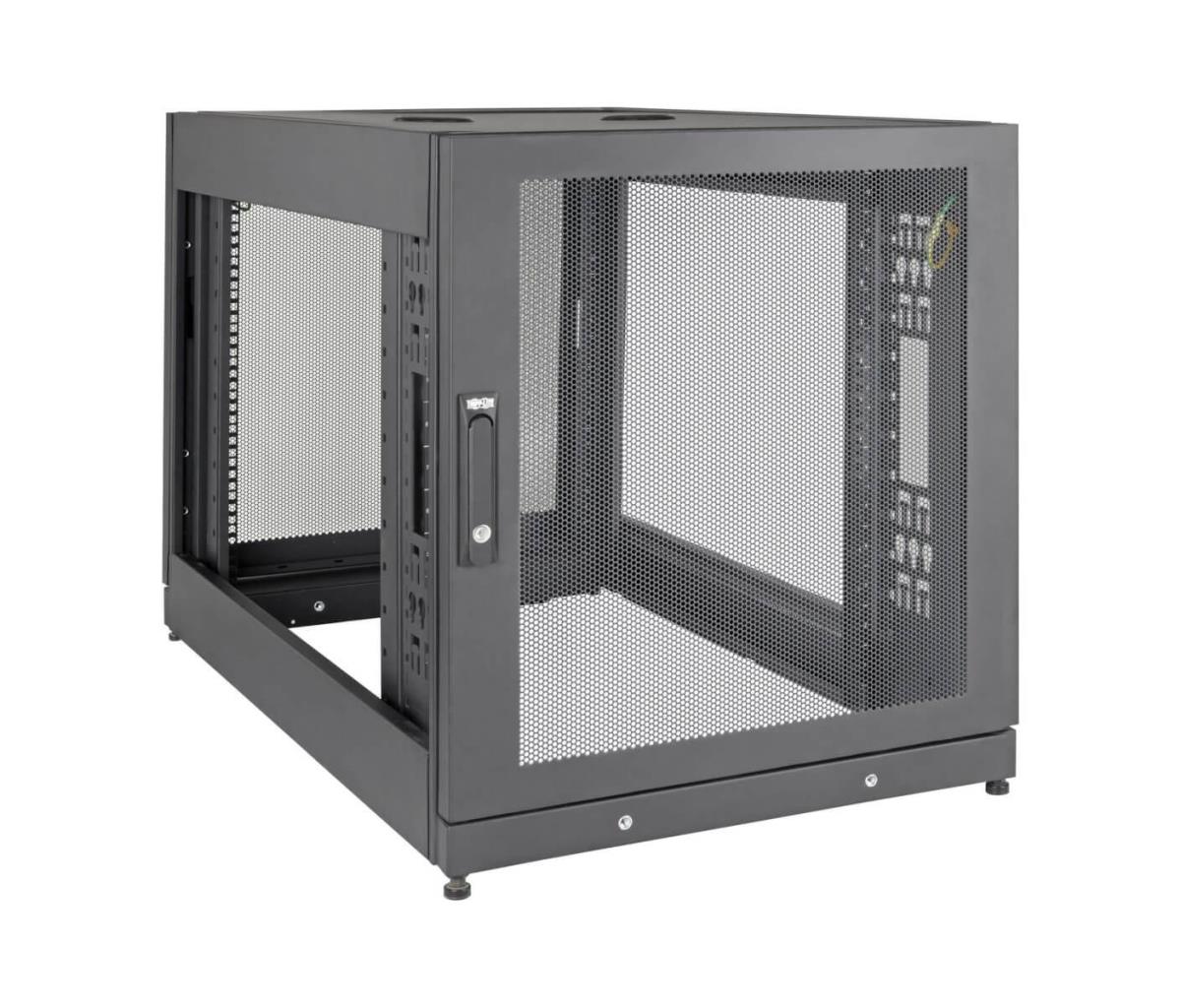

This SmartRack® 14U rack enclosure is designed for network wiring closets, retail locations, classrooms, back offices and other areas with essential rack-mount IT equipment. It supports mounting of equipment up to 42 inches deep. This allows high-density equipment installations, extra space for cable management, and room for removing hot-swap power supplies from the rear of mounted devices. Constructed from heavy-duty steel with a durable black powder-coated finish, the SR14UBDP has a maximum load capacity of 1000 pounds (453.6 kg).
Keeps Important Equipment Secure and Well Ventilated

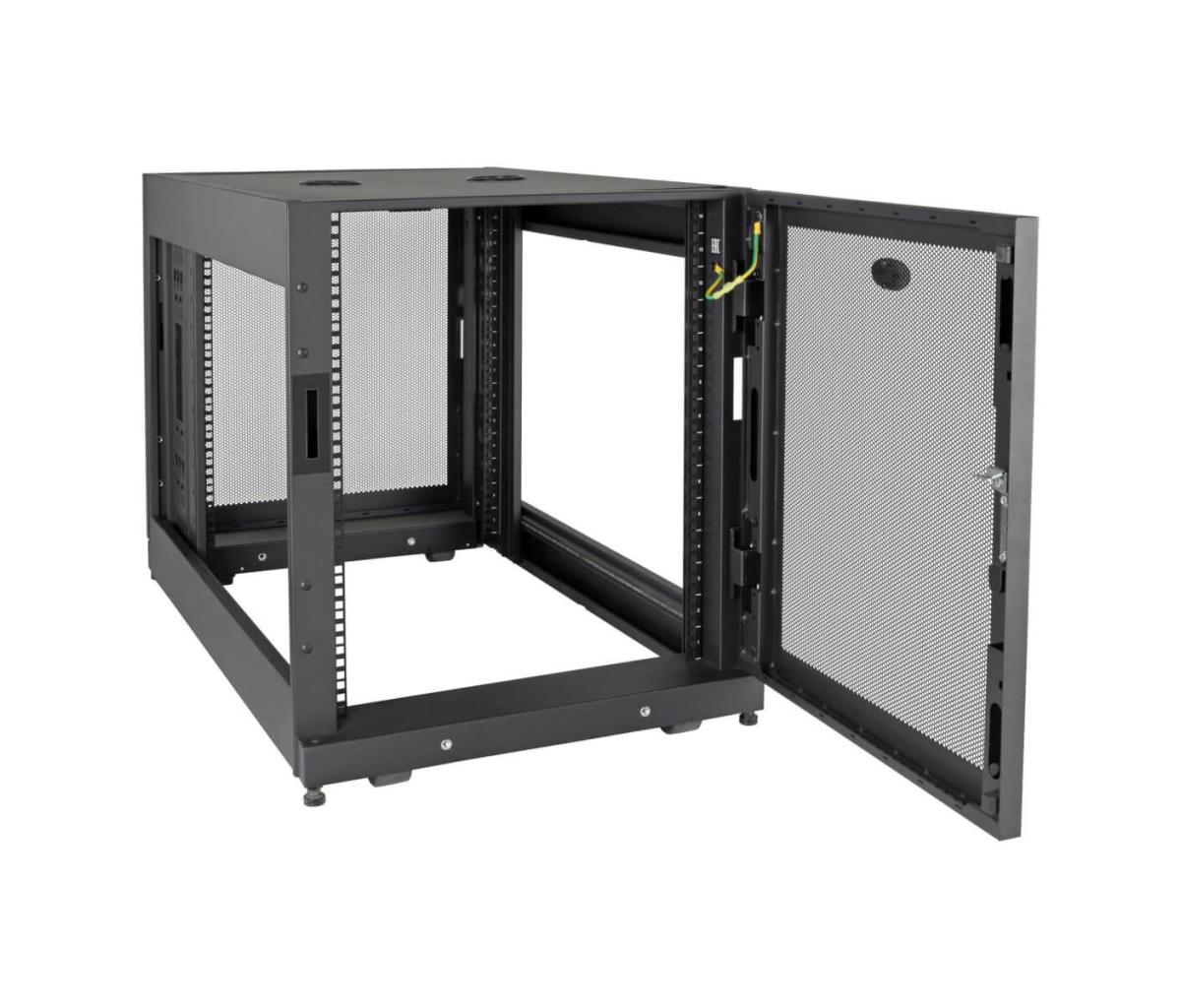

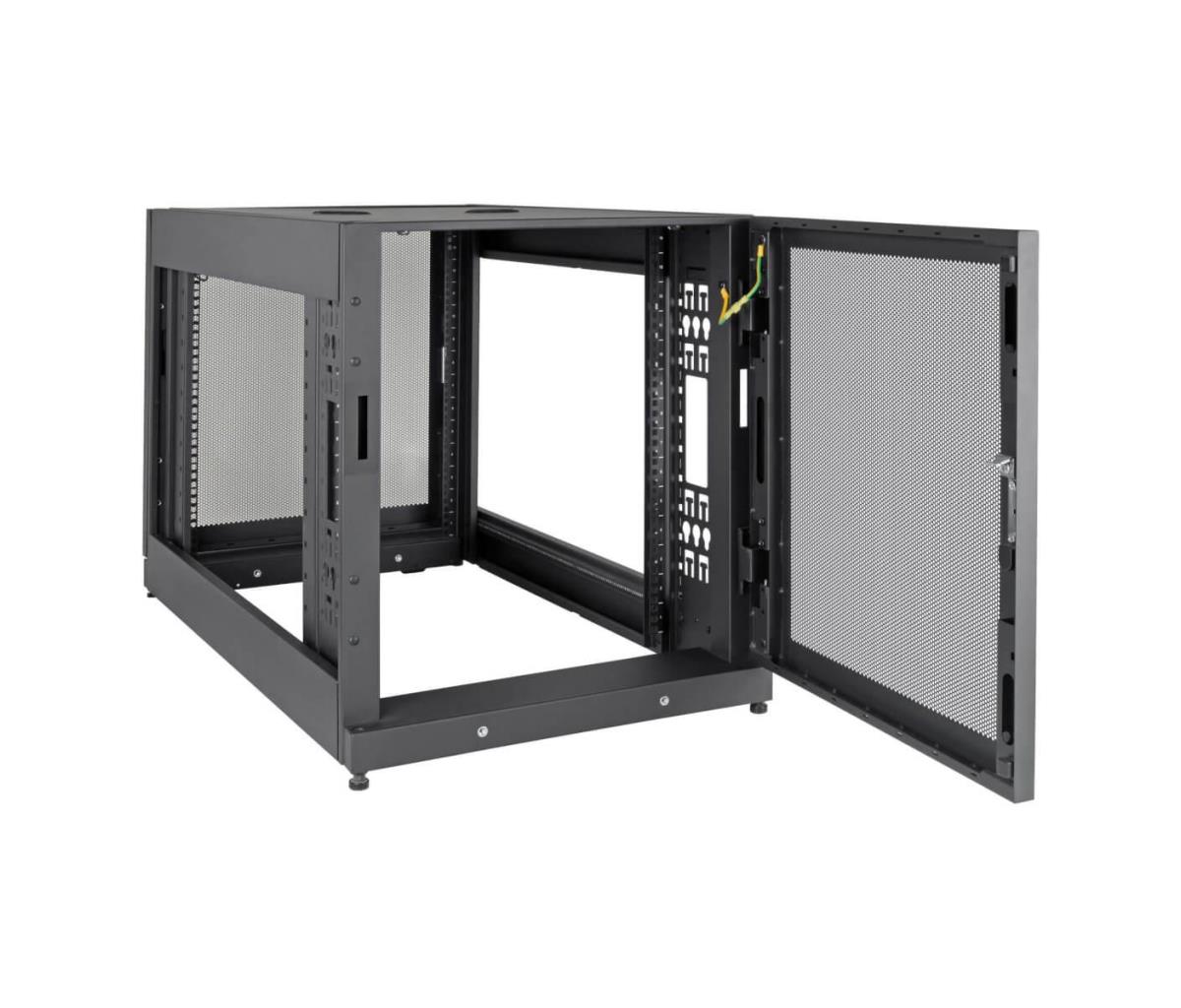

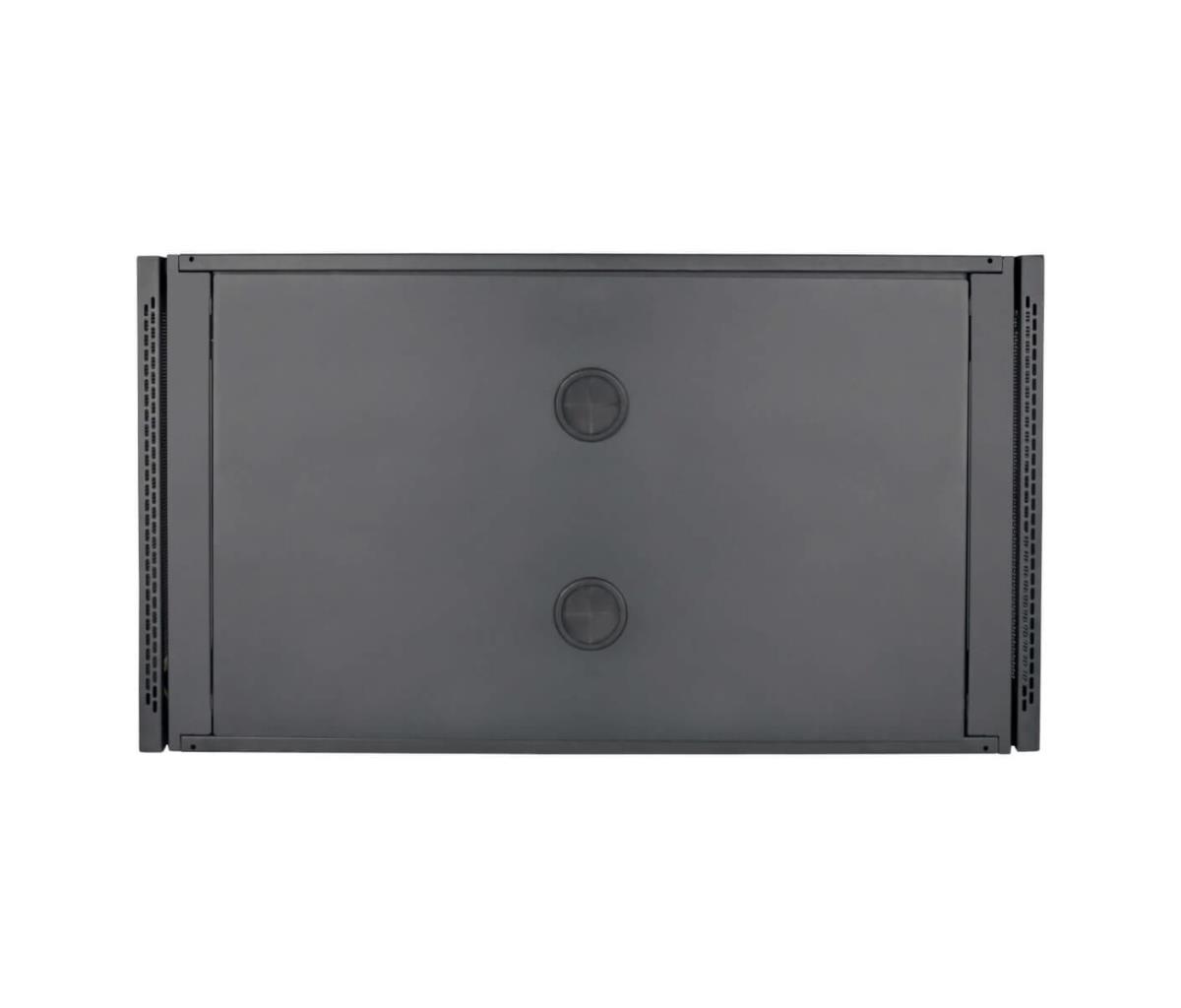

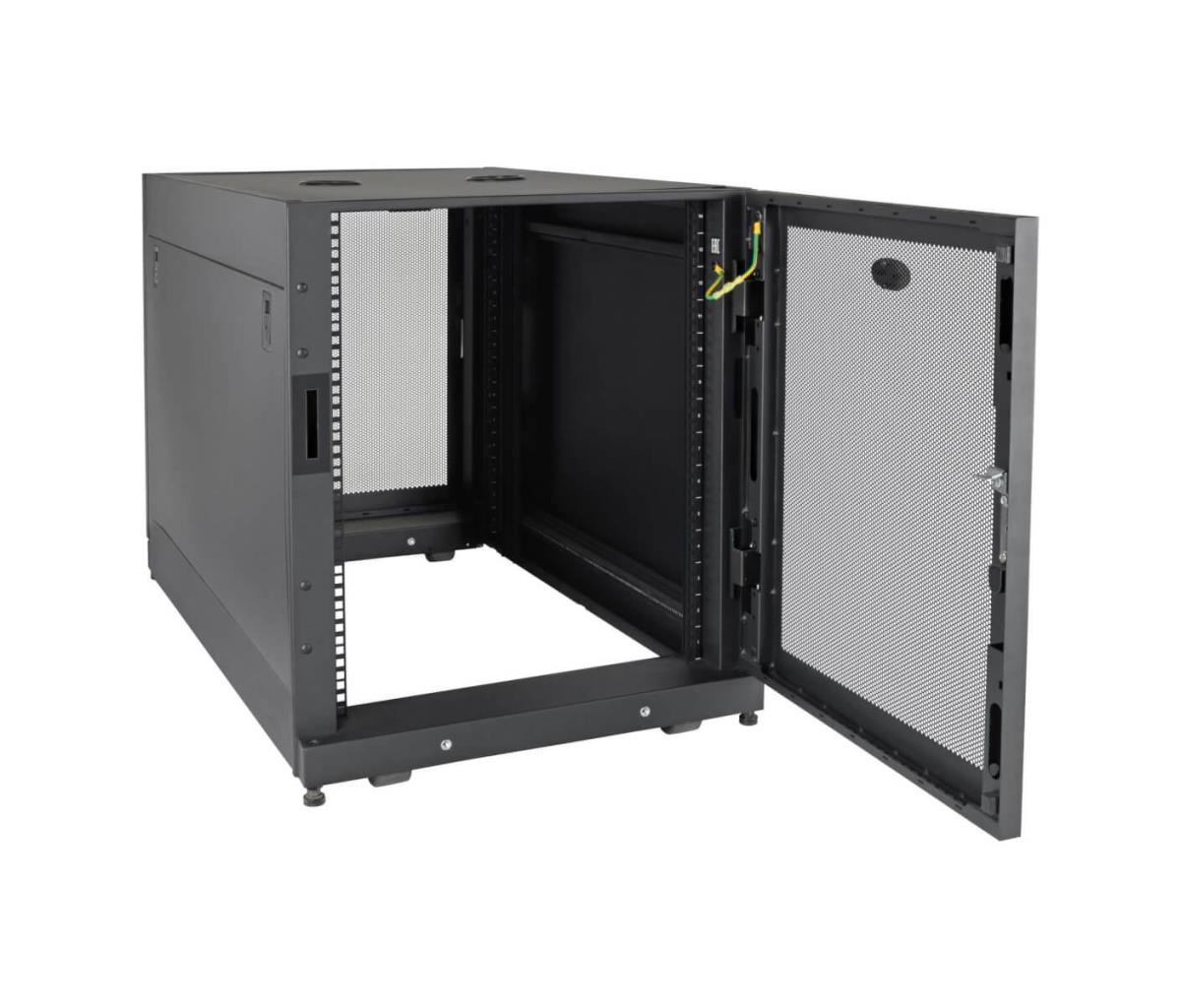

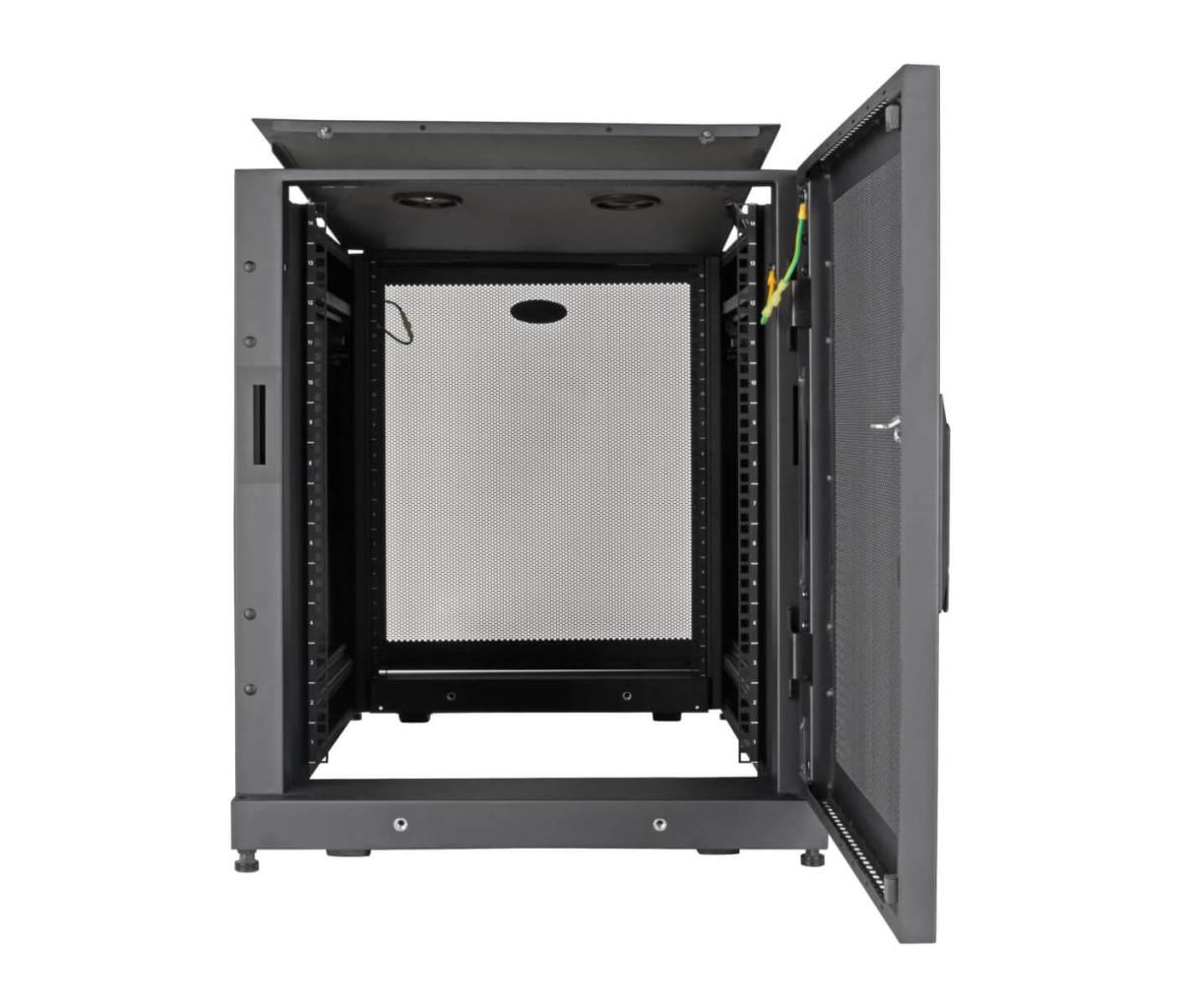

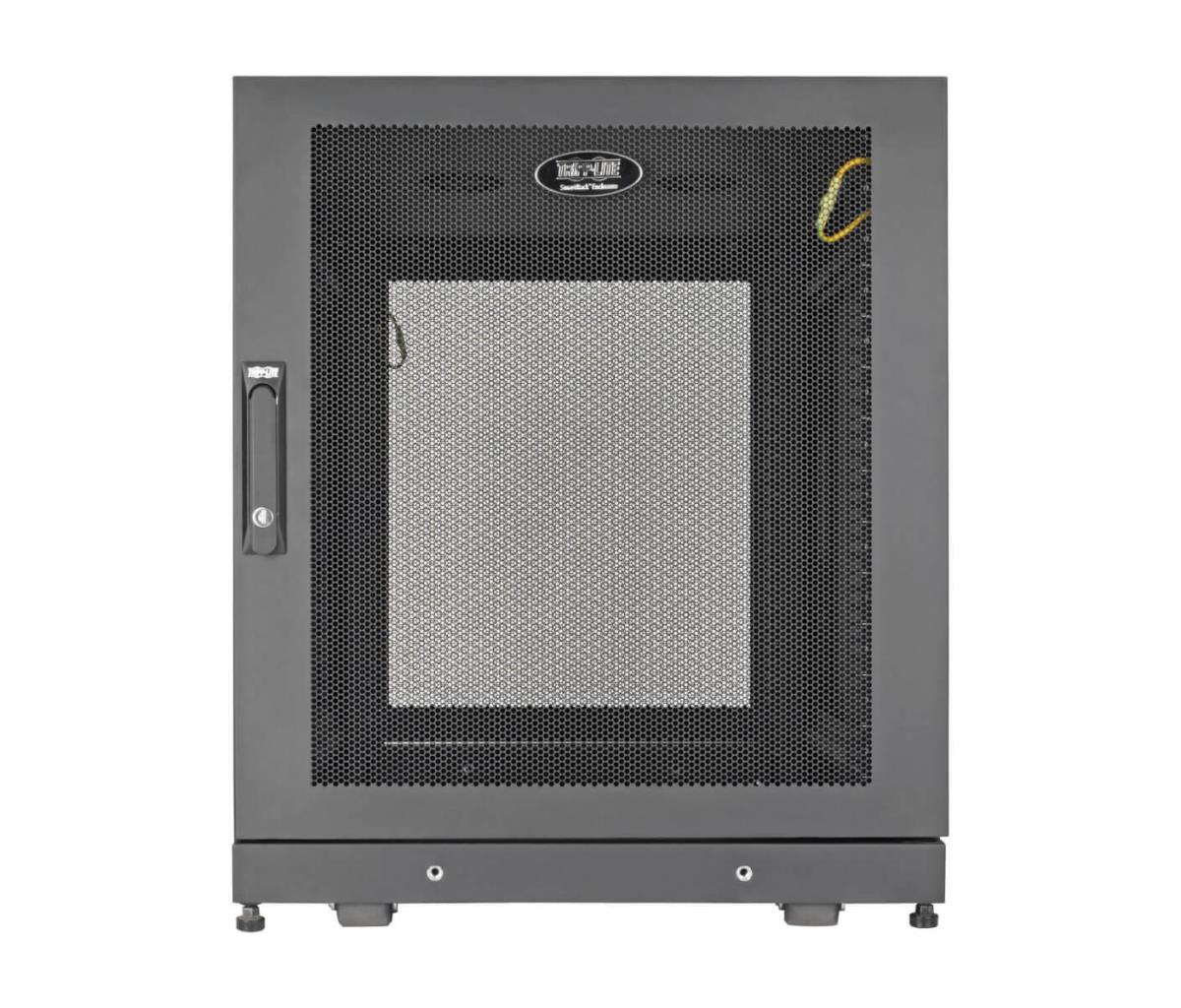

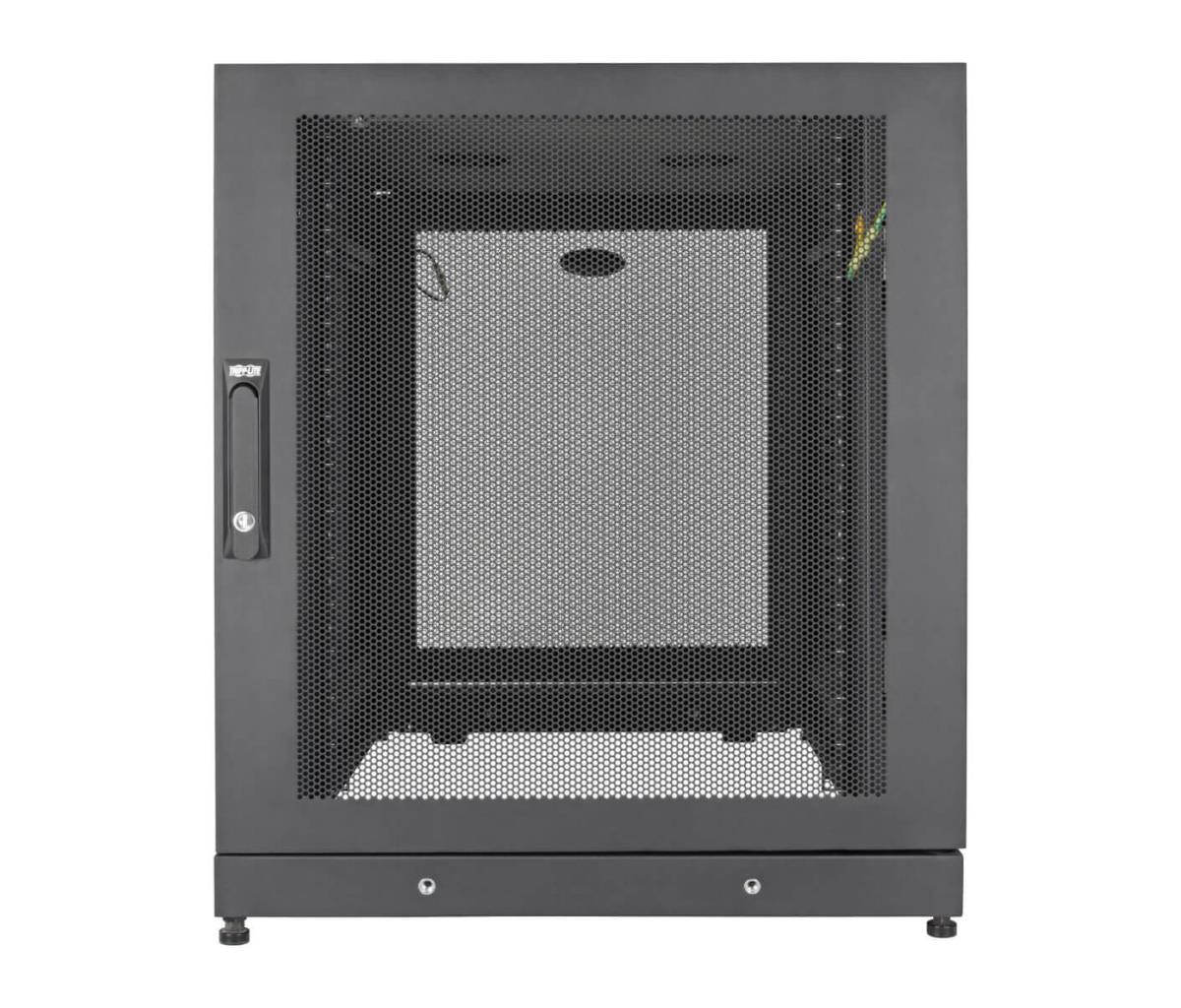

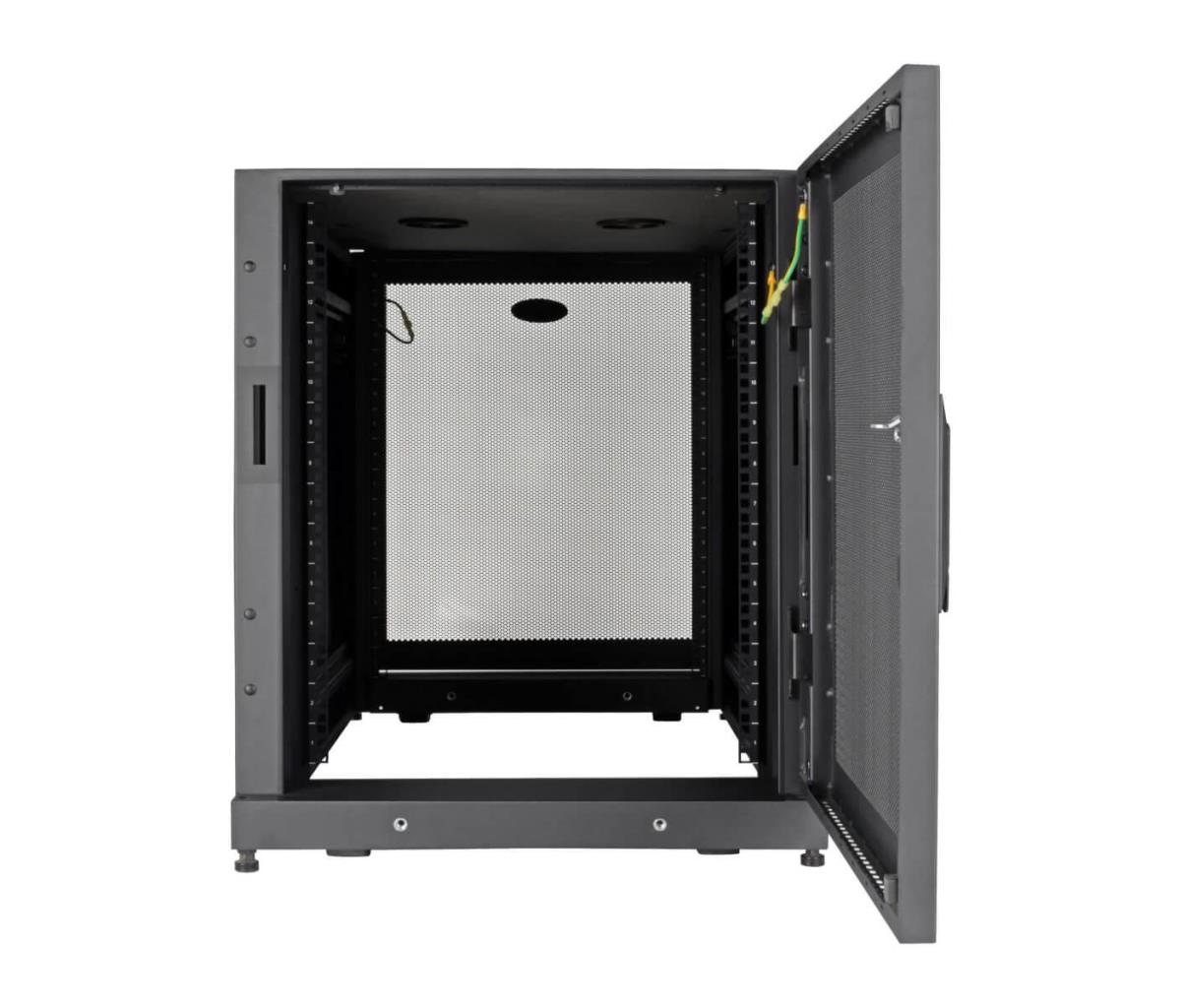

The reversible front and rear doors and removable side panels lock securely to help prevent damage, tampering or theft. The doors, side panels and top panel are designed for quick release, making it easy to access connected equipment and cabling with little effort. Convenient top access ports and an open bottom allow easy cable routing through the cabinet. The vented doors draw in cool air from outside and remove warm air to keep your equipment cool and functioning at their peak. The top panel also supports the installation of optional case fans (such as SRFANWM).
Easy Enclosure Deployment and Equipment Installation

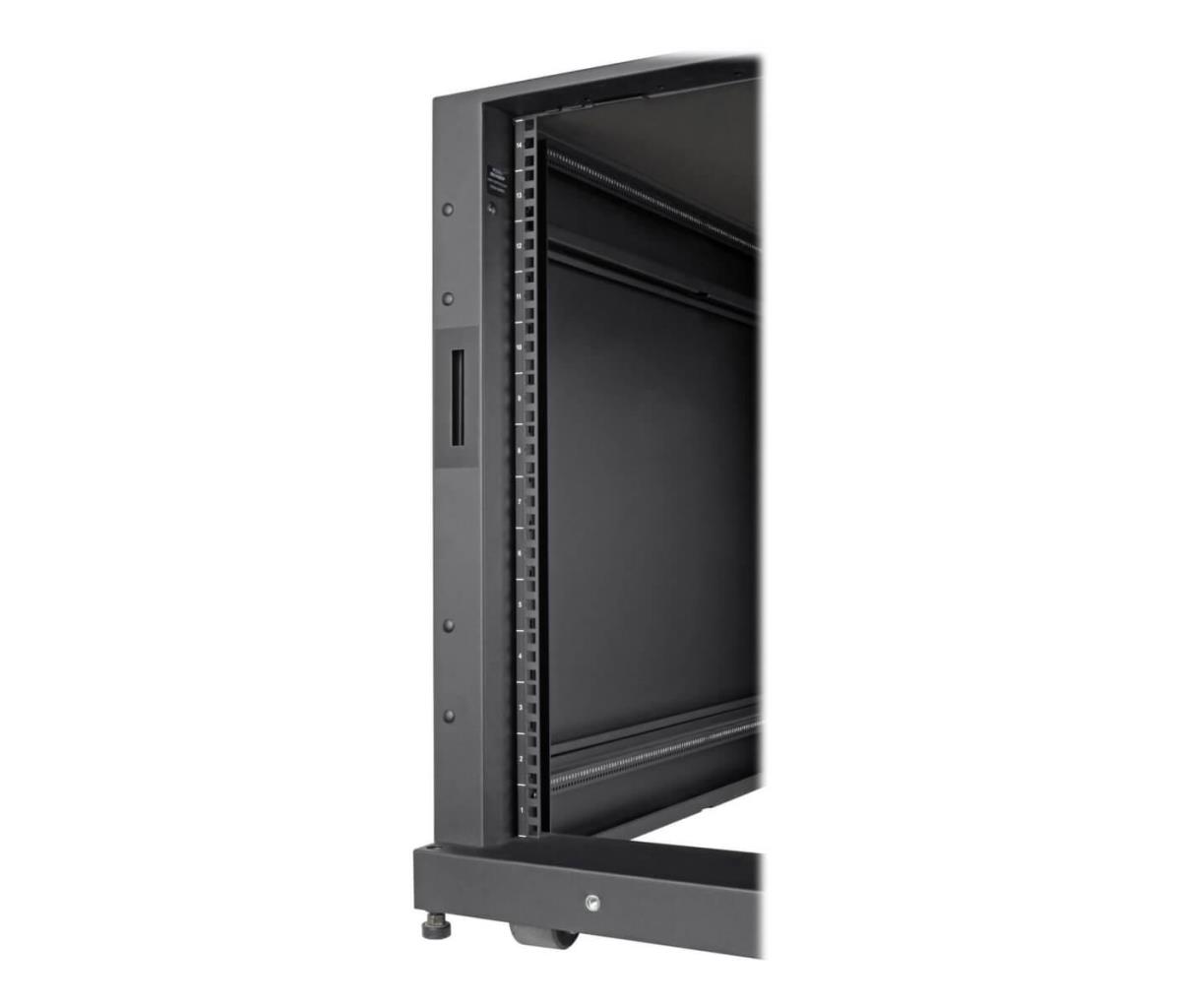

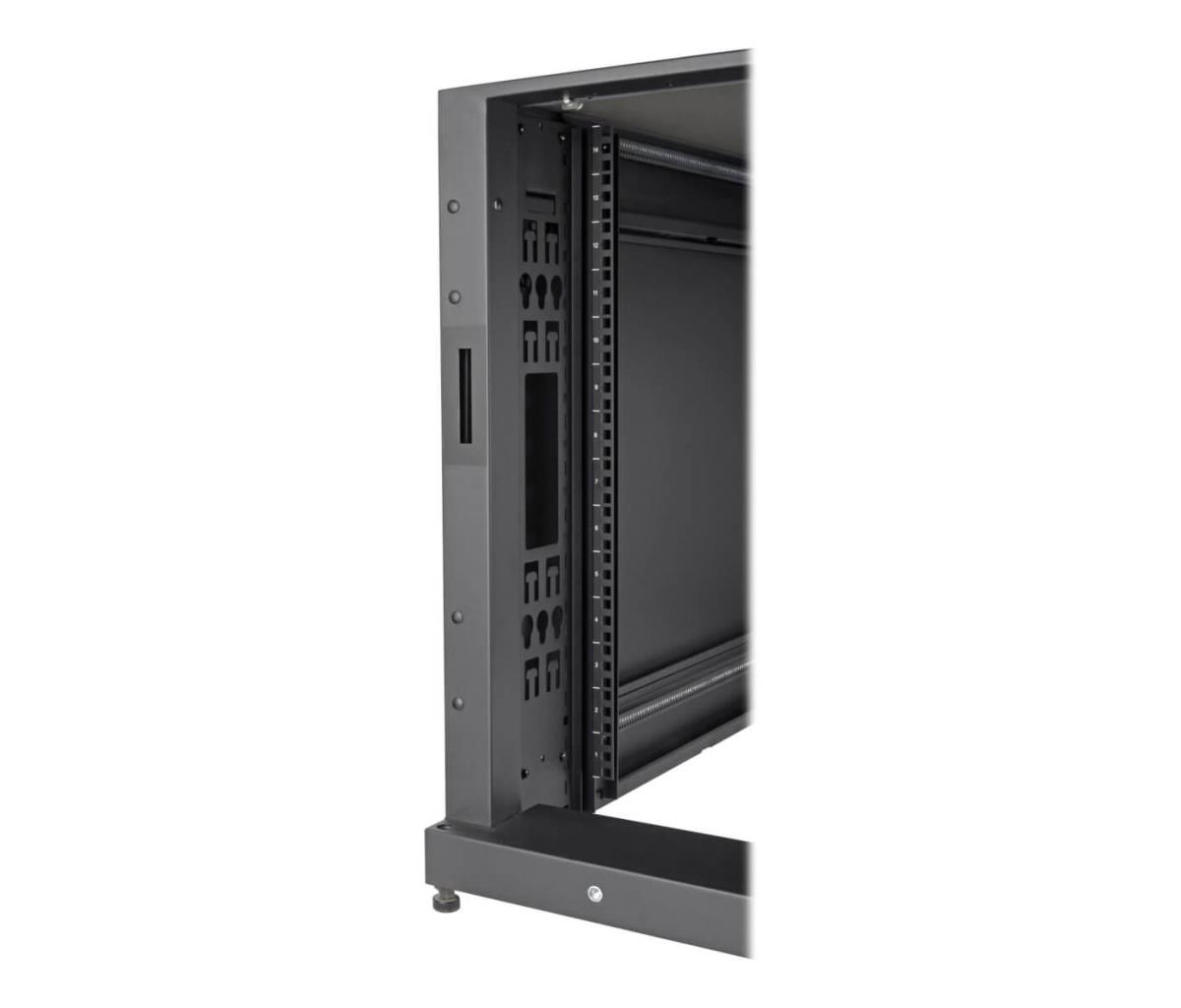

This 14U server rack comes fully assembled for quick and easy deployment. Four metal casters (and installation hardware) are included that let you maneuver the rack cabinet over a level, smooth, stable surface and through a standard doorway into position, where it can be stabilized by adjusting the levelers. Front and rear mounting rails adjust in quarter-inch increments to accommodate equipment up to 42 inches deep. Adjustable vertical cable management rails help keep the back of the rack organized.
Meets Payment Card Industry Standards
The SR14UBDP provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance. This is essential for companies that process, store and/or transmit credit card information.
| Kenmerken | |
| Rackcapaciteit | 14U |
| Soort | Vrijstaande rek |
| Maximale gewichtscapaciteit | 454 kg |
| Maximaal draagvermogen (rollend) | 454 kg |
| Kleur van het product | Zwart |
| Materiaal | Staal |
| Afneembare achterdeur | Ja |
| Afneembare voordeur | Ja |
| Sleutelsleuf | Ja |
| Zwenkwieltjes | Ja |
| Internationale veiligheidscode (IP) | IP20 |
| Certificering | UL/CSA 60950-1 EIA/ECA-310-E |
| Gewicht en omvang | |
| Breedte | 599,9 mm |
| Diepte | 1107,9 mm |
| Hoogte | 717 mm |
| Gewicht | 52,2 kg |
| Verpakking | |
| Moeren inbegrepen | Ja |
| Moeren aantal | 60 |
| Inclusief schroeven | Ja |
| Aantal schroeven | 60 |
| Gebruikershandleiding | Ja |
| Breedte verpakking | 657,1 mm |
| Diepte verpakking | 1167,9 mm |
| Hoogte verpakking | 852,2 mm |
| Gewicht verpakking | 70,8 kg |
| Technische details | |
| Duurzaamheidscertificaten | RoHS |
| Compliance certificates | RoHS |
| Logistieke gegevens | |
| Land van herkomst | China |
| Code geharmoniseerd systeem (HS) | 8517,79,0000 |
| (Buitenste) hoofdverpakking breedte | 657,1 mm |
| (Buitenste) hoofdverpakking lengte | 1167,9 mm |
| (Buitenste) hoofdverpakking hoogte | 852,2 mm |
| (Buitenste) hoofdverpakking brutogewicht | 70,8 kg |
| Hoeveelheid per (buitenste) hoofdverpakking | 1 stuk(s) |
| Warranty | |
| Base Warranty | Non Non |
