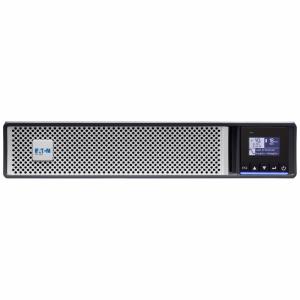

Eaton 5PX Gen2 UPS 2200i - 2200VA 2200Watts C13/C19 230v 2U Rack/Tower
ITCurry #: N4836533 | Article #: 5PX2200IRTNG2-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Exceptional efficiency, manageability and energy metering capabilities for IT managers
Performance and efficiency
- Eaton 5PX Gen 2 provides Unity power factor (W=VA) capability. With 11% more power than other UPS it can protect more servers.
- Energy Star 2.0 certified, 5PX Gen2 offers best-in-class efficiency performance to reduceenergy consumption and cooling costs.
- When operating in battery mode the 5PX provides a high-quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
- Each 5PX Gen2 battery configuration provides the best size /runtime ratio.
Management and Cybersecurity
- Innovative graphical LCD display brings all operating information at first sight. It also enhances commissioning and configuration capabilities.
- 5PX Gen2 Netpack models are delivered with Eaton Gigabit network management card, which provides Dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and enables connection to Eaton Cyber Secured Monitoring solutions.
- Together with 5PX Gen2, Eaton Gigabit network management card allows both remote UPS settings and remote firmware upgrade to ensure easy deployment (fleet management) and reduced maintenance cost.
- 5PX Gen2 meters energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software.
- Eaton’s Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools.
Availability and flexibility

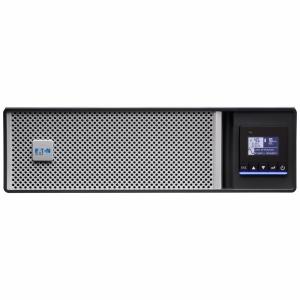

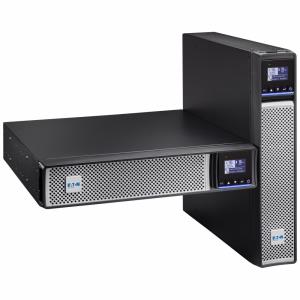

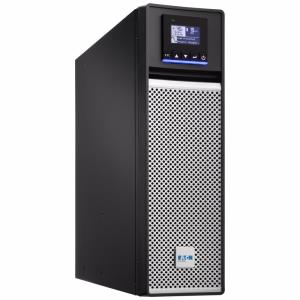

- 5PX Gen2 2200VA & 3000VA are available in RT2U format (optimized for rack mounting) or RT3U (for tower installation or short-depth racks). Pedestals and rail kits are included with all models.
- 5PX Gen2 load segment control enables prioritized shutdowns of non-essential equipment to maximize battery runtime for critical devices (2 groups).
- Eaton ABM® battery management technology uses a three stage charging technique that optimizes battery health and extends lifetime by up to 50%.
- Up to 4 external hot-swappable battery modules can be added for longer power availability.
| Warranty | |
| Base Warranty | Non Non |
| Kenmerken | |
| UPS-topologie | Line-interactive |
| Output power capacity | 2,2 kVA |
| Uitgangsvermogen | 2200 W |
| Golfvorm | Zuivere sinus |
| Ingang operation voltage (min) | 160 V |
| Ingang operation voltage (max) | 294 V |
| Frequentie | 47/70 Hz |
| Geluidsniveau | 40 dB |
| Stroomspanning bescherming | Overontlading |
| Poorten & interfaces | |
| Stopcontacttypes | C13 stekker, C19 stekker |
| Stekker | C20 stekker |
| USB-poort | Ja |
| Seri‰le interface | Ja |
| Soort serie‰le aansluiting | RS-232 |
| Seri‰le poort(en) | 1 |
| Accu/Batterij | |
| Automatische batterij test | Ja |
| Design | |
| Vormfactor | Rackmontage/toren |
| Rackcapaciteit | 2U |
| Kleur van het product | Zwart |
| Type beeldscherm | LCD |
| LED-indicatoren | Ja |
| Veiligheid | IEC/EN 62040-1, UL1778, CSA22.2 |
| Certificering | IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Technische details | |
| Naleving van duurzaamheid | Ja |
| Certificaten van naleving | CE |
| Gewicht en omvang | |
| Breedte | 438 mm |
| Diepte | 603 mm |
| Hoogte | 85,5 mm |
| Gewicht | 28,2 kg |
| Verpakking | |
| Beheerskaart inbegrepen | Ja |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85078000 |
| Overige specificaties | |
| Output-aansluitingen | 8 x IEC C13 (10A) 2 x IEC C19 (16A) |
| Netspanning, in bedrijf | 230 V |
