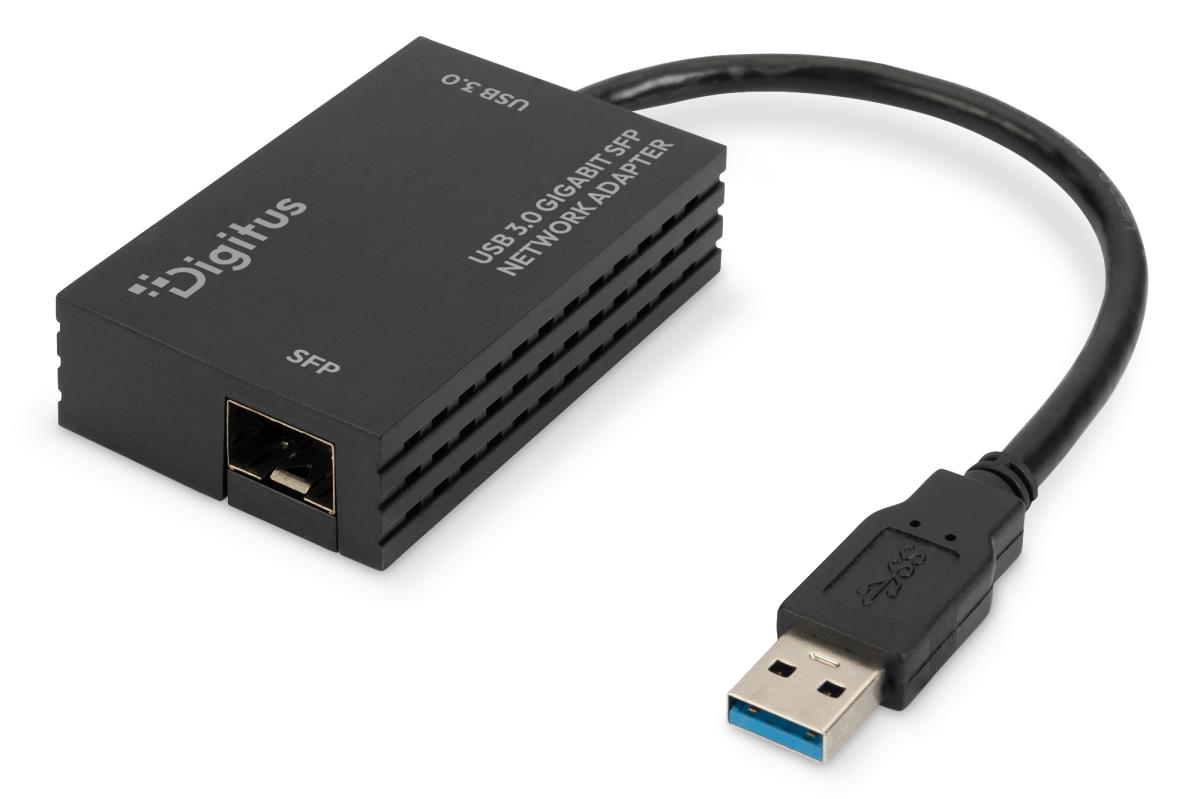

USB3.0 Gigabit SFP Network Adapter - additional SFP module needed
ITCurry #: M923A041 | Article #: DN-3026-1-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Expand your notebook with USB 3.0 port with a fully-fledged Gigabit SFP network connection.
- Up to 1000 Mbps data transfer rate
- Easy installation thanks to Plug & Play - drivers supplied on virtual CD drive in the adapter
- No power supply unit required - power is supplied via the USB 3.0 interface
- Also ideal for mobile and stationary use
- Supports Layer 2 features such as VLAN and IEEE802 priority encoding
- Works with Windows, Mac OS, Google Chrome and all other USB 3.0 compatible systems.
- Compact dimensions, elegant design
With the USB 3.0 Gigabit SFP adapter, you can add an SFP port to your notebook and connect directly to a fiber optic network via a suitable fiber optic transceiver. This fiber optic interface is the right choice for mobile use in conjunction with notebooks as well as for stationary use with desktop systems. This SFP adapter is also ideal for monitoring and troubleshooting applications in data and server centers, allowing you to access the fibre optic infrastructure directly and with full bandwidth. Uncomplicated to use, it offers a wealth of possibilities and is the right addition for most computers that do not have an SFP connection as standard. Thanks to the virtual drive, no driver installation from CD is necessary - just plug it in and get started. Power is also supplied via the USB 3.0 interface. If WLAN connections pose security risks and copper connections are too slow, a fiber optic connection offers the right solution for your network. The adapter is compatible with Windows, Mac OS, Google Chrome and all other USB 3.0 compatible systems.
| Poorten & interfaces | |
| Hostinterface | USB Type-A |
| Gastheerinterface geslacht | Man |
| Output interface | SFP |
| Vezel-optische connector | SFP |
| Aansluiting voor netstroomadapter | Nee |
| Design | |
| Intern | Nee |
| Kleur van het product | Zwart |
| Type koeling | Passief |
| Maximum kabellengte | 0,17 m |
| LED-indicatoren | Ja |
| Hot-swap | Nee |
| Hot-plug ondersteuning | Ja |
| Gemakkelijk te installeren | Ja |
| Land van herkomst | China |
| Kenmerken | |
| Type processor | Ja |
| Processorfabrikant | Realtek |
| Processormodel | RTL8153 |
| Aansluiting 1 type | Mannelijk |
| Connector 1 vormfactor | Recht |
| Data transfer snelheid (max) | 1 Gbit/s |
| Bandbreedte | 1 Gbit/s |
| Full duplex | Ja |
| Datastroombeheer | Ja |
| Bidirectioneel | Ja |
| Plug and play | Ja |
| Ondersteunde protocollen | IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ad |
| Energie | |
| Stroomverbruik (typisch) | 2,5 W |
| Voeding, voltage ingang | 5 V |
| Externe adapter | Nee |
| Stroomvoorziening via USB | Ja |
| Energiebeheer | Ja |
| Spaarstand | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Vermogenstoevoer inclusief | Nee |
| Kabelklem | Nee |
| Montagebeugels meegeleverd | Nee |
| Meegeleverde drivers | Ja |
| Gebruikershandleiding | Ja |
| Gebruiksaanwijzing | Ja |
| Snelle installatiehandleiding | Ja |
| Breedte verpakking | 126 mm |
| Diepte verpakking | 32 mm |
| Hoogte verpakking | 175 mm |
| Gewicht verpakking | 162,4 g |
| Type verpakking | Doos |
| Logistieke gegevens | |
| Code UK-handelstarief | 85176200 |
| Warranty | |
| Base Warranty | Non Non |
