USB hard disk enclosure - NVMe + SATA 10Gbps (NVMe) 6 Gbps (SATA) USB3.1 Gen2 aluminium toolfree
ITCurry #: M9239529 | Article #: DA-71156-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

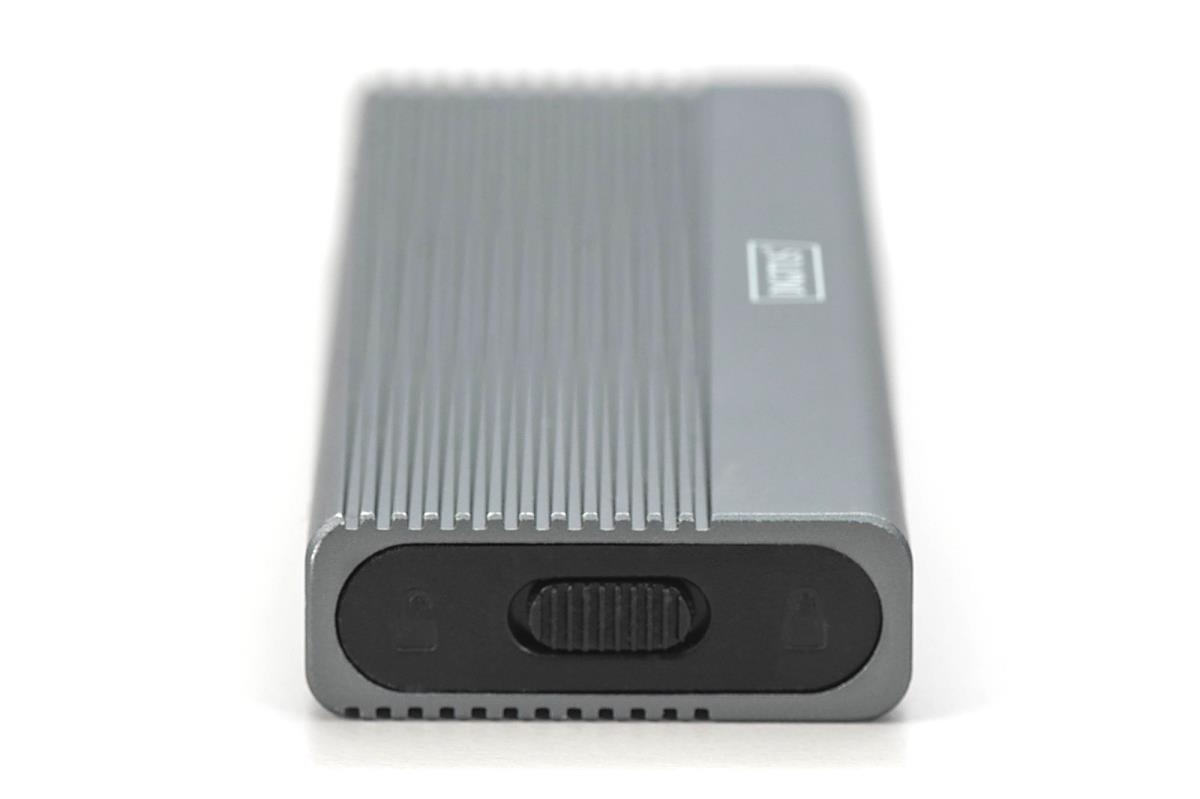

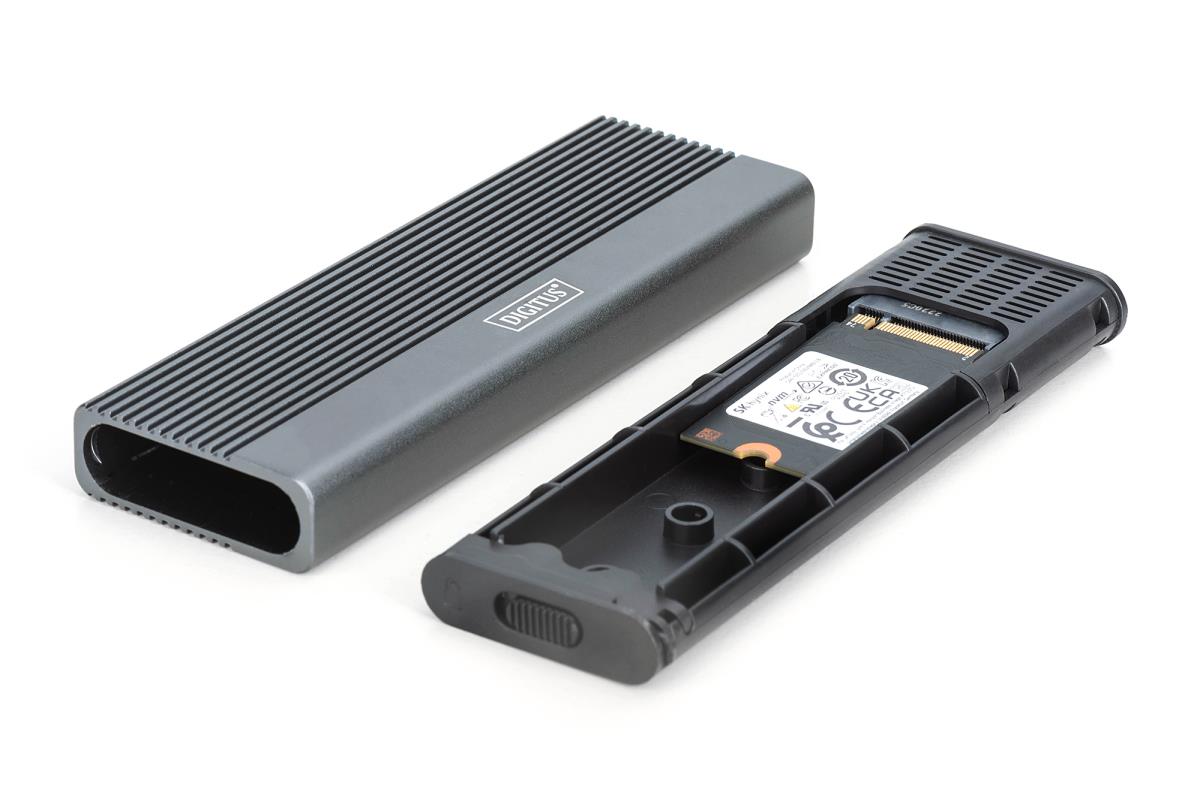

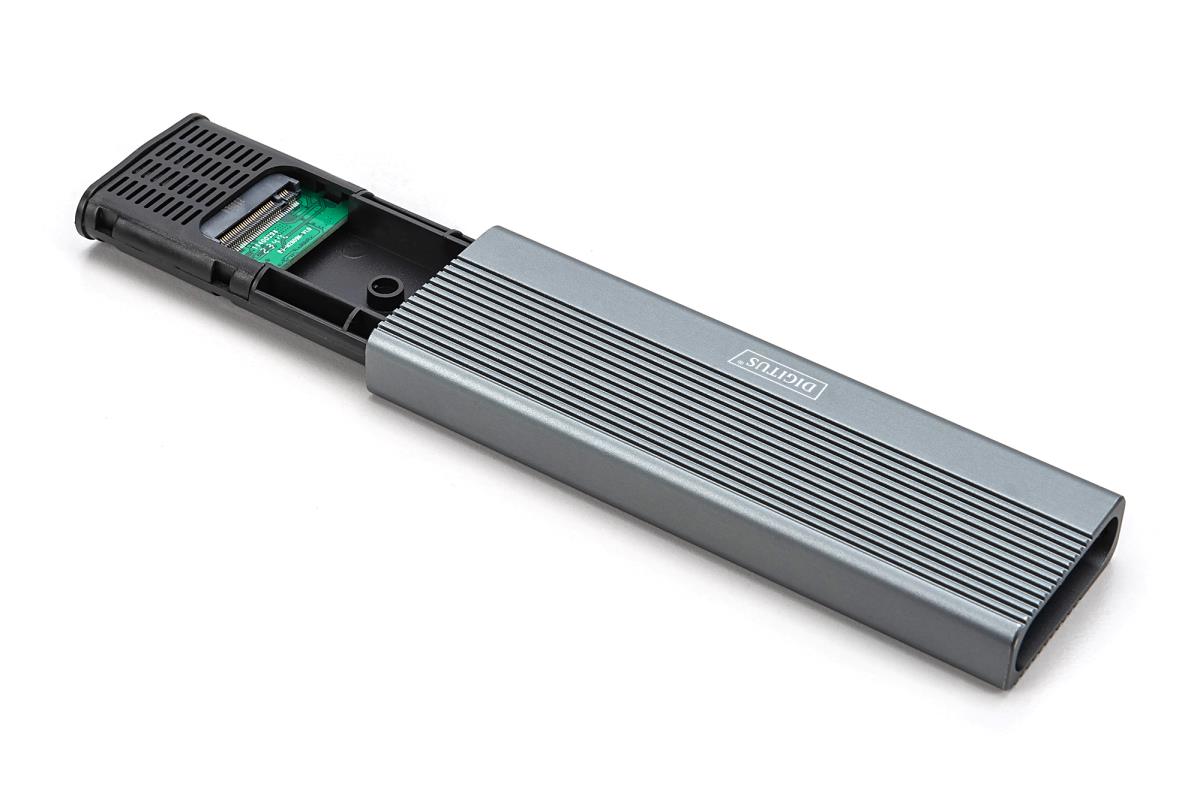

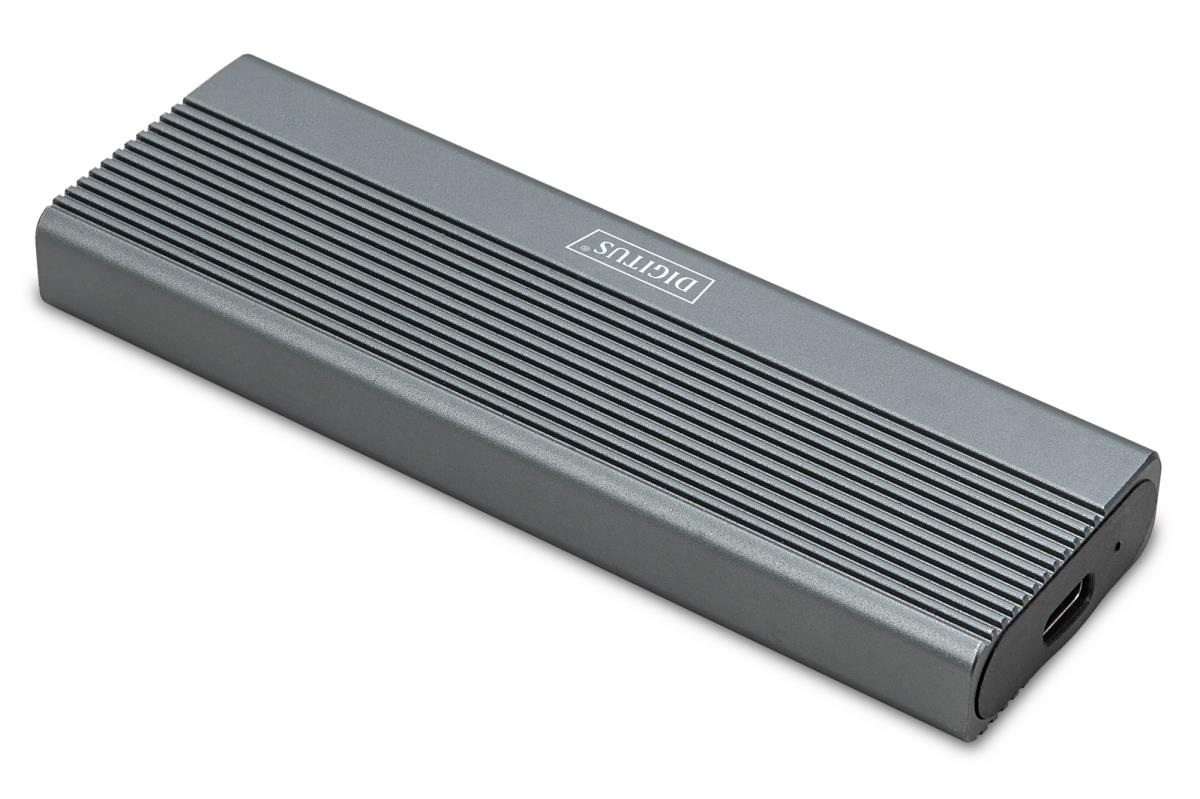

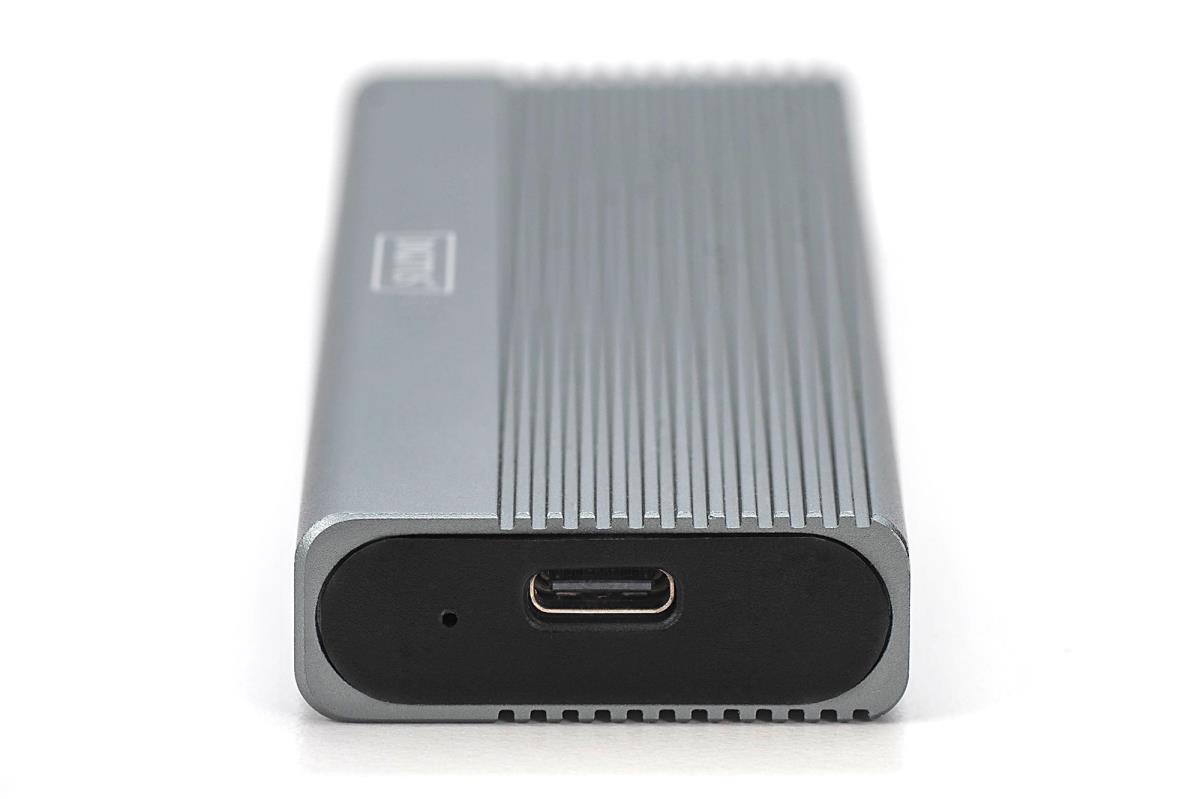

The DA-71156 M.2 SATA & NVMe SSD Enclosure will become your preferred solution for high capacity and high speed storage. This elegant, tool-less enclosure supports mini SSDs in M.2 B+M key format.
- Wide compatibility: Supports M.2 modules in 2230, 2242, 2260 and 2280 formats, compatible with a wide range of SSDs.
- High capacity: Offers up to 8 TB of storage space for all your files and data.
- Fast data transfer: Data transfer rate of 10Gbps (6Gbps for SATA) for fast file transfers and smooth performance.
- USB 3.1 Gen 2 interface: Latest USB technology with backwards compatibility to USB 3.1, 3.0, 2.0 and 1.1.
- Plug and play: Simply connect via USB and get started straight away.
- Cross-platform support: Compatible with Windows, macOS, Linux, Google Chrome OS, Android and iOS.
- Robust chipset: JMS581DL chipset for reliable and efficient performance.
- LED activity indicator: Integrated LED indicator for monitoring the status of your SSD.
- Durable and stylish: aluminum housing in Pantone 430C with excellent passive heat dissipation.
- Portable design: Compact and lightweight with dimensions of 101x32x10 mm and a weight of only 97 g.
The DA-71156 USB hard disk enclosure offers a versatile and powerful storage solution for both NVMe and SATA SSDs. With support for M.2 modules in 2230, 2242, 2260 and 2280 formats and a maximum storage capacity of up to 8 TB, it is compatible with a wide range of SSDs. The data transfer rate is 10 Gbps for NVMe and 6 Gbps for SATA, while the USB 3.1 Gen2 interface is backwards compatible with USB 3.1, 3.0, 2.0 and 1.1. The tool-free design allows for easy installation and the robust JMS581DL chipset ensures reliable and efficient performance. An integrated LED indicator makes it easy to monitor SSD status, and the durable Pantone 430C aluminum enclosure provides excellent passive heat dissipation. With compact dimensions of 101x32x10 mm and a weight of only 97 g, the housing is ideal for mobile use. It supports plug-and-play and is powered directly via the USB port. The enclosure is compatible with Windows (11, 10, 8, 7, XP, 2000), macOS, Linux (2.4.x or higher), Google Chrome OS (9.x or higher), Android and iOS and offers comprehensive support for USB-C products.
| Opslagmedia | |
| Aantal storage drives ondersteund | 1 |
| Opslag schijfgrootte | M.2 |
| Ondersteunde opslagstationinterfaces | M.2, SATA |
| Ondersteunde lengtes van opslagschijven | 30,42,60,80 mm |
| NVMe | Ja |
| Maximale opslagcapaciteit | 8 TB |
| Poorten & interfaces | |
| USB-aansluiting | Ja |
| USB-versie | 3.2 Gen 2 (3.1 Gen 2) |
| USB-connectortype | USB Type-C |
| Geslacht USB-connector | Vrouwelijk |
| Aantal USB-aansluitingen | 1 |
| Design | |
| Type product | SDD-behuizing |
| Kleur van het product | Zwart |
| Materiaal | Aluminium |
| LED-indicatoren | Activiteit |
| Prestatie | |
| Overdrachtssnelheid | 10 Gbit/s |
| Chipset | JMS581DL |
| Plug and play | Ja |
| Land van herkomst | China |
| Energie | |
| Type stroombron | USB |
| Minimale systeemeisen | |
| Ondersteunde mobiele besturingssystemen | Android, iOS |
| Ondersteunt Windows | Ja |
| Ondersteunt Linux | Ja |
| Ondersteunt Mac-besturingssysteem | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 5 - 50 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 90 procent |
| Gewicht en omvang | |
| Breedte | 101 mm |
| Diepte | 32 mm |
| Hoogte | 10 mm |
| Gewicht | 97 g |
| Breedte verpakking | 94 mm |
| Diepte verpakking | 152 mm |
| Hoogte verpakking | 39 mm |
| Verpakkingsvolume | 557,23 cmü |
| Gewicht verpakking | 170 g |
| Inhoud van de verpakking | |
| Meegeleverde kabels | USB Type-C |
| Snelle installatiehandleiding | Ja |
| Warranty | |
| Base Warranty | Non Non |
