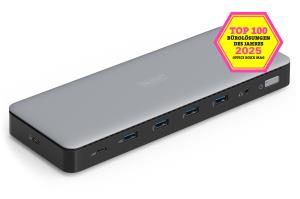

USB-C Travel Docking Station, 7-Port - HDMI / 2x USB-A 3.2 Gen 1 / GbE / SD / MicroSD - 100W USB-C Power Delivery
ITCurry #: M9239609 | Article #: DA-70916-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Expand your notebook with 7 additional ports - whether on the move or stationary
- 1x HDMI port (4K/60Hz) - Expand your workstation with an additional external monitor
- 2x USB-A 3.2 Gen 1 port (5 Gbit/s) for fast data transfer - one port with additional charging function (1.5A) for mobile devices
- 1x Gigabit Ethernet connection (RJ45) - connect your notebook to the network via cable
- 2x card reader (SD/MicroSD) - transfer speed of 104 MBps
- 1x USB-C Power Delivery (3.0) - connection for charging the notebook
- Supports PD 3.0 Fast Role Swap (FRS) - the connection between the docking station and notebook is not interrupted when the charger is unplugged
- Stowable USB-C connection cable (10 cm) - Practical connection to the host PC
- Supports DP 1.4 Alt Mode, backwards compatible with DP 1.2 Alt Mode (DisplayPort Alternate Mode)
- Supports HDCP 2.2, HDCP 1.4
- Supports HDR (High Dynamic Range)
Your most efficient solution for mobile productivity. With an HDMI port for an external monitor, two fast USB-A 3.2 Gen 1 ports (5 Gbit/s) - one with charging function for mobile devices, a Gigabit Ethernet port (RJ45) for a reliable network connection and two card readers (SD/MicroSD) with high transfer speed, it offers comprehensive connectivity. It allows you to charge your notebook via the USB-C Power Delivery port and is versatile with the stowable USB-C host cable. The docking station supports DP 1.4 Alt Mode, backwards compatible with DP 1.2 Alt Mode. HDCP 2.2, 1.4 and HDR are also supported for an optimal multimedia experience.
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Hostinterface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 2 |
| Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C | 1 |
| USB Power Delivery (USB PD) | Ja |
| USB Power Delivery herziening | 3.0 |
| USB Power Delivery tot max. | 100 W |
| Aantal HDMI-poorten | 2 |
| Aantal DisplayPorts | 1 |
| Microfoon, line-in ingang | Nee |
| HDCP | Ja |
| HDCP versie | 1.4/2.2 |
| USB Type-C DisplayPort alternatieve modus | Ja |
| Netwerk | |
| Ethernet LAN | Ja |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Prestatie | |
| Ge‹ntegreerde geheugenkaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash), SD |
| Overdrachtssnelheid | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Resolutie (maximum digitaal) | 3840 x 2160 Pixels |
| Maximale refresh snelheid | 60 Hz |
| Kleur van het product | Zwart, Grijs |
| HDR-ondersteuning | Ja |
| LED-indicatoren | Ja |
| Plug and play | Ja |
| Materiaal behuizing | Aluminium, Kunststof |
| Energie | |
| Type stroombron | USB |
| Netstekker | USB Type-C |
| USB kabel lengte | 0,1 m |
| Software | |
| Ondersteunt Windows | Ja |
| Ondersteunt Mac-besturingssysteem | Ja |
| Ondersteunt Linux | Ja |
| Ondersteunde mobiele besturingssystemen | Android, iOS |
| Andere ondersteundende systemen | ChromeOS |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Gewicht en omvang | |
| Breedte | 50 mm |
| Diepte | 110 mm |
| Hoogte | 110 mm |
| Gewicht | 75 g |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Inhoud van de verpakking | |
| Snelstartgids | Ja |
| Warranty | |
| Base Warranty | Non Non |
