Roof cooling unit for 483 mm (19") installation 4 fans, switch, thermostat, color black (RAL 9005)
ITCurry #: M9236070 | Article #: DN-19 FAN-4-HO-SW
slide 2 of 4
Prijs:
158,88
Excl. btw
Levering in Benelux:
GRATIS Levering.
Nu niet op voorraad. Bel ons!
Verwante producten
slide 7 to 11 of 14
Product Informatie
- For installation into 483 mm (19") unit

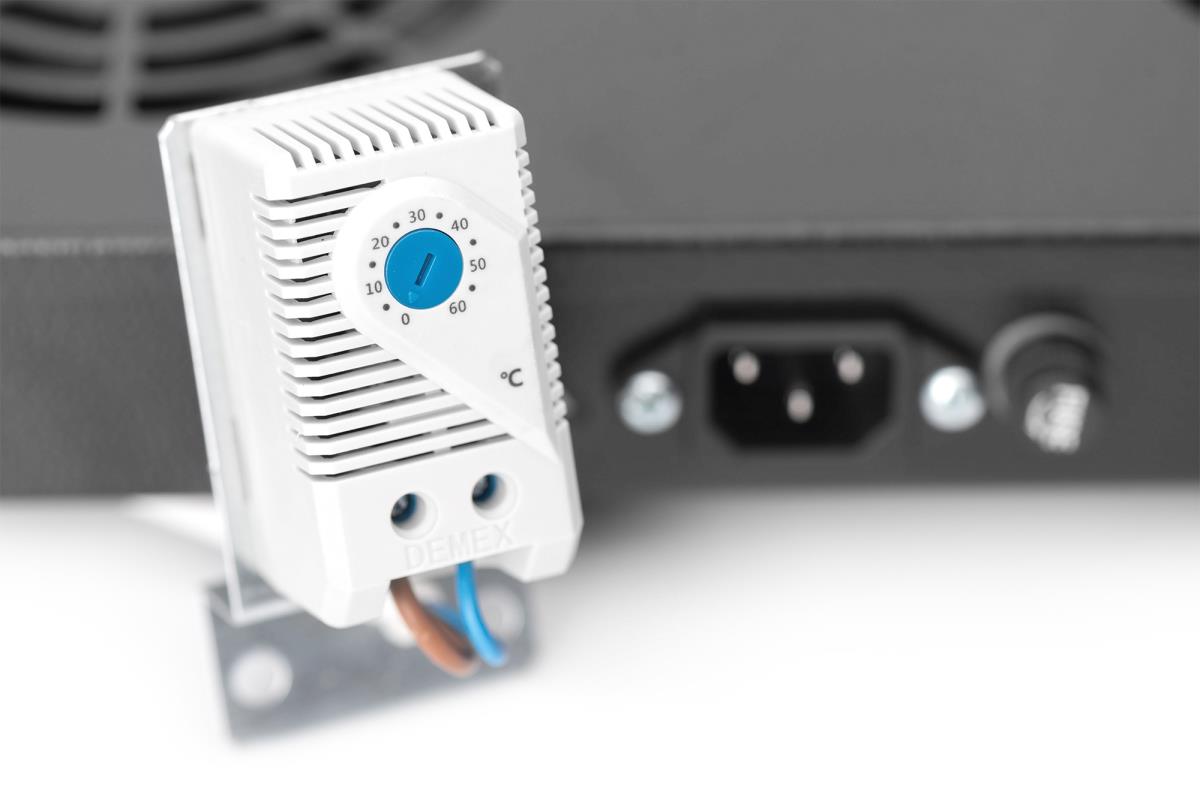

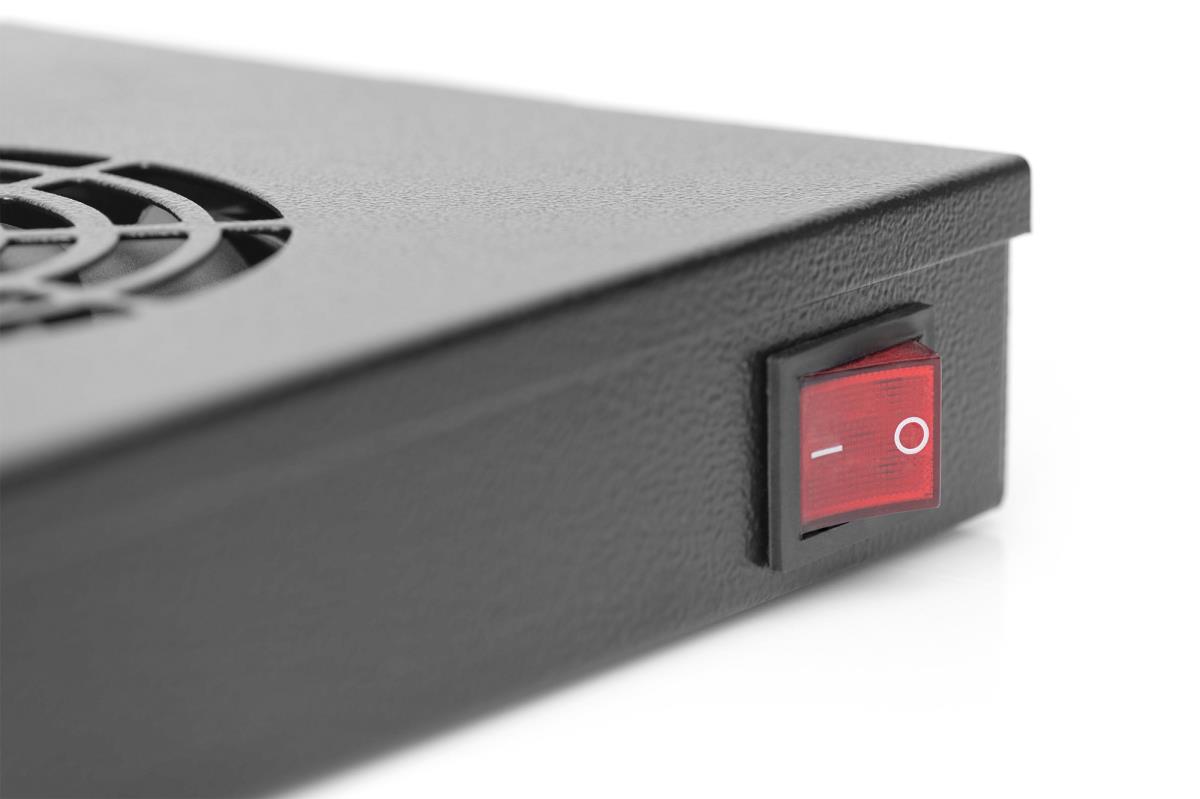

The Roof Ventilation Units are variable mountable into 483 mm (19") cabinets. Each fan unit comes with two sets of mounting brackets. With the standard set you can install your fan unit into any height unit space of your network- or server cabinet. The second bracket set makes the fan unit possible to be mounted into the roof of 483 mm (19") network- or server cabinets of the varioFLEX series. A switch as well as an adjustable thermostat provides best options for customizations. The model is available in standard color grey (RAL 7035) and black (RAL 9005), equipped with either two or four fans.
| Kenmerken | |
| Soort | Geventileerd blind paneel |
| Kleur van het product | Zwart |
| Ingebouwde ventilator | Ja |
| Aantal ventilatoren | 4 ventilator(en) |
| Luchtstroom | 552 mü/uur |
| Aan/uitschakelaar | Ja |
| Snoerlengte | 1,8 m |
| Frame type | Open |
| Land van herkomst | Turkije |
| Energie | |
| Stroombron | AC |
| Maximaal ingangsvermogen | 13,8 W |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Spanning | 220 - 240 V |
| Gewicht en omvang | |
| Breedte | 483 mm |
| Diepte | 354 mm |
| Hoogte | 45 mm |
| Verpakking | |
| Breedte verpakking | 510 mm |
| Diepte verpakking | 385 mm |
| Verpakkingsvolume | 11781 cmü |
| Gewicht verpakking | 5,98 kg |
| Logistieke gegevens | |
| Code UK-handelstarief | 84145915 |
| Code geharmoniseerd systeem (HS) | 85389099 |
| Warranty | |
| Base Warranty | Non Non |
