Very space-saving (only 0.5U) - With dust protection caps - Future-oriented standards and high-end quality for your network
- Slim installation height of only 0.5 U
- Up to 48 ports per U possible (2 x 24 port panels)
- Dust protection flaps on the RJ45 sockets
- 360° shield contacting

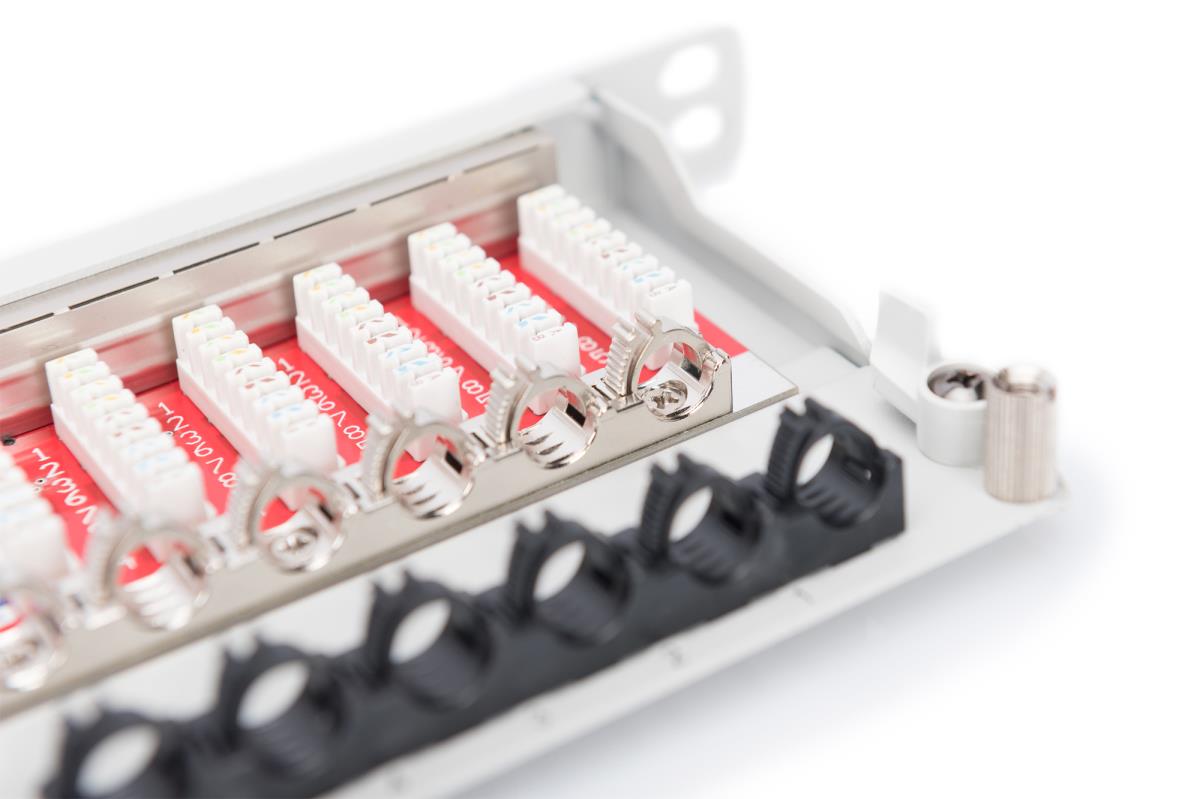

- Cable clamp for fixing and routing, reclosable
- Quick-release fastener to secure the housing cover
The DIGITUS® 24-port patch panel offers a very high packing density with only 0.5 U. This means that up to 48 ports can be implemented on 1 U with two 0.5 U panels. The patch panel is shielded and equipped with dust protection caps on the RJ45 sockets. The 360° shield contact of the cables ensures the best performance characteristics. The quick-release fastener on the housing ensures easy and tool-free access to the LSA cutting terminals.
| Netwerk | |
| Aantal poorten | 24 |
| Contact geleider materiaal | Goud |
| Ondersteundende kabel types | Cat6a |
| Retentiekracht stekker/aansluiting | 30 N |
| Design | |
| Kleur van het product | Grijs |
| Materiaal | Staal |
| Montage | Rekmontage |
| Rackcapaciteit | 0.5U |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -20 - 70 øC |
| Inhoud van de verpakking | |
| Anti-stofplug | Ja |
| Verpakking | |
| Breedte verpakking | 515 mm |
| Diepte verpakking | 130 mm |
| Gewicht verpakking | 980 g |
| Verpakkingsvolume | 2343,25 cmü |
| Logistieke gegevens | |
| Code UK-handelstarief | 85369010 |
| Land van herkomst | China |
| Code geharmoniseerd systeem (HS) | 85371098 |
| Warranty | |
| Base Warranty | Non Non |
