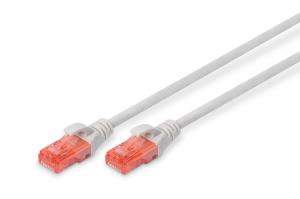

Patch cable - CAT6 - U/UTP - Snagless - Cu - 3m - Grey
ITCurry #: M9235723 | Article #: DK-1617-030-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Future-oriented standards and high-end quality for your network.
- With LSZH (Low Smoke Zero Halogen) sheath for best fire behaviour and low smoke emissions.
- Transparent red colored plug for easy identification of Category 6 (250 MHz)
- Conductor: Copper (Cu)
- PoE+ ready
The DIGITUS® Category 6 Class E patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 6 cabling. The performance is tested up to 250 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking. You can easily identify the Category 6, because of the transparent red colored connector.
| Kenmerken | |
| Kleur van het product | Grijs |
| Snoerlengte | 3 m |
| Kabel standaard | Cat6 |
| Kabelafscherming | U/UTP (UTP) |
| Aansluiting 1 | RJ-45 |
| Aansluiting 2 | RJ-45 |
| Aansluiting 1 type | Mannelijk |
| Aansluiting 2 type | Mannelijk |
| Contact geleider materiaal | Koper |
| Materiaal buitenmantel | Halogeenvrij |
| Kabel klasse | E |
| Bekabelingstechnologie | 10/100/1000Base-T(X) |
| AWG draad omvang | 26/7 |
| Frequentie | 250 MHz |
| Land van herkomst | China |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -20 - 60 øC |
| Gewicht en omvang | |
| Outer diameter | 5 mm |
| Verpakking | |
| Breedte verpakking | 170 mm |
| Diepte verpakking | 16 mm |
| Gewicht verpakking | 91,667 g |
| Verpakkingsvolume | 680 cmü |
| Type verpakking | Polybag |
| Overige specificaties | |
| Synchronisatie ingangsimpedantie | 230 Ohm |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 84733080 |
| Code UK-handelstarief | 85444210 |
| Warranty | |
| Base Warranty | Non Non |
