Montior arm with notebook tray 17-32in, 9 kg. Max., clamp or grommet mount
ITCurry #: M9238806 | Article #: DA-90436-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

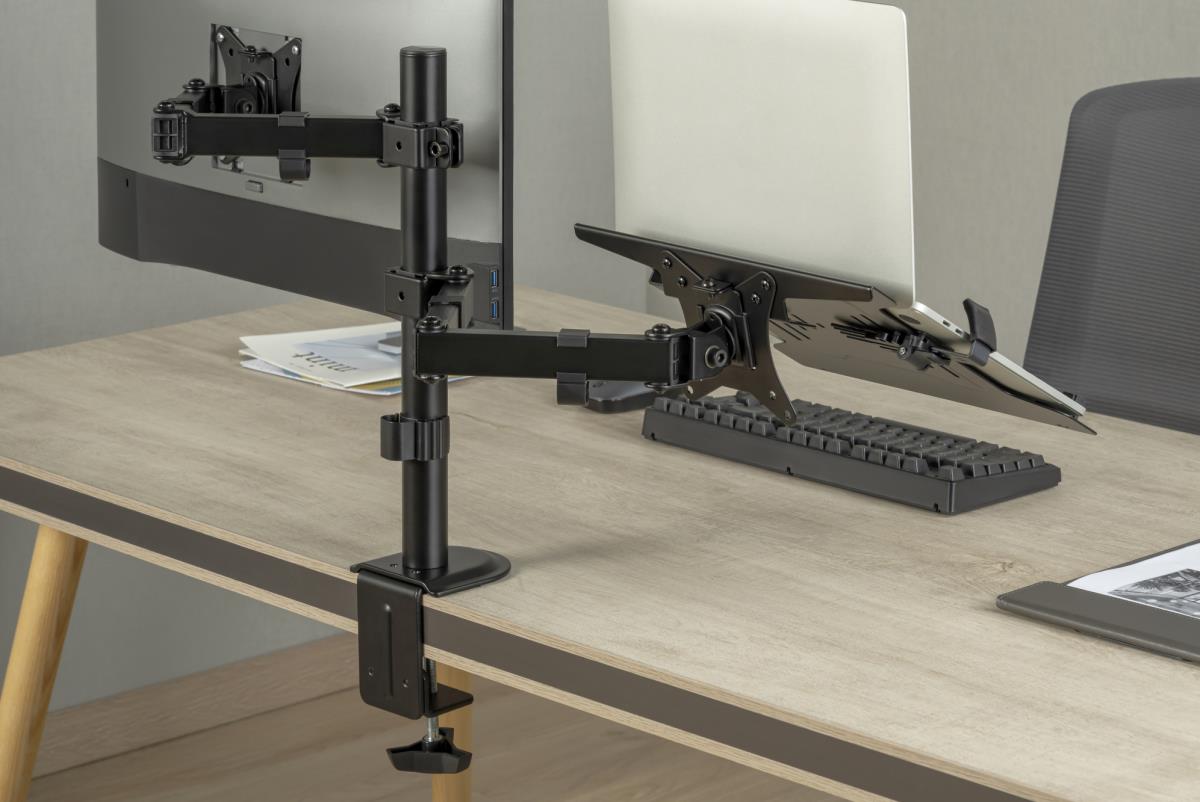

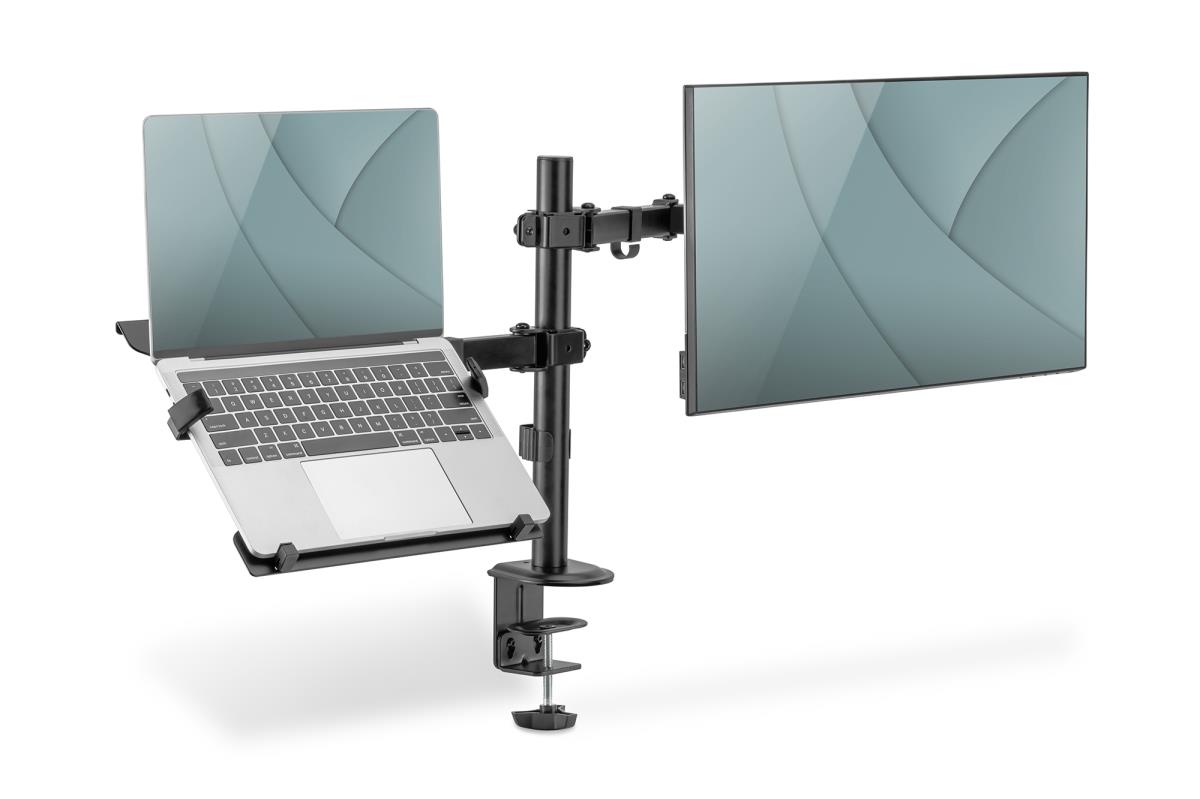

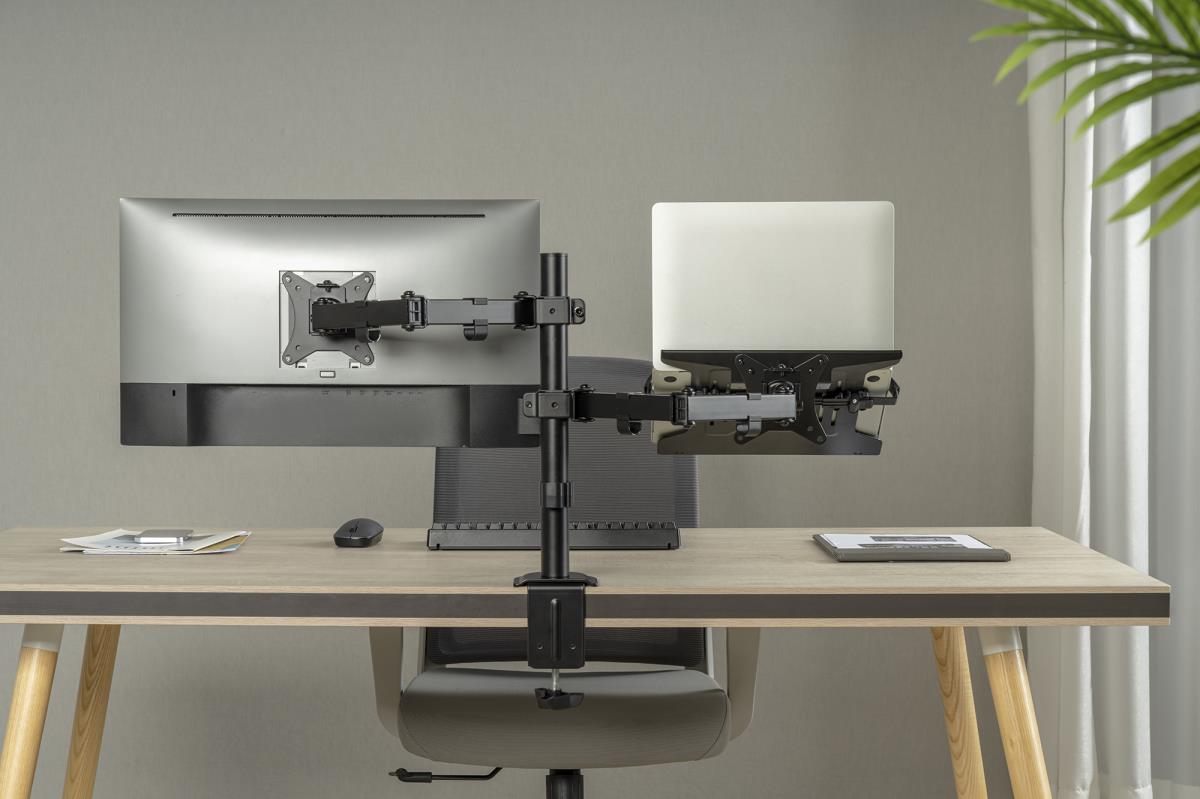

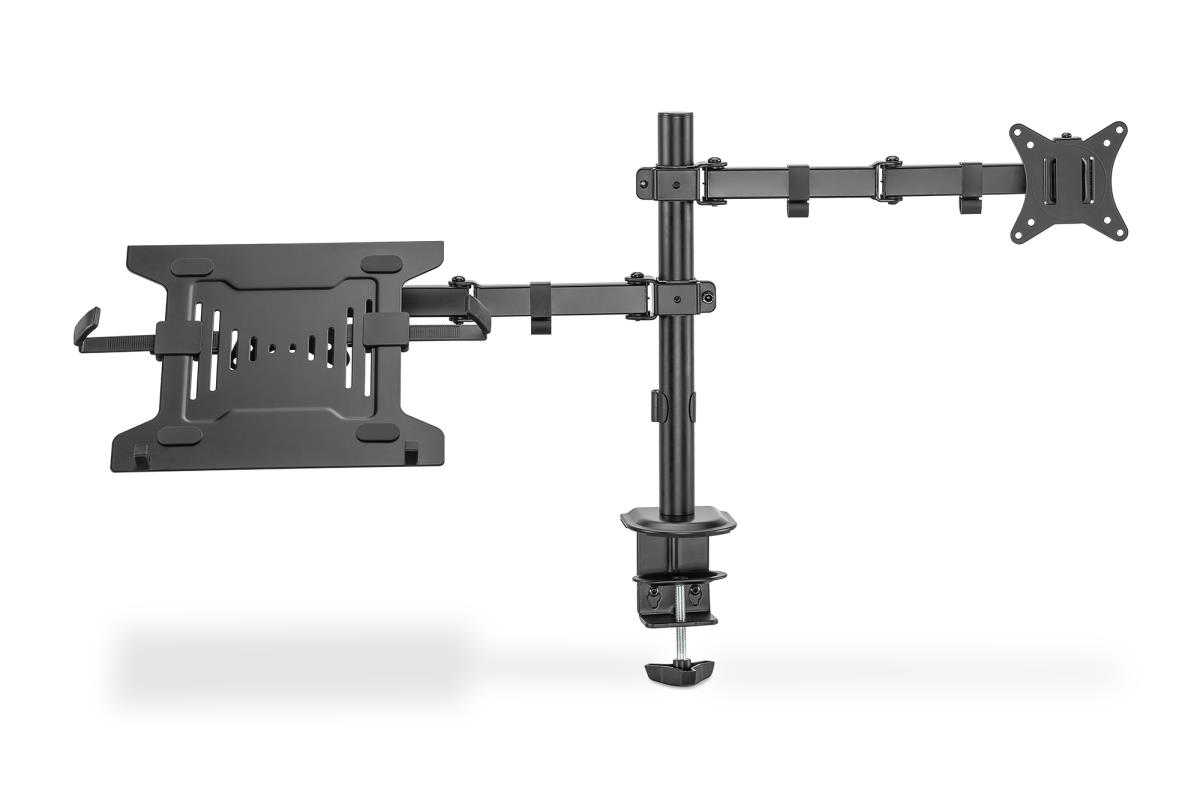

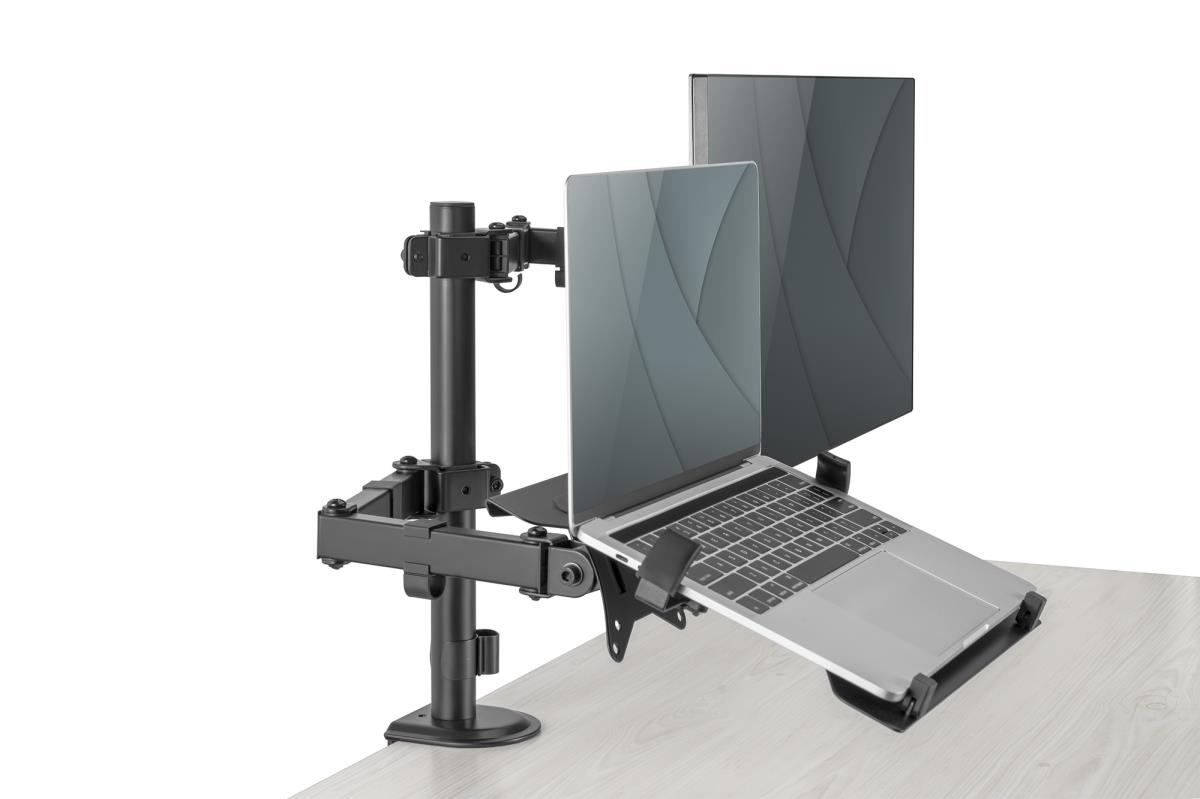

The desktop mount offers you the possibility to adjust a monitor of up to 32" / 9 kg as well as a notebook of up to 15.6" / 4 kg individually, in a space-saving manner as well as ergonomically
- Suitable for (curved) monitors up to 32" / 9 kg max.
- Suitable for notebooks up to 15.6" / 4 kg max.
- Integrated cable management
- Two mounting options: both table clamp and pass-through rod are included in the scope of delivery
- Quick release: VESA plate can be fixed/released by means of a screw during mounting and dismounting
- Height-adjustable, rotate, swivel
- Adjustable notebook holders provide secure support
- VESA compatibility: 75x75, 100x100
- Monitor arms: Tilt: -45°/+45°, Swivel: -90°/+90°, Front panel rotation range: -180°/+180°
The desktop mount allows you to arrange one monitor up to 32" / 9 kg as well as one notebook up to 15.6" / 4 kg in an individual, space-saving and ergonomic manner. The VESA bracket supports: 75 x 75, 100 x 100 mounts. The bracket offers two mounting options: both table clamp and pass-through rod. Thanks to the quick-release function, the VESA plate can be fixed/released by means of a screw during mounting and dismounting The integrated cable management ensures a tidy workplace.
| Montage | |
| Minimale schermgrootte | 43,2 cm (17") |
| Maximale gewichtscapaciteit | 9 kg |
| Maximale schermgrootte | 81,3 cm (32") |
| Montage | Klem |
| Montage interface compatibiliteit (min) | 75 x 75 mm |
| Montage interface compatibiliteit (max) | 100 x 100 mm |
| Paneelmontage-interface | 75 x 75,100 x 100 mm |
| Aantal displays ondersteund | 1 |
| Montagewijze | Bureau |
| Ergonomie | |
| In hoogte verstelbaar | Ja |
| Type hoogteverstelling | Handmatig |
| Bereik kantelhoek | -45 - 45ø |
| Horizontaal draaibaar | -90 - 90ø |
| Draaihoek | 360ø |
| kantel aanpassingen | Ja |
| Voeten | Ja |
| Voetenkleur | Zwart |
| Design | |
| Materiaal behuizing | Kunststof, Staal |
| Kleur van het product | Zwart |
| Gemakkelijk te installeren | Ja |
| Gewicht en omvang | |
| Gewicht | 4,75 kg |
| Breedte verpakking | 443 mm |
| Diepte verpakking | 298 mm |
| Hoogte verpakking | 113 mm |
| Verpakkingsvolume | 14917,6 cmü |
| Gewicht verpakking | 6 kg |
| Type verpakking | Doos |
| Inhoud van de verpakking | |
| Inclusief klem | Ja |
| Inclusief VESA-montage | Ja |
| Montage gereedschap | Ja |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Logistieke gegevens | |
| Code UK-handelstarief | 73269098 |
| Overige specificaties | |
| Land van herkomst | China |
| Warranty | |
| Base Warranty | Non Non |
