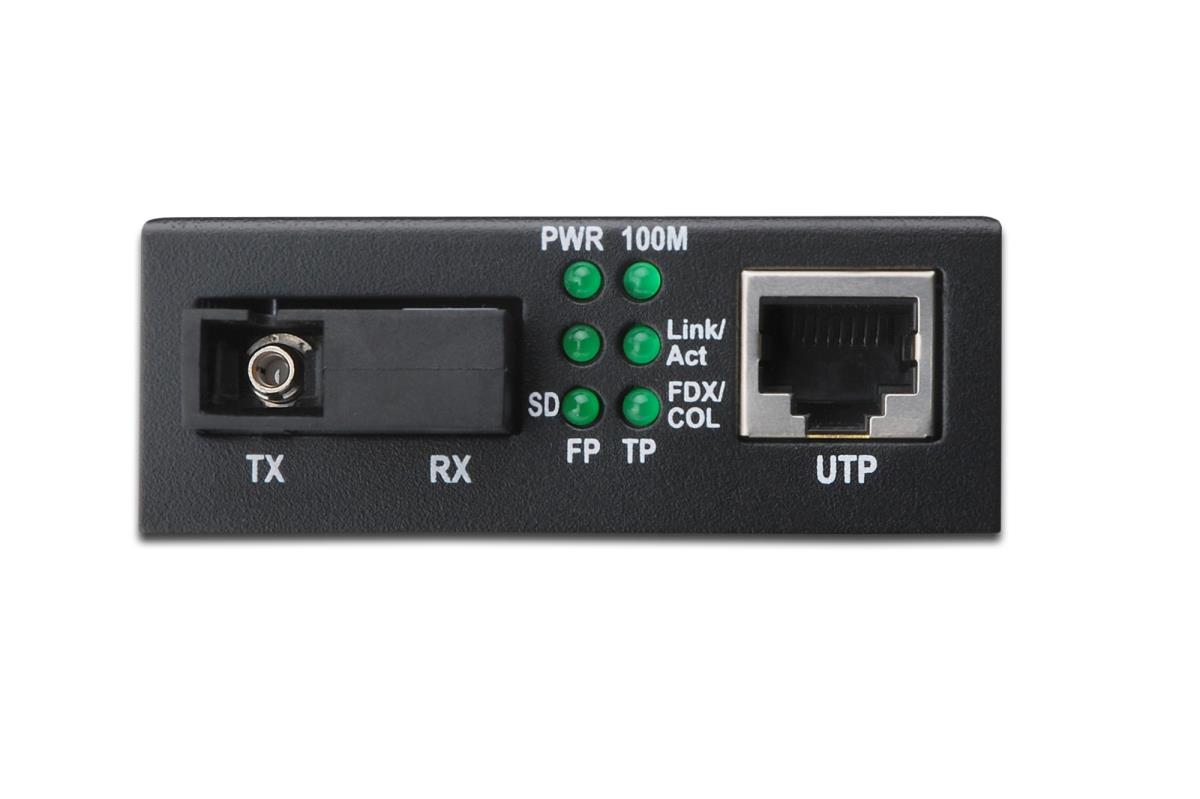

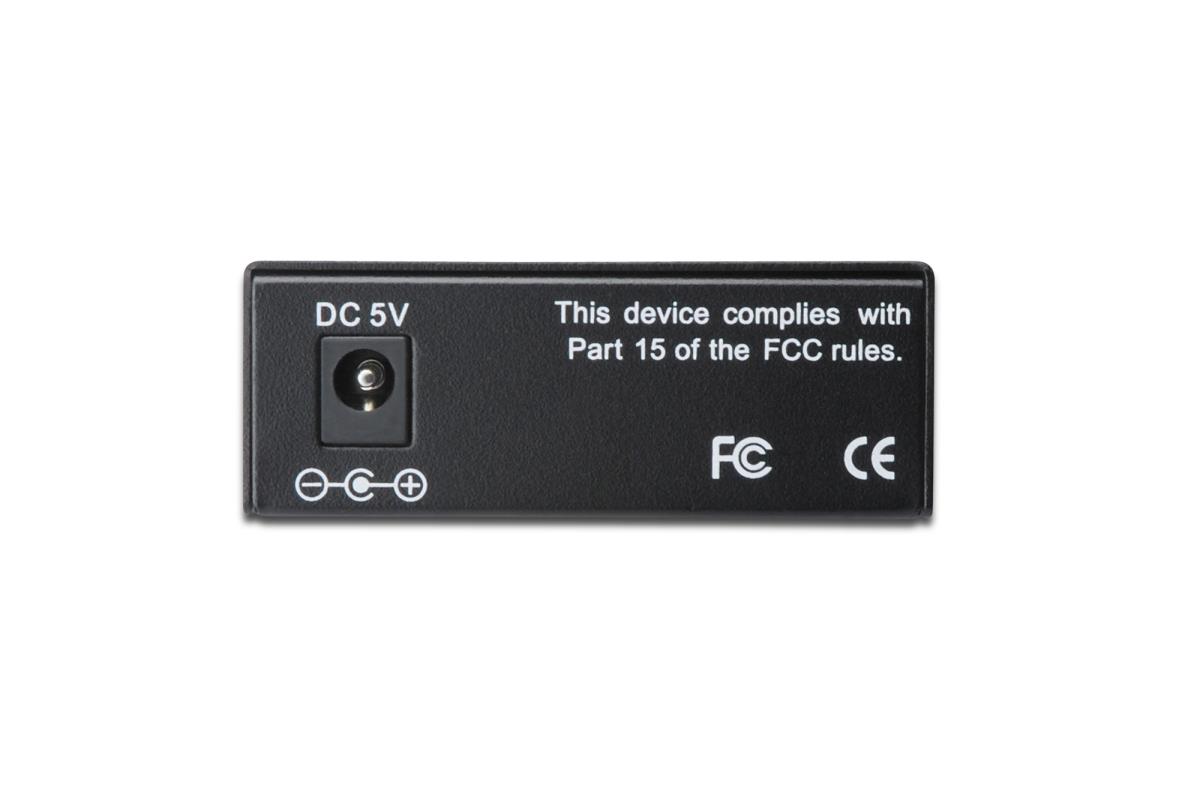

Media Converter, Singlemode, BiDi, WDM Gigabit Ethernet, Tx1310nm / Rx1550nm SC connector, Up to 20km
ITCurry #: M9236317 | Article #: DN-82122
slide 2 of 3
Prijs:
45,48
Excl. btw
Levering in Benelux:
GRATIS Levering bij bestelling van meer dan € 100 zbtw.
Nu niet op voorraad. Bel ons!
Verwante producten
slide 7 to 11 of 14
Product Informatie
The perfect converter solution for various fiber media
- Distance up to 20km
- Sends data in high quality and additionally provides excellent reliability
- A quick delivery is guaranteed in the gigabit range
The media converters from DIGITUS® are the ideal solution for the migration of copper and fiber network signals. From now on, you are able to access the fiber technology and transfer network signals over several kilometers without renewing your whole network infrastructure. The huge variety of products fulfil your individual needs. The intiutive operation guarantees a quick and easy installation. Years of experience and a wide range of products lets DIGITUS® become a reliable partner for your network.
| Netwerk | |
| Maximale overdrachtssnelheid van gegevens | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-TX |
| Converter output interface | 1000Base-LX |
| Netwerkstandaard | IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Koperen ethernetbekabelingstechnologie | 10BASE-T, 100BASE-TX, 1000BASE-TX |
| Fiber ethernet cabling technologie | 1000BASE-LX |
| Overdrachtssnelheid | 1000 Mbit/s |
| Auto MDI/MDI-X | Ja |
| Auto-negotiation | Ja |
| Duplex systeem | Volledig, Half |
| Link Loss Carry Forward (LLCF) ondersteund | Ja |
| Link Loss Return (LLR) ondersteund | Ja |
| Prestatie | |
| Maximaal bereik | 20000 m |
| Golflengte | 1310 nm |
| Golflengtemultiplexing (WDM) | Ja |
| Draad modus structuur | Single-mode |
| Vezelkabel diameters ondersteund | 9/125 æm |
| Buffergrootte | 2000 KB |
| Kenmerken | |
| Intern | Nee |
| LED-indicatoren | Link, Stroom, Status |
| Kleur van het product | Zwart |
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Fibre channel-poorten | 1 |
| Vezel-optische connector | SC |
| Aansluiting voor netstroomadapter | Ja |
| Energie | |
| Spanning | 5 V |
| Output current | 0,8 A |
| Stroomverbruik (typisch) | 2,5 W |
| Power over Ethernet (PoE) | Nee |
| Externe adapter | Ja |
| Gewicht en omvang | |
| Breedte | 70 mm |
| Diepte | 95 mm |
| Hoogte | 26 mm |
| Gewicht | 200 g |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 60 øC |
| Inhoud van de verpakking | |
| Inclusief AC-adapter | Ja |
| Snelle installatiehandleiding | Ja |
| Verpakking | |
| Breedte verpakking | 130 mm |
| Diepte verpakking | 55 mm |
| Verpakkingsvolume | 1716 cmü |
| Gewicht verpakking | 450 g |
| Type verpakking | Doos |
| Logistieke gegevens | |
| Land van herkomst | China |
| Code UK-handelstarief | 85176200 |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
