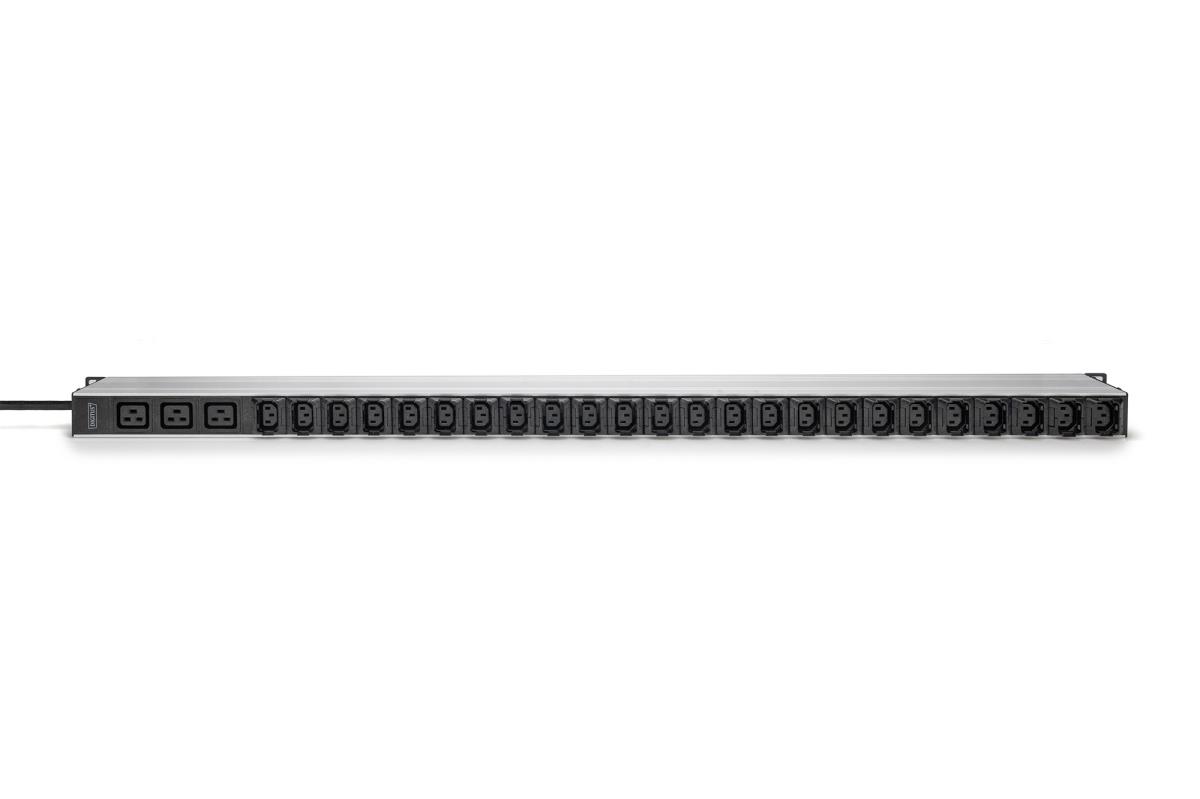

IT BASIC PDU. Vertical. 16A. 24 x C13. 3 x C19 1-phase. 3m cable. IEC309 16A plug
ITCurry #: M9239047 | Article #: DN-95450
Verwante producten
Product Informatie
Safe and professional power distribution solution for highly demanding IT requirements in network and server racks
- Optimal design for mounting in 19" racks
- Reliable power distribution
- Excellent space management of the sockets

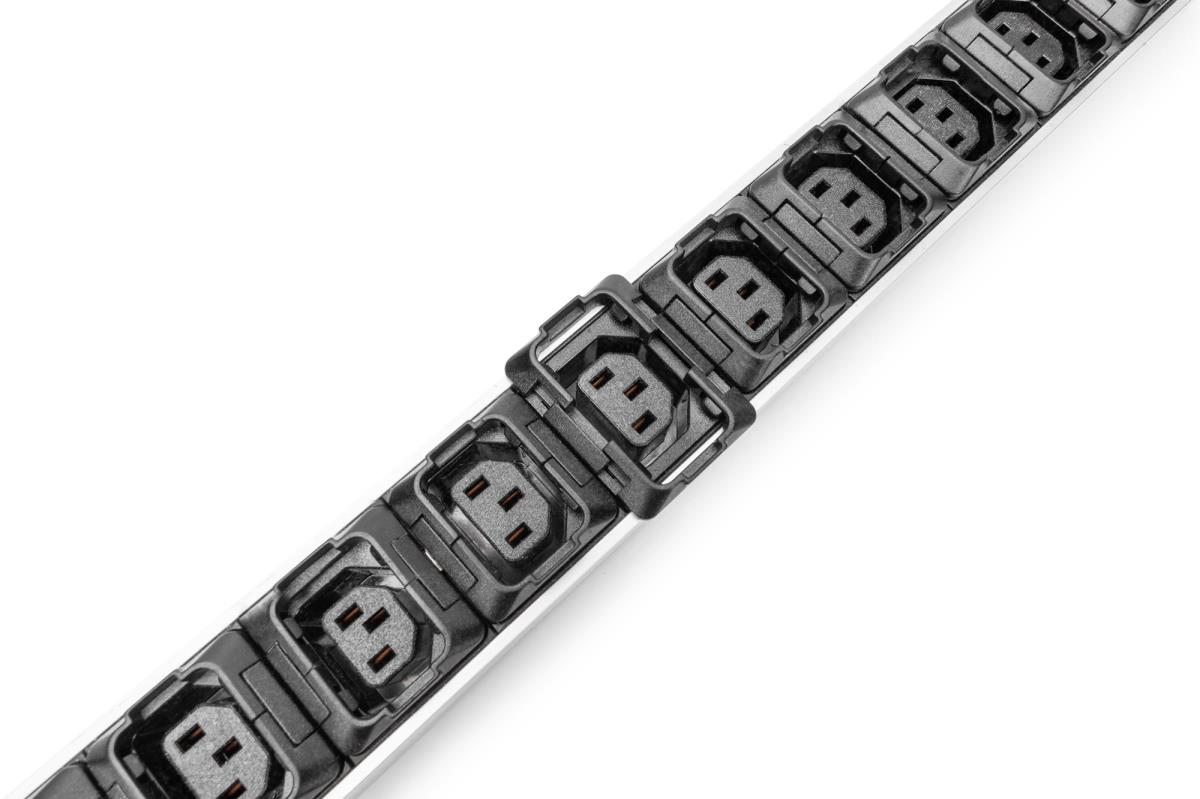

- Integrated extraction protection at each output, protects C13 and C19 standard cables against unintentional unplugging
The DIGITUS® PDU are the perfect solution for your network or server cabinet. With regard to power distribution, it fulfills the requirements of many applications in IT, network technology and laboratories. The individual C13 and C19 outlets are equipped with extract protection. It is optimally designed for vertical installation providing the advantage of saving rack spaces for more equipments. The 27 outlet PDU has excellent physical characteristics and is engineered for an output of up to 4,000 W (250 V AC / 16 A) which helps in achieving best performances with the appropriate load.
| Design | |
| PDU types | Basis |
| Soort | Eenfasig |
| Rackcapaciteit | 0U |
| Montage | Verticaal |
| Materiaal behuizing | ABS kunststof, Aluminium |
| Kleur van het product | Zwart |
| Poorten & interfaces | |
| Aantal AC uitgangen | 27 AC-uitgang(en) |

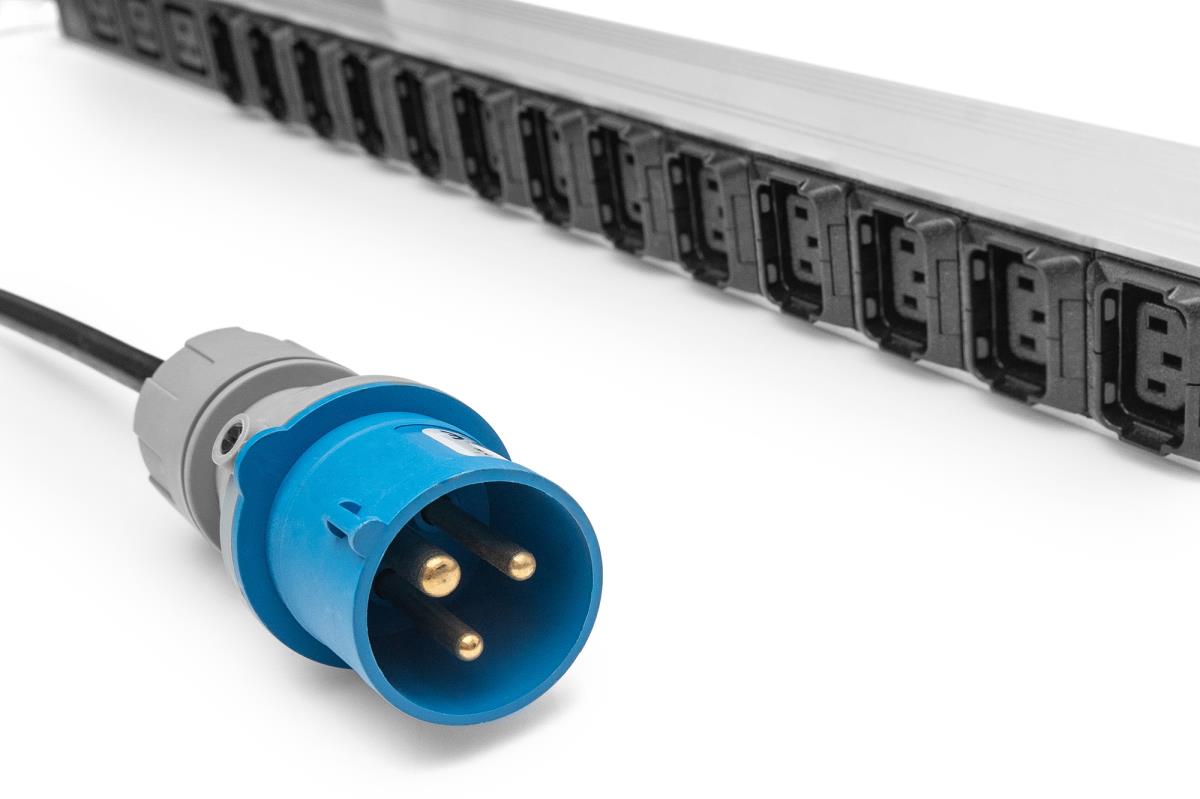

| Stekker | IEC 60309 |
| Stopcontacttypes | C13 stekker, C19 stekker |
| Aantal masterstopcontacten | 24 |
| Aantal slavestopcontacten | 3 |
| Kenmerken | |
| Snoerlengte | 3 m |
| Energie | |
| Nominale input voltage | 250 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Stroom (max.) | 16 A |
| Poort 1 uitgangsstroom | 10 A |
| Poort 2 uitgangsstroom | 16 A |
| Netspanning, in bedrijf | 230 V |
| Spanning | 230 V |
| Laad-capaciteit | 3600 VA |
| Aantal fases | 1 |
| Maximaal vermogen | 4000 W |
| Gewicht en omvang | |
| Breedte | 45 mm |
| Diepte | 1140,5 mm |
| Hoogte | 60 mm |
| Inhoud van de verpakking | |
| Gebruikershandleiding | Ja |
| Verpakking | |
| Gewicht verpakking | 3,35 kg |
| Breedte verpakking | 145 mm |
| Diepte verpakking | 1400 mm |
| Verpakkingsvolume | 14210 cmü |
| Logistieke gegevens | |
| Code UK-handelstarief | 85444290 |
| Land van herkomst | China |
| Warranty | |
| Base Warranty | Non Non |
