Industrial 4+2 -Port Gigabit Ethernet Switch 4 Port GE RJ 54 2 GE SFP Port

ITCurry #: M9239139 | Article #: DN-651148
Prijs:
78,00 Excl. btw
Levering in Benelux:
GRATIS Levering bij bestelling van meer dan € 100 zbtw.
Nu niet op voorraad. Bel ons!

Verwante producten

slide 7 to 11 of 14

Product Informatie

4x 10/100/1000 BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40? to 80?.

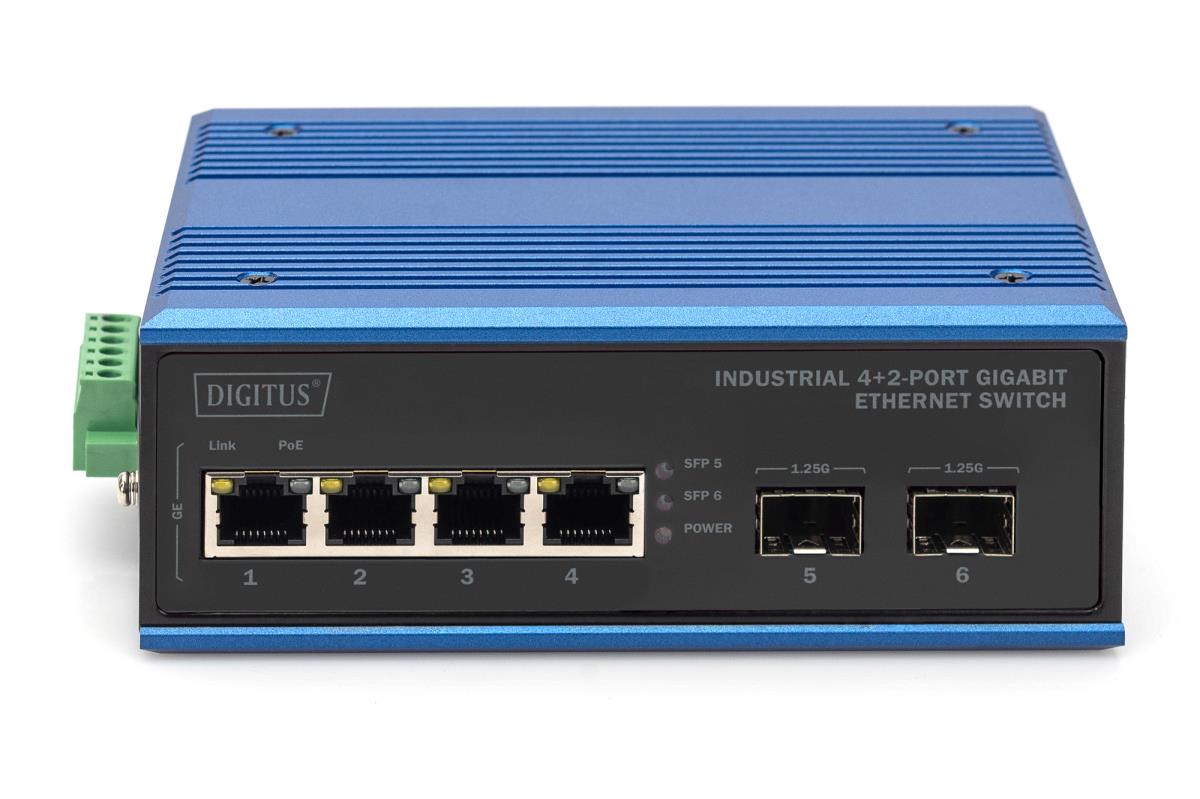

- Number of network connections: 4 GE ports, 2 SFP GE ports
- Transmission speed of the RJ45 network ports: 4 x 10/100/1000 Mbit (RJ45)
- Transmission speed of the uplink ports: 2 x 10/100/1000 Mbit (SFP)

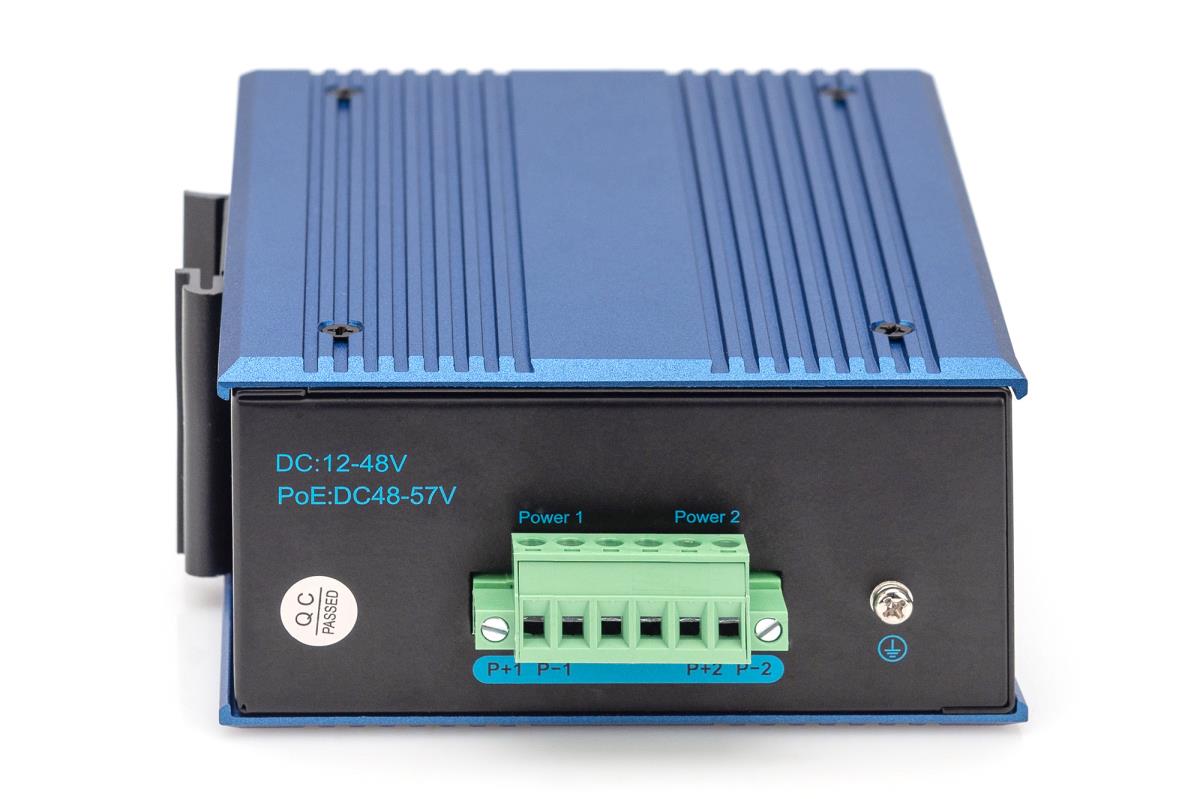

- Redundant power supply 12-48 V (DC)
- Metal housing to IP40 standard

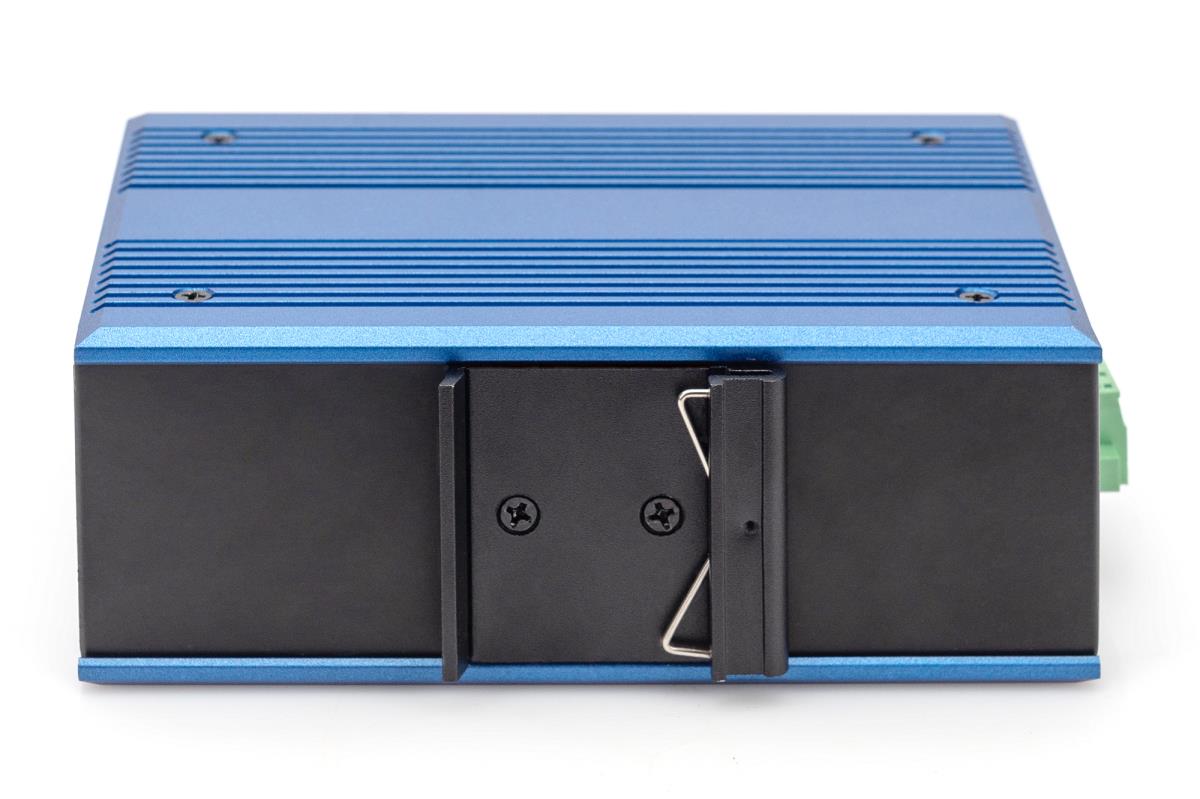

- Simple mounting on a top-hat rail
- Operating temperature from - 40° up to 80° C
- Simple plug & play installation
- ESD & EFT protection up to 6 kV (DC)
- Ideal for connecting camera systems

The DN-651148 is a robust 4+2 port Industrial Gigabit Ethernet switch for harsh environments. With non-blocking wire-speed performance, it offers 4x 10/100/1000 BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40? to 80?.

Beheerfuncties
Switch type Unmanaged
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten 4
Type basis-switching RJ-45 Ethernet-poorten Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten 4
Aantal ge‹nstalleerde SFP modules 2
Vezel-optische connector SFP
Netwerk
Netwerkstandaard IEEE 802.3x
10G support Nee
Full duplex Ja
Half-duplex Ja
Datastroombeheer Ja
Ethernet LAN, data-overdrachtsnelheden 10,100,1000 Mbit/s
VLAN=ondersteuning Nee
Data-uitwisseling
Switchingcapaciteit 1 Gbit/s
Verzending snelheid 10,5 Mpps
MAC-adrestabel 2000 entries
Store-and-forward Ja
Jumbo Frames ondersteuning Ja
Jumbo frames 9000
Packet buffergeheugen 1,2 MB
Design
Rack-montage Ja
Stapelbaar Nee
Kleur van het product Zwart, Blauw
Materiaal behuizing Metaal
Internationale veiligheidscode (IP) IP40
DIN rail bevestiging Ja
Vandaalbestendig Nee
Geschikt voor buitengebruik Nee
Prestatie
Plug and play Ja
Mean time between failures (MTBF) 300000 uur
Energie
Stroombron DC
Vermogenstoevoer inclusief Ja
Redundante voeding Ja
Ingangsspanning 12 - 48 V
Stroomverbruik (typisch) 5 W
Spanningsbeveiliging Ja
Overspanningsbeveiliging in voltage 4 kV
Power over Ethernet (PoE)
Power over Ethernet (PoE) Nee
Overige specificaties
Bandbreedte 14 Gbit/s
Ethernet interface type Gigabit Ethernet
Eisen aan de omgeving
Bedrijfstemperatuur (T-T) -40 - 80 øC
Temperatuur bij opslag -40 - 80 øC
Relatieve vochtigheid in bedrijf (V-V) 5 - 95 procent
Luchtvochtigheid bij opslag 5 - 95 procent
Gewicht en omvang
Breedte 142,5 mm
Diepte 107,1 mm
Hoogte 53,5 mm
Gewicht 530 g
Inhoud van de verpakking
Snelstartgids Ja
Gebruikershandleiding Ja
Verpakking
Breedte verpakking 158 mm
Diepte verpakking 66 mm
Hoogte verpakking 213 mm
Verpakkingsvolume 2221,16 cmü
Gewicht verpakking 842,857 g
Logistieke gegevens
Code UK-handelstarief 85176200
Land van herkomst China
Warranty
Base Warranty Non Non
