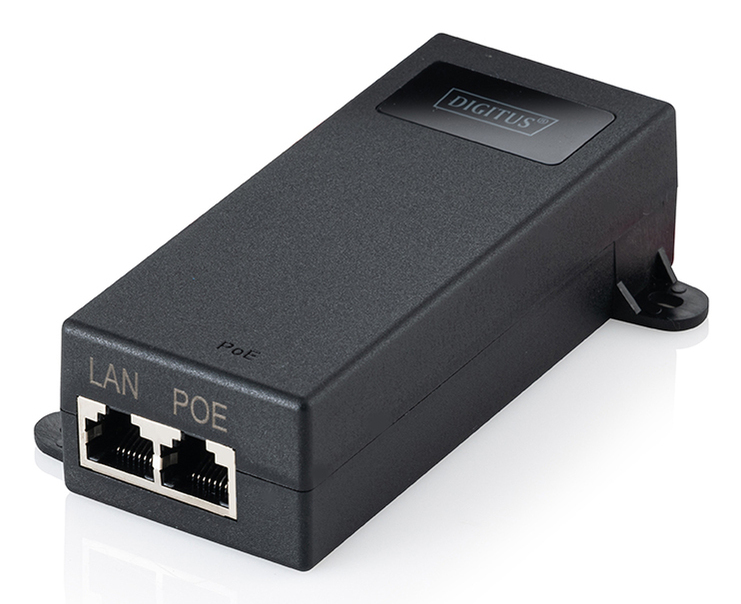

Gigabit Ethernet PoE++ Injector - 802.3bt Power Pins:4/5(+),7/8(-) and 1/2(-), 3/6 (+) 60W
ITCurry #: M923A046 | Article #: DN-95104-1-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Minimize your cabling effort for wireless APs, IP phones or any other PoE-enabled device!
- Complies with the 802.3bt PoE++ standard
- Easy merging of power and data cables into a single cable
- Expand your network where there are no power lines or sockets
- No configuration required
- The output has a current limiter, short-circuit protection and automatic terminal device detection and classification
With the help of the Digitus PoE injector, you can minimize your cabling effort when installing PoE-capable devices such as IP network cameras. The data and power supply for the devices is only fed in via an Ethernet cable. This eliminates the need to lay a separate power cable and enables you to expand your network even where there are no sockets or power cables. The injector is fully compatible with the IEEE 802.3bt Ultra PoE standard and delivers an output power of 60 watts.
| Netwerk | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Bekabelingstechnologie | 10/100/1000 |
| Power over Ethernet (PoE) | Ja |
| Type Power over Ethernet (PoE) ondersteunt | PoE++ (4PPoE) |
| Netwerkstandaard | IEEE 802.3bt |
| Kenmerken | |
| Kleur van het product | Zwart |
| Maximale afstand | 100 m |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 2 |
| RJ-45 invoer ports | 1 |
| RJ-45 uitgang ports | 1 |
| Energie | |
| Stroom via Ethernet (PoE) | 55 V |
| Uitgangsvermogen | 60 W |
| AC-adapter ingangsspanning | 100 - 240 V |
| AC-adapterfrequentie | 50/60 Hz |
| Stroom | 1.5 A |
| Vermogensverbruik (max) | 10 W |
| Stroomverbruik (typisch) | 1,6 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -10 - 45 øC |
| Gewicht en omvang | |
| Breedte | 193 mm |
| Diepte | 85 mm |
| Hoogte | 41 mm |
| Gewicht | 164,7 g |
| Inhoud van de verpakking | |
| Aantal producten inbegrepen | 1 stuk(s) |
| Snelle installatiehandleiding | Ja |
| Verpakking | |
| Breedte verpakking | 75 mm |
| Diepte verpakking | 118 mm |
| Hoogte verpakking | 85 mm |
| Gewicht verpakking | 30,25 g |
| Logistieke gegevens | |
| Code UK-handelstarief | 85176200 |
| (Buitenste) hoofdverpakking breedte | 400 mm |
| (Buitenste) hoofdverpakking lengte | 490 mm |
| (Buitenste) hoofdverpakking hoogte | 295 mm |
| Hoeveelheid per (buitenste) hoofdverpakking | 60 stuk(s) |
| Land van herkomst | China |
| Warranty | |
| Base Warranty | Non Non |
