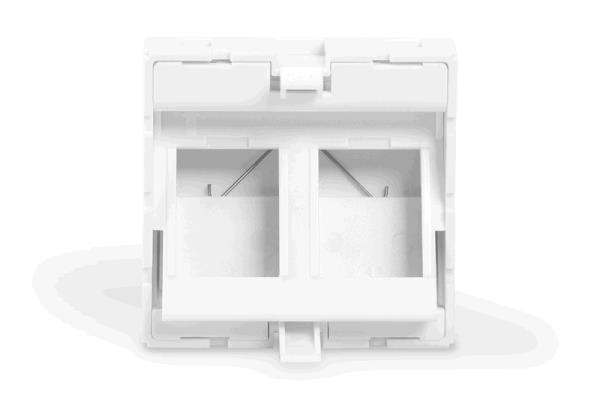

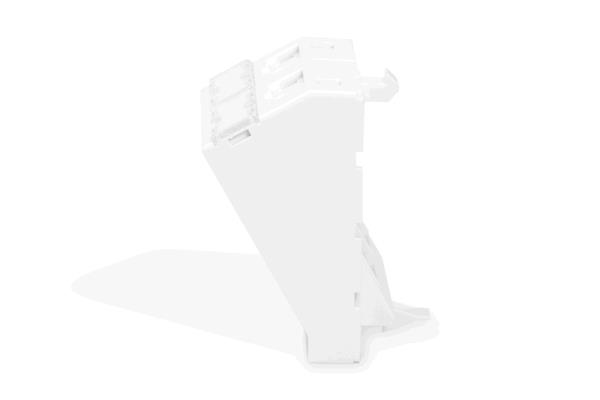

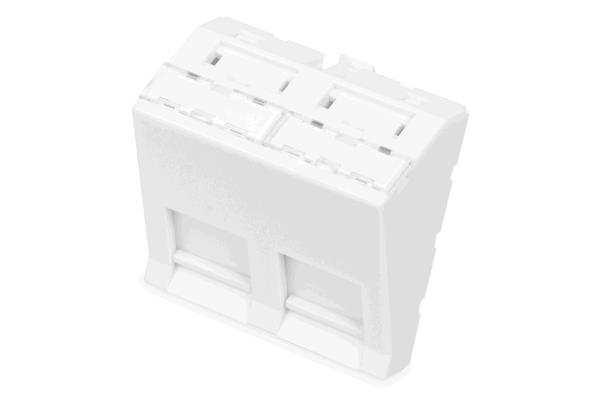

Front panel, 2-port, 45 x 45 mm, angled, for frame DN-93802-5-SH

ITCurry #: M9238705 | Article #: DN-93802-7-SH
Prijs:
1,19 Excl. btw
Levering in Benelux:
GRATIS Levering bij bestelling van meer dan € 100 zbtw.
Nu niet op voorraad. Bel ons!

Verwante producten

slide 7 to 11 of 14

Product Informatie

The front plate with dimensions 45 x 45 mm can be used in various frames / front panels. It is suitable for mounting two Keystone modules in the area of copper cabling such as the DIGITUS© CAT 6A Keystone Module DN-93617 or Keystone modules with USB or audio connections. The sliding protective flaps protect the built-in Keystone modules against dust and dirt. The integrated labeling fields with transparent viewing windows are used to mark the connections. Additionally, 4 blue plastic symbols are included in delivery to place below each labeling field depending on the application. Ideal for using all kinds of network applications at home or in the office.
Suitable for Keystone modules in the area of copper cabling and multimedia

Features
  • Integrated labeling fields with transparent viewing window
  • With sliding dust protection covers over the ports
  • Design is compatible with many common frames (45 x 45 mm, French layout)
  • Manufactured using high-quality ABS & PC
  • For use in the area of network cabling
Specifications
  • Integrated labeling fields
  • Dust protection covers, sliding
  • 4 x symbols to place below the labeling field (CAT6, CAT6A, phone, computer)
  • Material: ABS & PC
  • Dimensions: 45 x 45 x 38.6 mm (H x W x D)
  • Installation height: 25.6 mm (from the frame / angled 30°)
  • Color: Signal white (RAL 9003)
