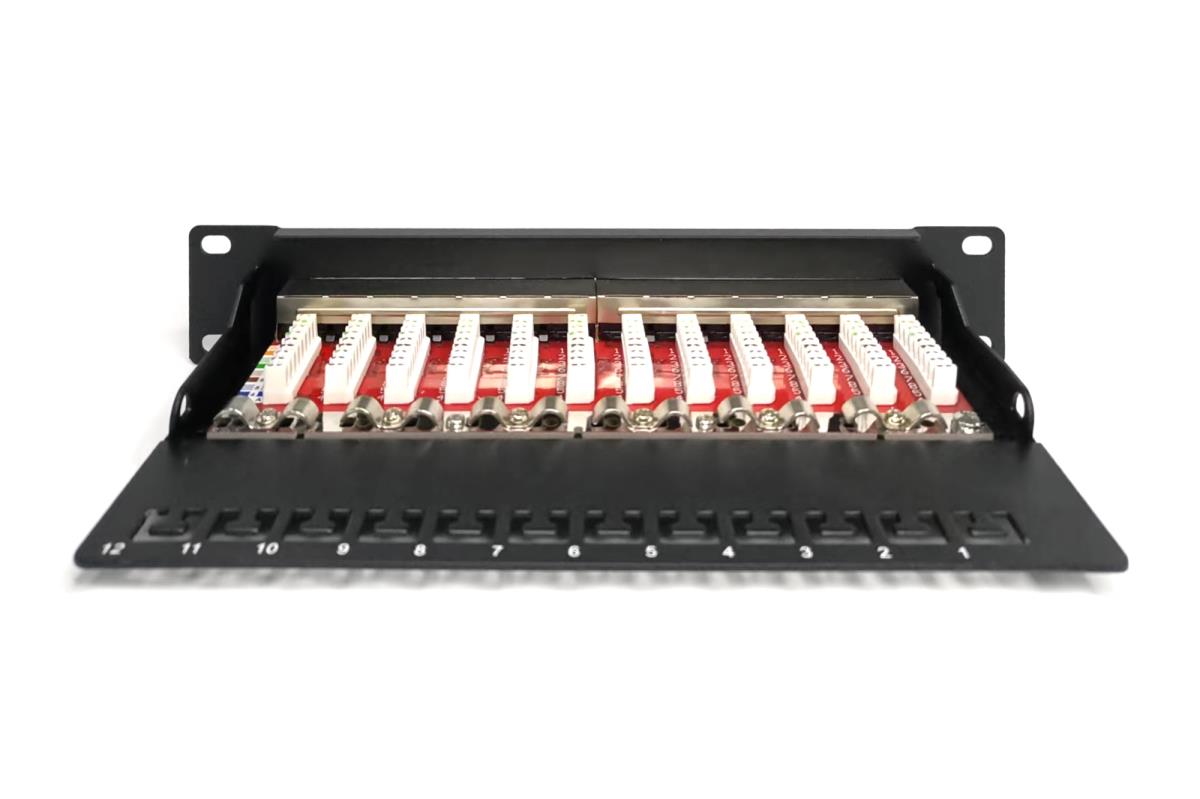

CAT6A Patch Panel, shielded,12-Port label field, 1U, 10in rack mount, black RAL 9005
ITCurry #: M9238625 | Article #: DN-91612S-EA-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Future-orientated standards and high-end quality for your network.
- Sturdy patch panel with metal housing
- Complete shielding of housing and shield contact

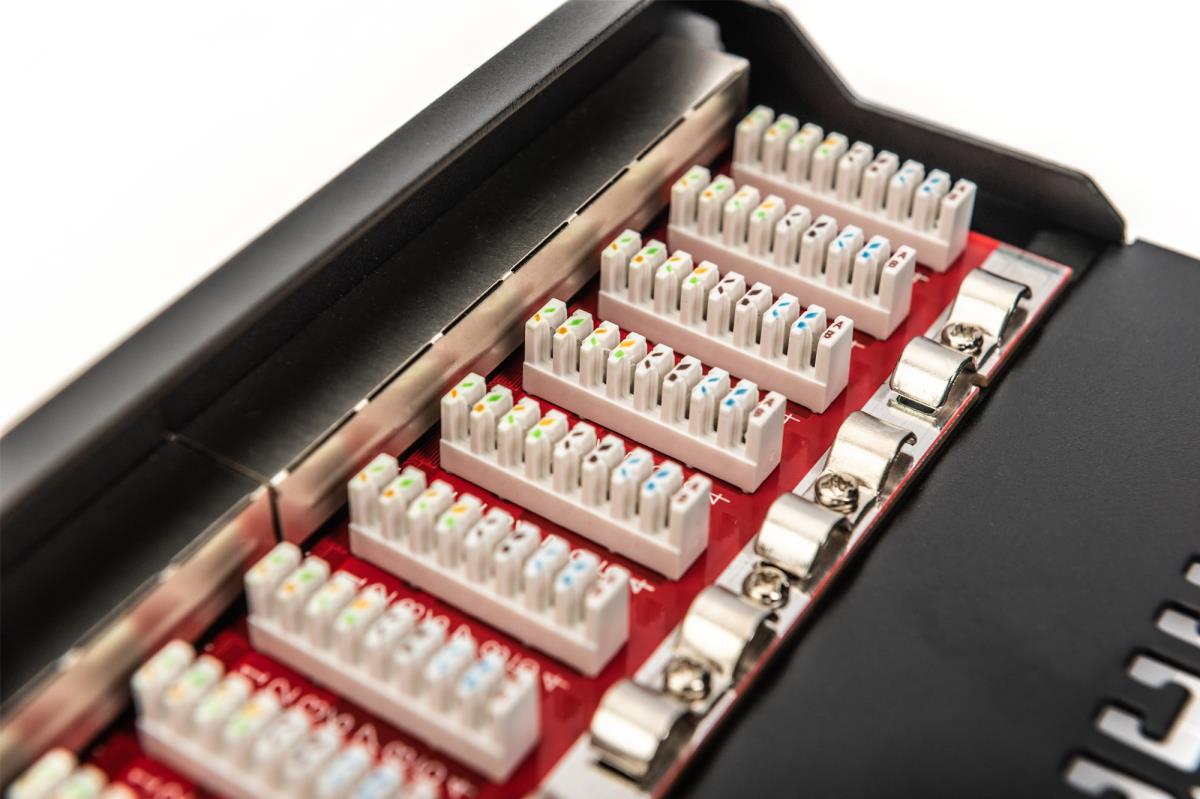

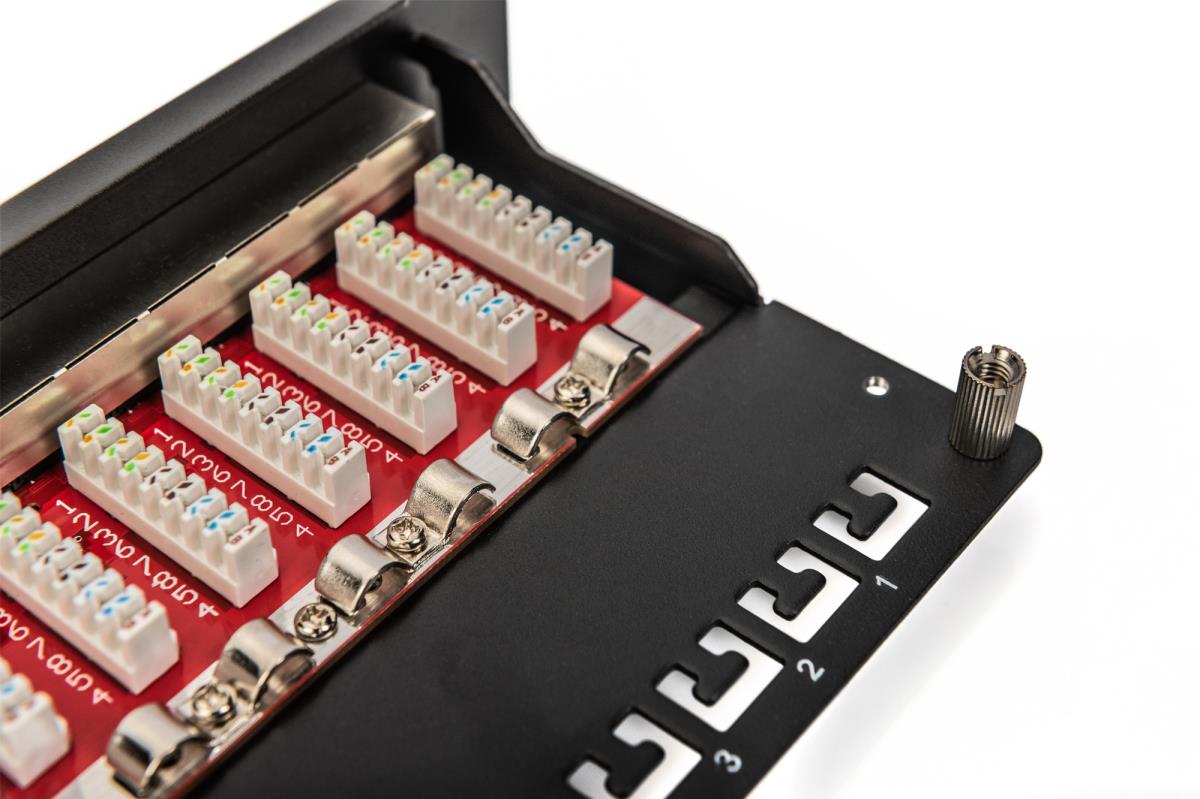

- Cable installation by IDC-strips
- Central grounding connector
- Dielectric strength up to 1500 VDC (contact/ground)
The CAT 6A patch panel is available in this 12 port version. It offers sturdy design by its 1.5mm galvanic cold rolled steel. Perfect for 10" cabinet mounting. The fully shielded RJ45 sockets provide an optimal stability for your cables with best performances. The patch panel applies to (IEEE 802.3at/af) PoE+ standard. It is shielded electromagnetically and offers lost and interruption free forwarding of your data in your network. The 360 degree shielding at the contact points makes sure every single point of consilidation is shielded perfectly.
| Netwerk | |
| Ethernet interface type | 10 Gigabit Ethernet |
| Aantal poorten | 12 |
| Aansluiting(en) | RJ-45 |
| Ondersteundende kabel types | Cat6a |
| AWG draad omvang | 22/26 |
| Design | |
| Kleur van het product | Zwart |
| Materiaal | Metaal |
| Montage | Rekmontage |
| Rackcapaciteit | 1U |
| Verpakking | |
| Breedte verpakking | 60 mm |
| Diepte verpakking | 260 mm |
| Gewicht verpakking | 890 g |
| Verpakkingsvolume | 1872 cmü |
| Logistieke gegevens | |
| Code UK-handelstarief | 85369010 |
| Land van herkomst | China |
| Code geharmoniseerd systeem (HS) | 85371098 |
| Warranty | |
| Base Warranty | Non Non |
