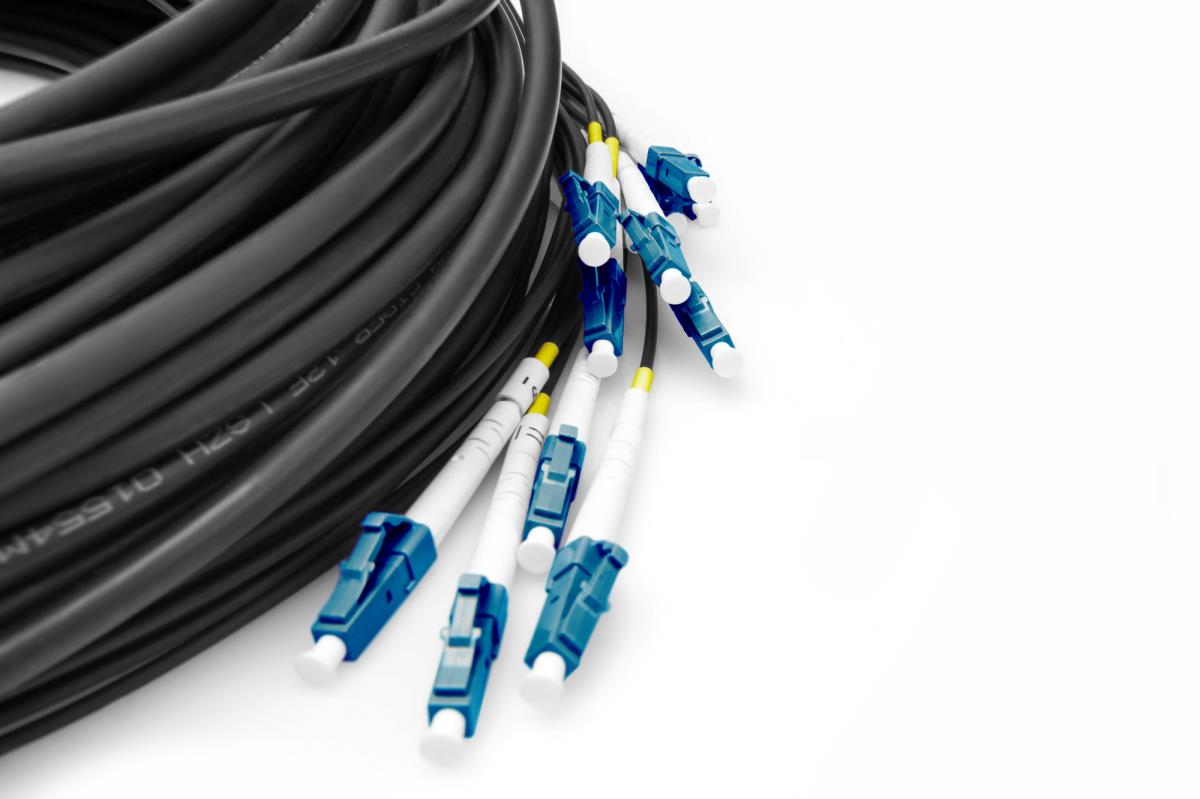

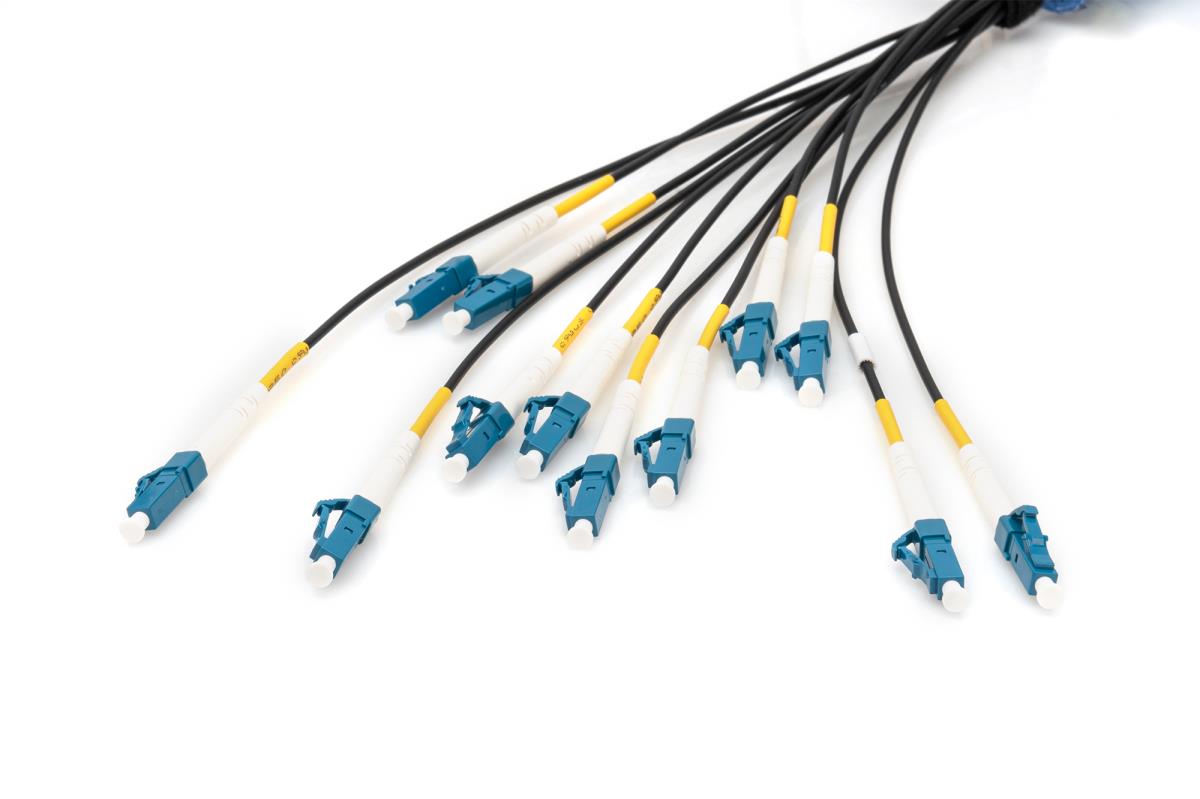

Breakout cable - 12 Fiber SM G.657.A1 LC/UPC-LC/UPC universal black 30m
ITCurry #: M9239280 | Article #: DK-2A33CU030BK-BBB
Verwante producten
Product Informatie
Pre-assembled fiber optic breakout cables enable simple, time-saving and flexible installation of high-bandwidth network links.
- Pre-assembled
- High-quality connectors fitted ex works
- Ready for immediate use, without additional splicing work
- Standard lengths available from stock
- High-quality components and construction
- Applications Applicable for indoor and outdoor use
- Connection of network cabinets without potential differences
- Individual mechanically protected fibers
- Robust cable construction

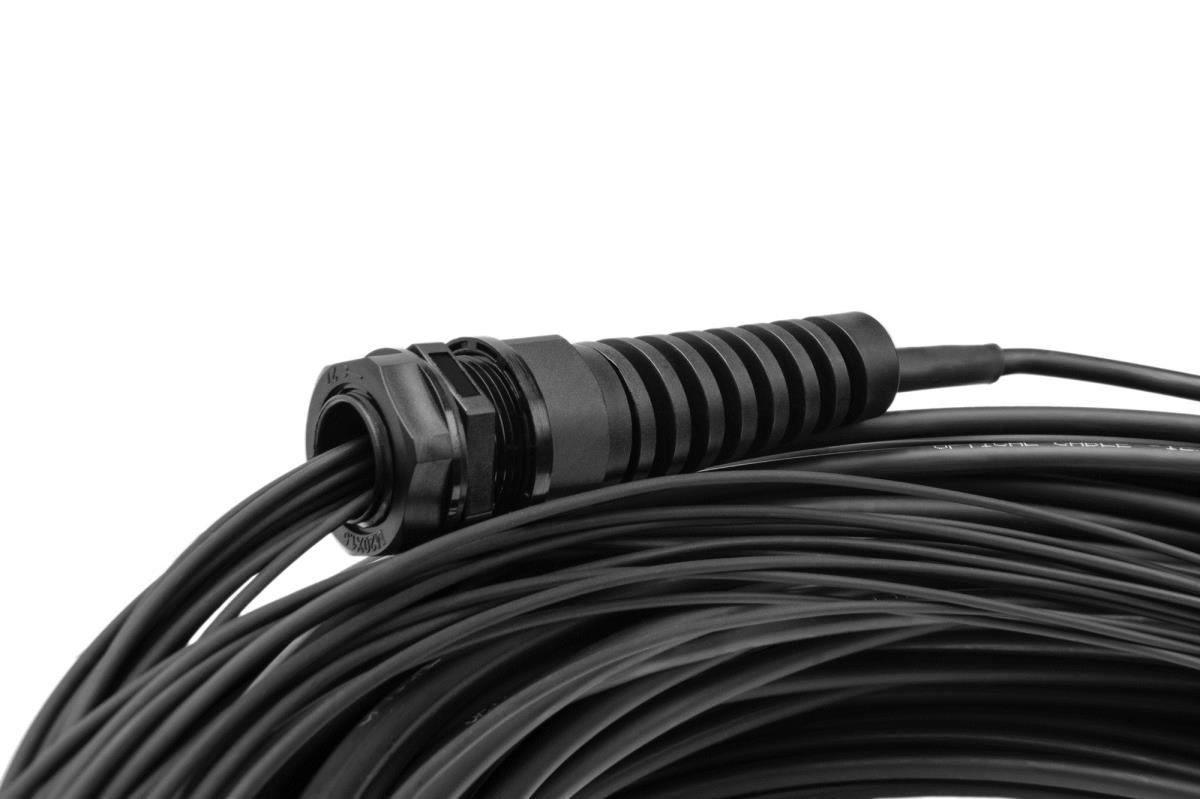

- Pull-in aid on both sides for secure installation
This pre-terminated breakout fiber optic cable is ideal for installations that require an extremely robust and reliable fiber optic cable design where maximum mechanical protection is required. It offers a secure plug & play solution for installations through the pre-terminated connectors. It is easy to install on partially assembled patch panels, for example. The supplied measurement protocol eliminates the need for time-consuming follow-up checks.
Kenmerken | |
Snoerlengte | 30 m |
Type glasvezel | OS2 |

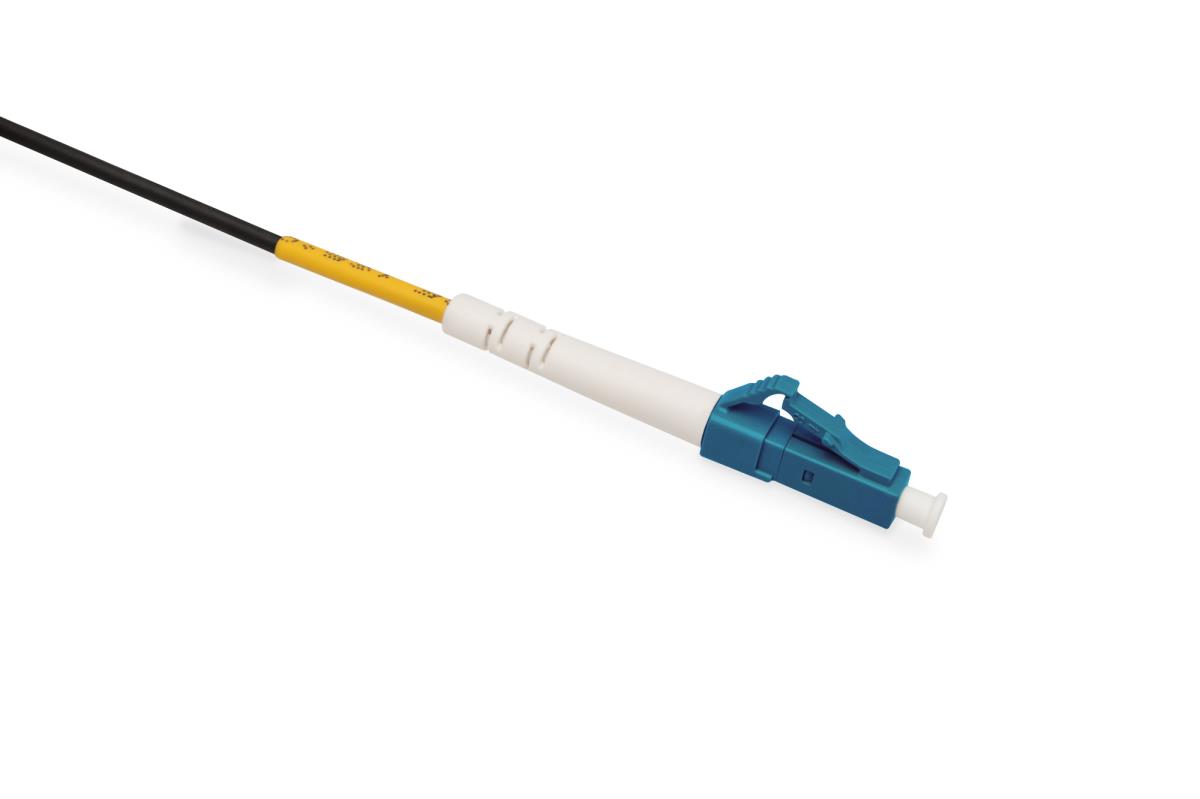

Aansluiting 1 | LC |
Aansluiting 2 | LC |
Aansluiting 1 type | Mannelijk |
Aansluiting 2 type | Mannelijk |
Type afwerking van schakelaar | UPC |
Soort kabel | U-DQ(ZN) BH |
Kleur van het product | Zwart |
Kern diameter | 9 æm |
Bekleding diameter | 125 æm |
Draad modus structuur | Single-mode |
Verlies van insertion | 0,3 dB |
Reflectieverlies | 50 dB |
Materiaal buitenmantel | Halogeenvrij |
Plug and play | Ja |
Eisen aan de omgeving | |
Bedrijfstemperatuur (T-T) | -20 - 70 øC |
Temperatuur bij opslag | -20 - 70 øC |
Verpakking | |
Breedte verpakking | 360 mm |
Diepte verpakking | 360 mm |
Verpakkingsvolume | 23328 cmü |
Gewicht verpakking | 2,75 kg |
Inhoud van de verpakking | |
Aantal per verpakking | 1 stuk(s) |
Overige specificaties | |
Aantal optische vezels | 12 |
Logistieke gegevens | |
Code UK-handelstarief | 85447000 |
Land van herkomst | China |
Warranty | |
Base Warranty | Non Non |
