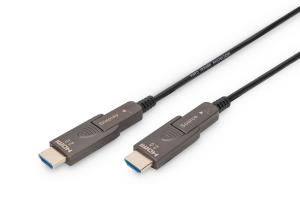

4K - HDMI AOC Hybrid Fiber Optic Cable with 30m removable plug
ITCurry #: M9238962 | Article #: AK-330127-300-S-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Outfitted with removable HDMI Type A plugs, enables easy installation thanks to narrow cable ducts (with HDMI Type D plug)
- Transfer of uncompressed video and audio signals over a distance of up to 30 m in UHD 4K resolution with 18 Gbps bandwidth

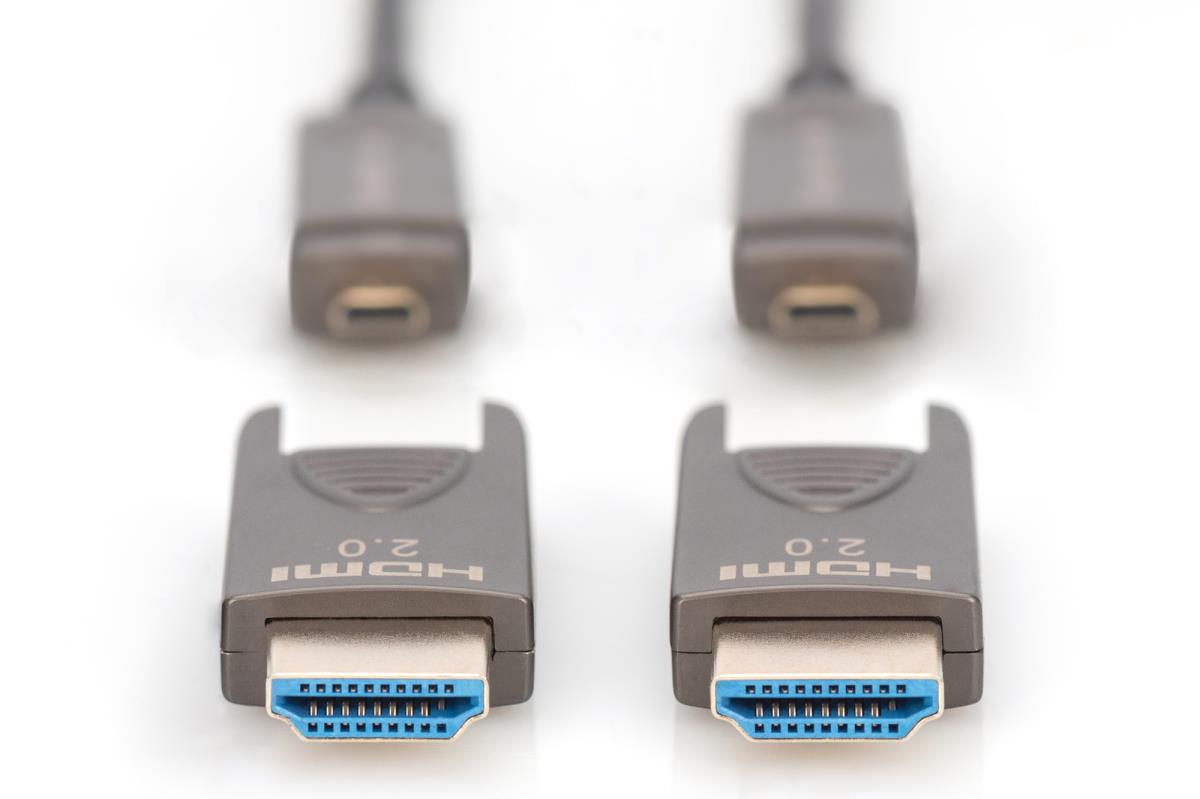

- Thanks to the removable plug, you have more options for using the cable. From HDMI - D to HDMI - D; from HDMI - D to HDMI - A; from HDMI A to HDMI A; from HDMI- A to HDMI - D
- The active HDMI cable with AOC technology is based on a hybrid construction with copper and fiber optic cable, making bandwidths of up to 18 Gbit/s with full HDMI signal spectrum possible
- Thanks to cutting-edge chip technology and immunity to electromagnetic interference, the cable is ideal for home theatres, meeting rooms, conference rooms, and other video wiring setups
- The hybrid fiber optic cable offers additional benefits such as a very tight bending radius and low weight. These features do not negatively affect the high image quality or the ease of the Plug & Play installation.
- The cable supports standards such as: HDMI 2.0b, HDCP 2.2, HDR, ARC, DTS-HD Master Audio, CED, EDID, 21:8 Cinemascope, Dolby TrueHD, 32 channel audio
- The sturdy, flexible cable also stands out thanks to its low bending radius and a very good transfer of uncompressed audio and video signals over long distances.

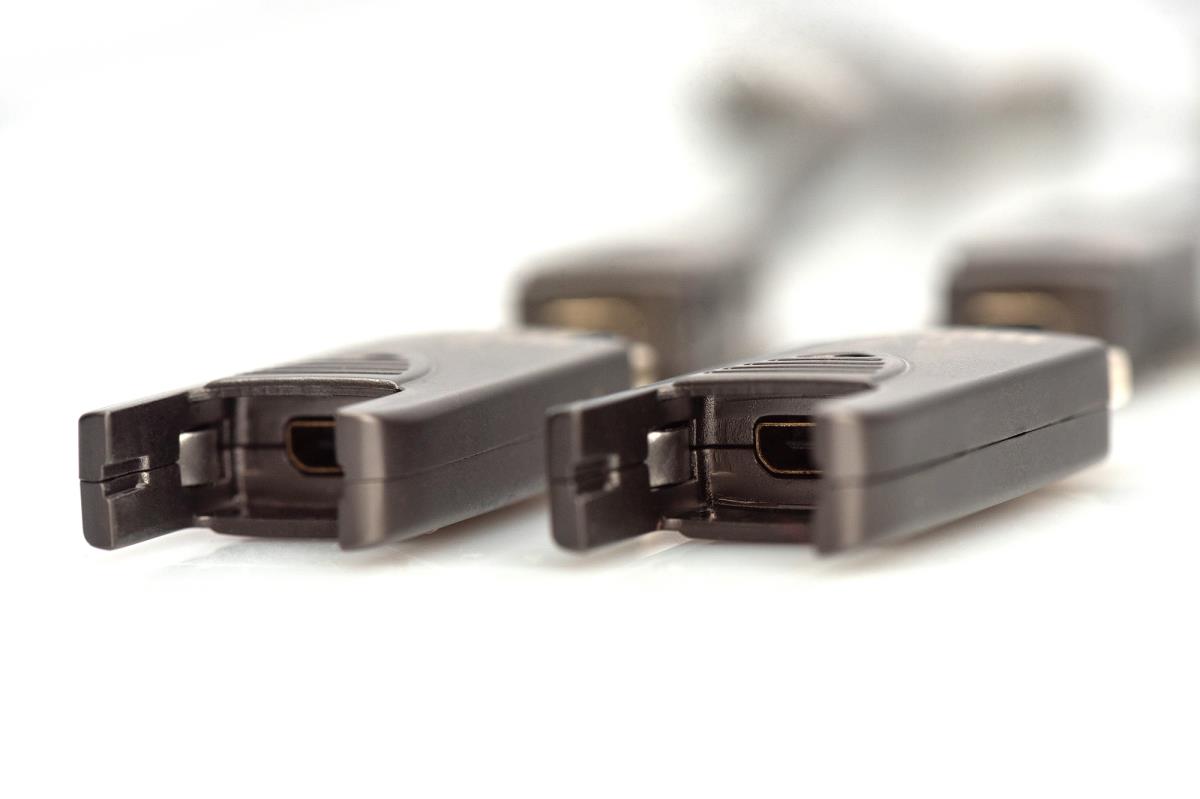

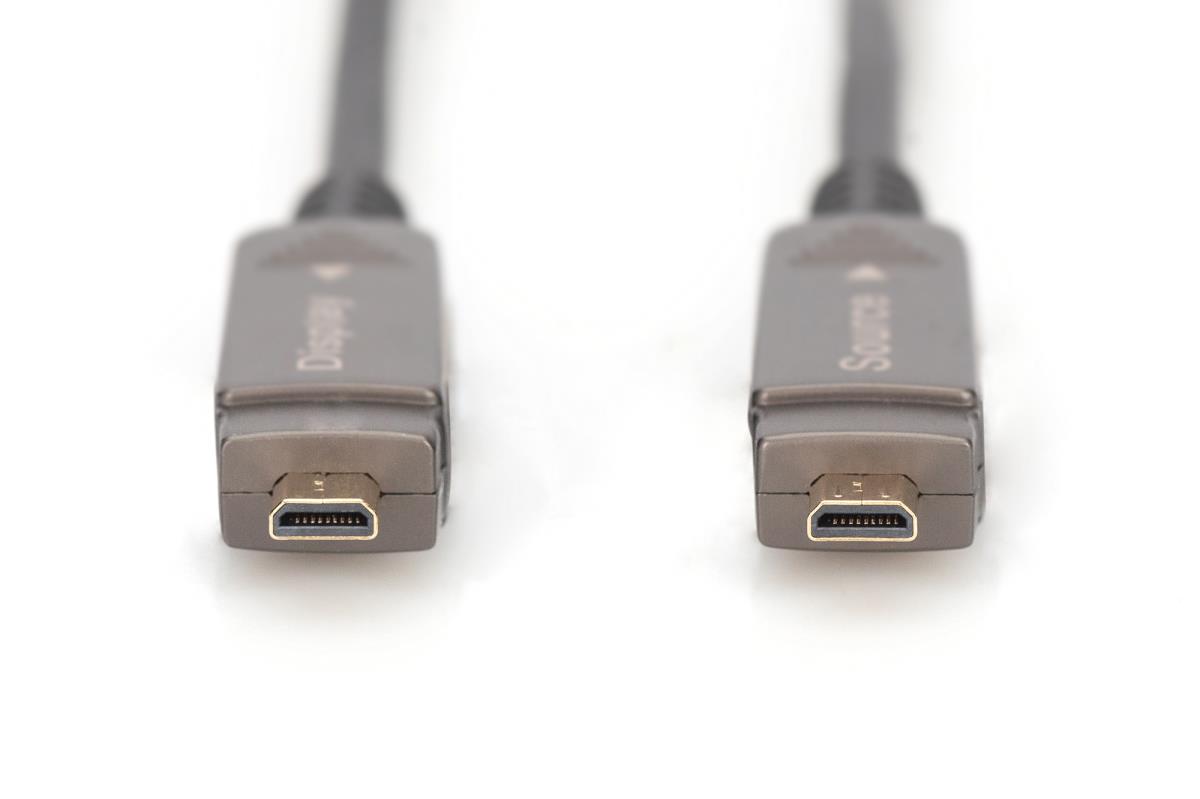

This active HDMI AOC Hybrid Fiber Optic Cable is ideally suited for transferring uncompressed video and audio data with high bandwidth over longer distances. When the HDMI Type A plug is removed, the HDMI Type D plug is uncovered. This allows you to position the cable however you like in very tight spaces thanks to the more compact dimensions of the HDMI Type D plug. In addition, the cable’s plugging options are increased thanks to the removable plug (from HDMI - D to HDMI - D; from HDMI - D to HDMI - A; from HDMI A to HDMI A; from HDMI- A to HDMI - D).
The hybrid construction, which uses copper and fiber optic cable, prevents electromagnetic interference. This ensures a loss-free transfer along the entire length of the cable with UHD resolution of up to 4K/60Hz and bandwidths of up to 18 Gbps. The use of fiber optic cable keeps the diameter of this active cable very low and gives it a very tight bending radius and low weight. It is ideal for use in homes, meeting rooms, and conference rooms as well as within buildings — and these are just a few of the possible uses. The simple Plug and Play installation is user-friendly; just plug it in and immediately enjoy optimal image quality. It supports numerous standards such as HDMI 2.0b, HDCP 2.2, and HDR. Some of the many audio features supported are ARC, DTS-HD Master Audio and Dolby TrueHD. Cutting edge chip technology makes it possible to transfer the full HDMI signal spectrum while also supporting uncompressed CED and EDID with very low latency.
| Kenmerken | |
| Snoerlengte | 30 m |
| Aansluiting 1 | HDMI Type A (Standaard) |
| Aansluiting 2 | HDMI Type A (Standaard) |
| Aansluiting 1 type | Mannelijk |
| Aansluiting 2 type | Mannelijk |
| Connector 1 vormfactor | Recht |
| Connector 2 vormfactor | Recht |
| Kleur van het product | Zwart |
| HDMI versie | 2.0 |
| Ondersteunde grafische resoluties | 4096 x 2560 |
| Audio Return Channel (ARC) | Ja |
| HDCP | Ja |
| HDCP versie | 2.2 |
| Overdrachtssnelheid | 18 Gbit/s |
| HDR-ondersteuning | Ja |
| Maximum resolutie | 4096 x 2560 Pixels |
| Maximale refresh snelheid | 60 Hz |
| Contact geleider materiaal | Goud |
| Soort kabel | Ronde kabel |
| Ferrietkraal | Nee |
| Plug and play | Ja |
| Extended display identification data (EDID) | Ja |
| Aantal per verpakking | 1 stuk(s) |
| Gewicht en omvang | |
| Verpakkingsvolume | 3024,98 cmü |
| Breedte verpakking | 217 mm |
| Diepte verpakking | 205 mm |
| Hoogte verpakking | 68 mm |
| Gewicht verpakking | 740 g |
| Inhoud van de verpakking | |
| Interface adapters meegeleverd | Micro HDMI female - HDMI male |
| Overige specificaties | |
| Land van herkomst | China |
| Logistieke gegevens | |
| Code UK-handelstarief | 85447000 |
| Warranty | |
| Base Warranty | Non Non |
