MAGELLAN 3550hsi Kit Rs-232 Wn Scanner 1d/2d Tin Oxide Glass Std Count Mount Euro Ps Beetle 4.5m Pwr Cbl

ITCurry #: 78558142 | Article #: M3553-010210-07203
Prijs:
478,59 Excl. btw
Levering in Benelux:
GRATIS Levering.
Nu niet op voorraad. Bel ons!

Verwante producten

slide 6 to 10 of 15

Product Informatie

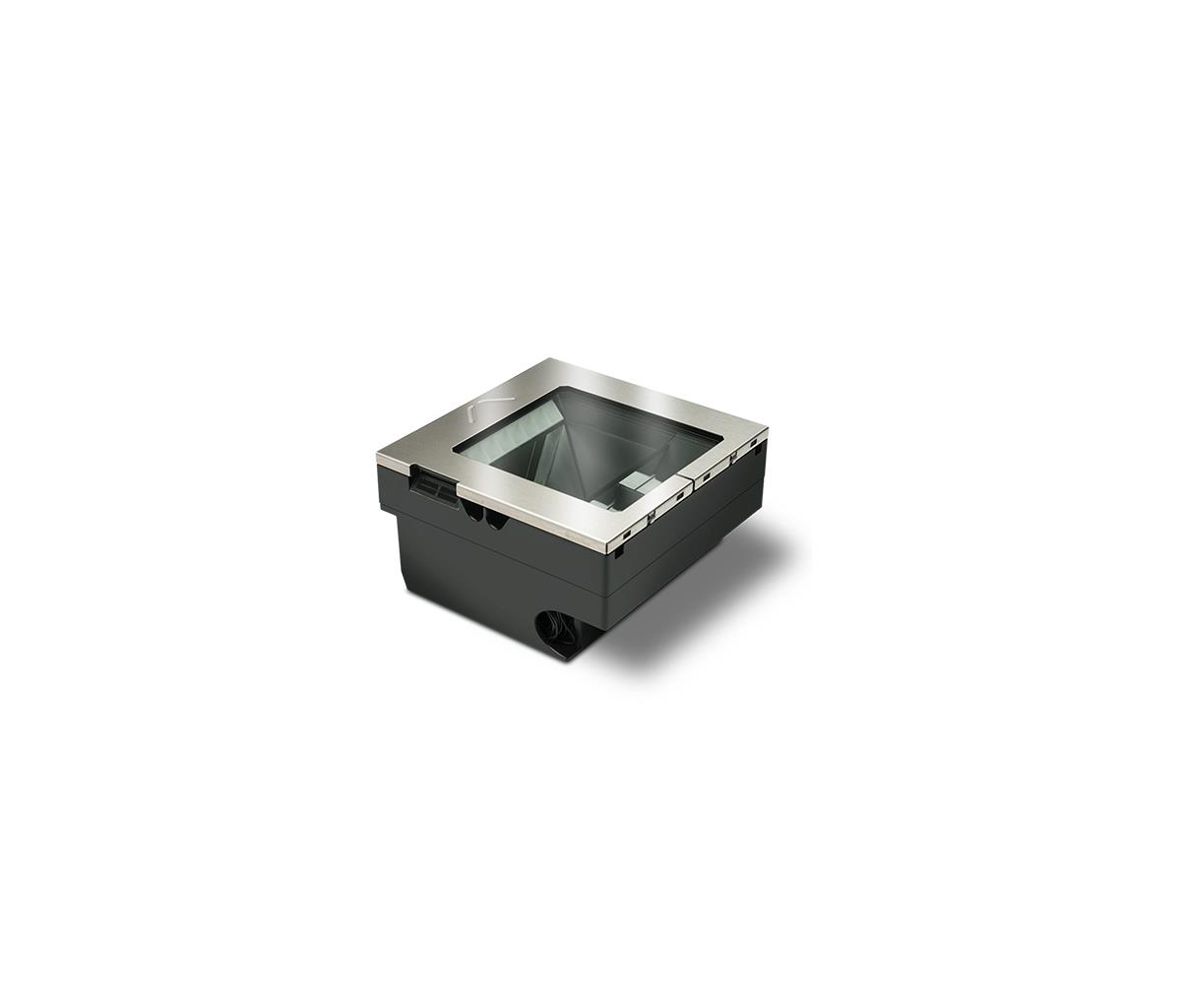

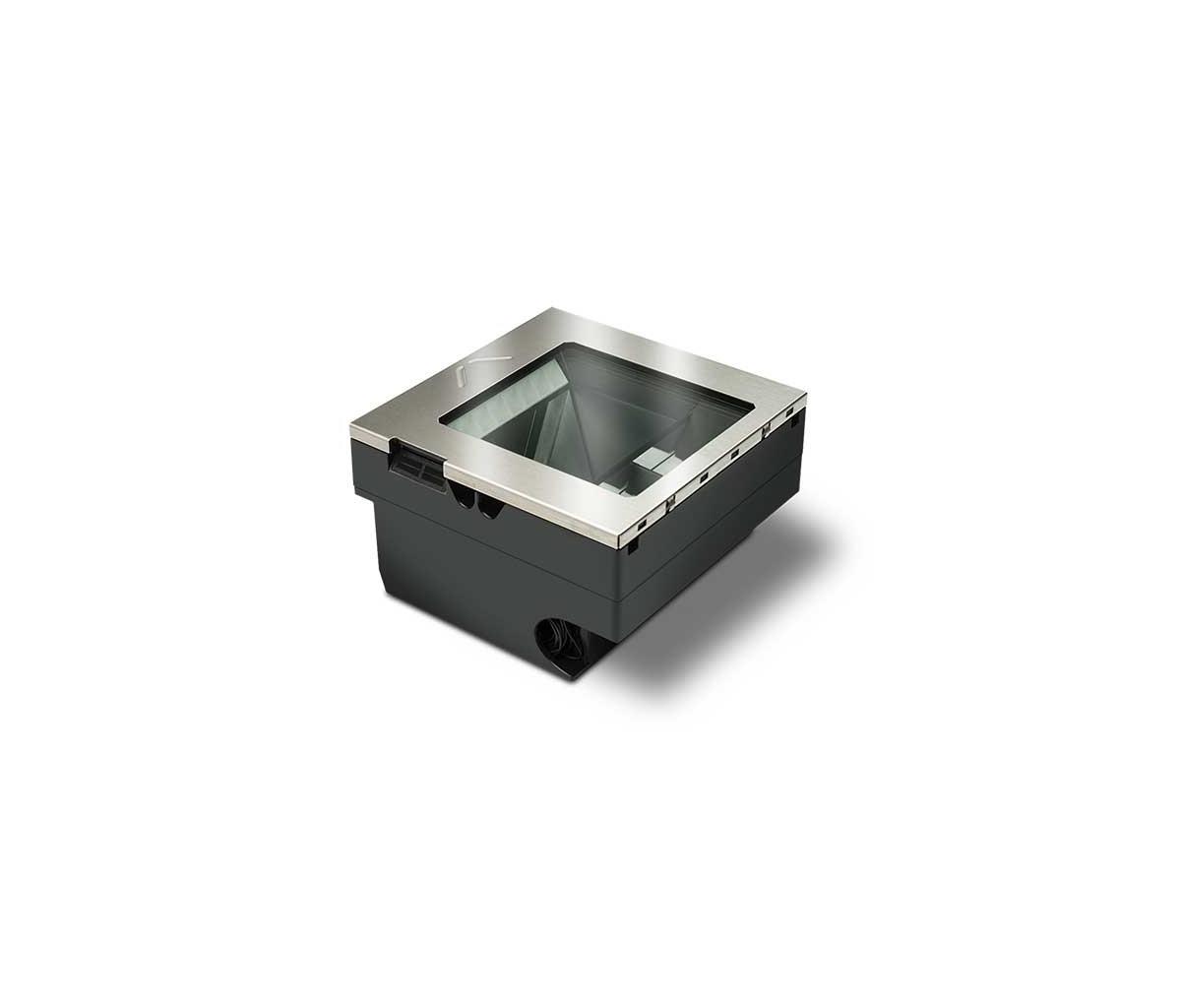

The Magellan 3550HSi scanner offers many of the features that have made the Magellan family of imaging scanners so successful, including seamless 1D and 2D decoding, solid state electronics, image capture, compact size and easy service access for software updates or configuration changes.  It also benefits from the advances made in imaging, illumination, processors and software that Datalogic has brought to the multi-plane market with the Magellan 9800i and 9400i scanners.
Improvements in both hardware and software enable a significant reduction in the brightness of the illumination while improving throughput, depth of field, and speed to read.  The gentle, unobtrusive illumination reduces both direct and reflected illumination visible to users.  This ensures a comfortable work environment and all day productivity.  The Magellan 3550HSi scanner also has a larger, more intuitive scan zone, enabling more comfortable and efficient sweep scanning.

Scannen
Soort Ingebouwde streepjescodelezer
Soort scanner 1D/2D
Type beeldsensor Laser
Ondersteunde streepjescodes (1D) GS1 DataBar
2D ( matrix en gestapeld ) barcodes ondersteund Aztec Code, Datamatrix, QR Code
Resolutie optische sensor (WxH) 1280 x 1024 Pixels
Werkafstand 10,2 cm
Licht niveaus (direct zonlicht) 0 - 86100 Lux
Tilt lees-hoek 0 - 360ø
Pitch lees-hoek -65 - 65ø
Yaw lees-hoek -75 - 75ø
Poorten & interfaces
Connectiviteitstechnologie Bedraad
Standaard interfaces RS-232, USB
Snoerlengte 4,5 m
Prestatie
Internationale veiligheidscode (IP) IP52
Ingebouwd display Nee
Ondersteund beeldformaat BMP, JPEG
Omgevingsverlichting Ja
Contrast afdrukken 25 procent
Compatibele geheugenkaarten MicroSD (TransFlash)
Kleur van het product Zwart, Roestvrijstaal
Energie
Type stroombron DC
Stroomverbruik (typisch) 3 W
Stroomverbruik (in standby) 4 W
Accu/Batterij voltage 12 V
Ingangsspanning 100 - 240 V
Frequentie 50/60 Hz
Gewicht en omvang
Breedte 152 mm
Diepte 87 mm
Hoogte 152 mm
Gewicht 980 g
Eisen aan de omgeving
Bedrijfstemperatuur (T-T) 10 - 40 øC
Temperatuur bij opslag -40 - 70 øC
Relatieve vochtigheid in bedrijf (V-V) 5 - 95 procent
Logistieke gegevens
Code geharmoniseerd systeem (HS) 84716070
Warranty
Base Warranty Non Non
