Product Informatie
HERON 3400

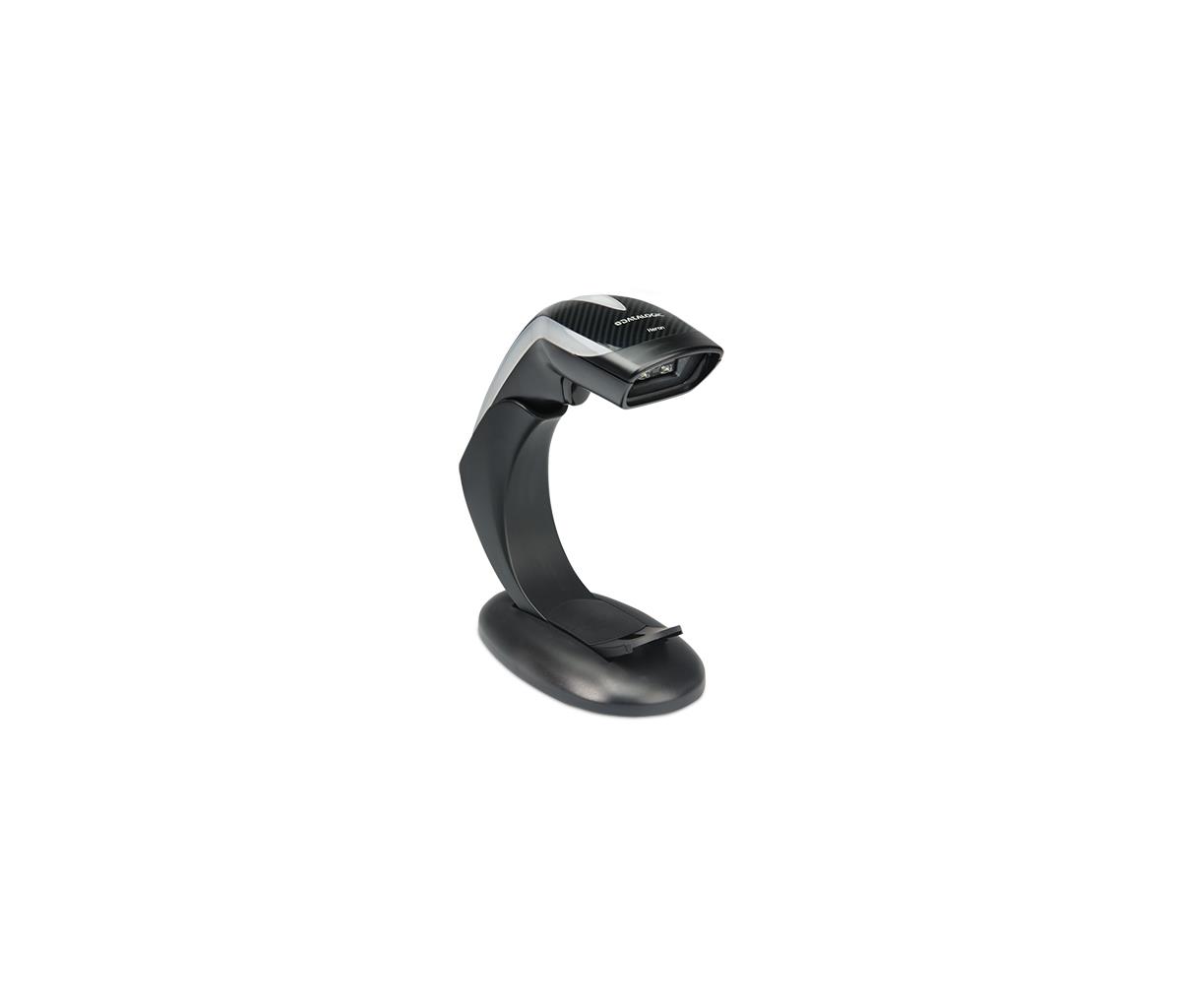

The Heron HD3430 2D imager provides a stunning black ‘carbon-fiber’ look or a white ‘silver’ color option, emphasizing the curving lines of the Heron’s enclosure. The imager also offers opportunities to incorporate a company brand identity by allowing customers to compose the perfect blend: combining a company logo with the top cover color with customized visual and audio feedback in order to reinforce the value of the customer’s brand. The Heron HD3430 area imager provides outstanding 2D reading performance and image capture capability. It also includes the patented 'Green Spot' technology for good-read feedback. User comfort is maximized with the Heron HD3430 white illumination and the highly visible 4-Dot aimer defines a precise reading zone. The aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.
| Scannen | |
| Soort | Draagbare streepjescodelezer |
| Soort scanner | 1D/2D |
| Type beeldsensor | CMOS |
| Ondersteunde streepjescodes (1D) | GS1-128 (UCC/EAN-128) |
| 2D ( matrix en gestapeld ) barcodes ondersteund | Aztec Code, Datamatrix, Han Xin, MaxiCode, Micro QR Code, QR Code |
| Licht niveaus (direct zonlicht) | 0 - 100000 Lux |
| Tilt lees-hoek | 0 - 360ø |
| Pitch lees-hoek | -65 - 65ø |
| Yaw lees-hoek | -60 - 60ø |
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Standaard interfaces | USB, RS-232 |
| USB-versie | 2.0 |
| Prestatie | |
| Internationale veiligheidscode (IP) | IP40 |
| LED-indicatoren | Ja |
| Kleur van het product | Zwart, Zilver |
| Programmeringsfunctie | Ja |
| Energie | |
| Type stroombron | Batterij/Accu |
| Ingangsspanning | 5 V |
| Stroomverbruik | 500 mA |
| Gewicht en omvang | |
| Breedte | 68 mm |
| Diepte | 153 mm |
| Hoogte | 152 mm |
| Gewicht | 150 g |
| Verpakking | |
| Meegeleverde kabels | USB |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 50 øC |
| Temperatuur bij opslag | -20 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 90 procent |
| Technische details | |
| Duurzaamheidscertificaten | RoHS |
| Compliance certificates | RoHS |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 84716070 |
| Warranty | |
| Base Warranty | Non Non |
