Gd4590 2d Mpixel Imager USB/rs-232/wed (gd4590hck10bpoc)
ITCurry #: 78557039 | Article #: GD4590-HCK10-BPOC-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

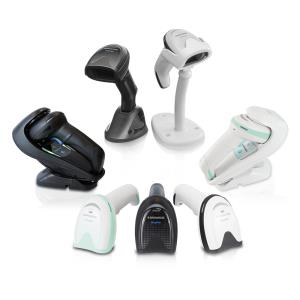

The Gryphon™ 4500 2D series represents the premium range of hand held scanners from Datalogic. The GD4500 scanner is the desk (corded) version for general purpose applications.
The Gryphon I GD4500 imager stands out with an elegant and trendy new design, unchallenged ergonomics and features the most advanced Megapixel sensor with warm-white-illumination 2D technology for outstanding performance.
The Gryphon GD4500 imager takes advantage of Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering both hand held and presentation reading options.
Datalogic’s reading technology with highly visible warm-white illumination is easier on the human eyes and reads colored labels much better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.
The GD4500 imager is also available in a Healthcare model with disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.
| Scannen | |
| Soort | Draagbare streepjescodelezer |
| Soort scanner | 1D/2D |
| Ondersteunde streepjescodes (1D) | Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, Planet, POSTNET, U.P.C. |
| 2D ( matrix en gestapeld ) barcodes ondersteund | Aztec Code, Datamatrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Resolutie optische sensor (WxH) | 1280 x 800 Pixels |
| Licht niveaus (direct zonlicht) | 0 - 100000 Lux |
| Golflengte | 650 nm |
| Tilt lees-hoek | 0 - 360ø |
| Pitch lees-hoek | -65 - 65ø |
| Yaw lees-hoek | -65 - 65ø |
| Bewegingstolerantie (cm/s) | 88,9 |
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Standaard interfaces | RS-232, USB, Toetsenbord-aansluiting |
| Prestatie | |
| Internationale veiligheidscode (IP) | IP52 |
| Veiligheidsfunties | Schokbestendig |
| Ingebouwd display | Nee |
| Ondersteund beeldformaat | BMP, JPEG |
| Kleur van het product | Wit |
| Certificering | IEC 60825 Class 2 |
| Energie | |
| Type stroombron | DC |
| Ingangsspanning | 4.5 - 14 V |
| Stroomverbruik | 300 mA |
| Warranty | |
| Base Warranty | Non Non |
| Gewicht en omvang | |
| Breedte | 68 mm |
| Diepte | 109 mm |
| Hoogte | 166 mm |
| Gewicht | 161 g |
| Verpakking | |
| Meegeleverde kabels | USB |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Technische details | |
| Certificaten van naleving | RoHS |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 84716070 |
