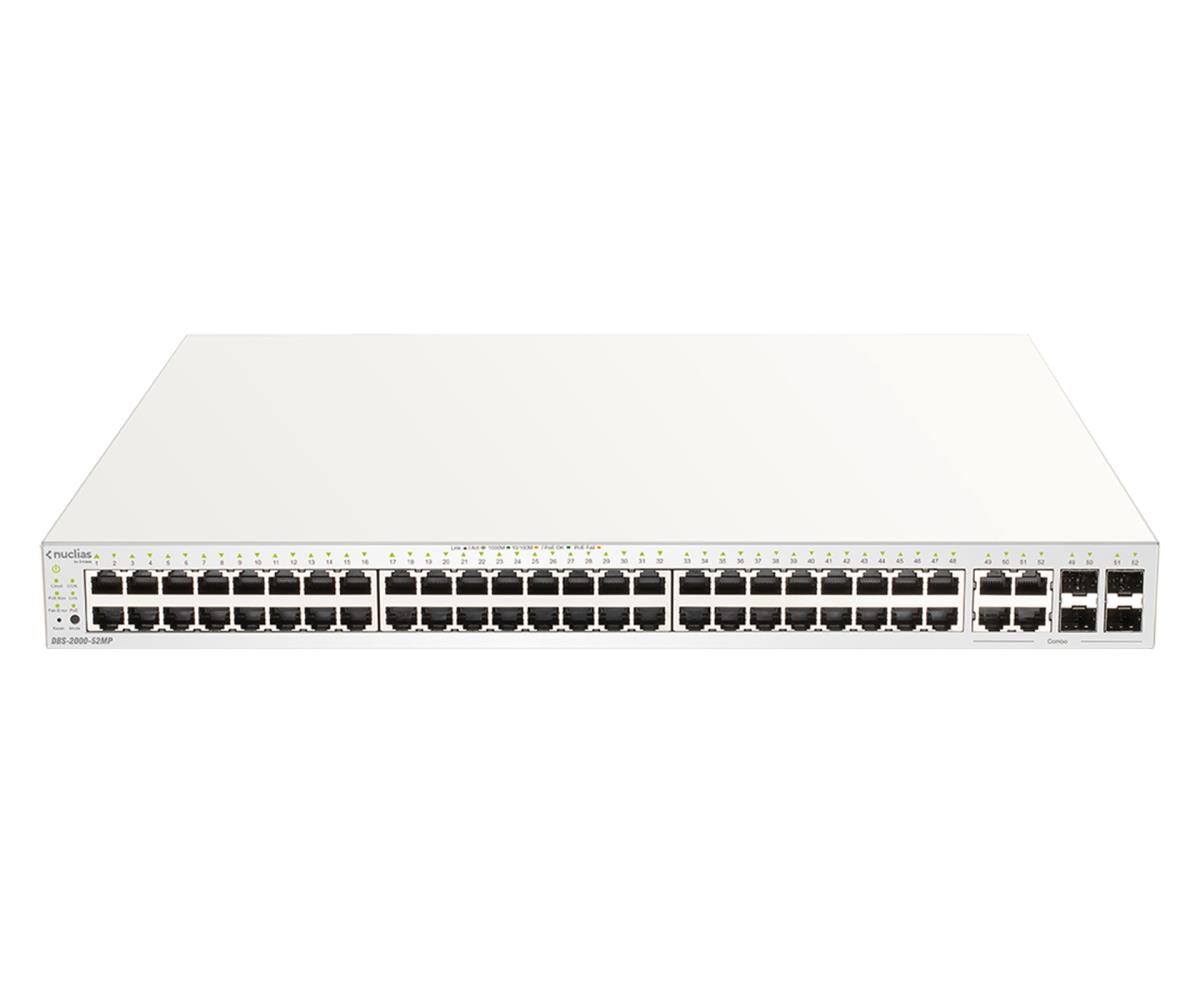

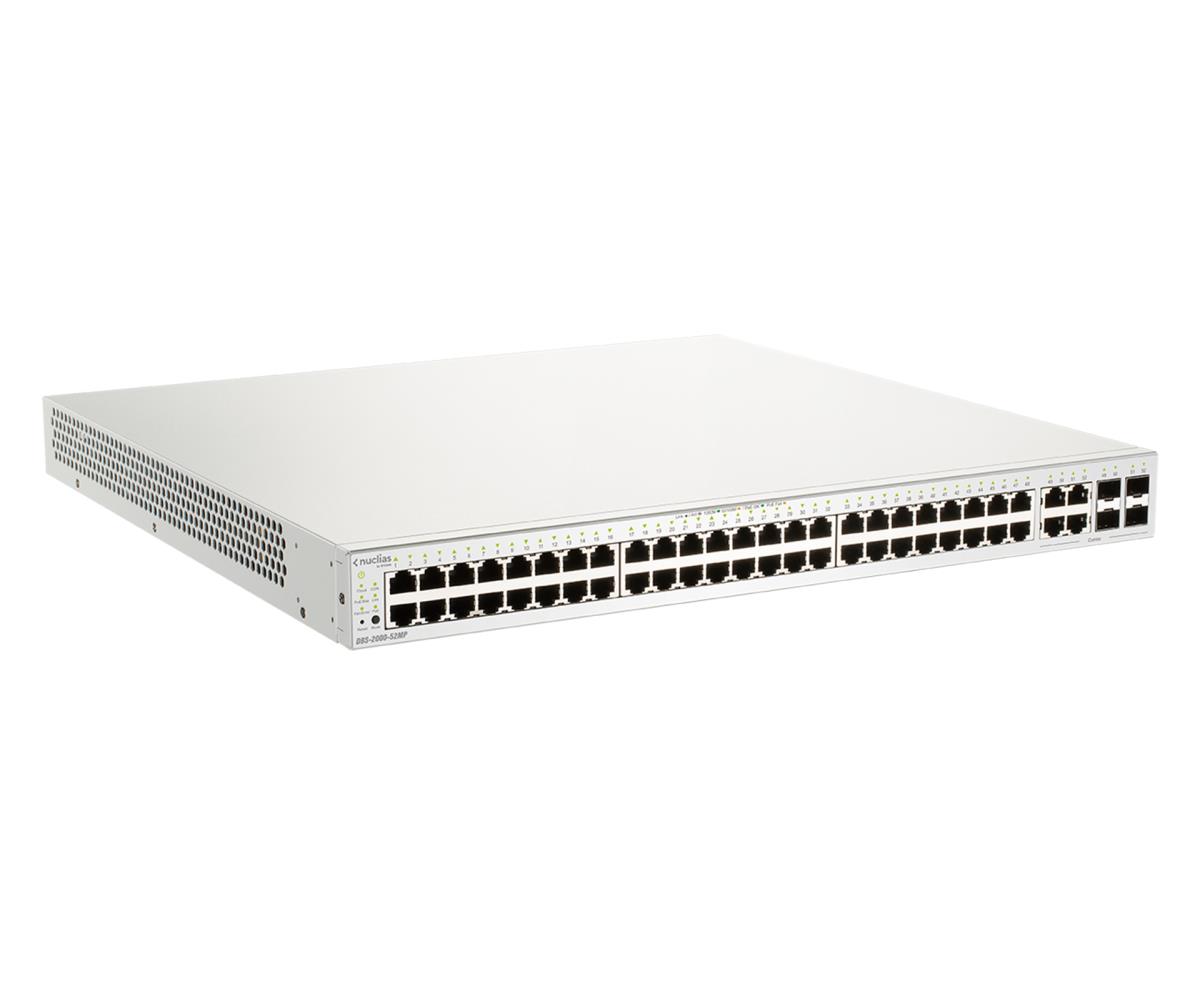

Switch Nuclias Dbs-2000-52mp 52-port Cloud Managed Poe
ITCurry #: 12134762 | Article #: DBS-2000-52MP-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Cloud Networking, Refreshed
The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.
Management Over the Cloud
DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.
Easy Troubleshooting
The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.
Advanced Security Features
The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L2 |
| Web-gebaseerd management | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 48 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal Combo SFP-poorten | 4 |
| Console port | RJ-45 |
| Netwerk | |
| Netwerkstandaard | IEEE 802.3ad, IEEE 802.3at |
| 10G support | Nee |
| Koperen ethernetbekabelingstechnologie | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Verbindingsaggregatie | Ja |
| Auto MDI/MDI-X | Ja |
| Spanning tree protocol | Ja |
| Data-uitwisseling | |
| Switchingcapaciteit | 104 Gbit/s |
| Verzending snelheid | 77,4 Mpps |
| Packet buffergeheugen | 12 MB |
| Beveiliging | |
| IGMP snooping | Ja |
| Ondersteunde beveiligingsalgoritmen | WPA, WPA2 |
| Design | |
| Rack-montage | Ja |
| Kleur van het product | Grijs |
| LED-indicatoren | Ja |
| Prestatie | |
| Type processor | Ja |
| Frequentie van processor | 700 MHz |
| Type geheugen | DDR3-SDRAM |
| Intern geheugen | 256 MB |
| Flash memory | 32 MB |
| Mean time between failures (MTBF) | 236406 uur |
| Energie | |
| AC-ingangsspanning | 100 - 240 V |
| Vermogensverbruik (max) | 478,9 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Hoeveelheid Power over Ethernet (PoE) ports | 48 |
| Vermogen per poort Power over Ethernet (PoE) | 30 W |
| Totaal Power over Ethernet (PoE)-budget | 370 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -5 - 50 øC |
| Temperatuur bij opslag | -20 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 0 - 95 procent |
| Warmtedissipatie | 1634,01 BTU/h |
| Gewicht en omvang | |
| Breedte | 440 mm |
| Diepte | 430 mm |
| Hoogte | 44 mm |
| Gewicht | 6,26 kg |
| Verpakking | |
| Breedte verpakking | 558 mm |
| Diepte verpakking | 568 mm |
| Hoogte verpakking | 149 mm |
| Gewicht verpakking | 8,66 kg |
| Technische details | |
| (Binnenste) verzendverpakking hoogte | 59,8 cm |
| (Binnenste) verzendverpakking breedte | 31,5 cm |
| (Binnenste) verzendverpakking lengte | 57,4 cm |
| Nettogewicht transportverpakking | 17,3 kg |
| Producten per (binnenste) verzendverpakking | 2 stuk(s) |
| Pallet brutogewicht (lucht) | 242,7 kg |
| Aantal dozen per pallet (lucht) | 12 stuk(s) |
| Aantal per pallet (lucht) | 24 stuk(s) |
| Pallet brutolengte | 110 cm |
| Pallet brutobreedte | 120 cm |
| Pallethoogte (lucht) | 133,1 cm |
| Pallet brutogewicht (zee) | 354,8 kg |
| Aantal dozen per pallet (zee) | 18 stuk(s) |
| Producten per pallet (zee) | 36 stuk(s) |
| Pallethoogte (zee) | 192,9 cm |
| (Binnenste) verzendverpakking gewicht | 18,6 kg |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
