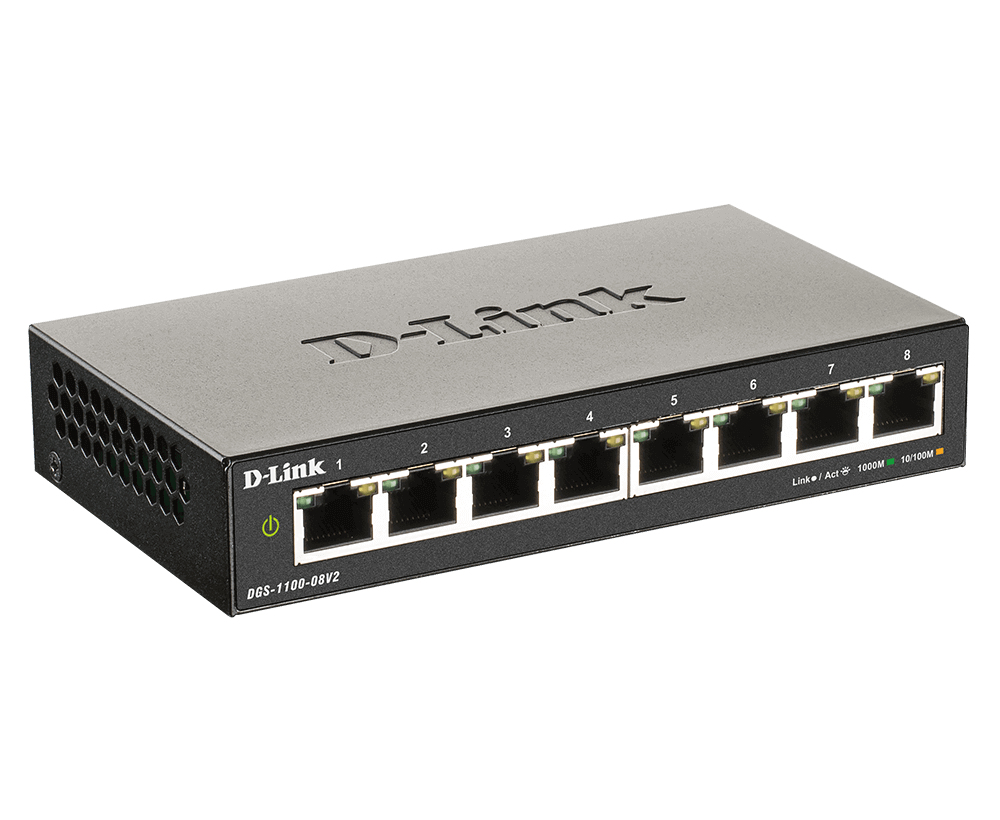

Dgs-1100-08v2 Smart 8x Gigabit Port Switch
ITCurry #: 12134978 | Article #: DGS-1100-08V2/E-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Web UI
Easy to use web interface to access management features
VLANs
Segment your network into VLANs.
Easy deployment with automatic configuration
Simply connect the switch to your network and it detects D-Link and third-party devices for easy administration
Energy Efficient Design
Automatic power saving features to reduce power usage
Simple. Easy. Smart.
DGS-1100 Smart Switch Series provides an affordable solution for environments that require simple network management.
Smart Web UI
The DGS-1100's web user interface is an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). With powerful security features like IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities.
Free Nuclias Connect remote network management software.
Download our free Nuclias Connect network management software that’s designed for network privacy, control, and cost-effective scaling. It can be used as an on-premises software management platform, or as a cloud solution. Alternatively, the dedicated Nuclias Connect Hub (DNH-100)4 provides hardware-based, centralised network management.
PoE and PoE+, with budgets up to 370W
The DGS-1100 Smart Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L2 |
| Quality of Service (QoS) | Ja |
| Web-gebaseerd management | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 8 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal Gigabit Ethernet (koper)-poorten | 8 |
| Netstekker | DC-in ingang |
| Netwerk | |
| Netwerkstandaard | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | Nee |
| Port mirroring | Ja |
| Full duplex | Ja |
| Half-duplex | Ja |
| Datastroombeheer | Ja |
| Broadcast stormbeheer | Ja |
| Auto MDI/MDI-X | Ja |
| Head-of-line (HOL) blocking | Ja |
| Auto-negotiation | Ja |
| VLAN=ondersteuning | Ja |
| Virtuele LAN-functies | Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN |
| Aantal VLANs | 4094 |
| Data-uitwisseling | |
| Switchingcapaciteit | 16 Gbit/s |
| Verzending snelheid | 11,9 Mpps |
| MAC-adrestabel | 4000 entries |
| Aantal wachtrijen | 4 |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 9216 |
| Packet buffergeheugen | 1,5 MB |
| Beveiliging | |
| IGMP snooping | Ja |
| IGMP-vermeldingen | 128 |
| Statische poort beveiliging | Ja |
| Algoritmen wachtrijplanning | SP, Weighted Round Robin (WRR) |
| Design | |
| Rack-montage | Nee |
| Kleur van het product | Zwart |
| Reset button | Ja |
| Aantal ventilatoren | 0 ventilator(en) |
| Prestatie | |
| Geluidsniveau | 0 dB |
| Fanloos | Ja |
| Mean time between failures (MTBF) | 1456992 uur |
| Energie | |
| Stroombron | DC |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| DC voltage input | 5 V |
| Stroom | 1 A |
| Vermogensverbruik (max) | 4,94 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 90 procent |
| Luchtvochtigheid bij opslag | 0 - 95 procent |
| Hoogte, in bedrijf | 0 - 2000 m |
| Warmtedissipatie | 16,85 BTU/h |
| Gewicht en omvang | |
| Breedte | 145 mm |
| Diepte | 82 mm |
| Hoogte | 28 mm |
| Gewicht | 340 g |
| Certificaten | |
| Certificaten van naleving | BSMI, CE, Federal Communications Commission (FCC), Laagspanningsrichtlijn (LVD), VCCI, cUL |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
