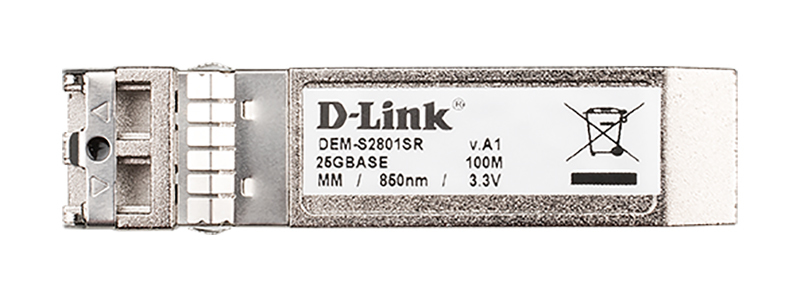

Dem-q2801-sr Transceiver Multimode Sfp28 100m
ITCurry #: 12135276 | Article #: DEM-S2801SR-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
D-Link’s 25G SFP28 Module series are hot-swappable SFP28 transceivers that are plugged into SFP28 slots on switches and support 25G Ethernet. The transceivers use the Small Form-factor Pluggable 28 format (SFP28) connectors. The D-Link 25G SFP28 Module Series transceivers offer customers a wide variety of 25G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.
Hot Pluggable
All D-Link transceivers are hot pluggable. You can connect atransceiver while the system is powered on without causing any issues, and easily swap one for another without having to reboot the switch each time. This permits modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime.
25G Ethernet speeds
The transceivers support 25G Ethernet, which results in very fast data transmissions of up to 25 Gbit/s. This is 25 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
| Prestatie | |
| SFP transceiver type | Vezel-optiek |
| Maximale overdrachtssnelheid van gegevens | 25000 Mbit/s |
| Soort aansluiting | SFP28 |
| Multi-mode glasvezelkabel (MMF) ondersteund | Ja |
| Vezel-optische connector | LC |
| Vezelkabel diameters ondersteund | 50/125 æm |
| SFP-zendernorm | SR |
| Maximaal bereik | 100 m |
| Golflengte | 850 nm |
| Tx vermogen (min) | -9,1 dBmW |
| Tx vermogen (max) | 2,4 dBmW |
| Rx vermogen (min) | -11 dBmW |
| Rx vermogen (max) | 2,4 dBmW |
| Fiber ethernet cabling technologie | 25GBASE |
| Kenmerken | |
| Hot-plug ondersteuning | Ja |
| Certificering | MSA, RoHS, CE, FCC, VCCI, LVD, EN 60825-1, EN 60825-2 |
| Energie | |
| Ingangsspanning | 3.3 V |
| Stroom (max.) | 0,3 A |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 70 øC |
| Temperatuur bij opslag | -40 - 85 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Gewicht en omvang | |
| Breedte | 57,3 mm |
| Diepte | 13,7 mm |
| Hoogte | 8,5 mm |
| Gewicht | 25 g |
| Warranty | |
| Base Warranty | Non Non |
