Flex Advanced - Small Room Conference System with Video Soundbar - Microsoft Teams Rooms
ITCurry #: W4882066 | Article #: UC-BX30-T-GV-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The UC-BX30-T-GV Crestron Flex advanced tabletop conferencing system provides a small room video conference solution for use with Microsoft Teams® Rooms software. It supports single or dual video displays1 (not included) and features a tabletop touch screen, smart soundbar and camera, UC bracket assembly, UC presentation transmitter, PoE injector, and cables. The UC-BX30-T-GV is a TAA-compliant conference solution that is suitable for government deployments.
Native Microsoft Teams® Rooms Experience
The UC-BX30-T-GV system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility.
Intuitive User Interface

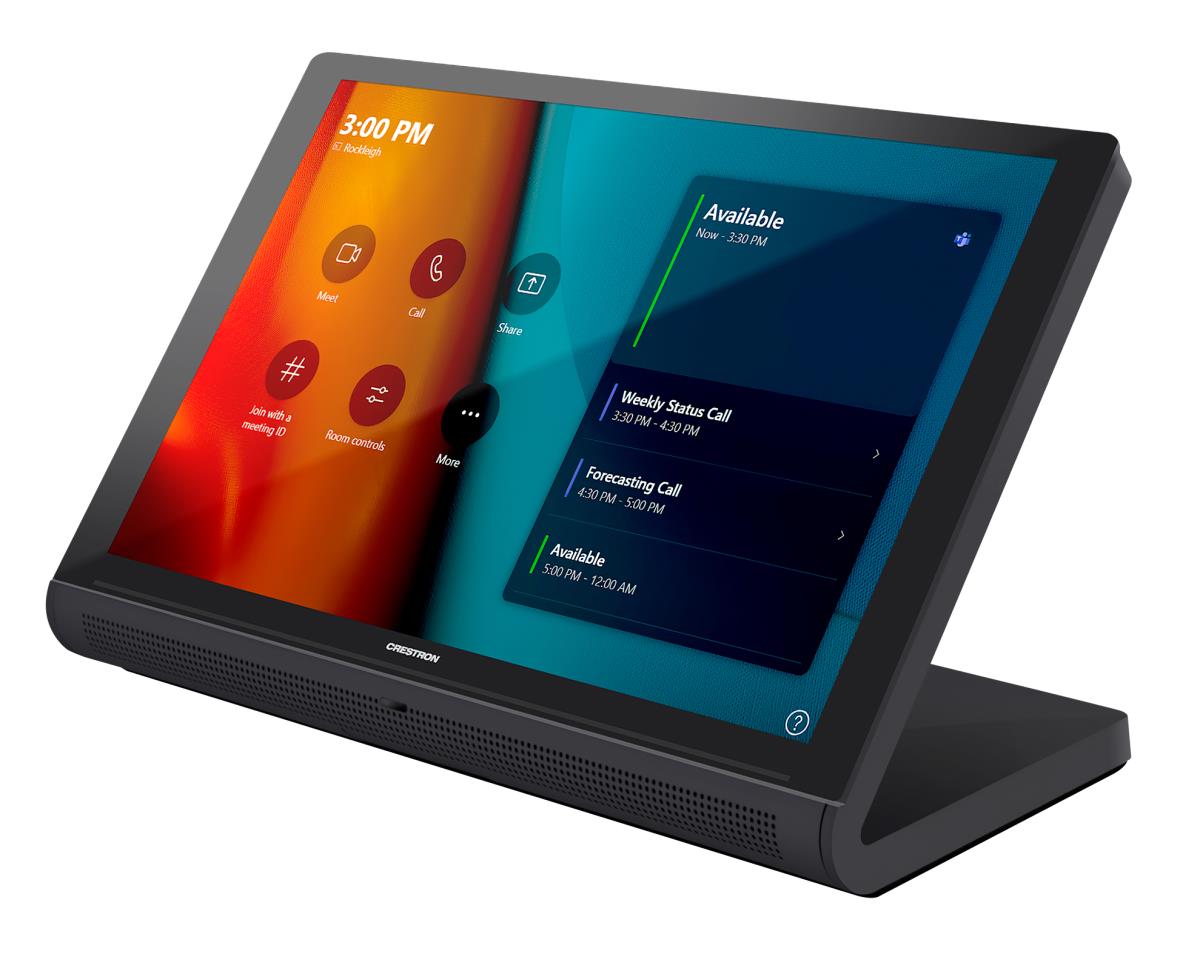

With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron® tabletop touch screen (TS-1070-GV-B-S) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.
Simplified Deployment

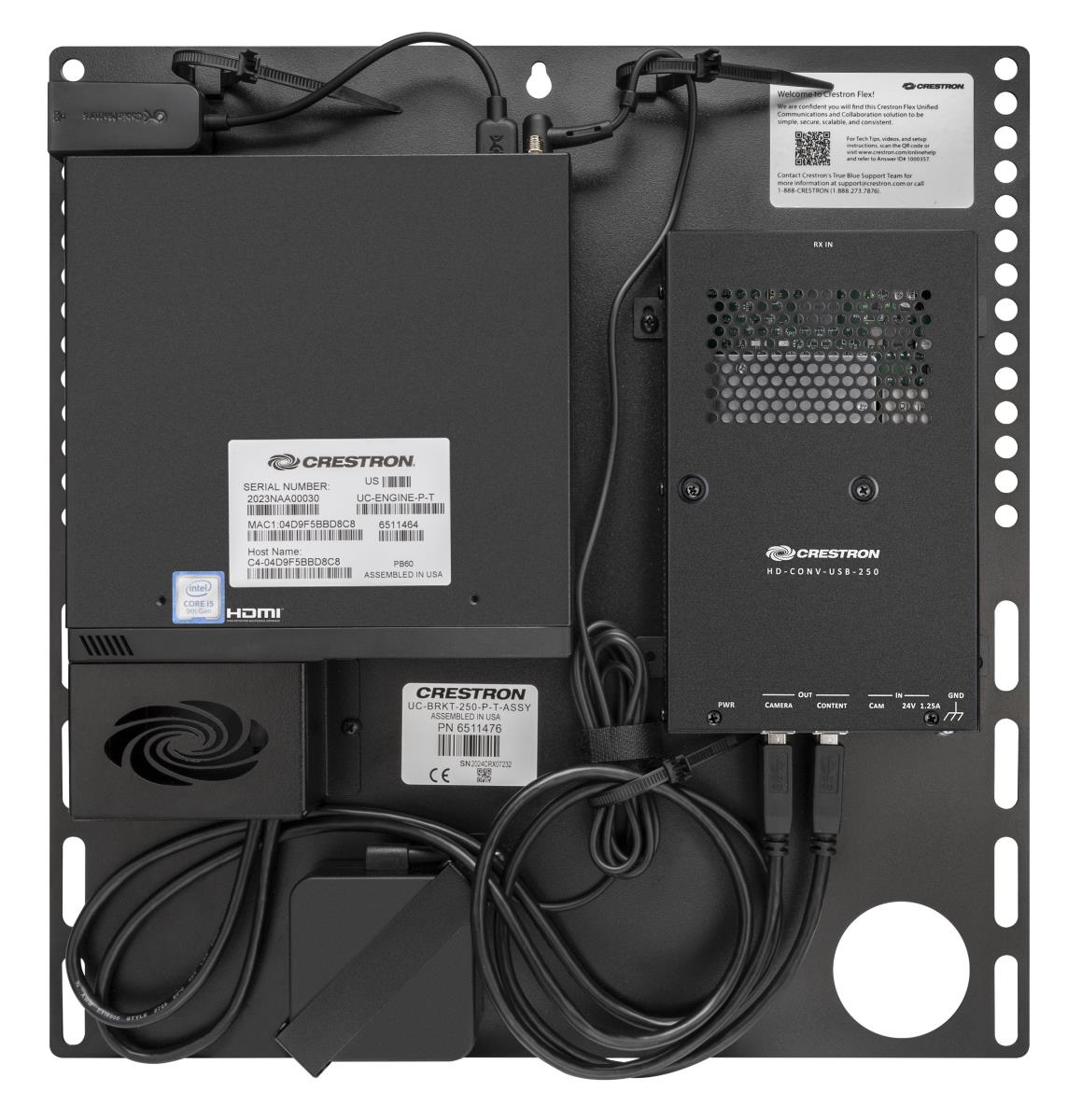

To simplify installation, the UC Bracket Assembly provides preassembled components on one ready-to-mount bracket. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the touch screen to the UC Bracket Assembly.
High-Definition Video Conferencing with Impressive Audio

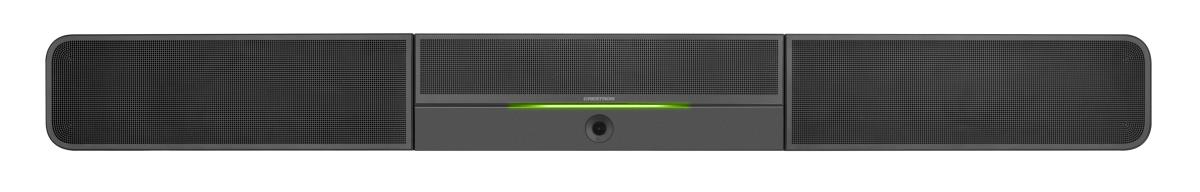

High-quality speakers, microphone, and digital signal processing deliver exceptional full-duplex speakerphone performance from the Crestron UC video conference soundbar and camera (UC-SB1-CAM-FLEX). The built-in conferencing camera captures the room in HD 1080p video resolution and with an ultra-wide 150° diagonal field of view.
Crestron Control System Integration
The UC-BX30-T-GV can integrate with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.2
Bring Your Own Device (BYOD)

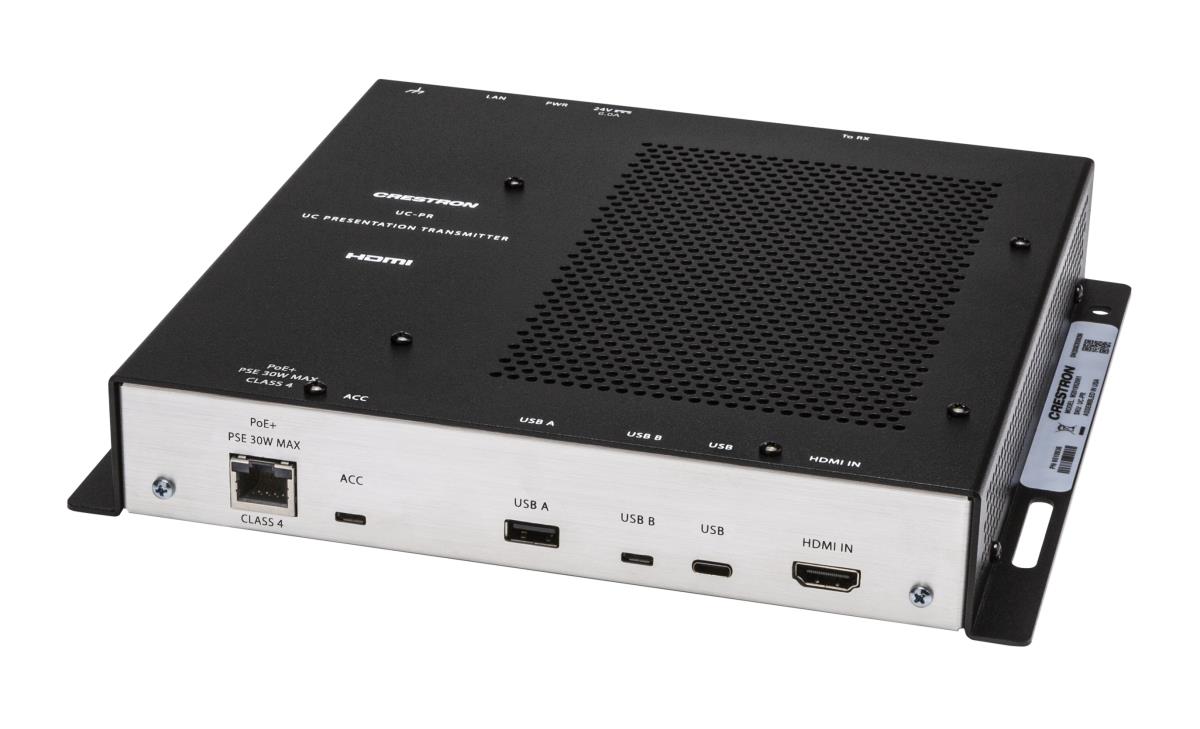

Conference room visitors can connect their laptop to the Crestron Flex system to use their own UC conference platform. The UC Presentation Transmitter (UC-PR) switches to the connected laptop's UC platform and returns to the native platform when disconnected. For a list of BYOD tested devices on the UC-PR, refer to OLH Article 1000889.
Enterprise-Grade Security
Crestron Flex is an enterprise-grade solution, engineered in partnership with Microsoft® to integrate seamlessly into any Microsoft Teams Rooms software deployment. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.
Easy Provisioning and Device Management
The XiO Cloud® service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.
Premium-Level Support
Crestron Flex Care is an optional subscription service that can be renewed annually (up to 5 years from ship date). It provides 24/7 live remote technical support, an extended five-year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.
Dual Control Option
A TS- or TSW- 70 series 10.1 in. touch screen may be added to the solution as an additional control point for the Microsoft Teams Rooms environment.
Prestatie | |
Aantal personen | 1 persoon/personen |
On Screen Display (OSD)-talen | Engels |
Kleur van het product | Zwart |
Type product | Gepersonaliseerde videovergaderingssysteem |
Video | |
HD type | HD |
Maximale videoresolutie | 1920 x 1200 Pixels |
Ondersteunde video-modi | 1080p |
Ondersteunde grafische resoluties | 1920 x 1200 (WUXGA) |
Maximale beeldsnelheid | 30 fps |
Audio | |
Ingebouwde luidsprekers | Ja |
Aantal luidsprekers | 1 |
Frequentiebereik | 80 - 20000 Hz |
Audiosysteem full duplex | Ja |
Uitgangsniveau | 91/1 dB |
Ruisonderdrukking | Ja |
Gemiddeld vermogen | 20 W |
Microfoon pick-up bereik | 4,6 m |
Poorten & interfaces | |
Microfoon, line-in ingang | Ja |
Netwerk | |
Ethernet LAN | Ja |
Ethernet LAN, data-overdrachtsnelheden | 1000 Mbit/s |
Wifi | Ja |
Netwerkstandaard | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
Kabel standaard | Cat5 |
Ondersteunde beveiligingsalgoritmen | SRTP, SSH, SSL/TLS |
Camera | |
Megapixels | 12 MP |
Type beeldsensor | CMOS |
Beeldsensorformaat | 1/2.3" |
Horizontaal gezichtsveld | 120ø |
Verticaal gezichtsveld | 90ø |
Diagonaal gezichtsveld | 150ø |
Beeldscherm | |
Ingebouwd display | Ja |
Beeldscherm | LCD |
Beeldschermdiagonaal | 25,6 cm (10.1") |
Resolutie | 1920 x 1200 Pixels |
Touchscreen | Ja |
Touch screen type | Capacitief |
Computersysteem | |
Computersysteemtype | Mini PC |
VESA-montage | Ja |
Ondersteunt Windows | Windows 11 |
Energie | |
Type stroombron | AC |
AC-ingangsspanning | 100 - 240 V |
AC-ingangsfrequentie | 50 - 60 Hz |
Stroom | 3,75 A |
Stroomverbruik (typisch) | 90 W |
Gewicht en omvang | |
Breedte | 1107 mm |
Diepte | 99 mm |
Hoogte | 118 mm |
Gewicht | 6,2 kg |
Inhoud van de verpakking | |
Meegeleverde kabels | DisplayPort naar HDMI, HDMI, LAN (RJ-45), USB Type-A to Micro USB Type-B |
Lengte stroomkabel | 1,8 m |
HDMI-kabellengte | 1,8 m |
Inclusief AC-adapter | Ja |
Inclusief PoE-adapter | Ja |
Montage gereedschap | Ja |
Ingebouwde camera | Ja |
Inclusief microfoon | Ja |
Gebruikershandleiding | Ja |
Inclusief schroeven | Ja |
Snelstartgids | Ja |
Warranty | |
Base Warranty | Non Non |
