Product Informatie

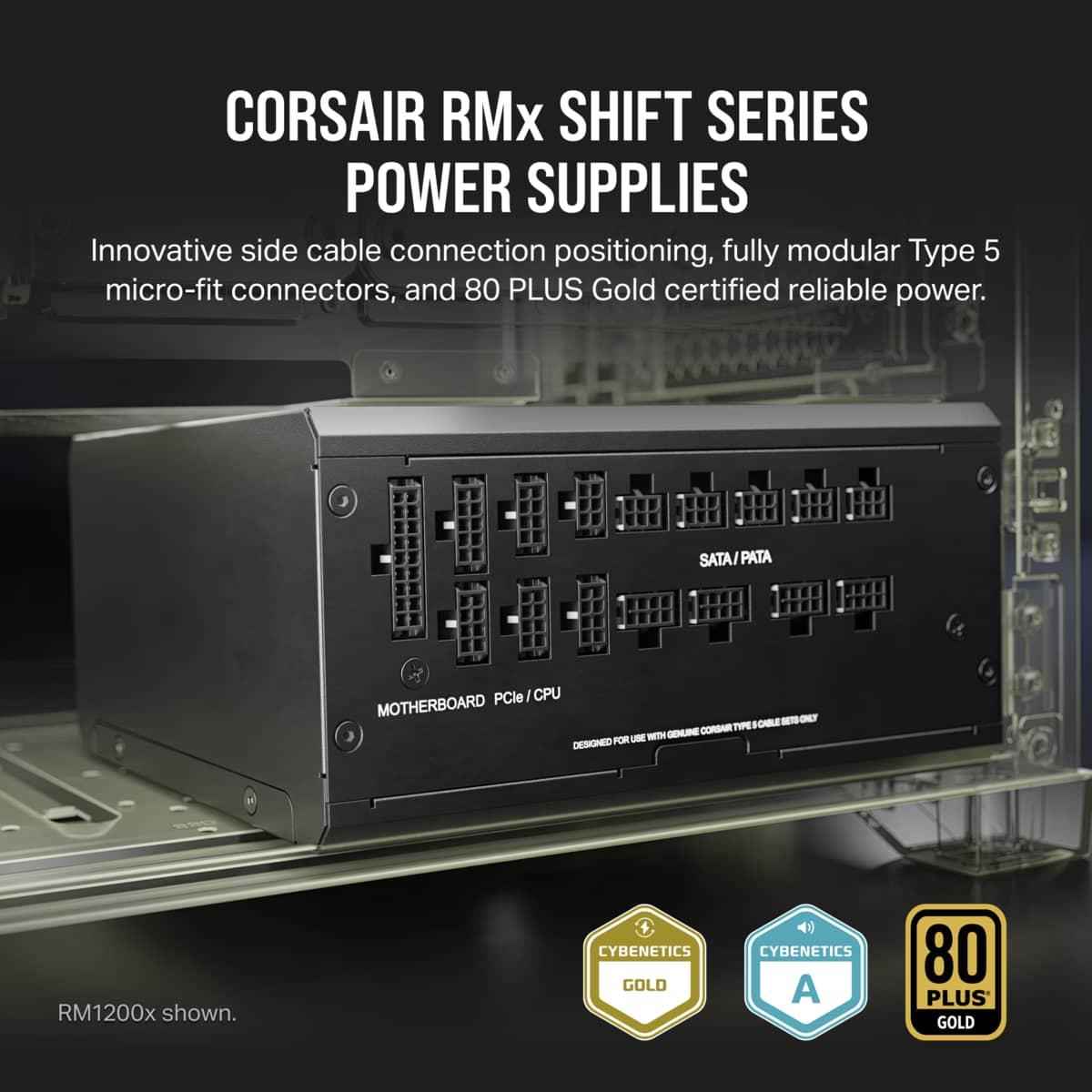

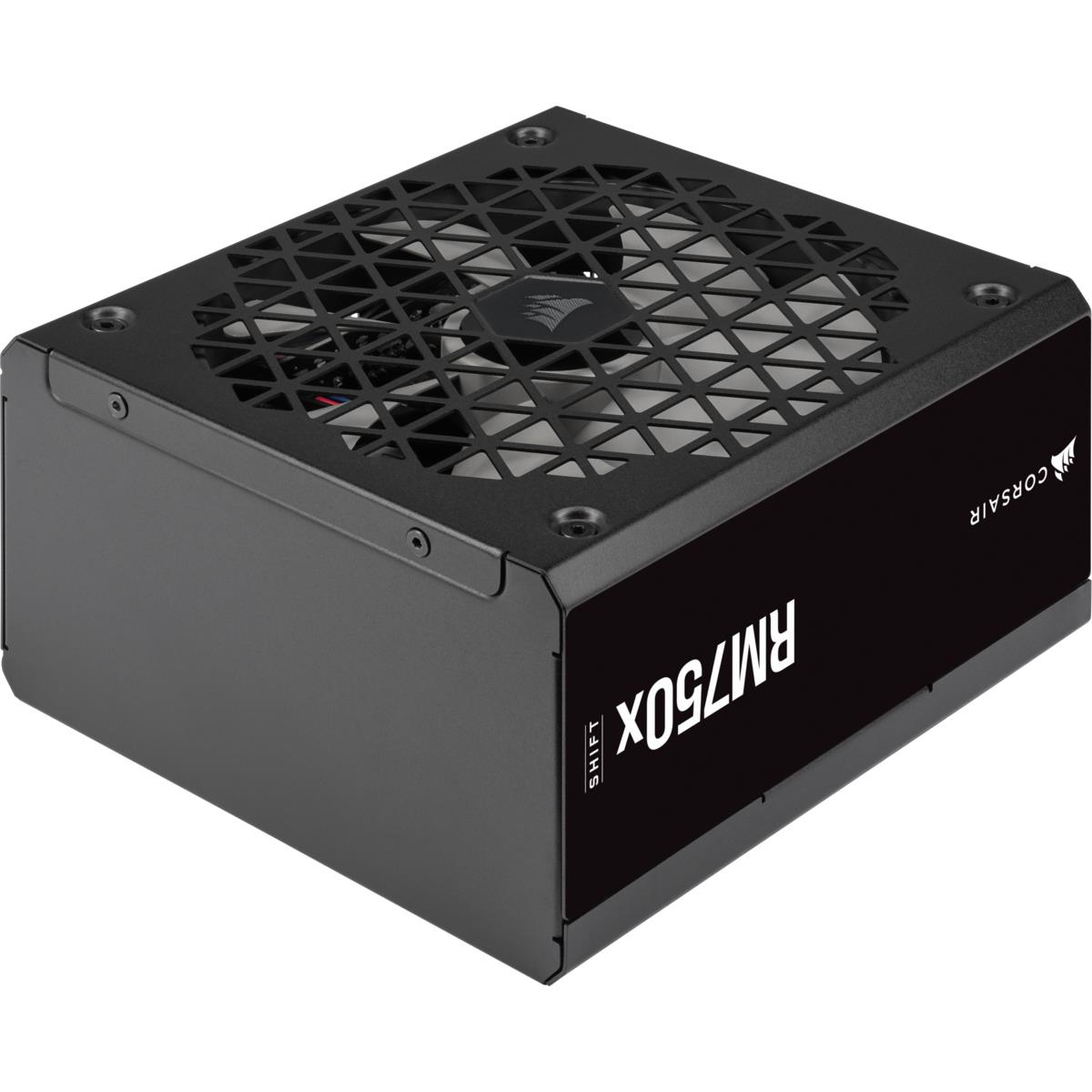

CORSAIR RMx SHIFT Series fully modular power supplies boast a revolutionary patent-pending side cable interface to keep all your connections within easy reach, for exceptionally convenient 80 PLUS Gold efficient power.
NO MORE FUMBLING AROUND

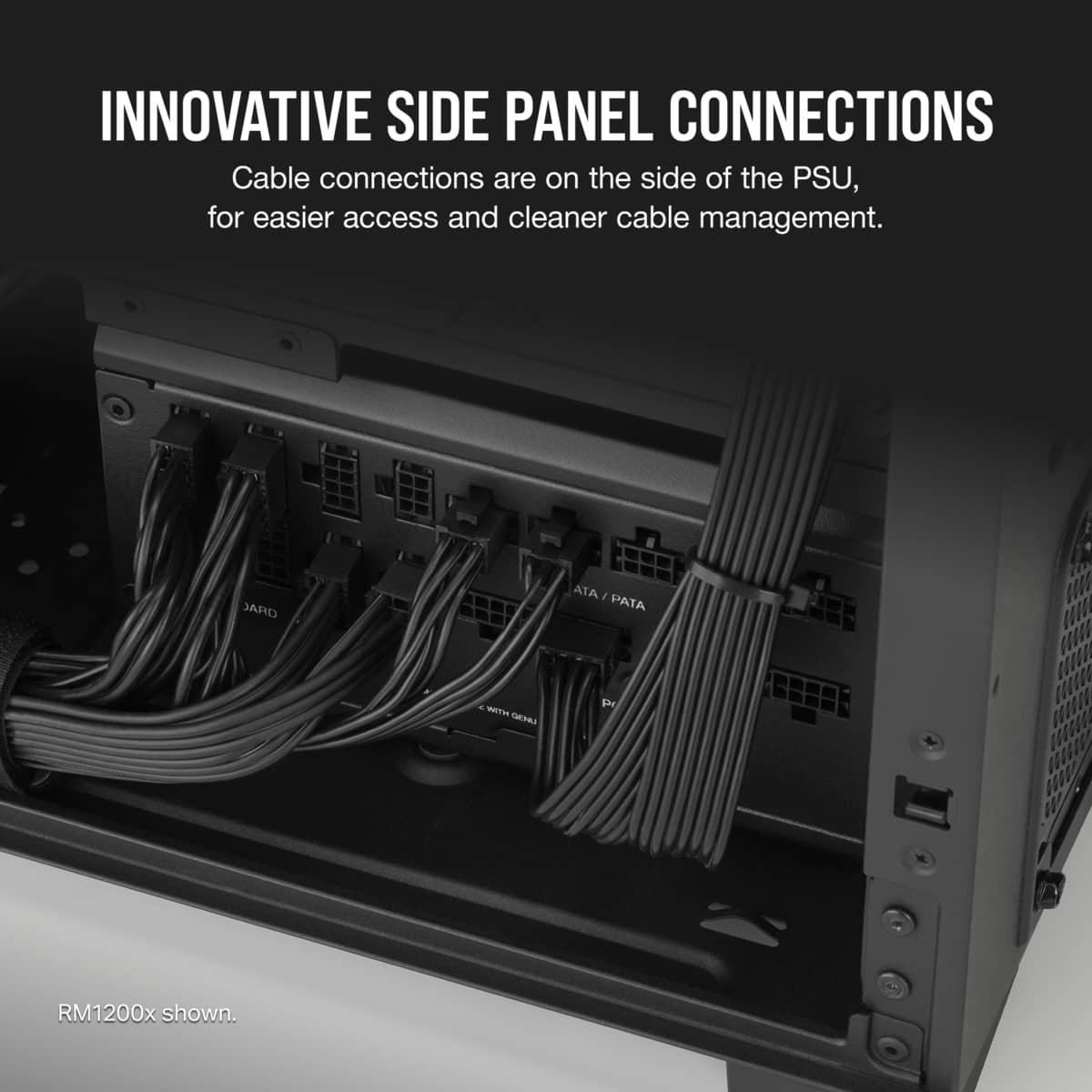

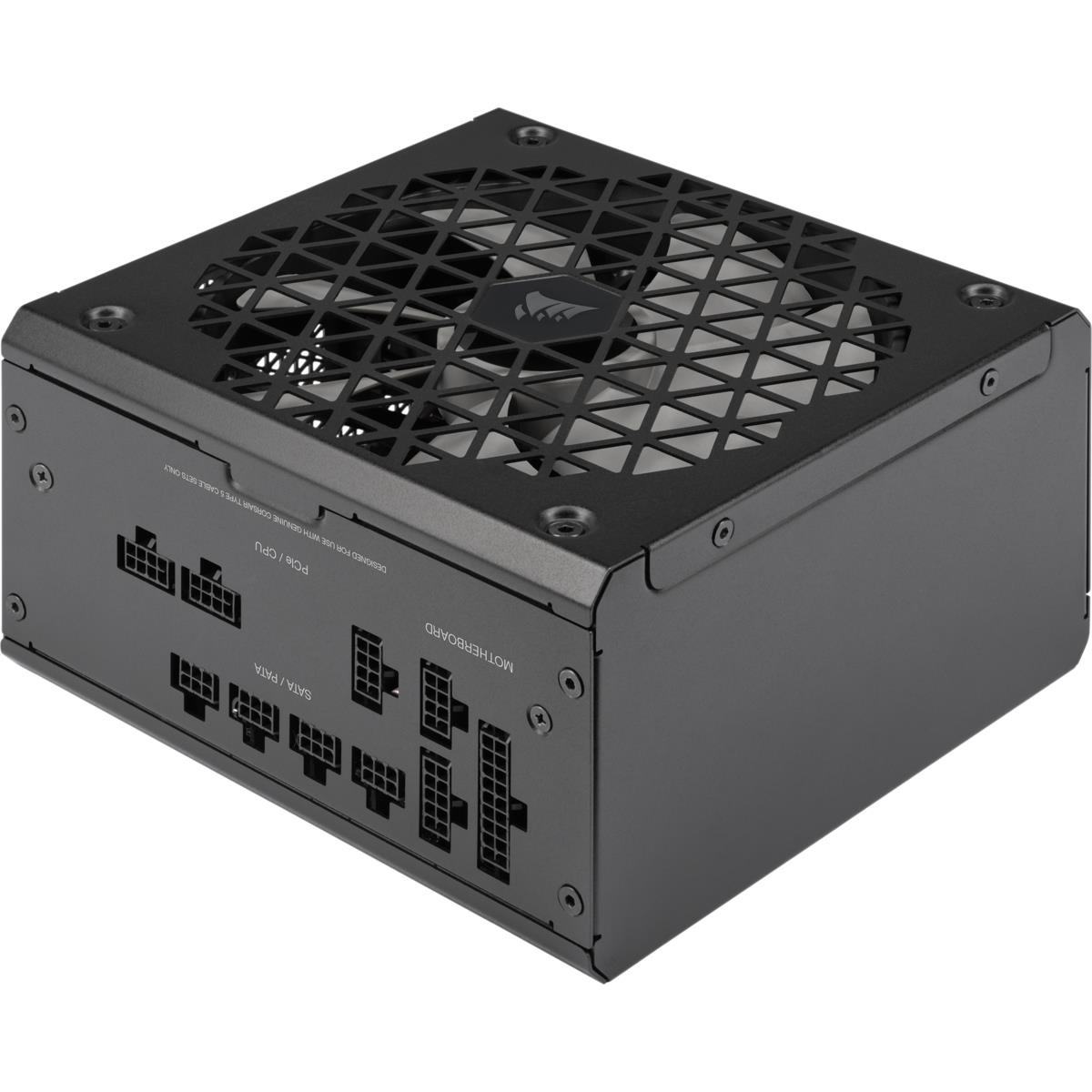

SIDE MOUNTED CONNECTIONS

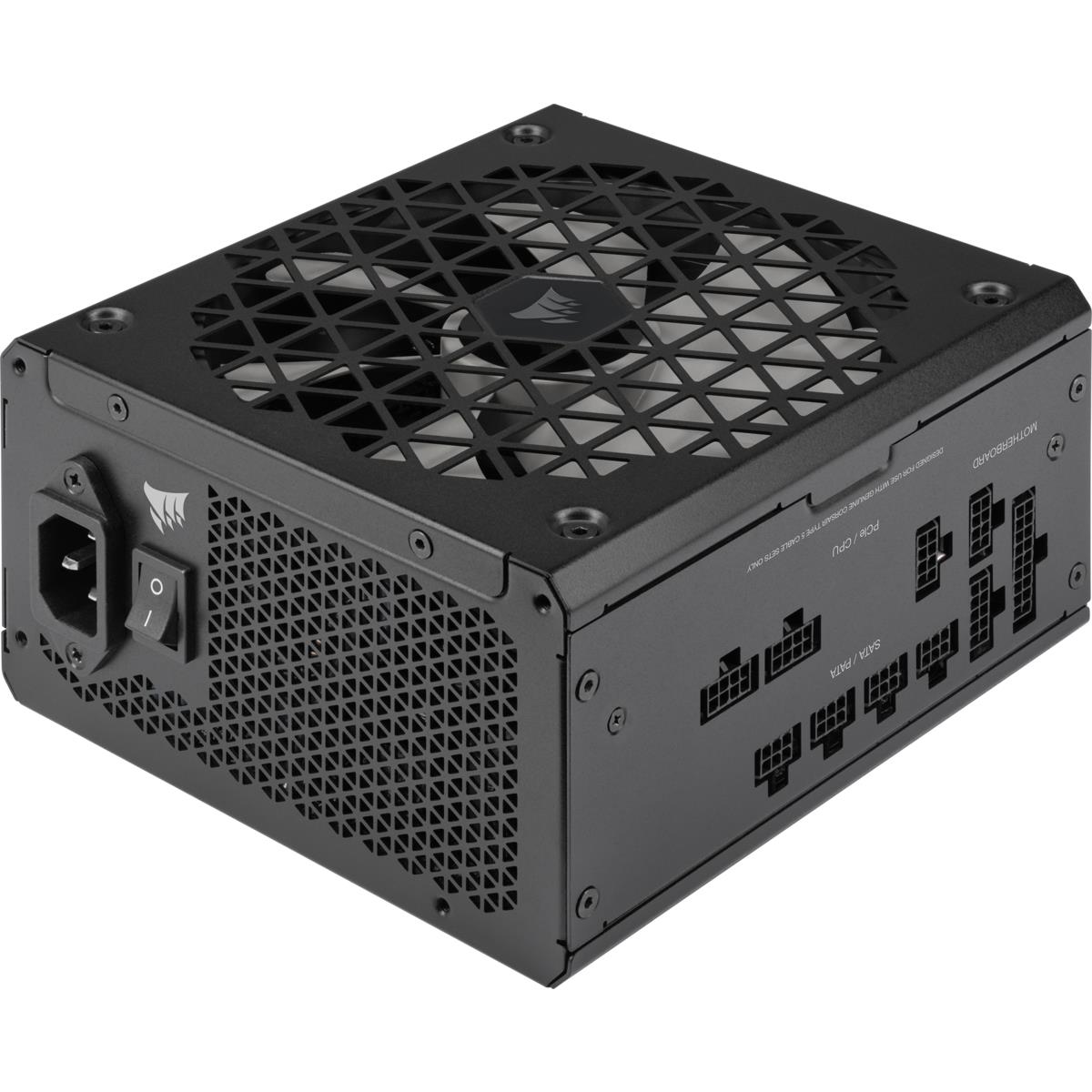

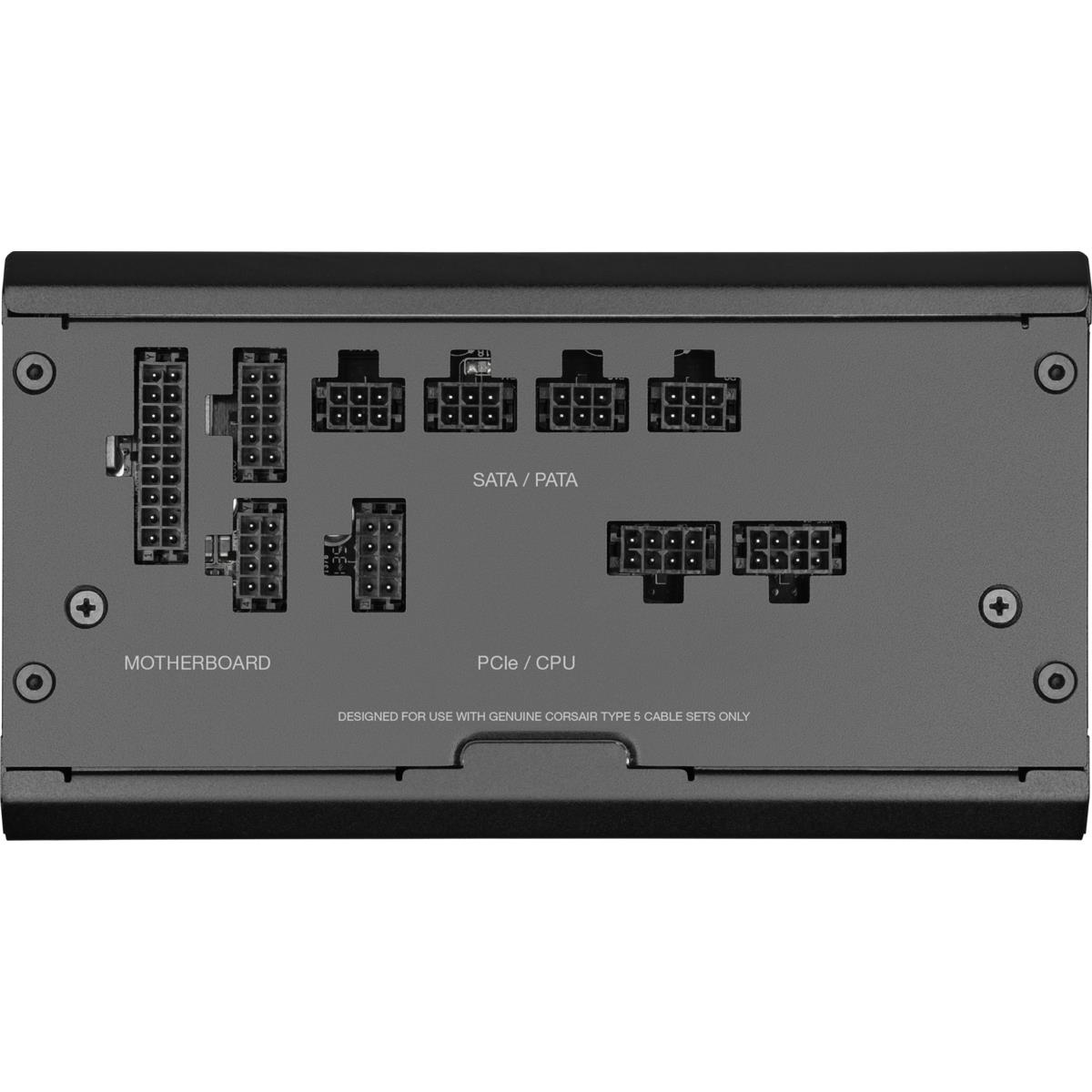

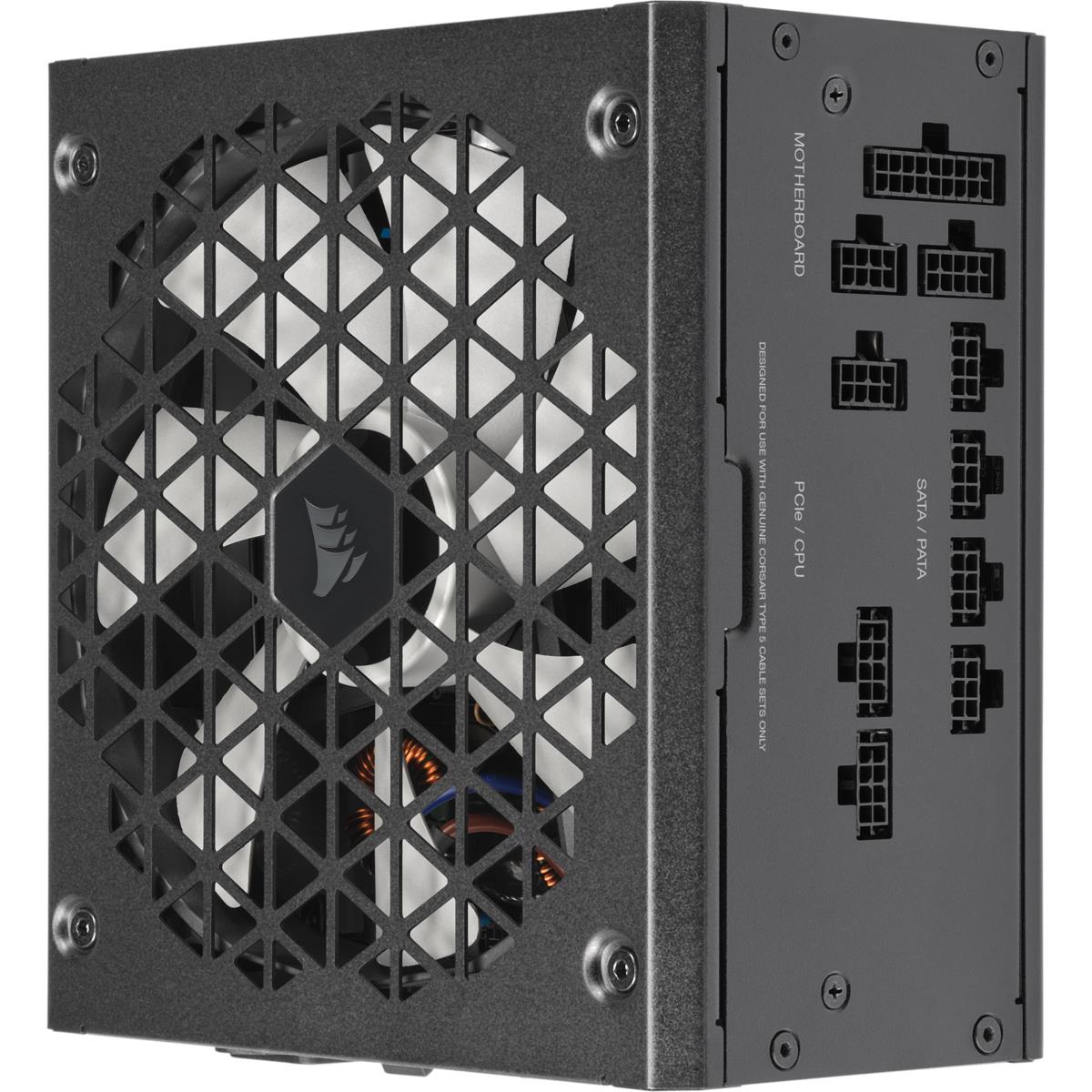

An innovative patent-pending side PSU panel with modular connections lets you comfortably plug cables into the side face of the PSU, making it easier to connect and manage your cables than ever before.
ON THE CUTTING-EDGE
ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMx SHIFT Series PSUs are formally certified for ATX 3.0 compliance.
PCIe 5.0 12VHPWR GPU cables included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.

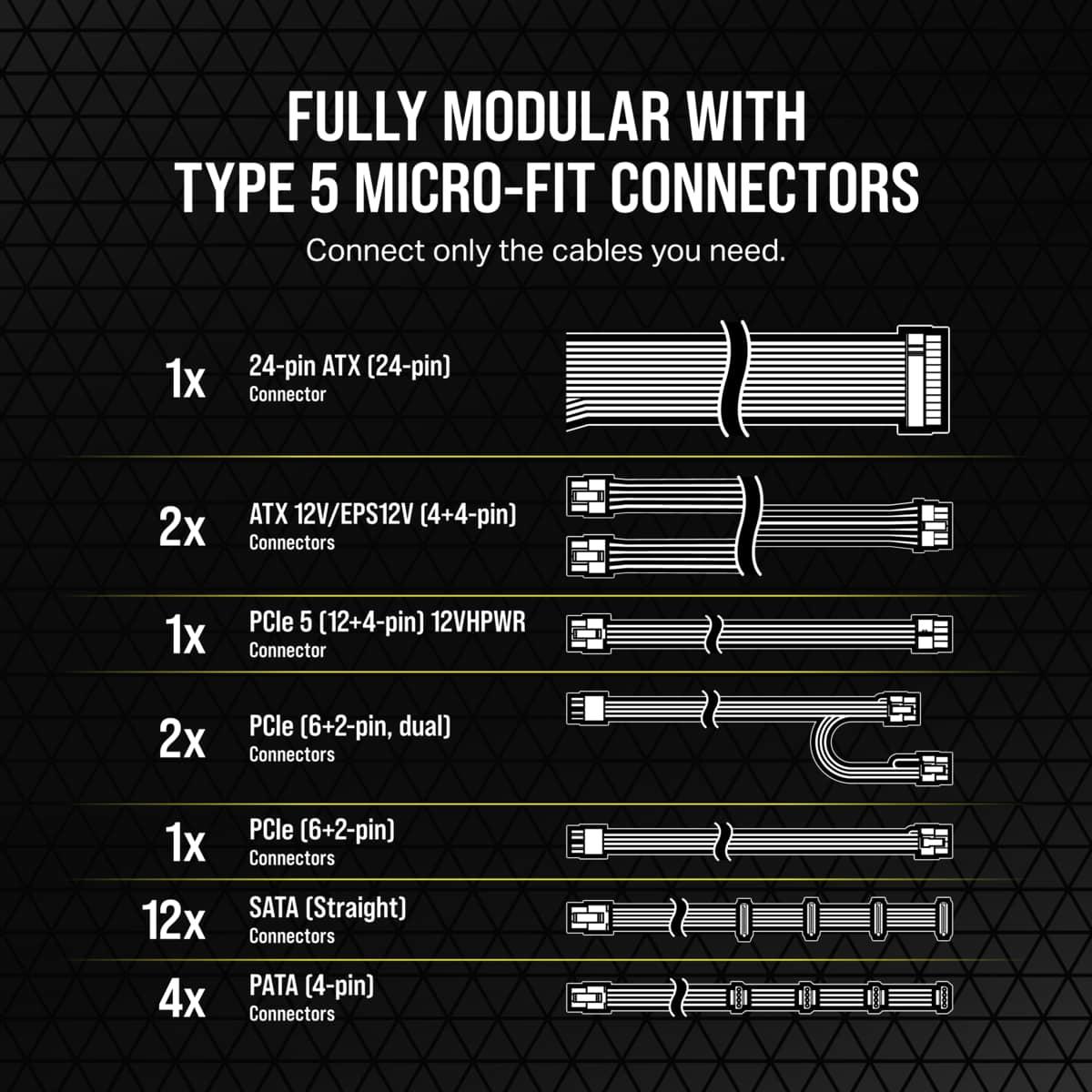

FULLY MODULAR
CORSAIR TYPE 5 MICRO-FIT CONNECTORS
Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space.

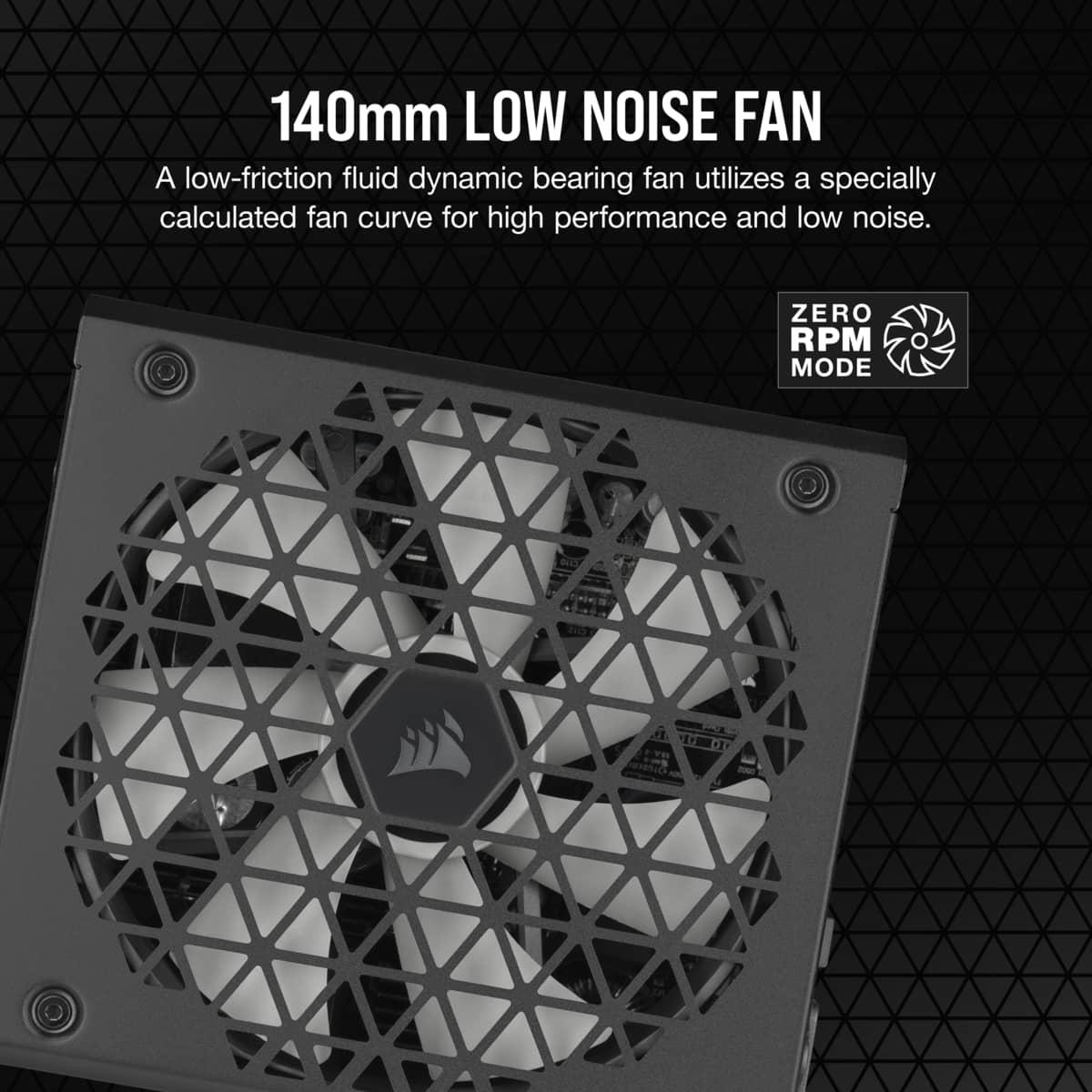

140mm FAN WITH ZERO RPM MODE SUPPORT
A low-friction, fluid dynamic bearing 140mm fan with Zero RPM mode support ensures your PSU runs cool while staying virtually silent when not under high load.

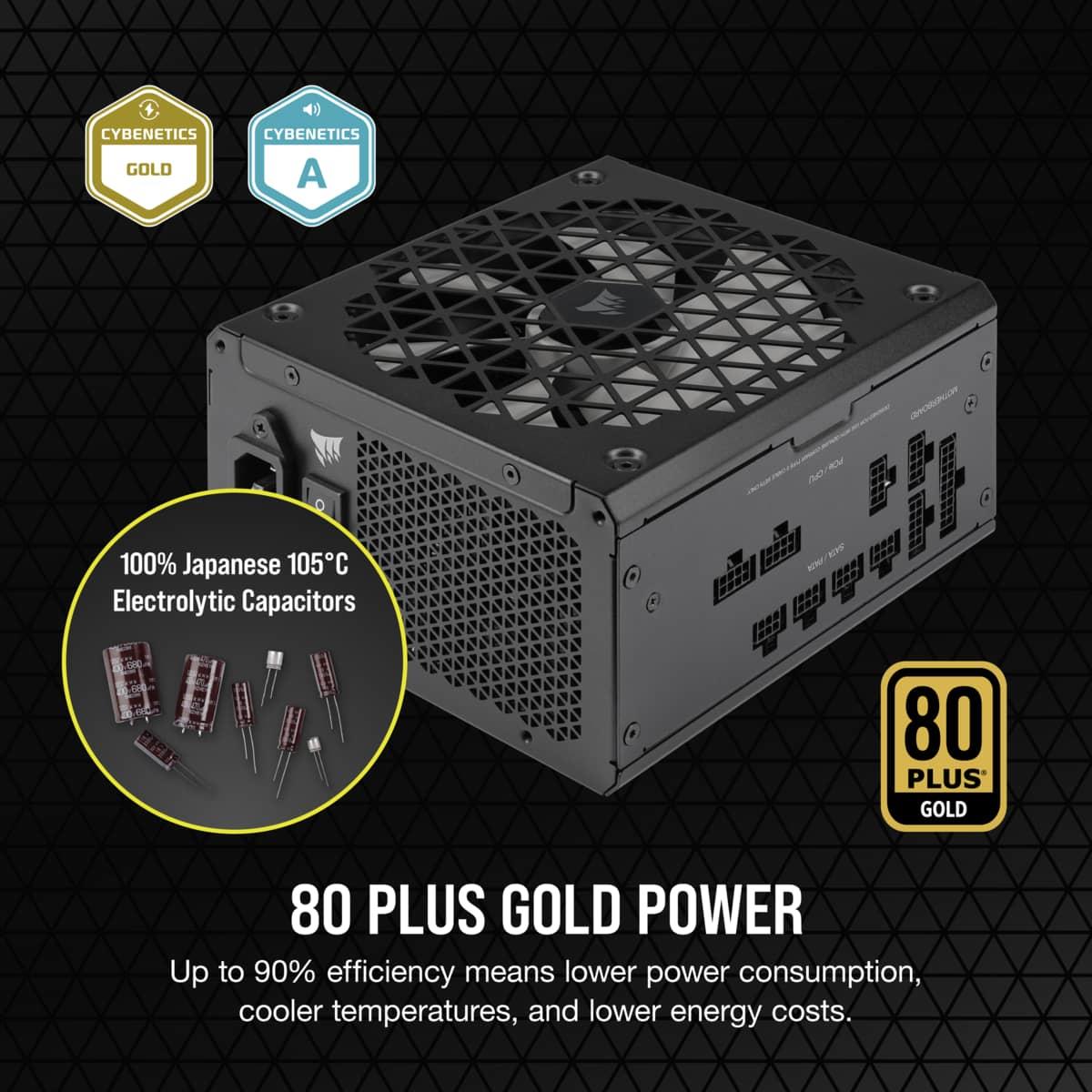

80 PLUS Gold certified
Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.
105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.
CASE COMPATIBILITY
The PSU and cables will fit in any PC case that supports ATX PSU format and is at least 210mm (8.3") wide. The PSU must also be accessible from the side when mounted in the case.
| Warranty | |
| Base Warranty | Non Non |
| Energie | |
| Totaal vermogen | 750 W |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 47 - 63 Hz |
| Stroom | 5 - 10 A |
| Gecombineerd vermogen (+3.3V) | 150 W |
| Gecombineerd vermogen (+12V) | 750 W |
| Gecombineerd vermogen (+5V) | 150 W |
| Gecombineerd vermogen(+5Vsb) | 15 W |
| Max huidige output (+3.3V) | 20 A |
| Max huidige output(+12V) | 62,5 A |
| Max huidige output (+5V) | 20 A |
| Max huidige output (+5Vsb) | 3 A |
| Efficientie | 90 procent |
| Stroomspanning bescherming | Overstroom, Te hoog vermogen, Overspanning, Oververhitting, Kortsluiting |
| Poorten & interfaces | |
| Motherboard power connector | 24-pin ATX |
| Lengte stroomkabel moederbord | 61 cm |
| Aantal SATA power connectors | 12 |
| Lengte SATA-stroomkabel | 455,570,685,800 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Lengte stroomkabel randapparaat (Molex) | 450,550,650,750 mm |
| EPS-voedingsconnector (4+4 pin) | Ja |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express-voedingsconnectoren (16-pins) | 1 |
| Lengte PCI Express-stroomkabel | 75 cm |
| Bekabelingstype | Volledig modulair |
| Prestatie | |
| 80 PLUS certificatie | 80 PLUS Gold |
| Bedoeld voor | Pc/server |
| Vormfactor van de voeding (PSU) | ATX |
| ATX version | 3.0 |
| EPS version | 2.92 |
| Design | |
| Kleur van het product | Zwart |
| Type koeling | Actief |
| Ventilator diameter | 14 cm |
| Aantal ventilatoren | 1 ventilator(en) |
| Inhoud van de verpakking | |
| Meegeleverde kabels | AC, DC |
| Inclusief kabelbinder(s) | Ja |
| Gewicht en omvang | |
| Breedte | 150 mm |
| Diepte | 160 mm |
| Hoogte | 86 mm |
| Gewicht | 1,6 kg |
| Technische details | |
| Naleving van duurzaamheid | Ja |
| Certificaten van naleving | Laagspanningsrichtlijn (LVD), RoHS, UKCA |
| Overige specificaties | |
| EPS-kabellengte | 65 cm |
| Inclusief schroeven | Ja |
