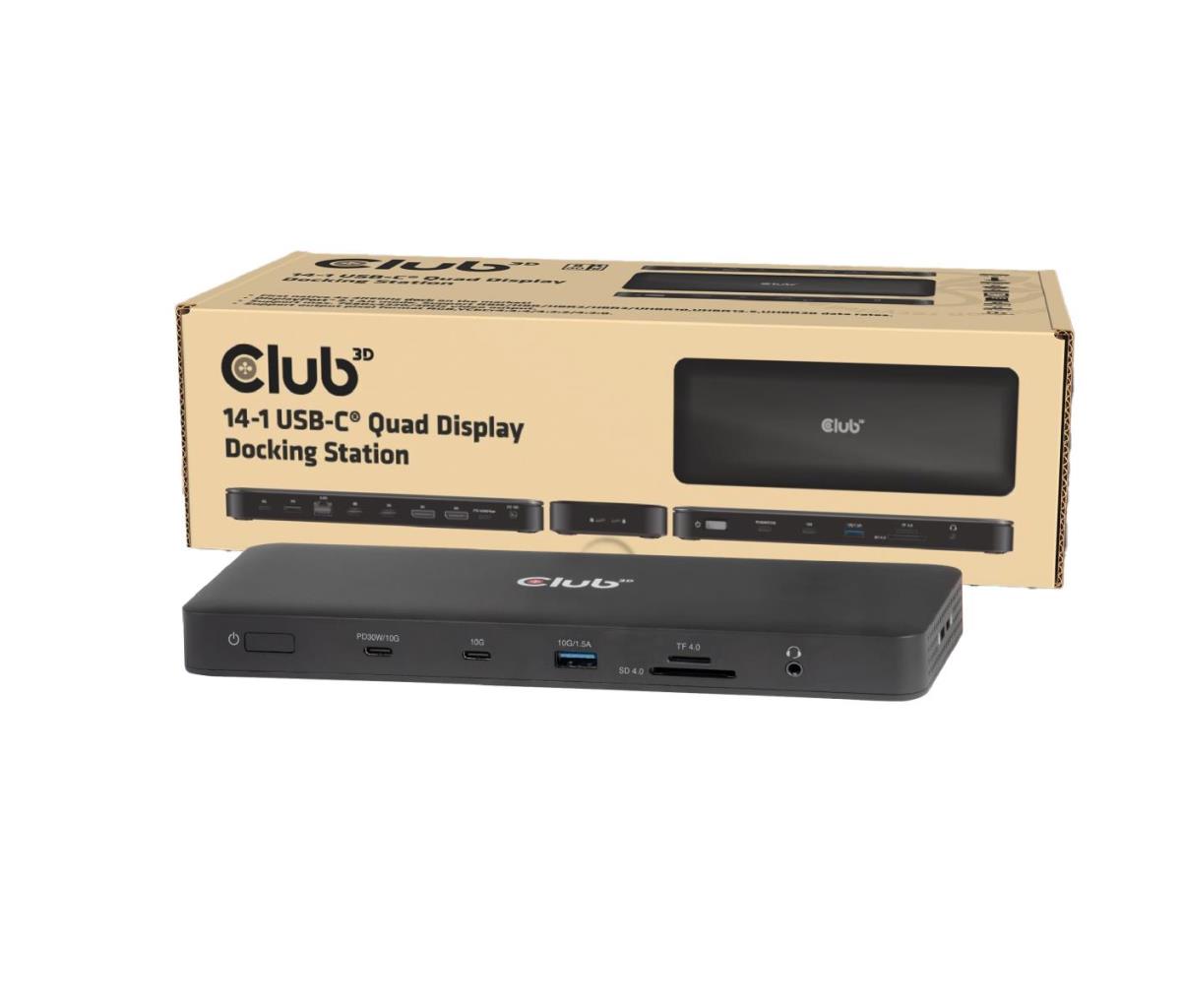

14-1 USB-c Quad Display Docking Station
ITCurry #: M4192963 | Article #: CSV-2540-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
- First native 4x 4K60Hz dock on the market!
- DisplayPort™ 2.1 Alt mode. Support RBR/HBR/HBR2/HBR3/UHBR10,UHBR13.5,UHBR20 data rates.
- Support max. 7680x4320/30Hz video output. Pixel format RGB,YCbCr4:4:4/4:2:2/4:2:0. HDR10+ and HDCP V1.4/V2.3.
- The USB-C® port close to the power switch supports max PD 30W(5V@3A,9V@3A,15@2A,20V@1.5A) charging for USB-C® mobile phone and other devices.
- USB-A 5Gbps has 900mA.The rest of the USB ports supports 1.5A downstream charging.
- DisplayPort™ supports DP++ which enables to use a DP™ to HDMI™ adapters.
- Power Switch & Power indicator LED.
- Making full use of external 150W power, offering max 100W for connected PC/Laptop as well as max 30W downstream charging for connected USB-C® mobile devices.
- Ultra-fast 2.5G speed supported, offering an even more seamless and responsive internet experience.
- Widely Compatibility: compatible with all Thunderbolt™ and full-featured USB-C® laptops.
| Poorten & interfaces | |
| Connectiviteitstechnologie | Docking |
| Hostinterface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 2 |
| Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C | 3 |
| Aantal USB-Powershare-poorten ondersteund | 1 |
| USB Power Delivery (USB PD) | Ja |
| USB Power Delivery herziening | 3.0 |
| USB Power Delivery tot max. | 100 W |
| Aantal HDMI-poorten | 2 |
| Aantal DisplayPorts | 2 |
| Hoofdtelefoonuitgangen | 1 |
| Type aansluitplug | 3,5 mm |
| HDCP | Ja |
| HDCP versie | 1.4/2.3 |
| USB Type-C DisplayPort alternatieve modus | Ja |
| Netwerk | |
| Ethernet LAN | Ja |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000,2500 Mbit/s |
| Prestatie | |
| Ge‹ntegreerde geheugenkaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash), SD |
| HD type | 8K Ultra HD |
| Resolutie (maximum digitaal) | 7680 x 4320 Pixels |
| Maximale refresh snelheid | 60 Hz |
| Kleur van het product | Zwart |
| HDR-ondersteuning | Ja |
| LED-indicatoren | Ja |
| Energie | |
| Type stroombron | USB |
| Netstekker | USB Type-C |
| USB kabel lengte | 1 m |
| Software | |
| Ondersteunt Windows | Windows 10, Windows 11 |
| Gewicht en omvang | |
| Gewicht | 361 g |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Breedte verpakking | 275 mm |
| Diepte verpakking | 125 mm |
| Hoogte verpakking | 770 mm |
| Gewicht verpakking | 1,16 kg |
| Samenstelling van de verpakking | |
| Gewicht van plastic verpakking | 4 g |
| Gewicht papier-/kartonverpakking | 147 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 8473 3020 |
| Warranty | |
| Base Warranty | Non Non |
