1 To 8 Hdmi Splitter Full 3d And 4k60hz
ITCurry #: M4192913 | Article #: CSV-1383-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

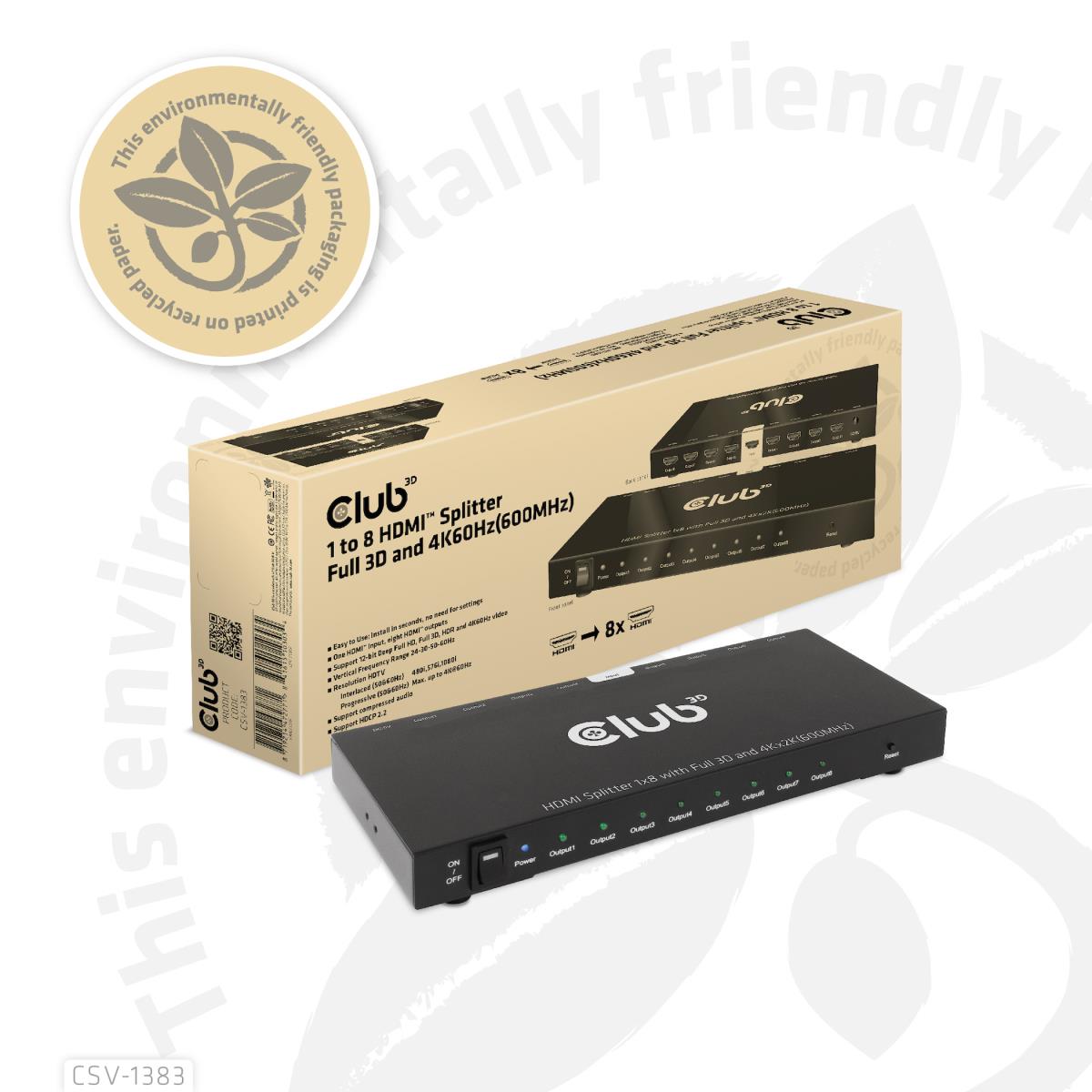

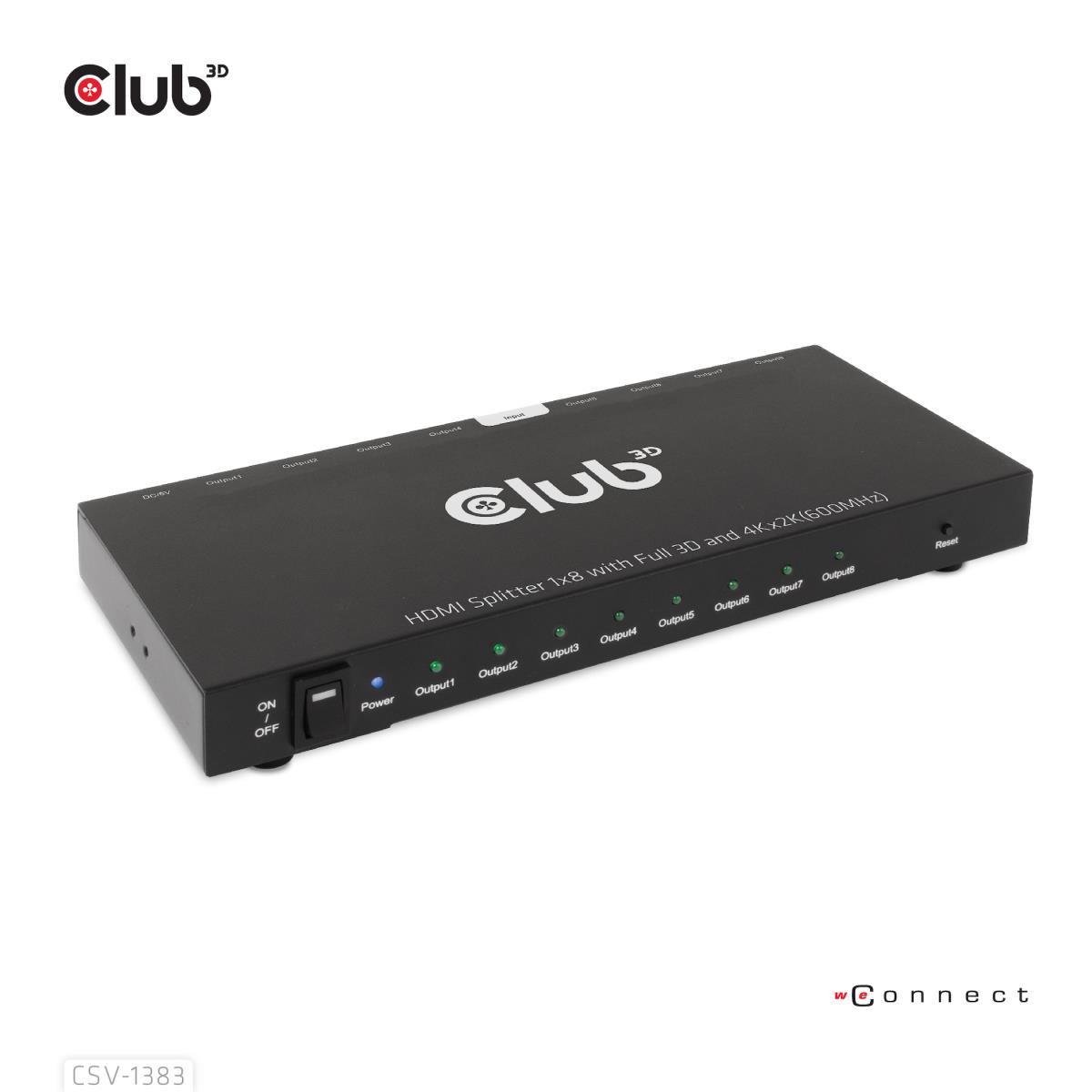

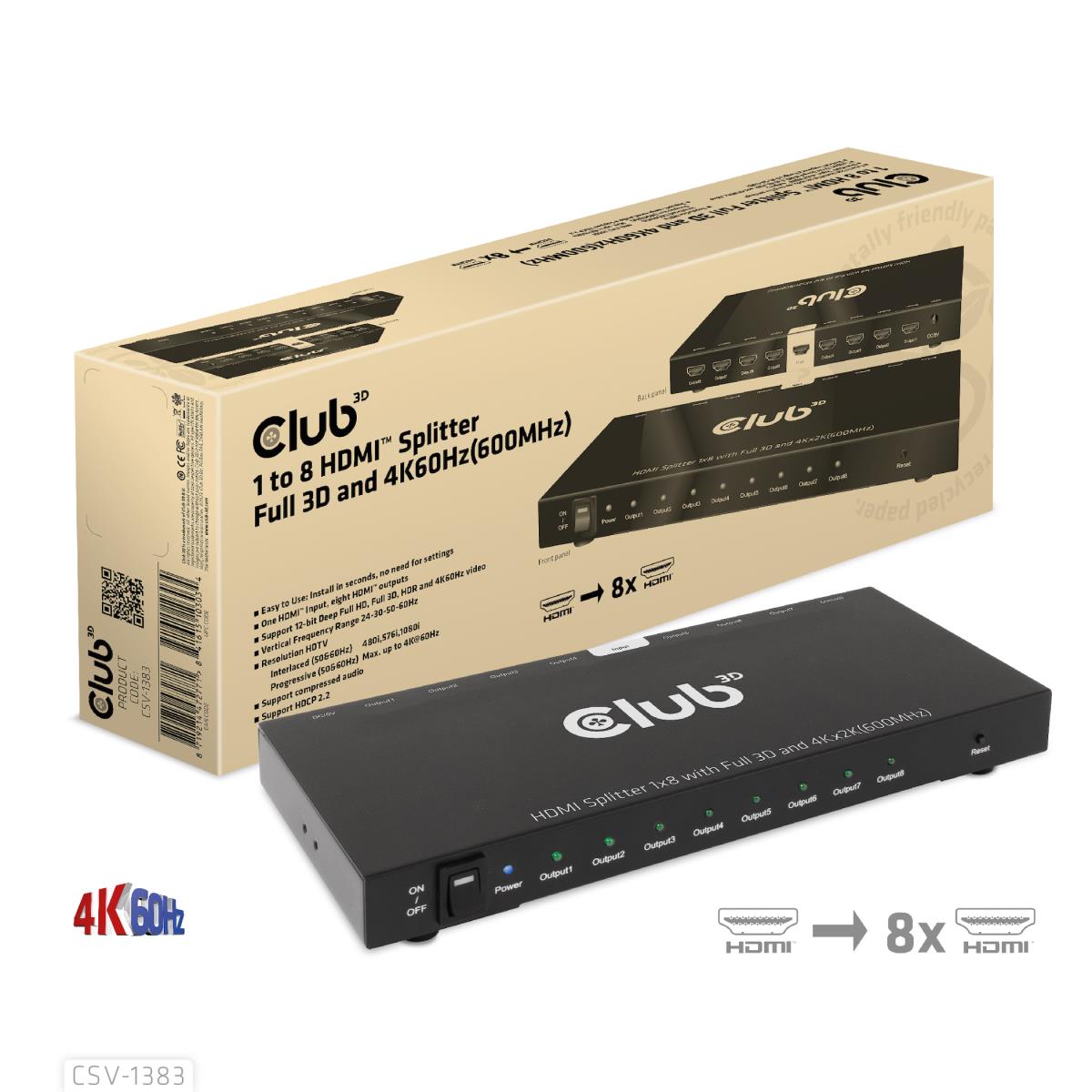

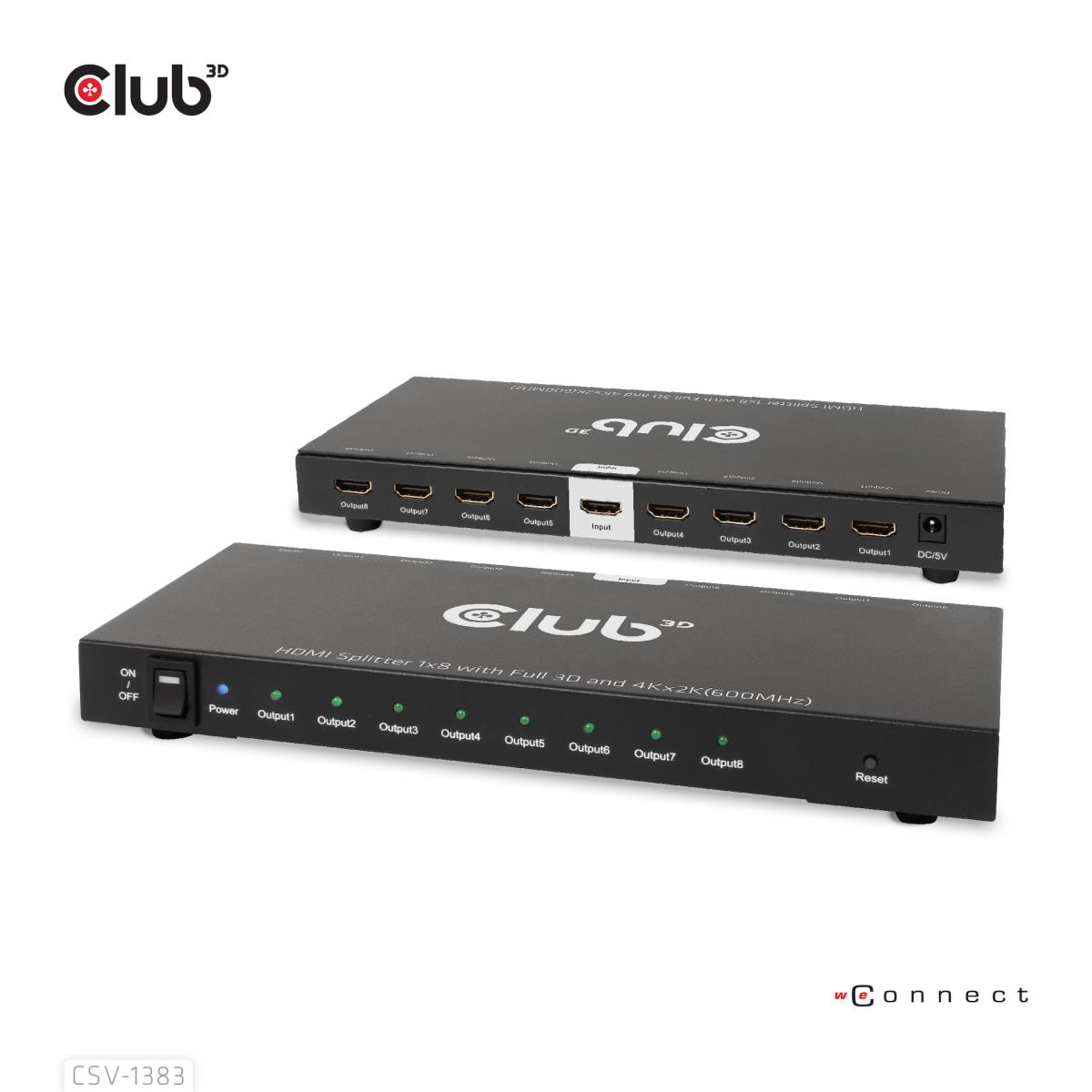

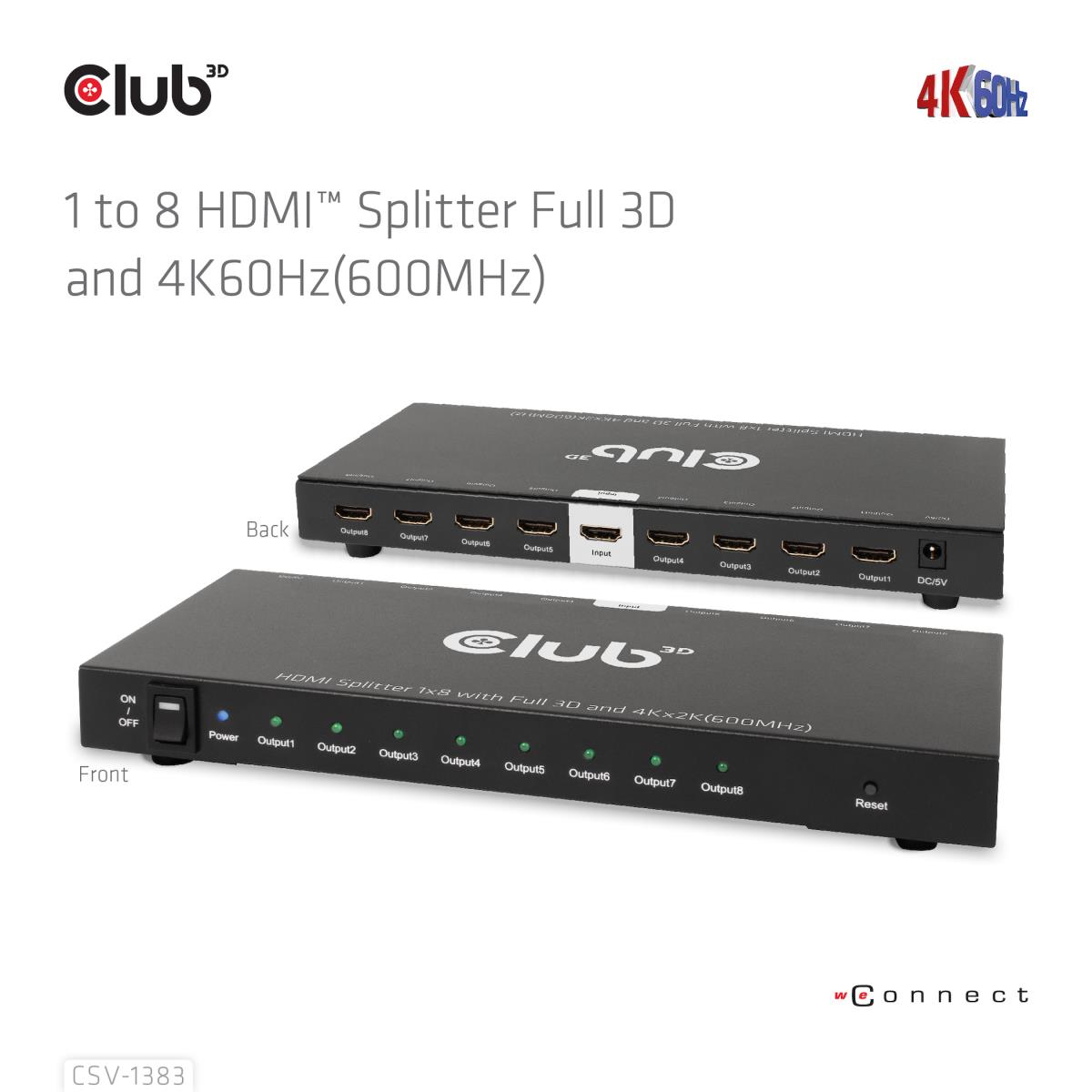

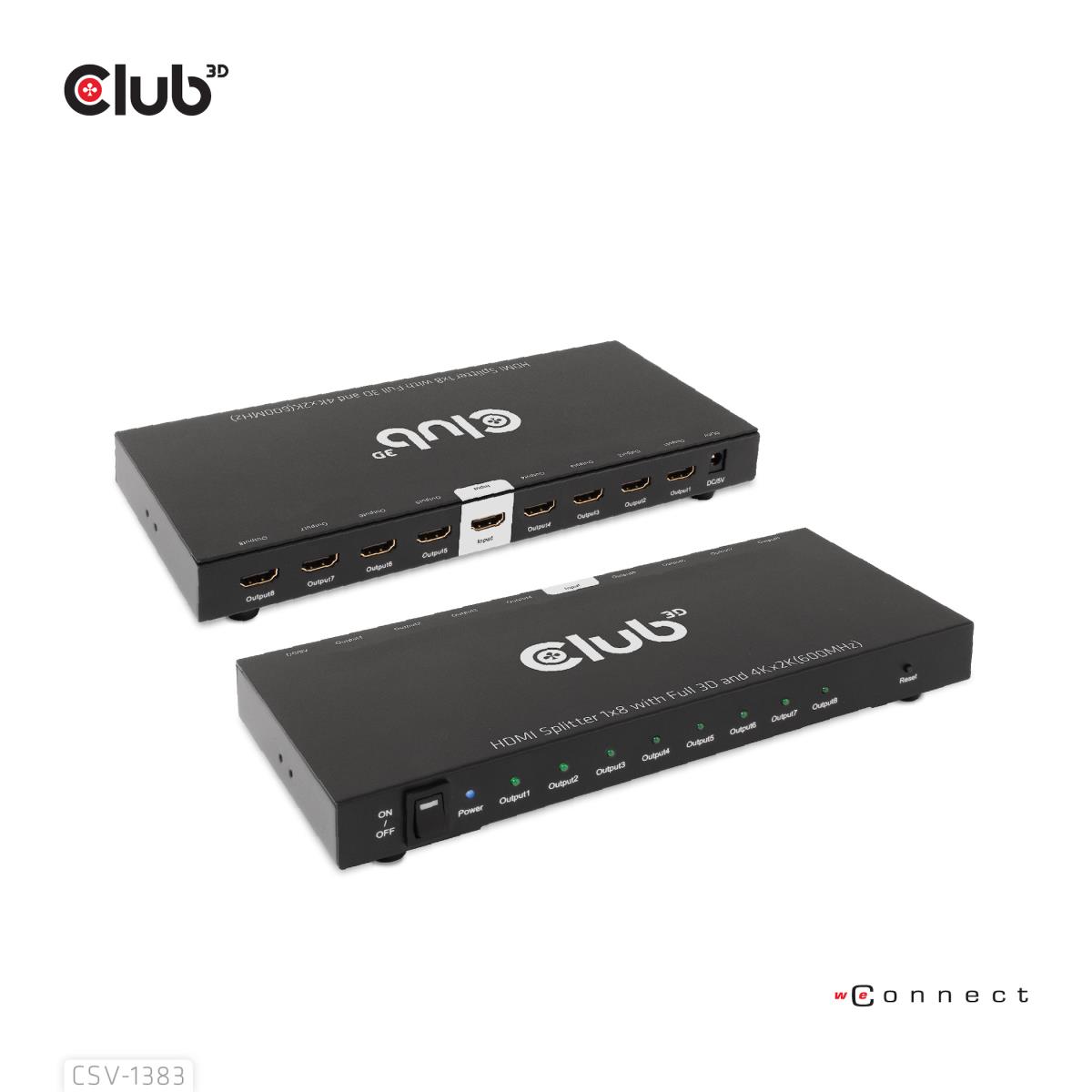

The Club 3D CSV-1383 is a high-performance and small-sized 1 to 8 HDMI™ Ultra

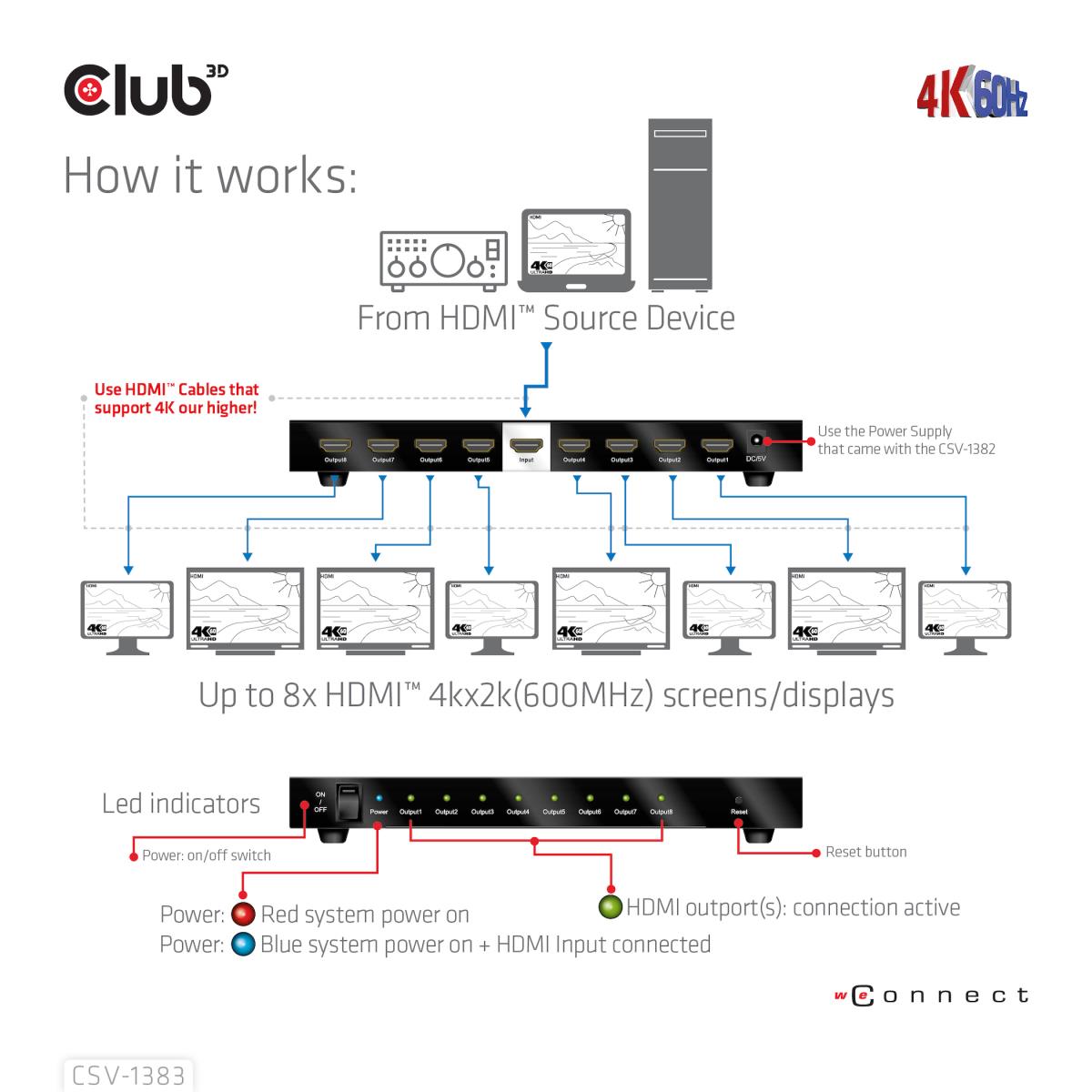

High Definition Splitter with hot plug and iron casing. It distributes the input of
the HDMI™ signal into eight identical outputs at the same time. It provides high
performance audio and video output through HDMI™ cables up to 4K@60Hz
resolution and is capable of receiving and transmitting up to 6Gbps/600MHz
bandwidth.

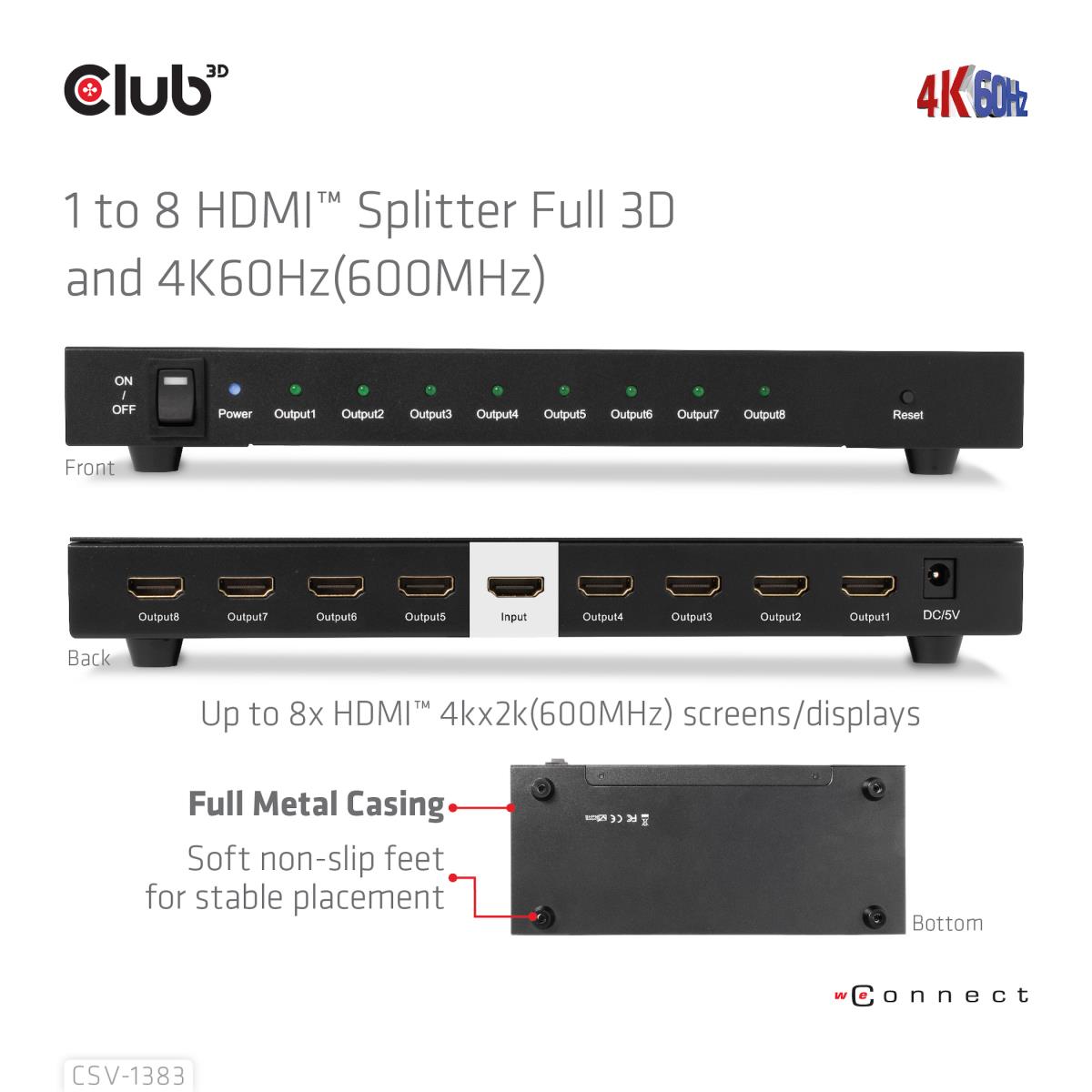

This is a high-performance and small-sized HDMI™ splitter in a metal housing with
an external Power Supply of 100-240VAC / 5V-3A DC, Power consumption(Max.)
11.3 Watt. It's an ideal assistant both at home and at work.

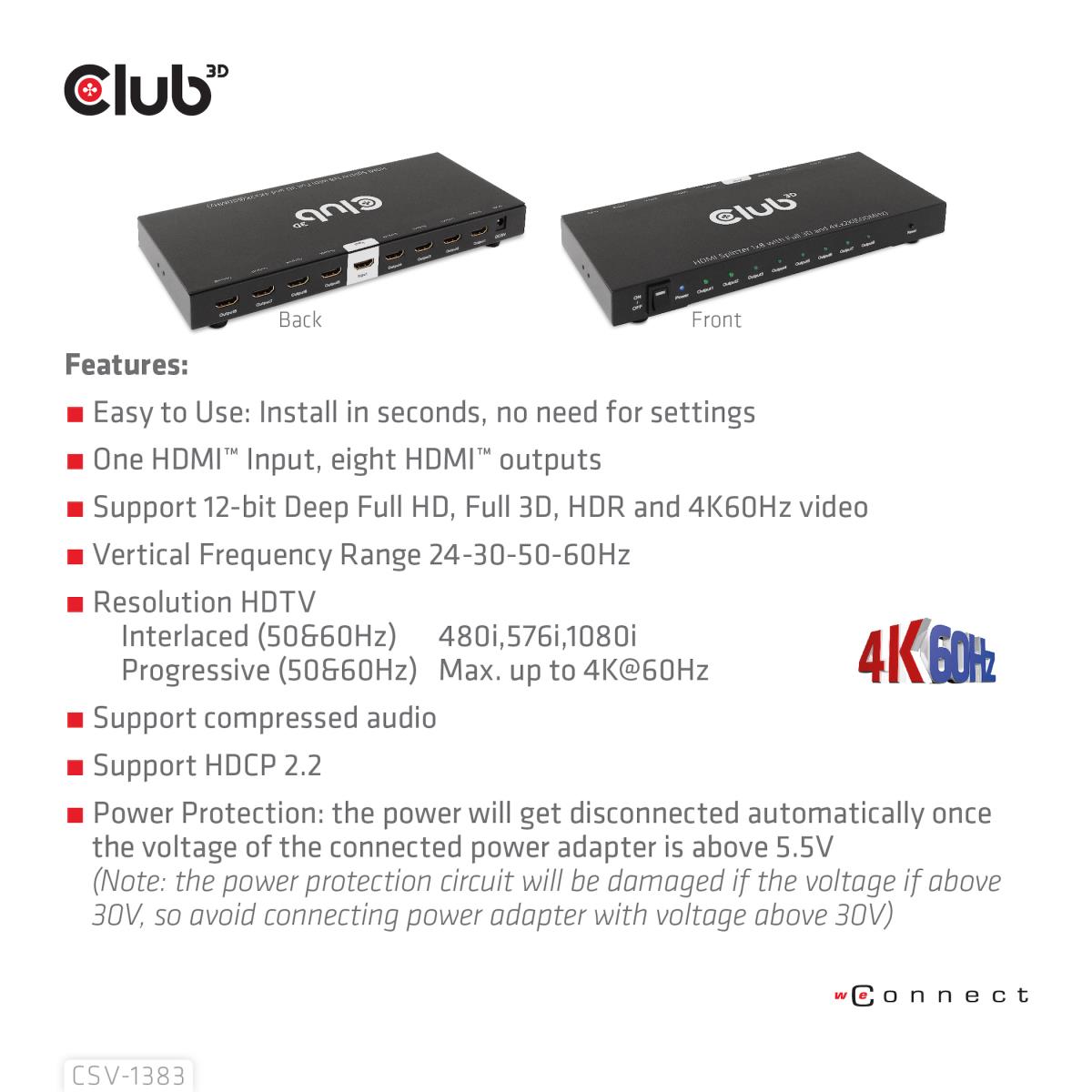

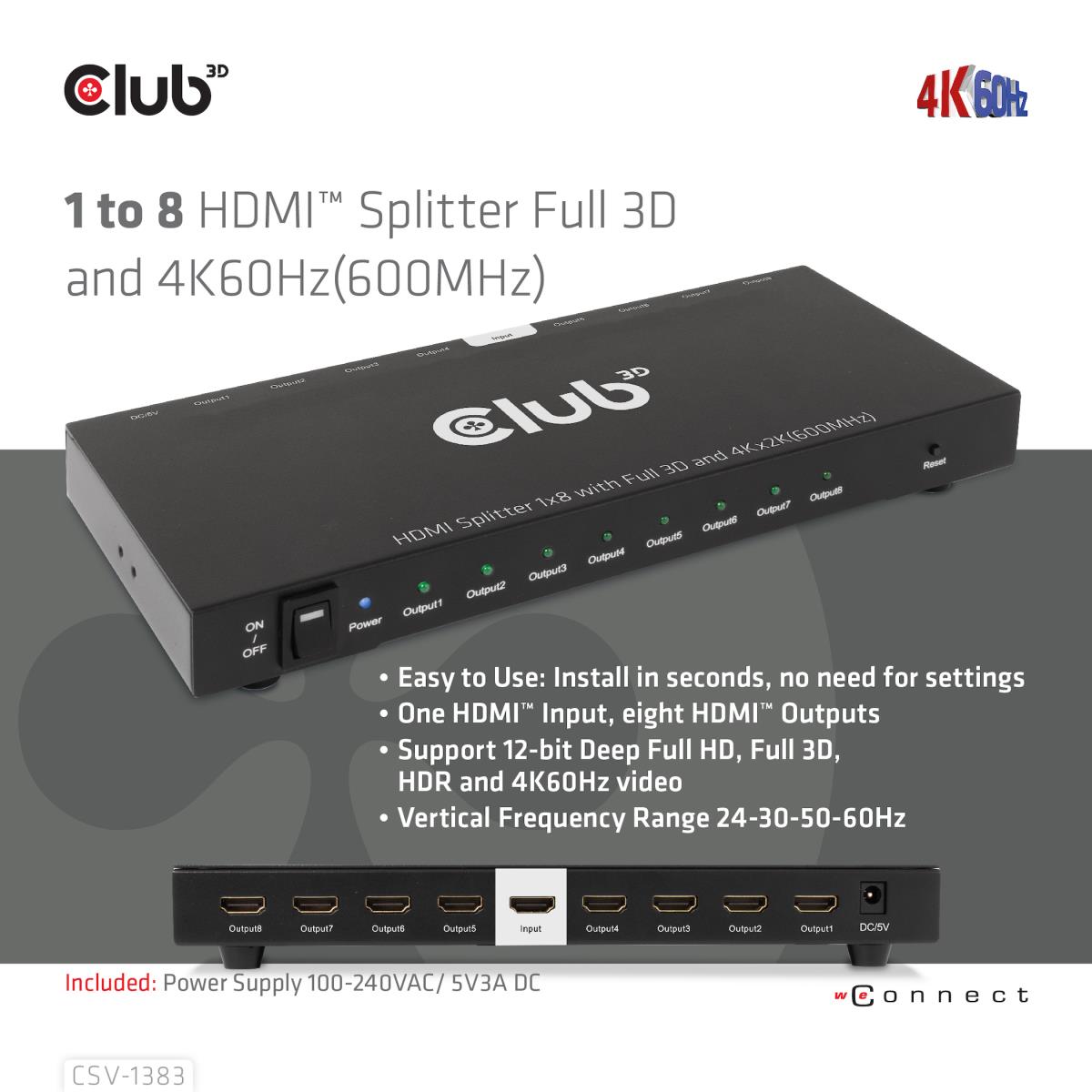

Features:
• Easy to Use: Install in seconds, no need for settings

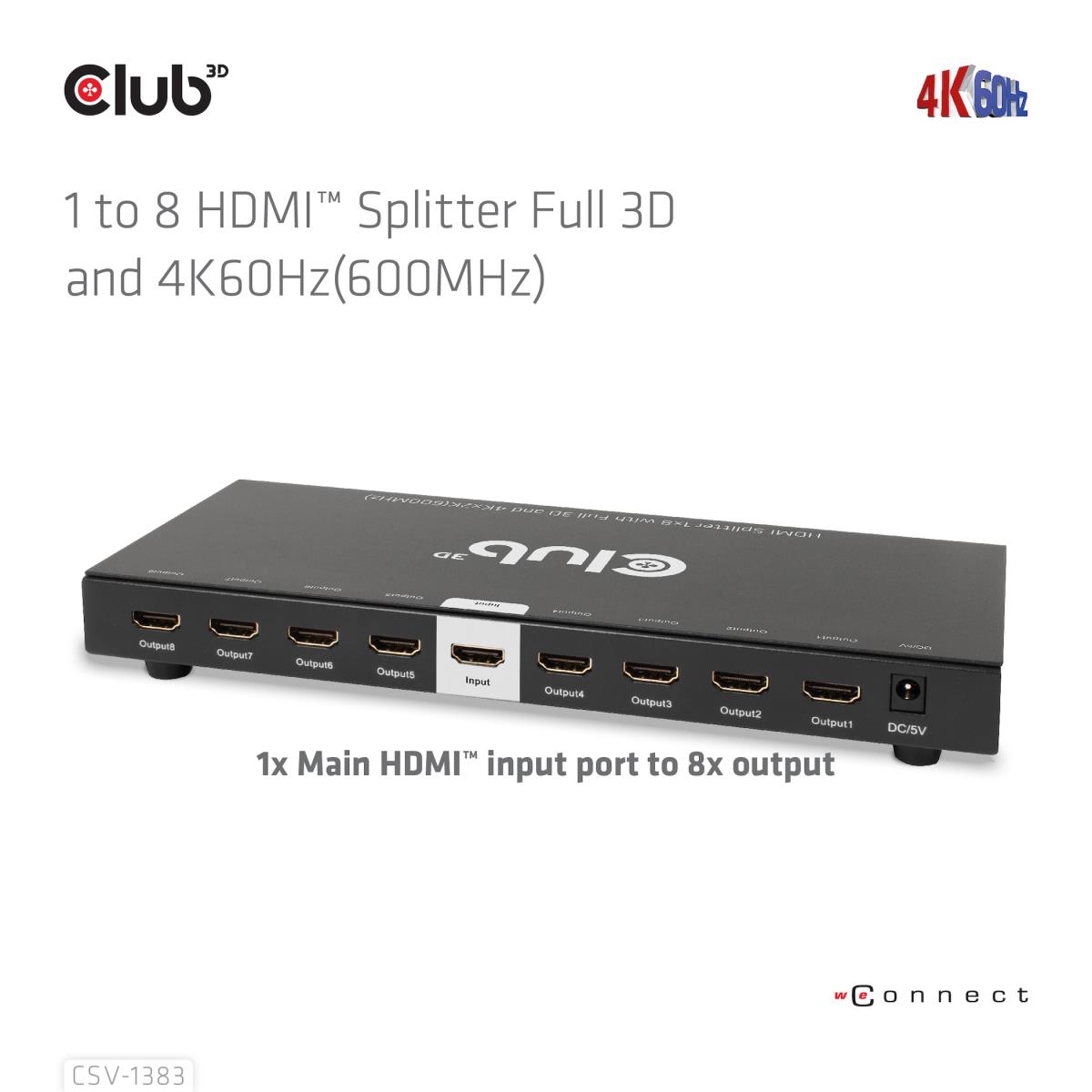

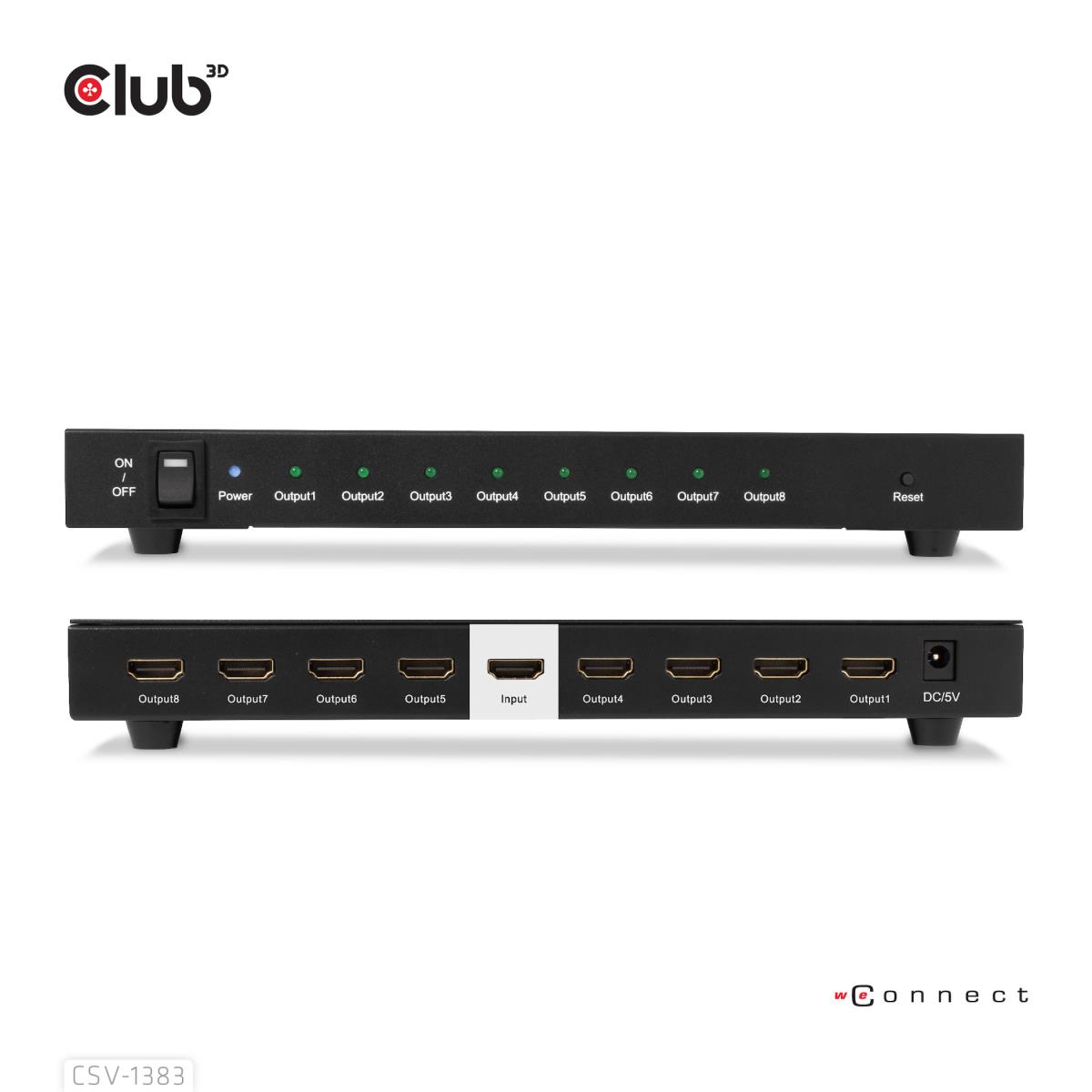

• One HDMI™ Input, eight HDMI™ outputs
• Support 12-bit Deep Full HD, Full 3D, HDR and 4K60Hz video
• Vertical Frequency Range 24-30-50-60Hz
• Resolution HDTV
Interlaced (50&60Hz) 480i,576i,1080i
Progressive (50&60Hz) Max. up to 4K@60Hz
• Support compressed audio
• Support HDCP 2.2
• Power Protection: the power will get disconnected automatically once the
voltage of the connected power adapter is above 5.5V (Note: the power
protection circuit will be damaged if the voltage if above 30V, so avoid
connecting power adapter with voltage above 30V)
• OS Support: Windows10/11
| Poorten & interfaces | |
| Aansluiting video | HDMI |
| Video uit | 8x HDMI |
| Hoeveelheid Video ports | 9 |
| Aansluiting voor netstroomadapter | Ja |
| Kenmerken | |
| Kleur van het product | Zwart |
| Maximum resolutie | 3840 x 2160 Pixels |
| HD type | 4K Ultra HD |
| 3D | Ja |
| Maximale refresh snelheid | 60 Hz |
| HDCP versie | 2.2 |
| Rack-montage | Nee |
| HDCP | Ja |
| Gemakkelijk te installeren | Ja |
| Plug and play | Ja |

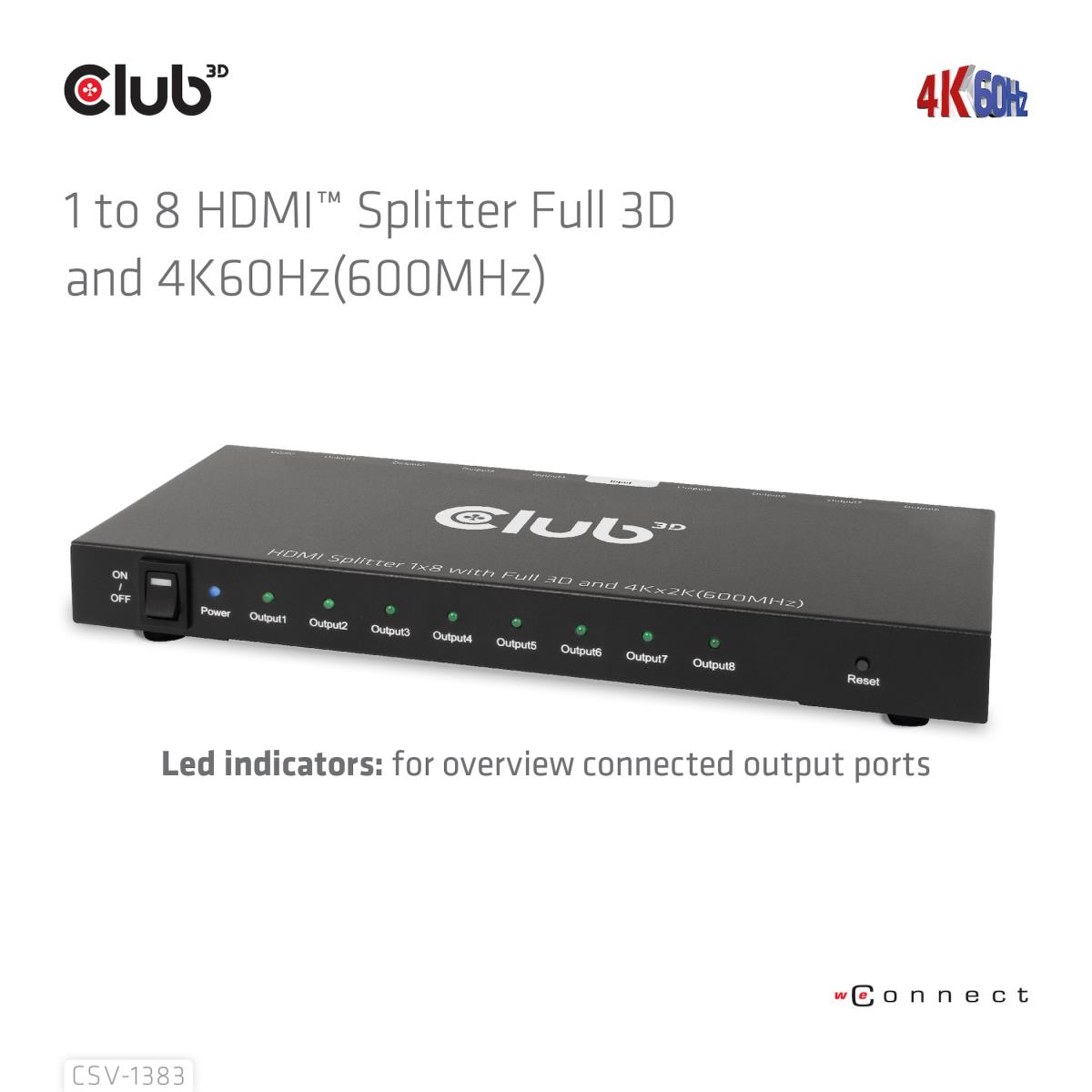

| LED-indicatoren | Stroom, Status |
| Aantal displays ondersteund | 8 |
| Ondersteunt Windows | Windows 10, Windows 11 |
| Netwerk | |
| Ethernet LAN | Nee |
| Wifi | Nee |
| Bluetooth | Nee |
| Gewicht en omvang | |

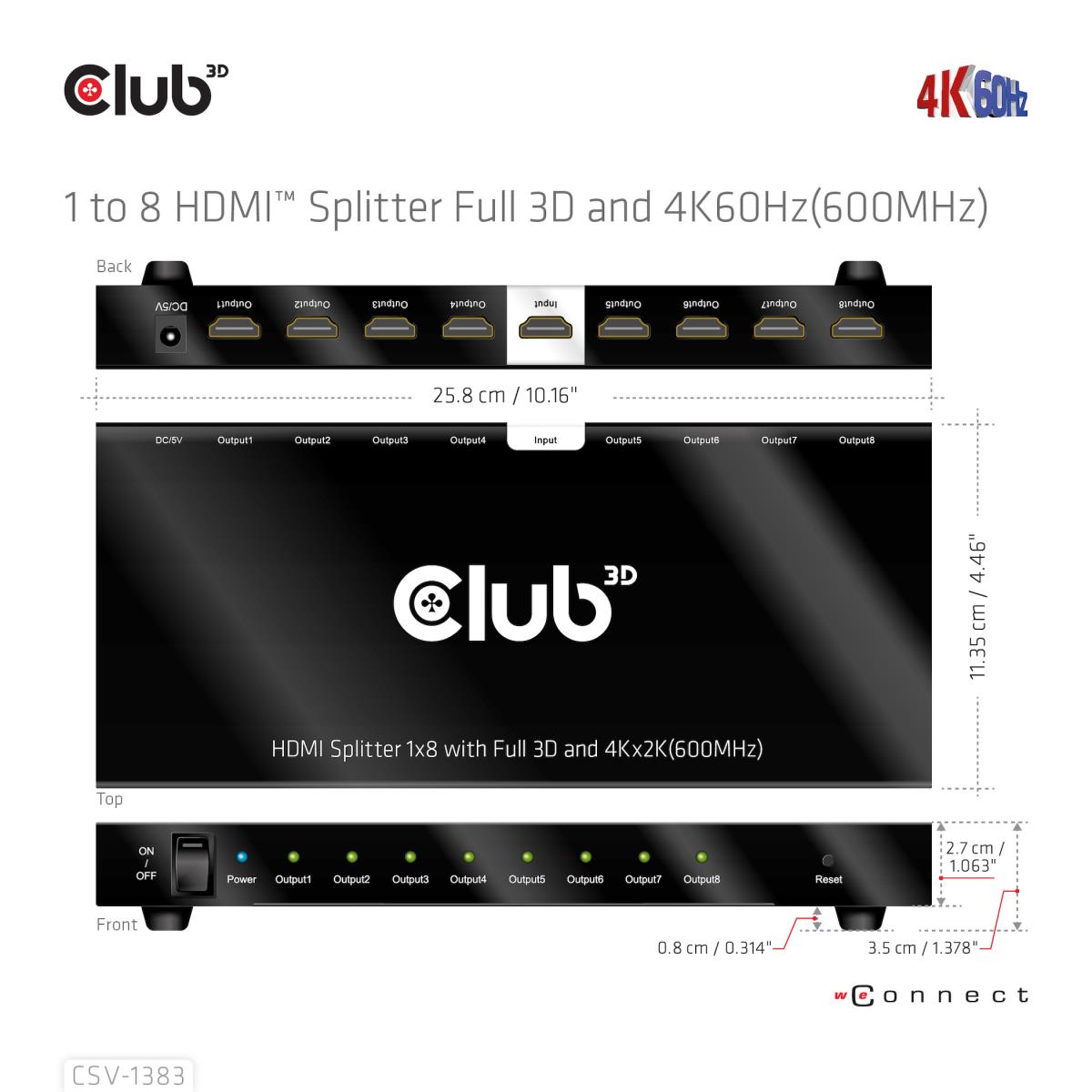

| Breedte | 258 mm |
| Diepte | 113 mm |
| Hoogte | 35 mm |
| Gewicht | 770 g |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Breedte verpakking | 350 mm |
| Diepte verpakking | 130 mm |
| Hoogte verpakking | 55 mm |
| Type verpakking | Doos |
| Gewicht van plastic verpakking | 0 g |
| Gewicht papier-/kartonverpakking | 137 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 274 g |
| Inhoud van de verpakking | |
| Gebruikershandleiding | Ja |
| Inclusief AC-adapter | Ja |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 8473 3020 |
| Warranty | |
| Base Warranty | Non Non |
